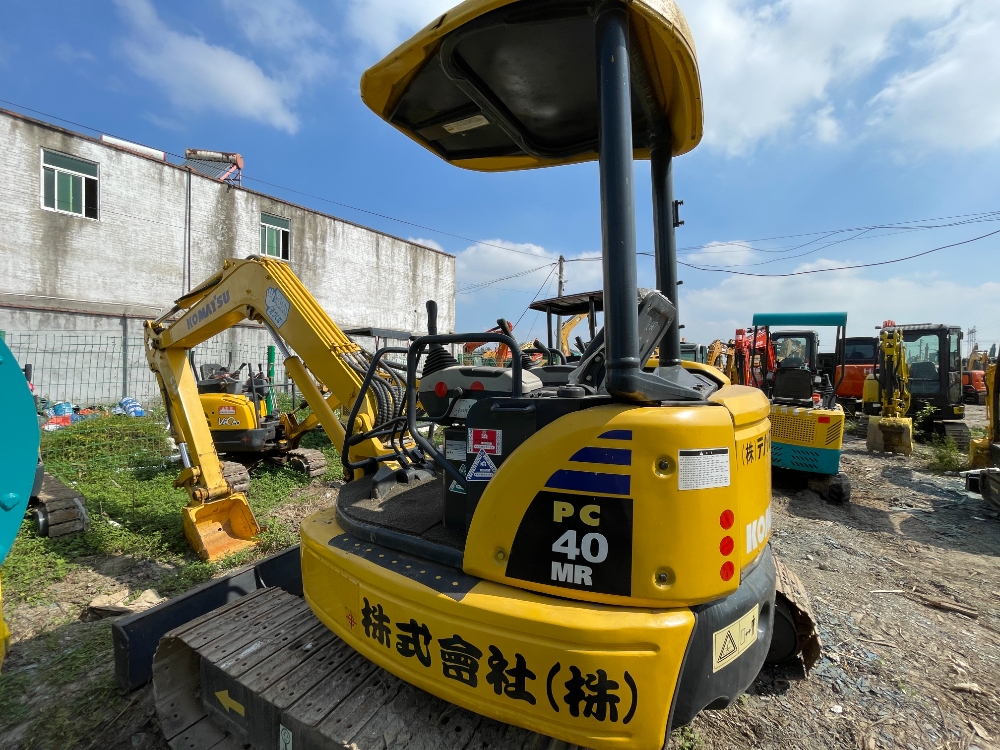

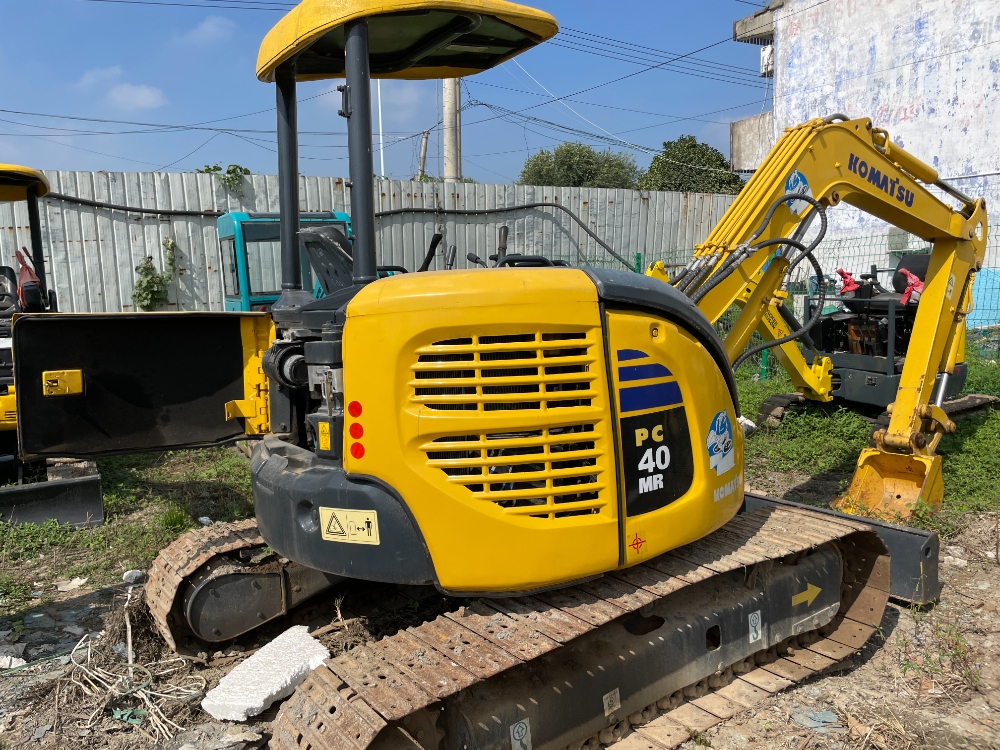

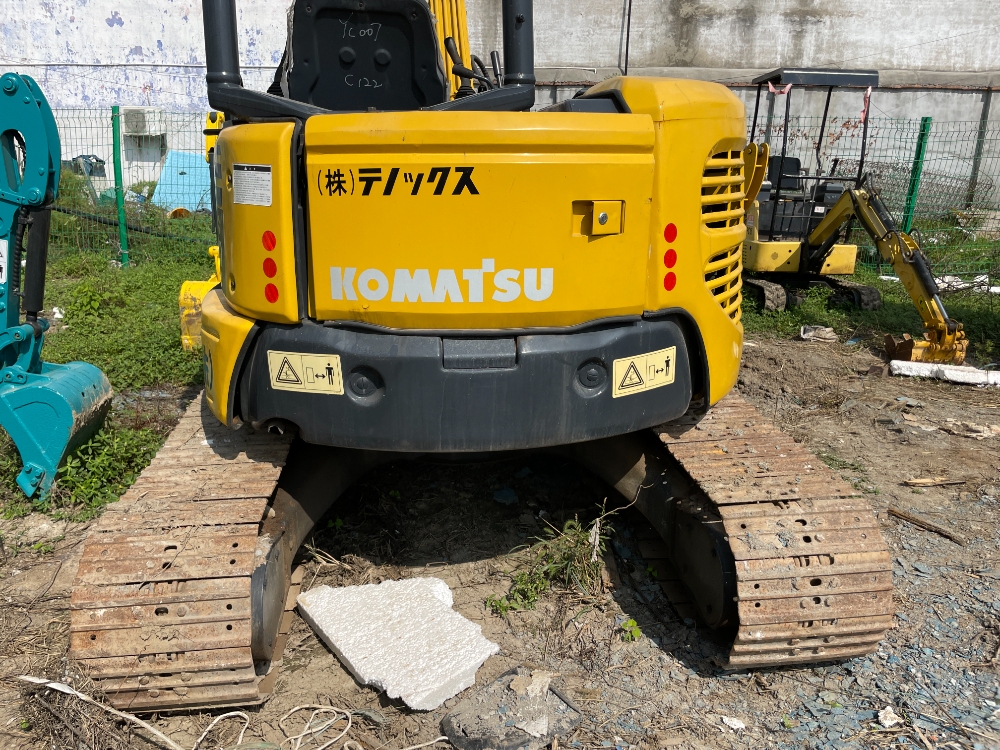

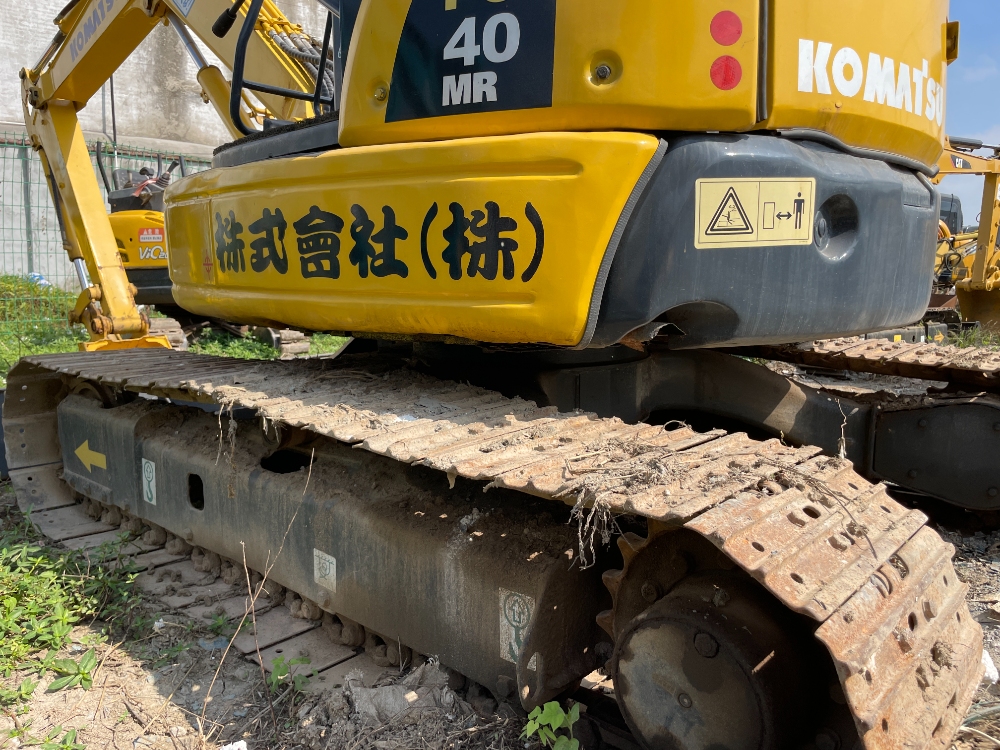

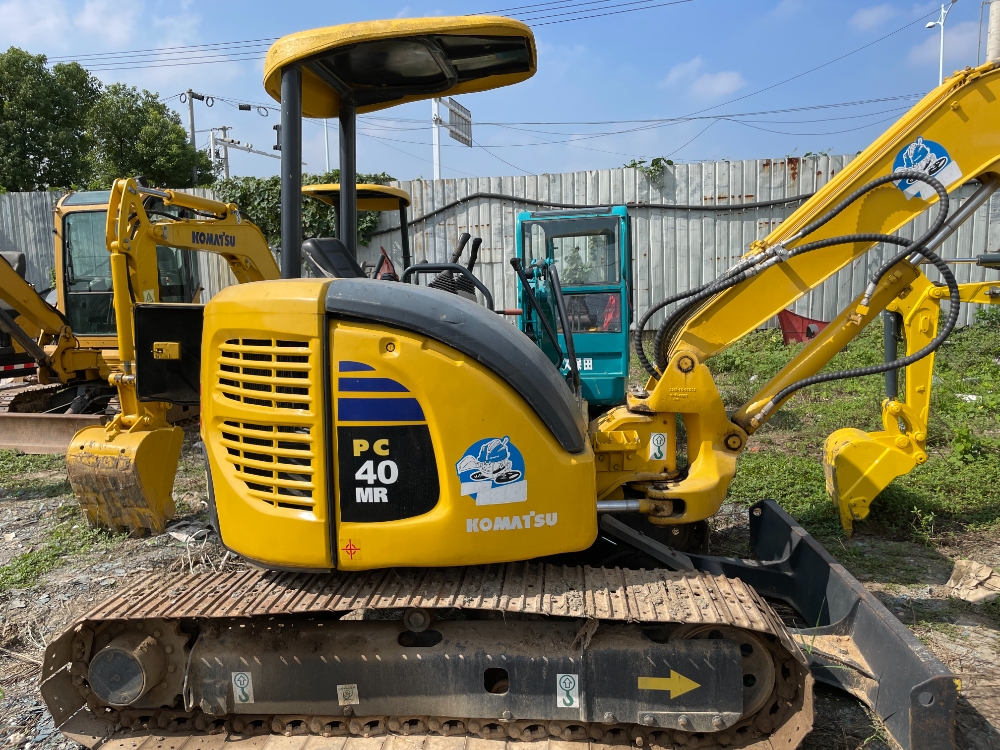

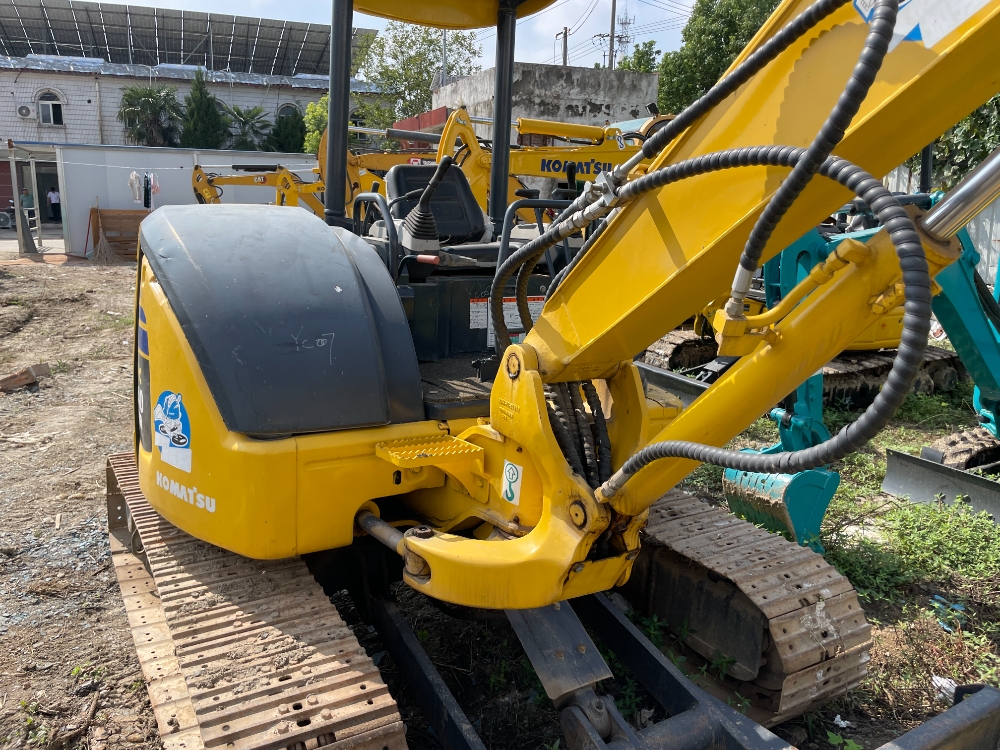

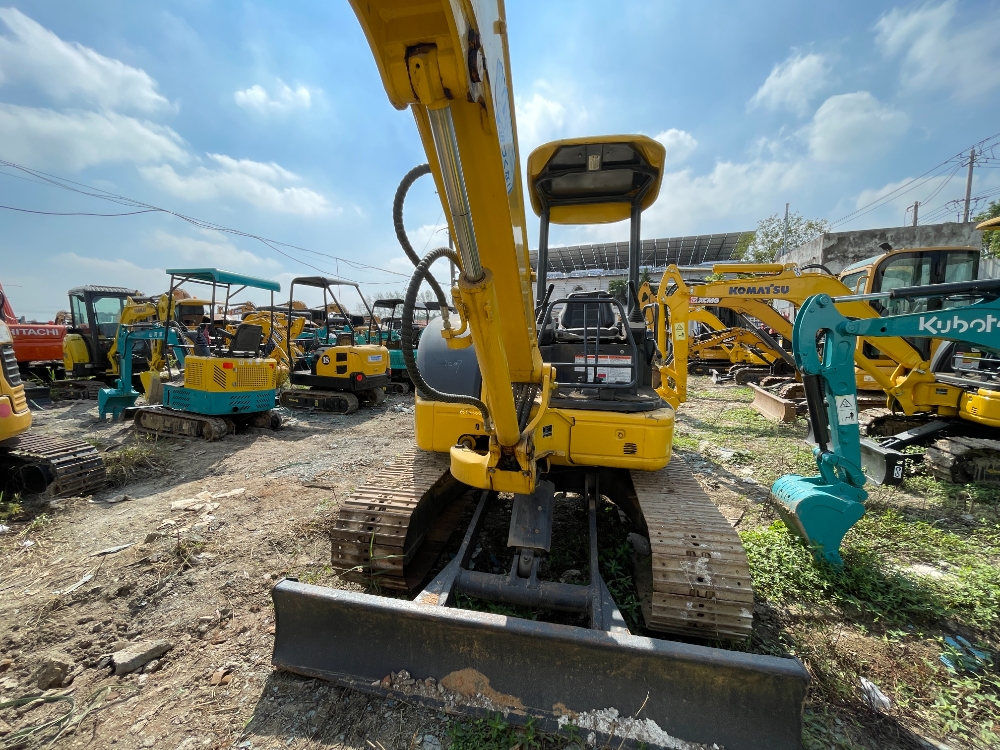

Komatsu PC40MR-3 used excavator | No. 24107-0
We recommend this Komatsu PC40MR-3 used excavator to users with a low budget. It is cheap and has excellent performance. The 29.1Kw engine can drive a 4-ton excavator, which is fully capable of meeting the use requirements. This model has a good design and a low failure rate, and it is an original import from Japan. There is no failure record, but some wearing parts have been replaced. You can buy it with confidence. Its original spare parts are expensive, and if you can choose other brands, you will save a lot of money.

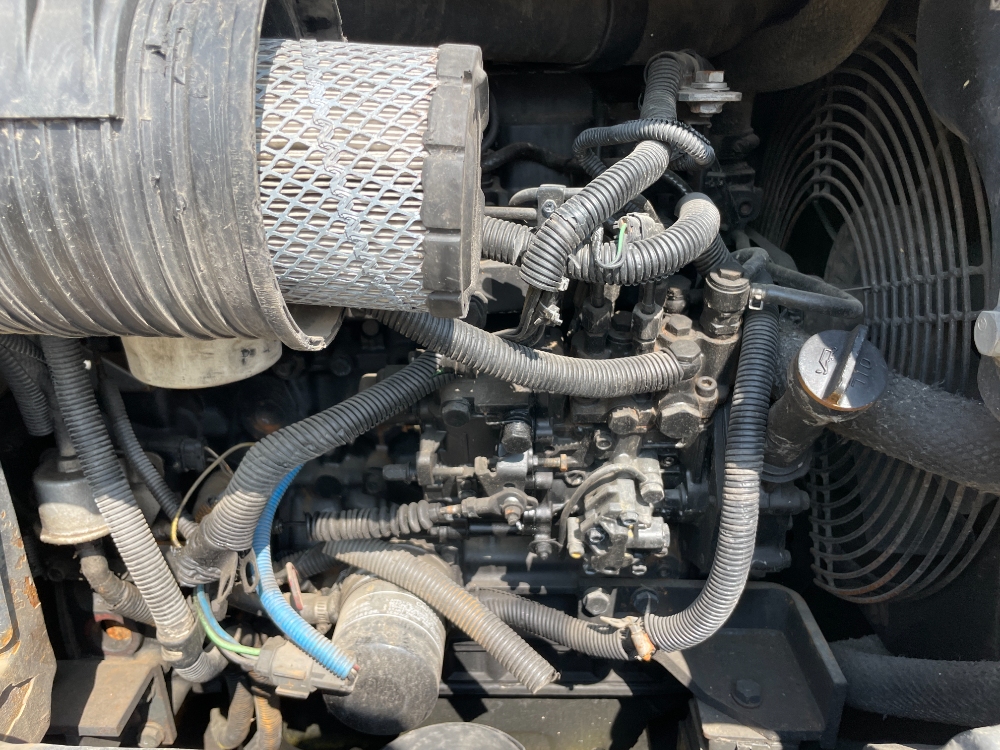

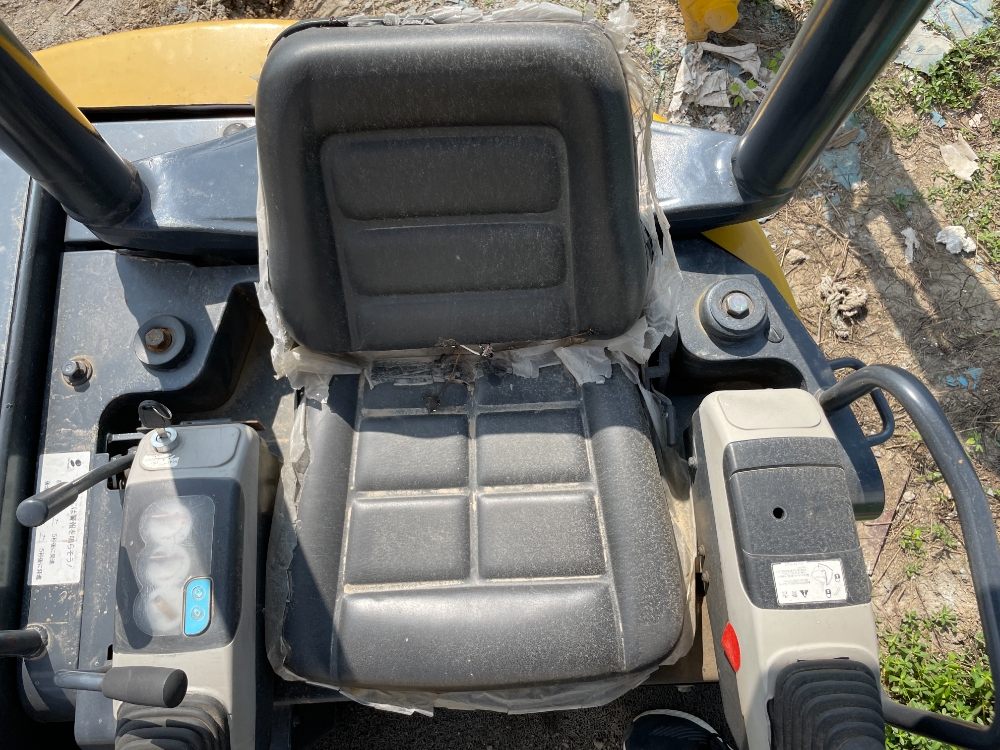

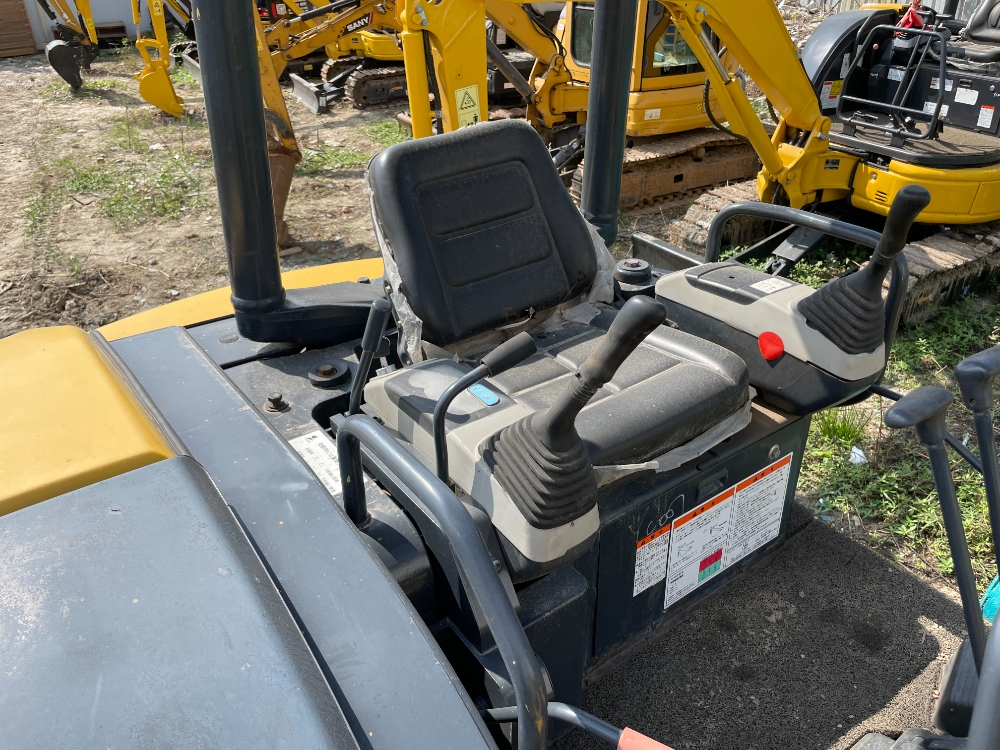

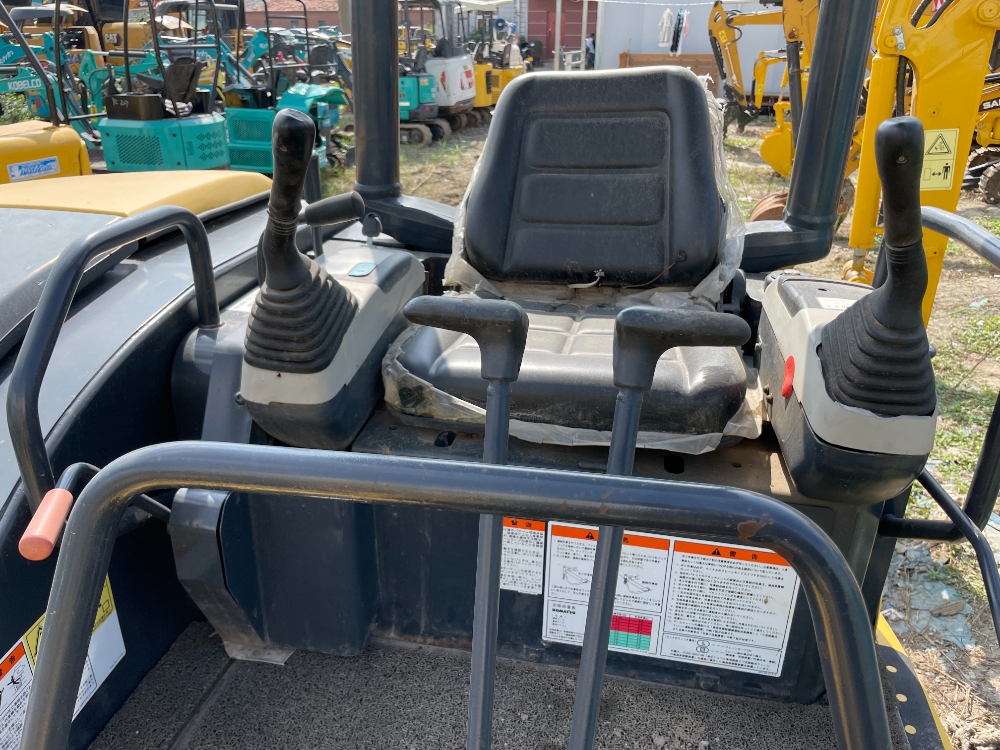

Through the Tiedou performance test, like other Mini excavators, we care about heat dissipation and performance. The engine temperature, water tank temperature, hydraulic oil temperature, noise and suspicious abnormal noise of more than 3 hours of testing all meet the use requirements, and the fuel economy is excellent. Because there is no cockpit, the seats and decorative panels are aged to a certain extent. Later, through customization, we can clear it or replace it to make it beautiful.
Item | Specification |
Brand | Komatsu |
Model | PC40MR-3 |
Operating Weight | 4,020 kg |
Bucket Capacity | 0.11 m³ |
Boom Length | 2,250 mm |
Arm Length | 1,550 mm |
Manufacturer | Komatsu Ltd. |
Swing Speed | 8.6 rpm |
Travel Speed | 2.8-4.7 km/h |
Gradeability | 30° |
Ground Pressure | 0.34 kg/cm² |
Bucket Digging Force | 37.5 kN |
Arm Digging Force | 23.5 kN |
Engine Model | Komatsu 4D88E-6 |
Engine Power | 29.1 kW (39.0 hp) / 2,600 rpm |
Displacement | 2.19 L |
Number of Cylinders | 4 |
Bore and Stroke | 88 mm x 90 mm |
Hydraulic Pump Brand/Model | Komatsu / PV48 |
Max Hydraulic Flow | 126 L/min |
Travel Hydraulic Circuit | 2 x 13.7 L/min |
Control Hydraulic Circuit | 30.8 L/min |
Fuel Tank Capacity | 72 L |
Hydraulic Tank Capacity | 69 L |
Engine Oil Capacity | 9.5 L |
Coolant Capacity | 8.2 L |
Transport Length | 5,160 mm |
Transport Width | 1,960 mm |
Transport Height | 2,550 mm |
Track Shoe Width | 400 mm |
Track Length | 2,530 mm |
Max Digging Radius | 6,140 mm |
Max Digging Depth | 3,740 mm |
Max Digging Height | 5,660 mm |
Max Dumping Height | 4,000 mm |
Max Vertical Digging Depth | 3,000 mm |
Fuel Consumption | 7-9 L/h |
Air Conditioning | Yes |
Fuel Injection Type | Direct Injection |
Maintenance Interval | 500 hours |
New Machine Price | $40,000 - $45,000 |
Used Machine Price | $13,000 - $25,000 |
