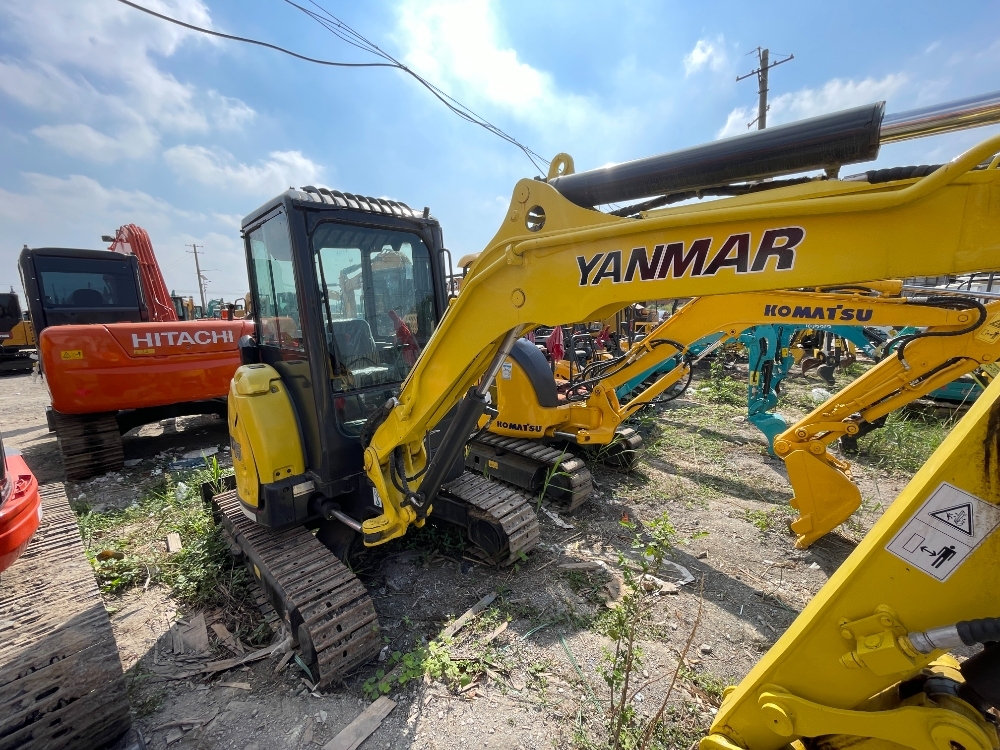

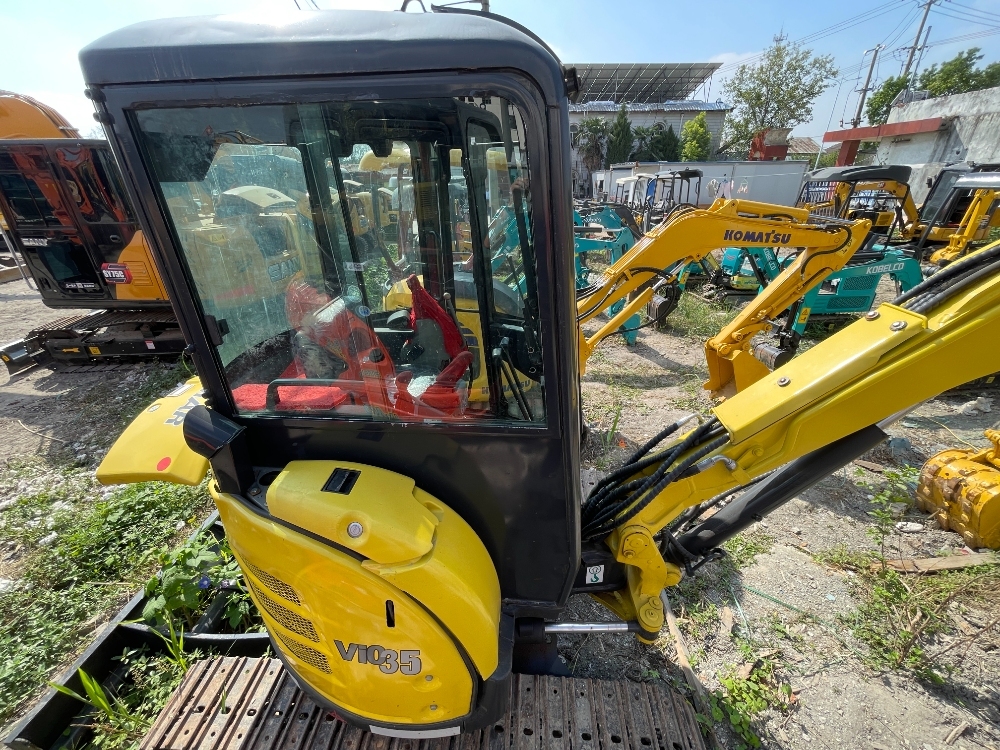

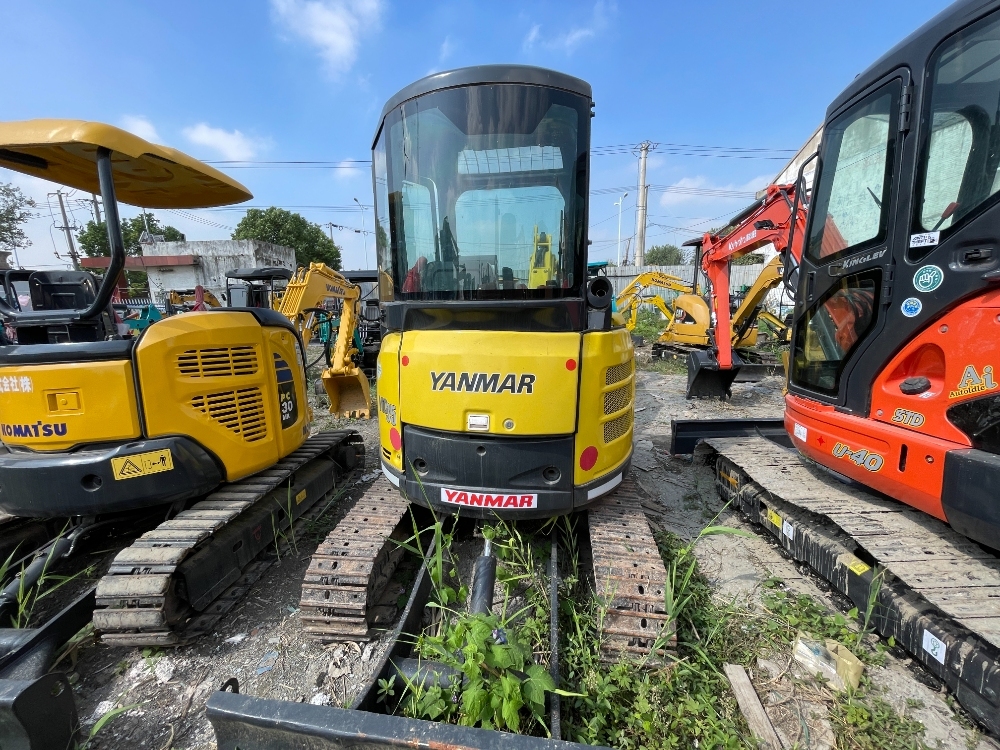

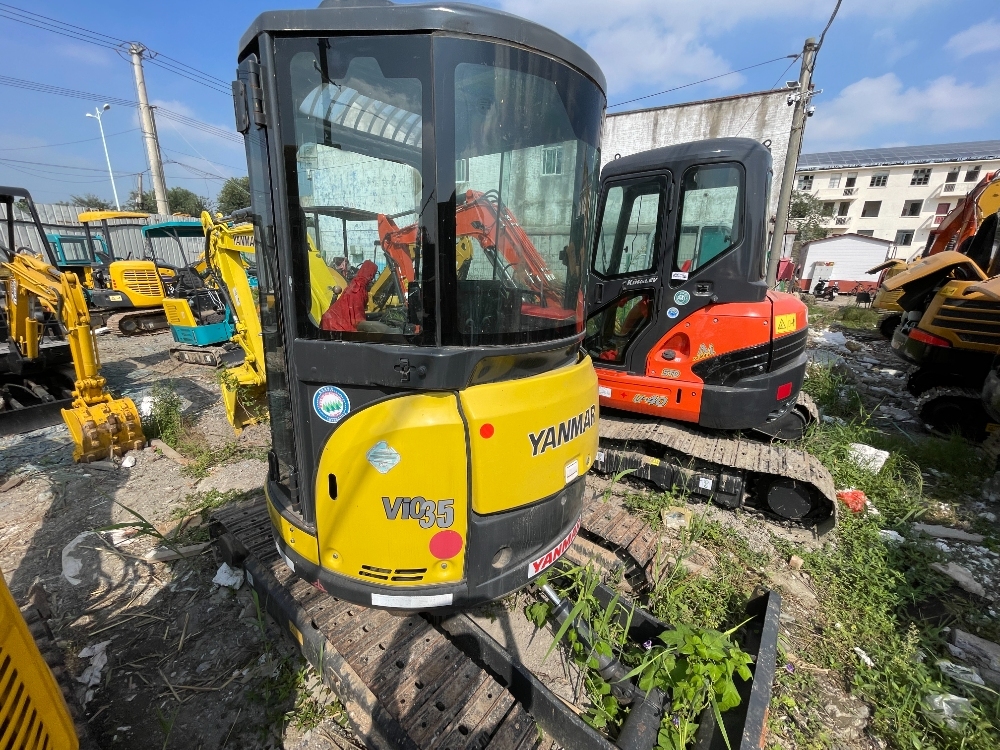

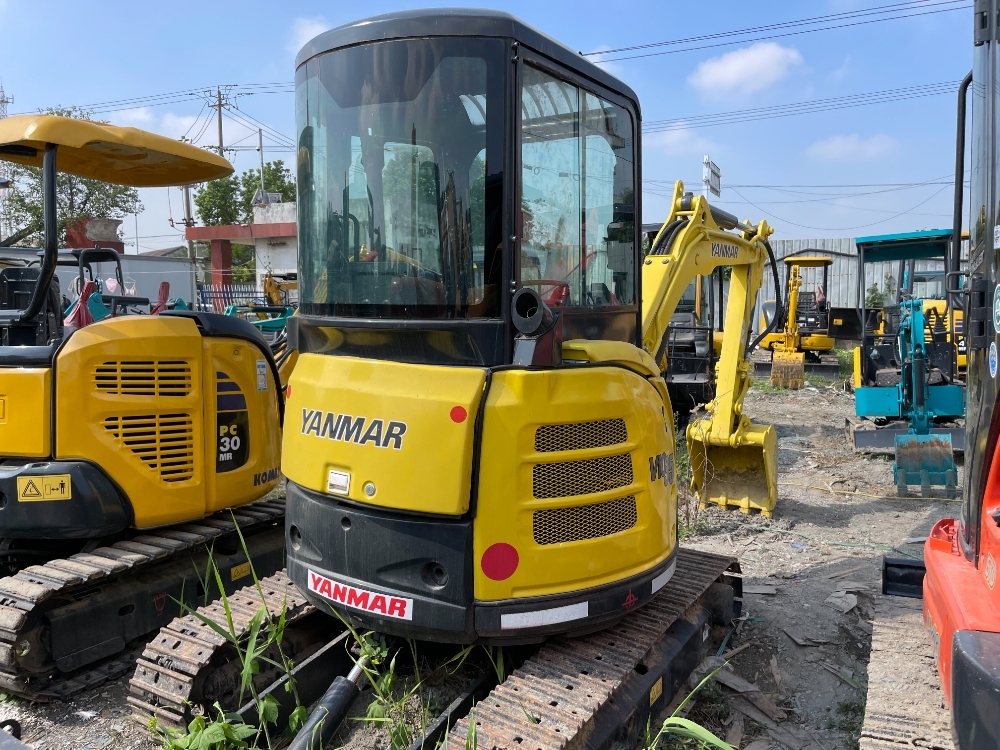

Yanmar vio35-6 used excavator - No. 24108-0
Yanmar compact short-tail 35Mini excavator, equipped with Yanmar 3TNV88 engine, power 19.2Kw standard bucket capacity 0.14m³, Yanmar is a very early entry into the Mini compact excavator market, with rich product and technology accumulation, equipped with Yanmar self-developed engine performance tuning and stability are excellent, but it is not a new model so it cannot be compared with the new model in technology, the price is currently less than 14.500 US dollars, the cost performance is high and worth buying.
The model has passed the Tiedou performance test. For the test standard of Yanmar 35 excavator, we have tested the load pressure, engine temperature, power output stability of the excavator during long-term work through more than 5 hours of simulated work test, engine noise, temperature, environmental emissions, hydraulic flow and vulnerable parts and wear conditions through equipment and manual inspection to meet the use requirements, suitable for farms, manors, urban infrastructure and small projects, low fuel consumption, low failure rate, and cheap later maintenance.
Item | Specification |
Brand | Yanmar |

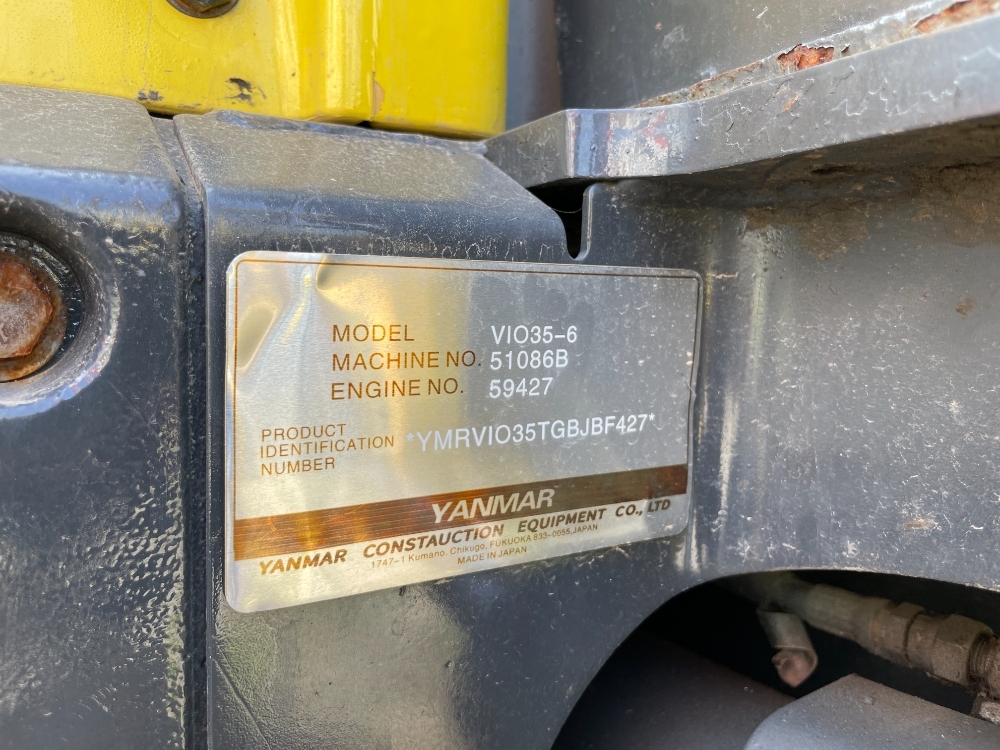

Model | VIO35-6 |
Operating Weight | 3,530 kg |
Bucket Capacity | 0.14 m³ |
Boom Length | 2,500 mm |
Arm Length | 1,310 mm |
Manufacturer | Yanmar Co., Ltd. |
Swing Speed | 9.5 rpm |
Travel Speed | 2.7-4.4 km/h |
Gradeability | 30° |
Ground Pressure | 29.5 kPa |
Bucket Digging Force | 30.4 kN |
Arm Digging Force | 20.9 kN |

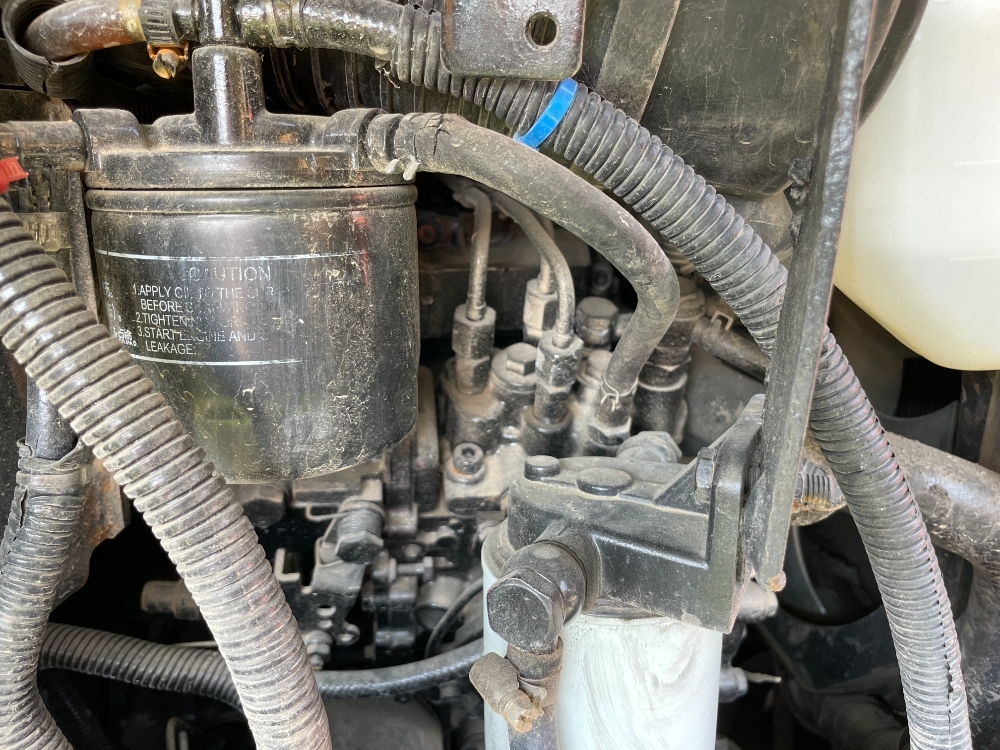

Engine Model | Yanmar 3TNV88 |
Engine Power | 19.2 kW (26 HP) / 2,400 rpm |
Displacement | 1.642 L |
Number of Cylinders | 3 |
Bore and Stroke | 88 mm x 90 mm |
Hydraulic Pump Brand | Yanmar |
Hydraulic Pump Model | Variable Displacement Axial Piston Pump |
Max Hydraulic Flow | 94.4 L/min |
Travel Hydraulic Circuit | 22.6 L/min |
Control Hydraulic Circuit | 71.8 L/min |
Fuel Tank Capacity | 42 L |
Hydraulic Oil Tank Capacity | 47 L |
Engine Oil Capacity | 6.2 L |
Coolant Capacity | 3.7 L |
Transport Length | 4,615 mm |
Transport Width | 1,740 mm |
Transport Height | 2,490 mm |

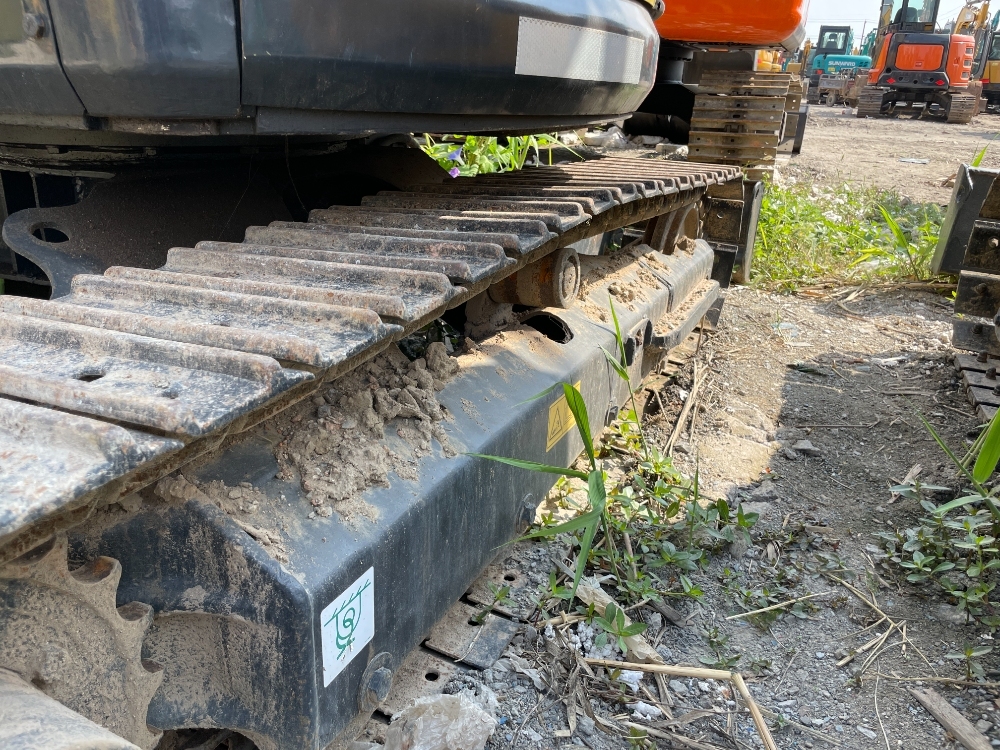

Track Shoe Width | 300 mm |
Track Shoe Length | 2,200 mm |
Maximum Digging Radius | 5,200 mm |
Maximum Digging Depth | 3,100 mm |
Maximum Digging Height | 4,700 mm |
Maximum Dumping Height | 3,500 mm |
Maximum Vertical Digging Depth | 2,400 mm |
Fuel Consumption | 5-7 L/h |
Air Conditioning | Standard |
Fuel Injection | Direct Injection Engine |
Maintenance Interval | 500 hours |
New Machine Price | $35,000 - $45,000 |
Used Machine Price | $13,500 - $25,000 |
Product Features
-
Rich models
Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.
-
Complete accessories
Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.
-
Customized production
Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.
-
Brand warranty
Famous brand, reliable quality, long service life, worry-free after-sales.
