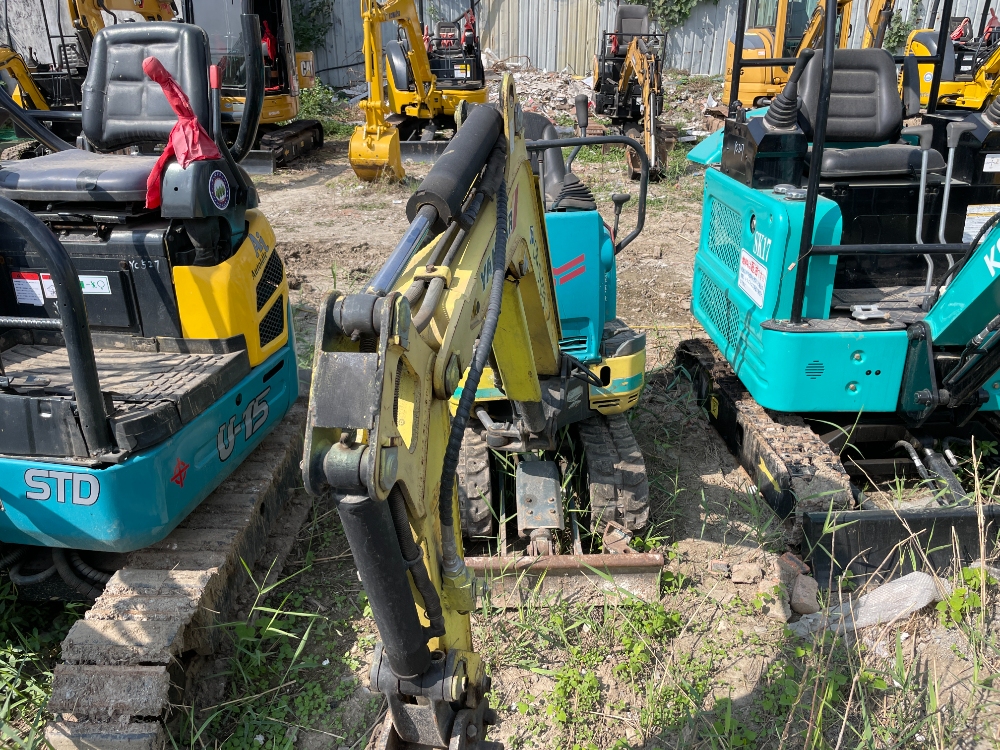

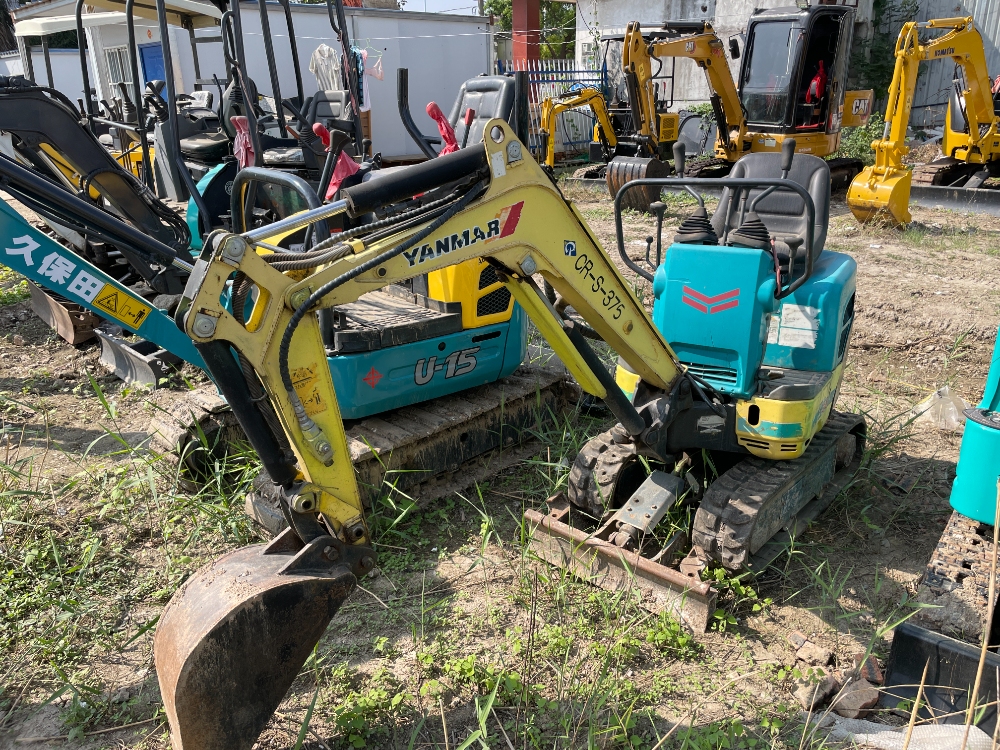

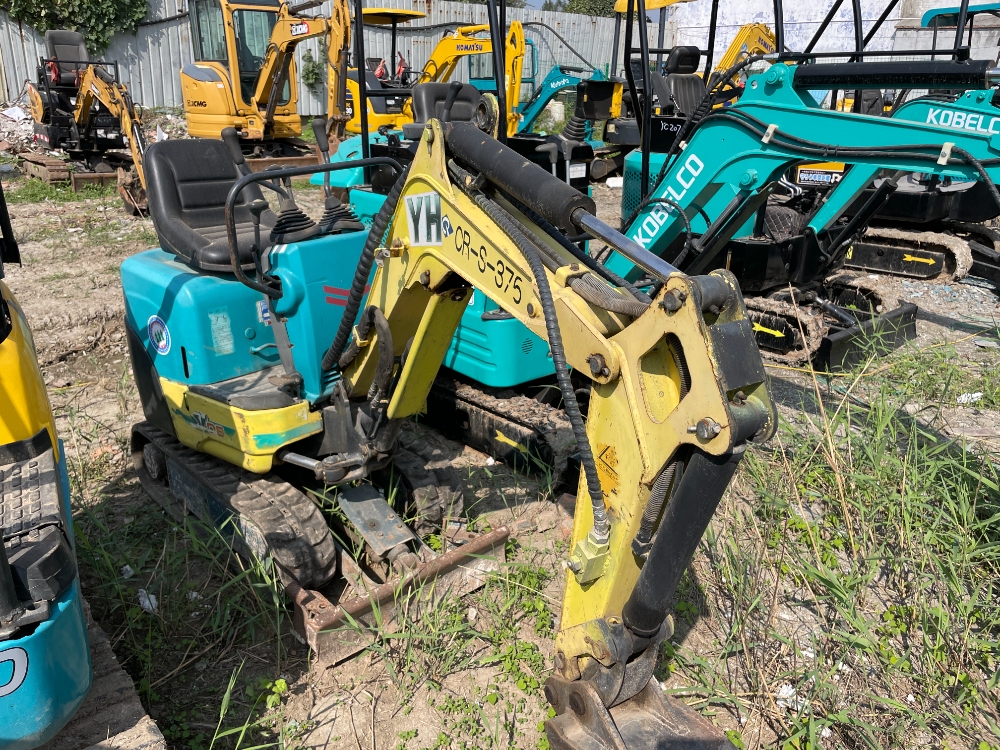

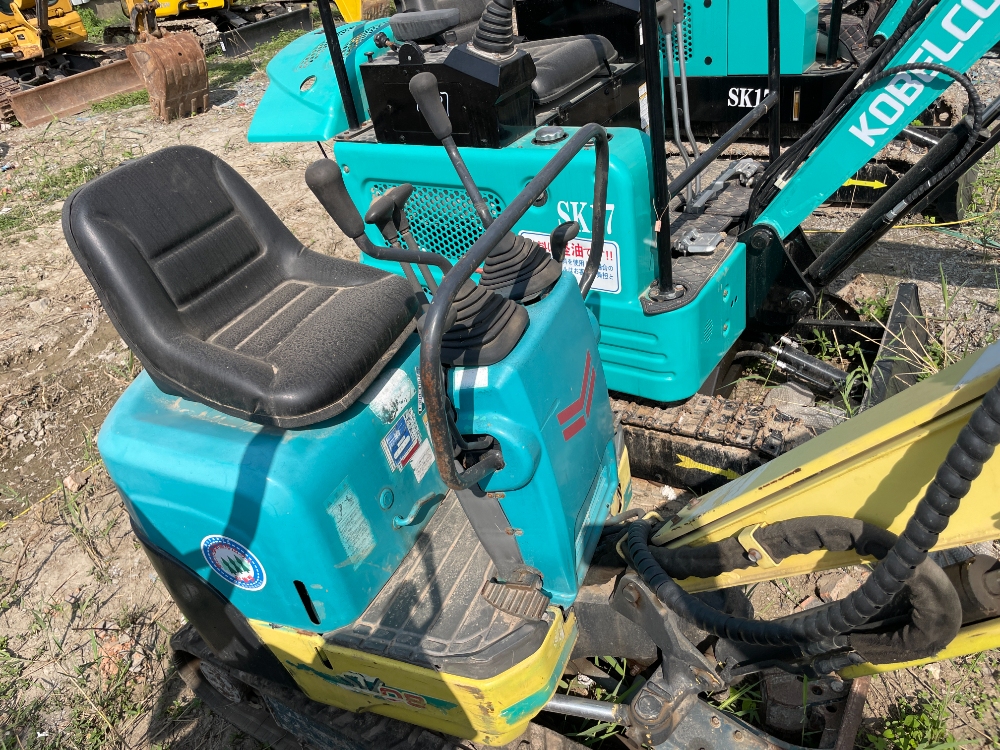

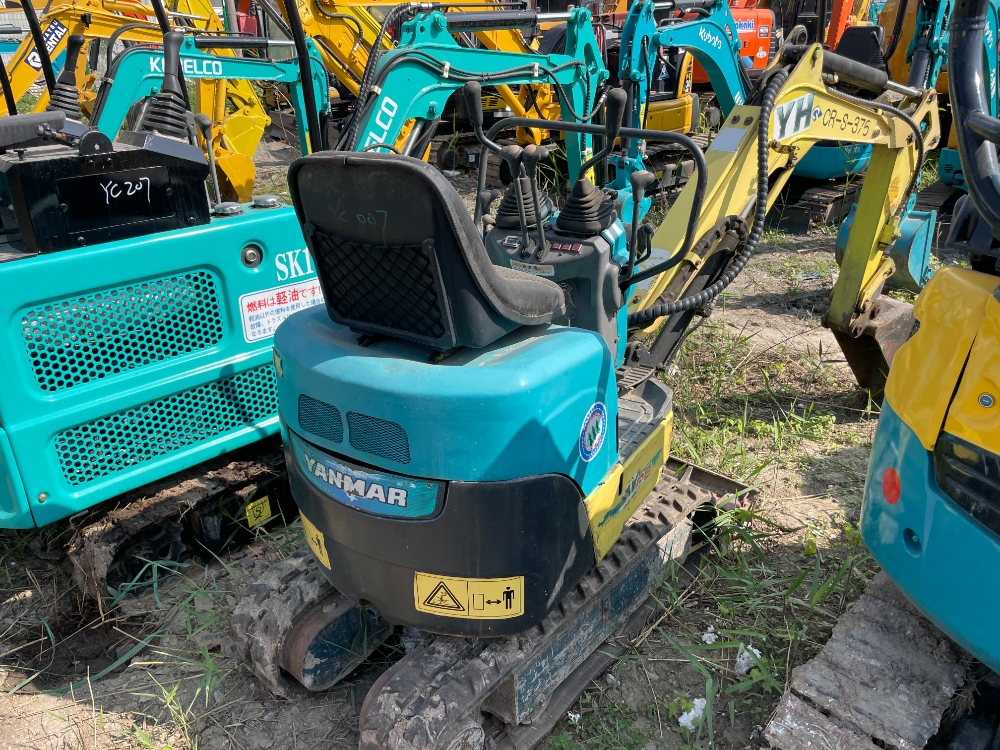

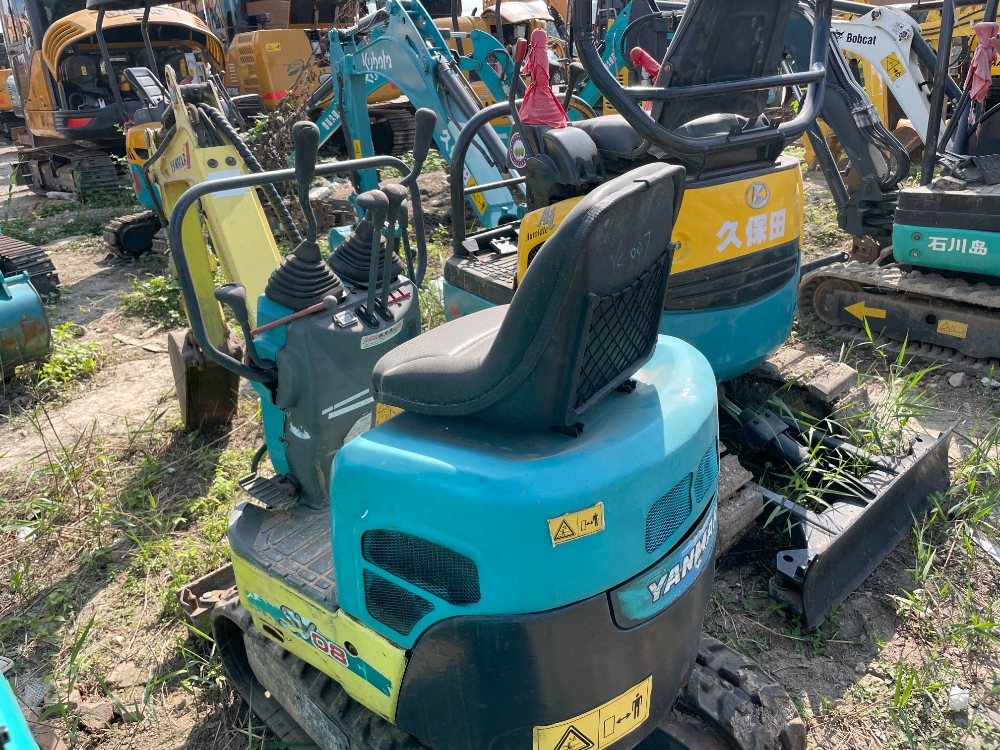

　　Yanmar SV08 used excavator | No. 24109-0


　　Japanese Yanmar compact MIni excavator, it is very small and weighs only 1 ton, provides a 0.022m³ bucket, equipped with Yanmar 2TE67L engine power 7.4Kw so you can't use it for heavy work. This Mini excavator is suitable for indoor decoration, basement or roof work. It can take the elevator or even climb stairs. It is very suitable for farms and manors. The price of such a machine is only about $10.000.

​​​​​​​

　　Yanmar SV08 passed the Tiedou test. The test of small excavators is relatively simple. We mainly focused on the performance test. The action is smooth. The inspection of the engine and hydraulic system meets the use requirements. This model is not a new model and cannot be compared with the new models of the same level in performance, but for daily use and users with low budgets, this excavator is very cost-effective and easy to transport. It supports global transportation.


Parameter

Specification

Brand

Yanmar

Model

SV08

Operating Weight

1,035 kg

Bucket Capacity

0.022 m³

Boom Length

1.57 m

Arm Length

0.75 m

Manufacturer

Yanmar Construction Equipment Co., Ltd.

Swing Speed

8.5 rpm

Travel Speed

2.0 km/h

Gradeability

30°

Ground Pressure

0.25 kg/cm²

Bucket Digging Force

10.2 kN

Arm Digging Force

6.8 kN

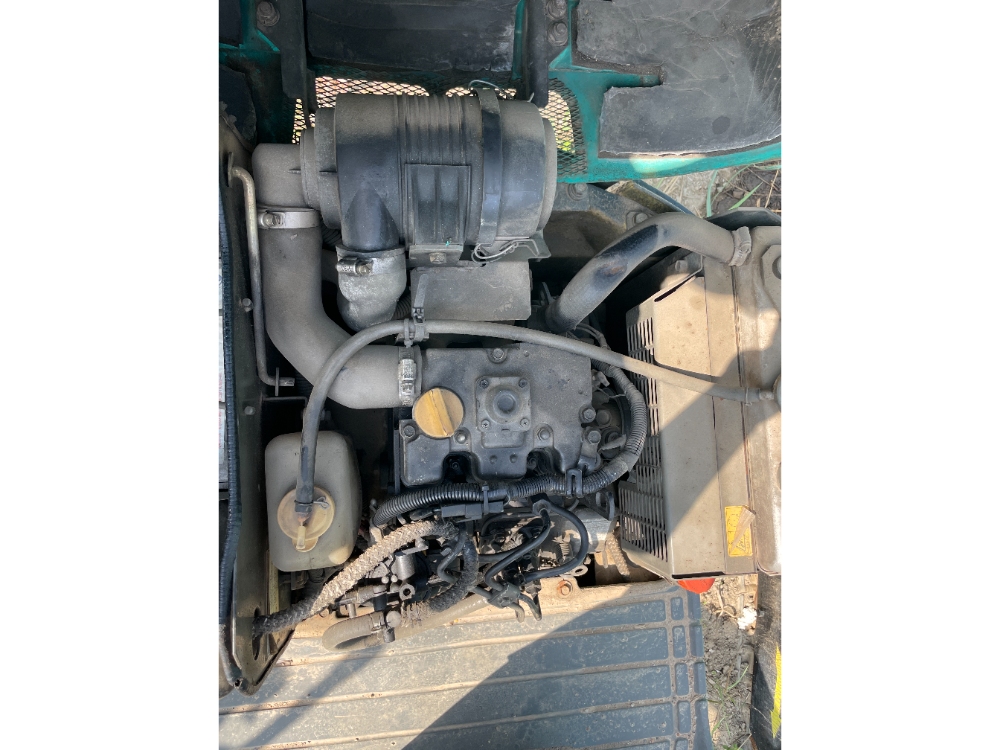

Engine Model

Yanmar 2TE67L

Engine Power

7.4 kW (10 PS) / 2200 rpm

Displacement

0.57 L

Number of Cylinders

2

Bore and Stroke

67 x 68 mm

Hydraulic Pump Brand/Model

Yanmar Hydraulic Pump

Maximum Hydraulic Flow

17.8 L/min

Travel Hydraulic Circuit

17.8 L/min

Control Hydraulic Circuit

10.7 L/min

Fuel Tank Capacity

10.5 L

Hydraulic Oil Tank Capacity

11.0 L

Engine Oil Change Capacity

2.5 L

Coolant Capacity

2.2 L

Transport Length

2,755 mm

Transport Width

840 mm

Transport Height

1,505 mm

Track Width

180 mm

Track Length

1,200 mm

Maximum Digging Radius

3,085 mm

Maximum Digging Depth

1,500 mm

Maximum Digging Height

2,900 mm

Maximum Dump Height

2,030 mm

Maximum Vertical Digging Depth

1,300 mm

Fuel Consumption

Approx. 1.0-1.2 L/h

Air Conditioning

No

Fuel Injection Type

Direct injection

Maintenance Interval

Every 250 hours

New Excavator Price

15,000-18,000 USD

Used Excavator Price

8,000-12,000 USD

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
