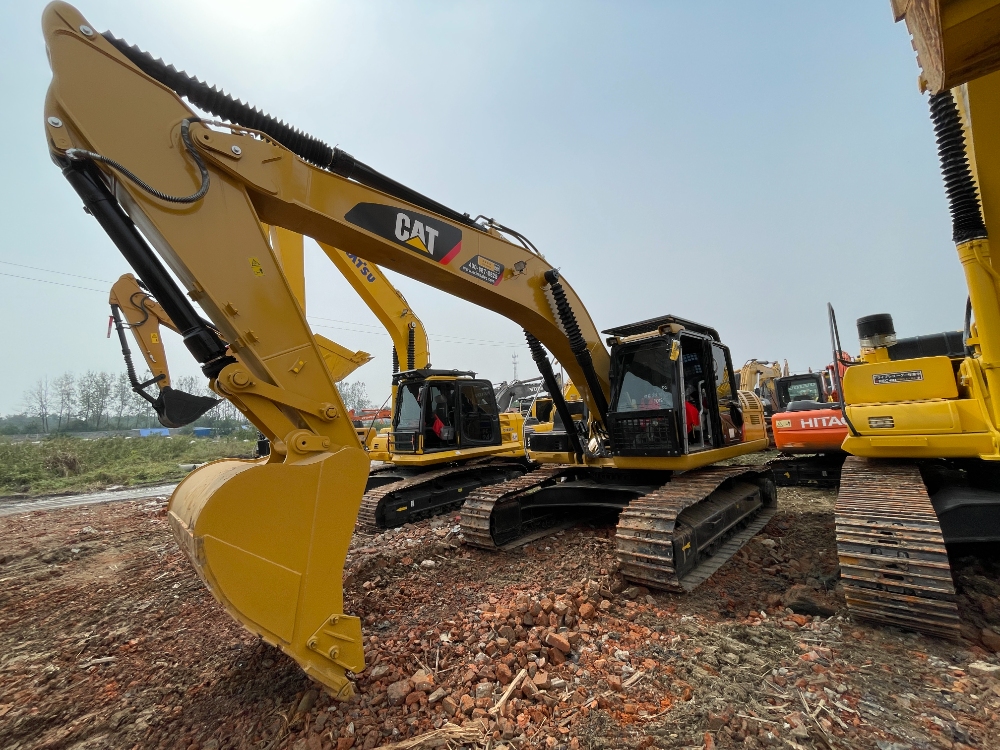

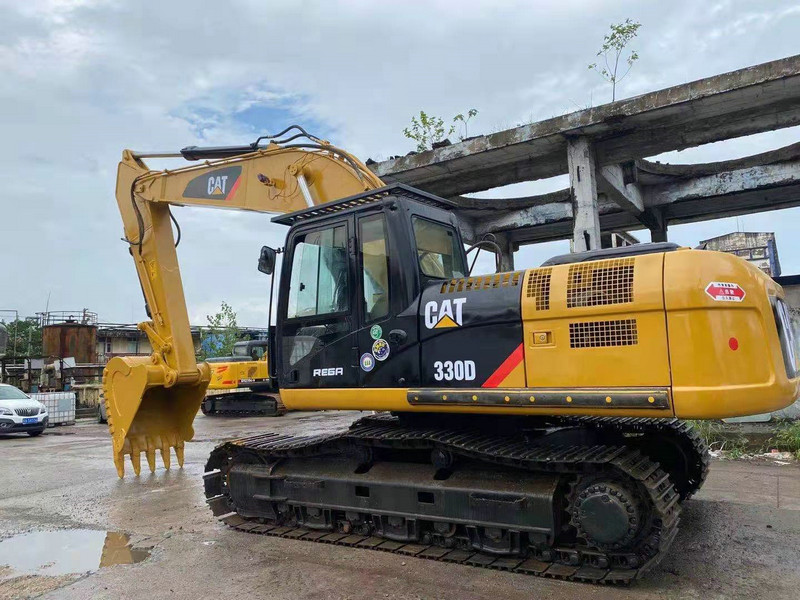

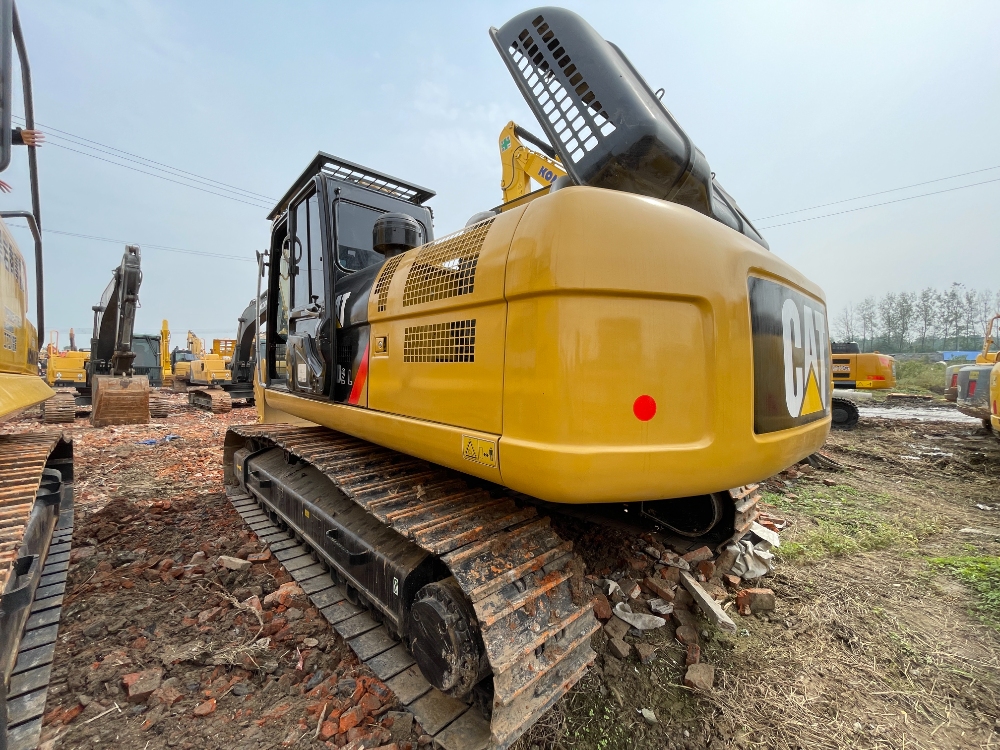

Caterpillar CAT330D2 used excavator | No. 241014
The Caterpillar CAT 330D2 excavator is a popular second-hand equipment, and has become a popular choice in the market due to its excellent performance and durability. Equipped with a powerful C7.1 ACERT engine, the excavator provides 202 kW (271 hp) of efficient power, which can easily cope with various complex working conditions. Its superior digging force (bucket digging force 225kN, bucket digging force 168kN) ensures excellent performance in heavy-duty operations. The CAT 330D2 has good fuel efficiency, with an average fuel consumption of 16-18 liters/hour, which helps to reduce operating costs. In addition, the machine has a large operating weight and excellent stability, which can provide excellent working performance in various terrains. Its maintenance cycle is 500 hours, which means low downtime and maintenance costs, making it an ideal medium and large earthmoving equipment. These features make the CAT 330D2 a cost-effective second-hand excavator choice.
Item | Specification |
Brand | Caterpillar |
Model | CAT 330D2 |
Operating Weight | 30,300 kg |
Bucket Capacity | 1.19 m³ - 1.76 m³ |
Boom Length | 6.15 m |
Arm Length | 3.2 m |
Manufacturer | Caterpillar |
Swing Speed | 9.5 rpm |
Travel Speed | 5.5 km/h |
Gradeability | 35 degrees |
Ground Pressure | 0.6 kg/cm² |
Bucket Digging Force | 225 kN |
Arm Digging Force | 168 kN |

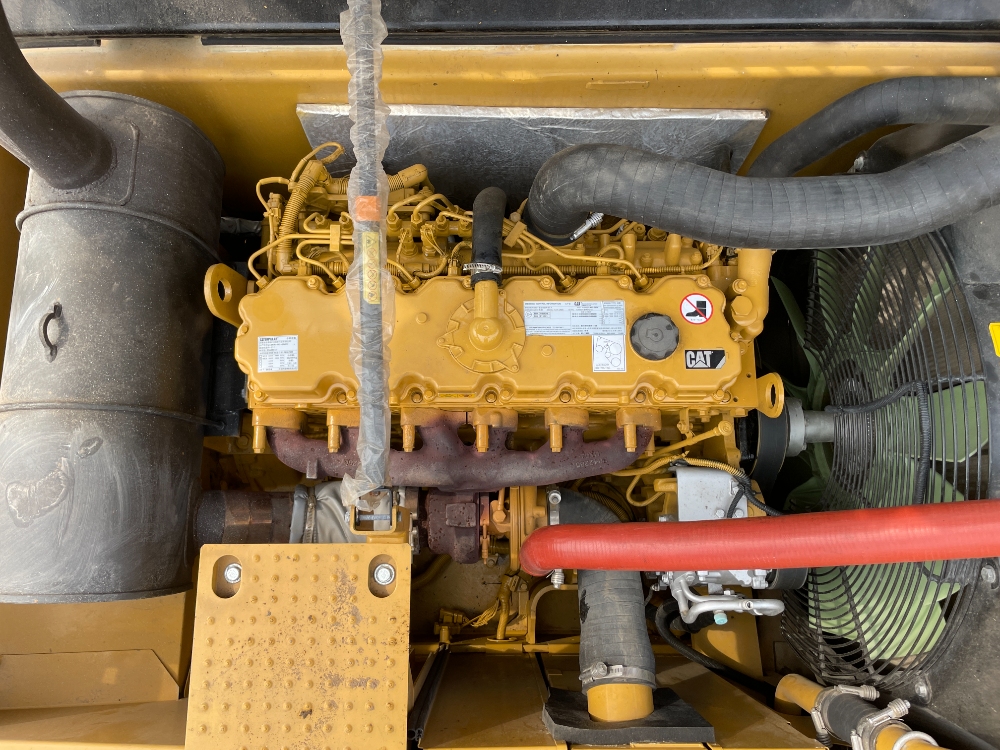

Engine Model | Caterpillar C7.1 ACERT |
Engine Power | 202 kW (271 HP) |
Displacement | 7.01 L |
Number of Cylinders | 6 |
Bore and Stroke | 105 mm x 135 mm |
Hydraulic Pump Brand/Model | Caterpillar / Unspecified |
Max Hydraulic Flow | 570 L/min |
Travel Hydraulic Circuit | 2 x 280 L/min |
Control Hydraulic Circuit | 320 L/min |
Fuel Tank Capacity | 620 L |
Hydraulic Tank Capacity | 235 L |
Engine Oil Capacity | 28 L |
Coolant Capacity | 37 L |
Transport Length | 10,560 mm |
Transport Width | 3,190 mm |
Transport Height | 3,340 mm |
Track Shoe Width | 600 mm |
Track Shoe Length | 4,480 mm |
Max Digging Radius | 10,580 mm |
Max Digging Depth | 7,260 mm |
Max Digging Height | 9,920 mm |
Max Dumping Height | 7,140 mm |
Max Vertical Digging Depth | 6,680 mm |
Fuel Consumption | Approx. 16-18 L/h |
Air Conditioning | Equipped |
Fuel Injection | Direct |
Maintenance Interval | Every 500 hours |
Product Features
-
Rich models
Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.
-
Complete accessories
Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.
-
Customized production
Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.
-
Brand warranty
Famous brand, reliable quality, long service life, worry-free after-sales.
