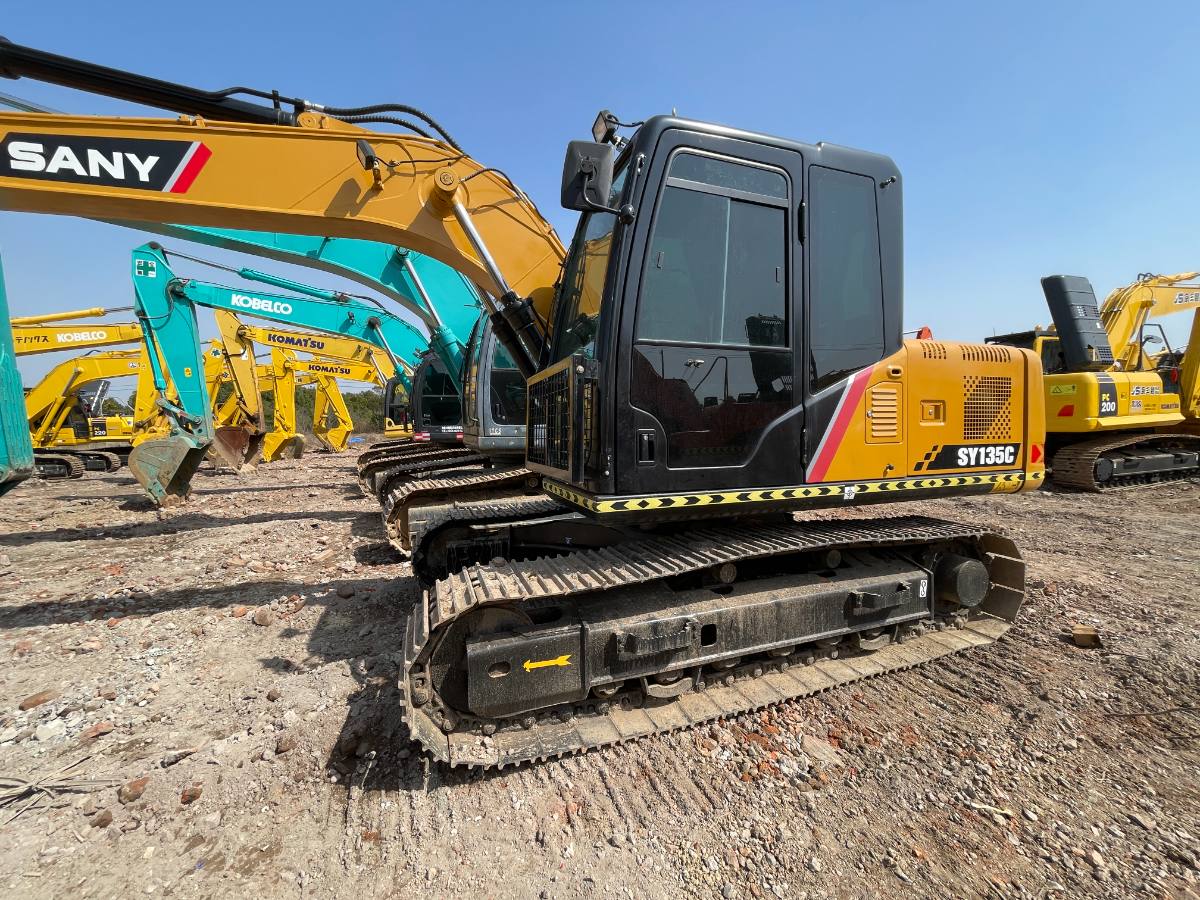

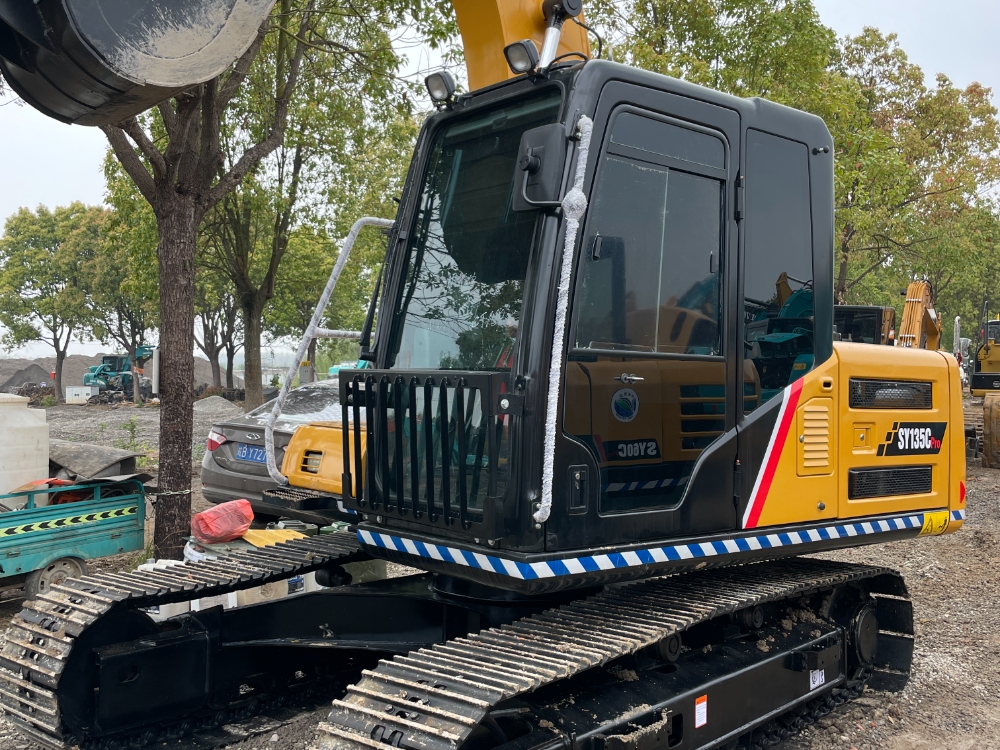

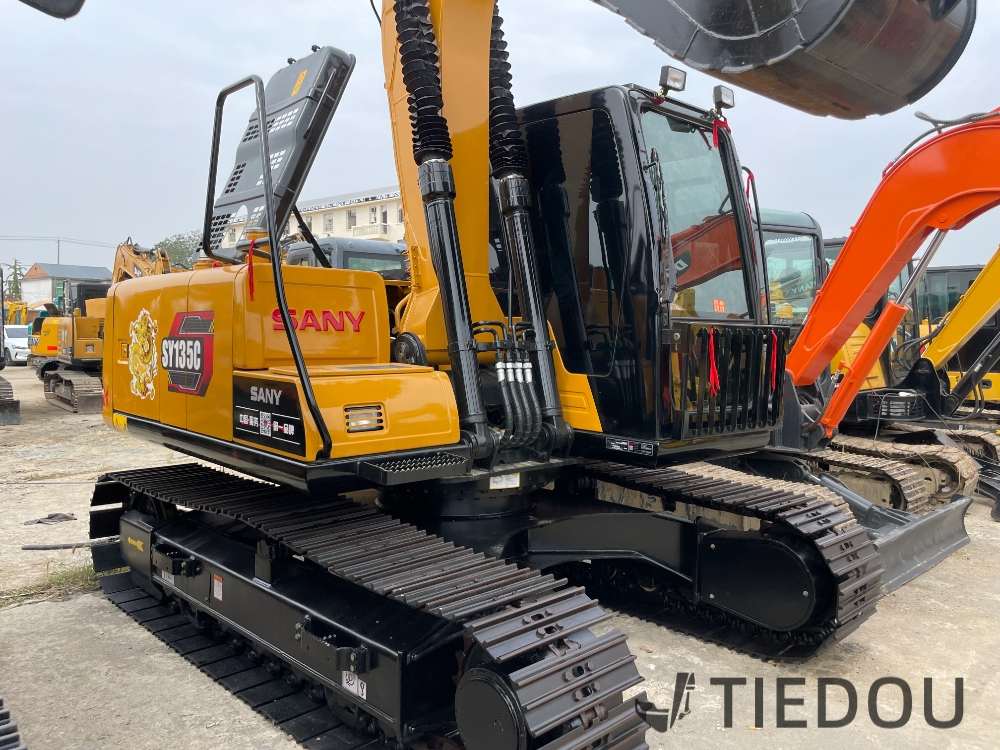

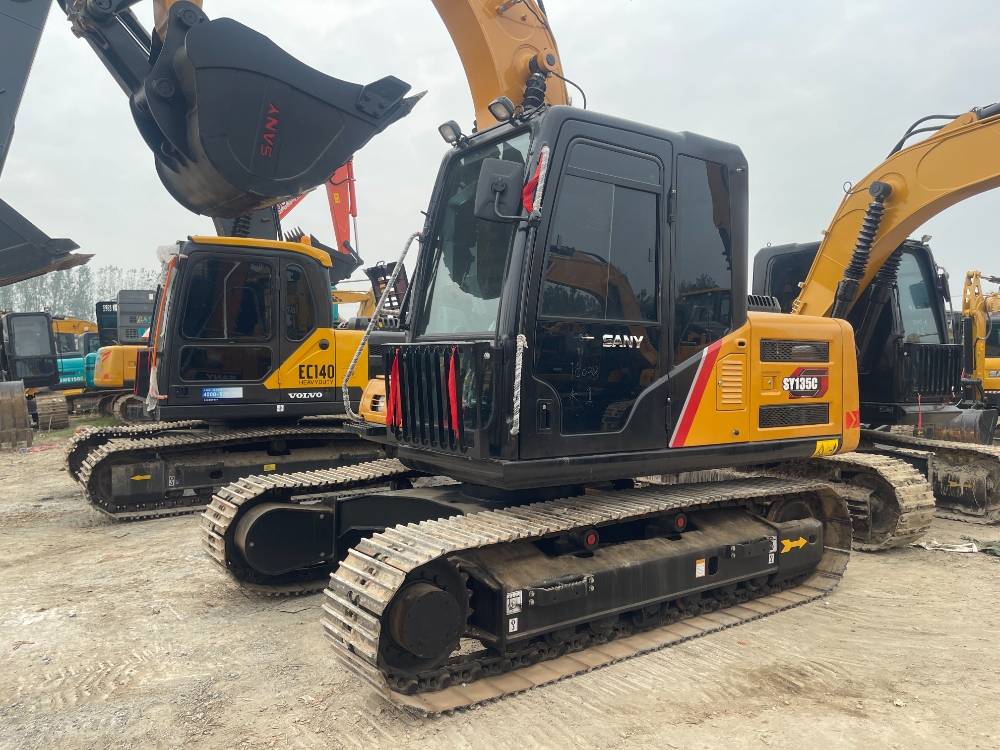

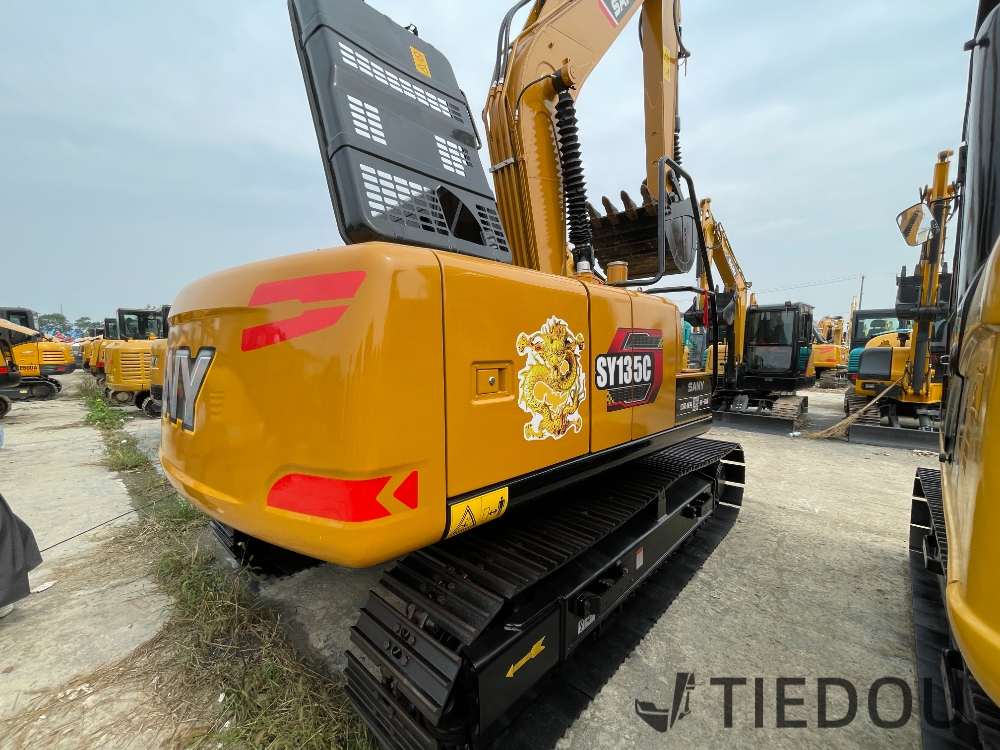

　　This second-hand Sany SY135C excavator is ideal for earthwork, municipal construction and road construction. The machine weighs 13.5 tons and uses an Isuzu 4JJ1X engine, which provides strong power output and excellent fuel economy. The SY135C's hydraulic system has been optimized, with excellent digging force and precise operation performance, and can easily cope with even complex working conditions.

　　This model has a maintenance cycle of up to 500 hours, easy maintenance and less downtime. The average fuel consumption is 13.9 liters per hour, which greatly reduces long-term operating costs and is an ideal choice for energy saving and efficiency. If you are looking for a reliable second-hand excavator, the Sany SY135C will be a high-quality choice that you cannot miss.

　　Main features:

　　High cost performance: second-hand equipment, still excellent performance, economical and affordable. Powerful power: Isuzu engine, ensuring efficient operation. Low fuel consumption: average fuel consumption is only 13.9 liters/hour, saving costs. Convenient maintenance: 500-hour long maintenance cycle, reducing downtime.


Parameter Category

Specification Details

Brand

SANY

Model

SY135C

Operating Weight

13,500 kg

Bucket Capacity

0.6 m³

Boom Length

4.6 m

Arm Length

2.5 m

Manufacturer

SANY Heavy Industry

Swing Speed

11 rpm

Travel Speed

3.5/5.3 km/h (Low/High)

Gradeability

35°

Ground Pressure

45.4 kPa

Bucket Digging Force

93.5 kN

Arm Digging Force

67 kN

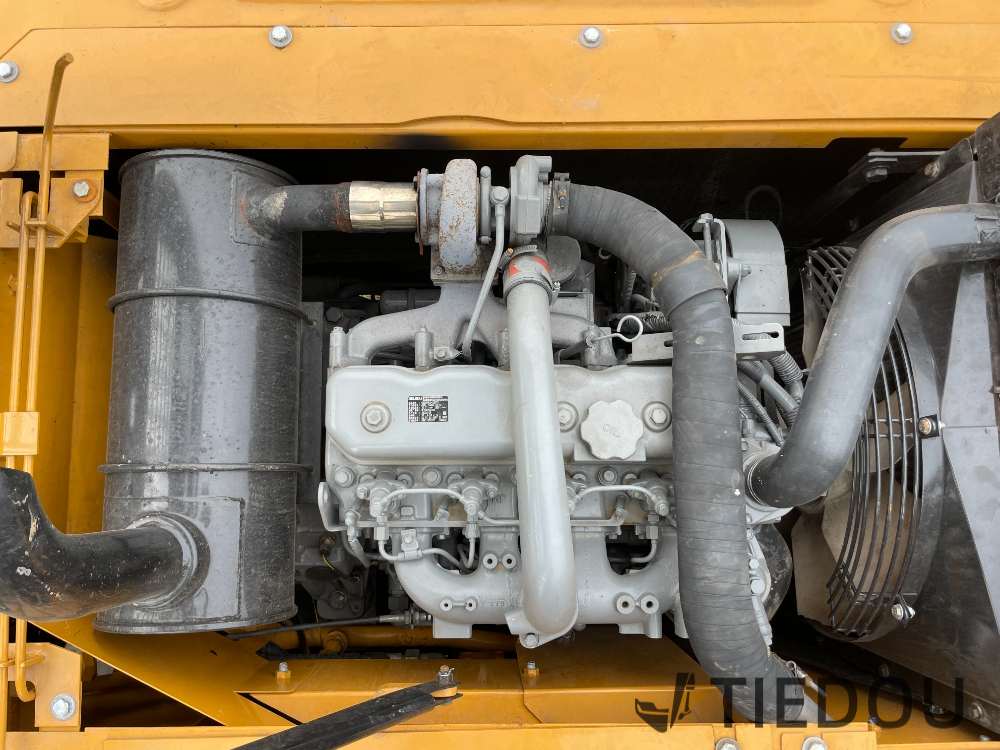

Engine Brand

Isuzu

Engine Model

Isuzu 4JJ1X

Engine Power

78.5 kW (106 hp) @ 2,000 rpm

Displacement

4.9 L

Number of Cylinders

4 cylinders

Bore and Stroke

108 mm x 125 mm

Hydraulic Pump Brand/Model

SANY in-house, variable displacement piston pump

Maximum Hydraulic Flow

246 L/min

Travel Hydraulic Circuit

31.4 MPa

Control Hydraulic Circuit

3.9 MPa

Fuel Tank Capacity

240 L

Hydraulic Oil Tank Capacity

130 L

Engine Oil Change Capacity

16.3 L

Coolant Capacity

24 L

Transport Length

7,700 mm

Transport Width

2,490 mm

Transport Height

2,850 mm

Track Shoe Width

600 mm

Track Length

3,366 mm

Maximum Digging Radius

8,300 mm

Maximum Digging Depth

5,540 mm

Maximum Digging Height

8,560 mm

Maximum Dumping Height

6,200 mm

Maximum Vertical Digging Depth

4,950 mm

Fuel Consumption

Approx. 13.9 L/h average

Air Conditioning

Equipped as standard

Fuel Injection Type

Direct injection engine

Maintenance Interval

Every 500 hours

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
