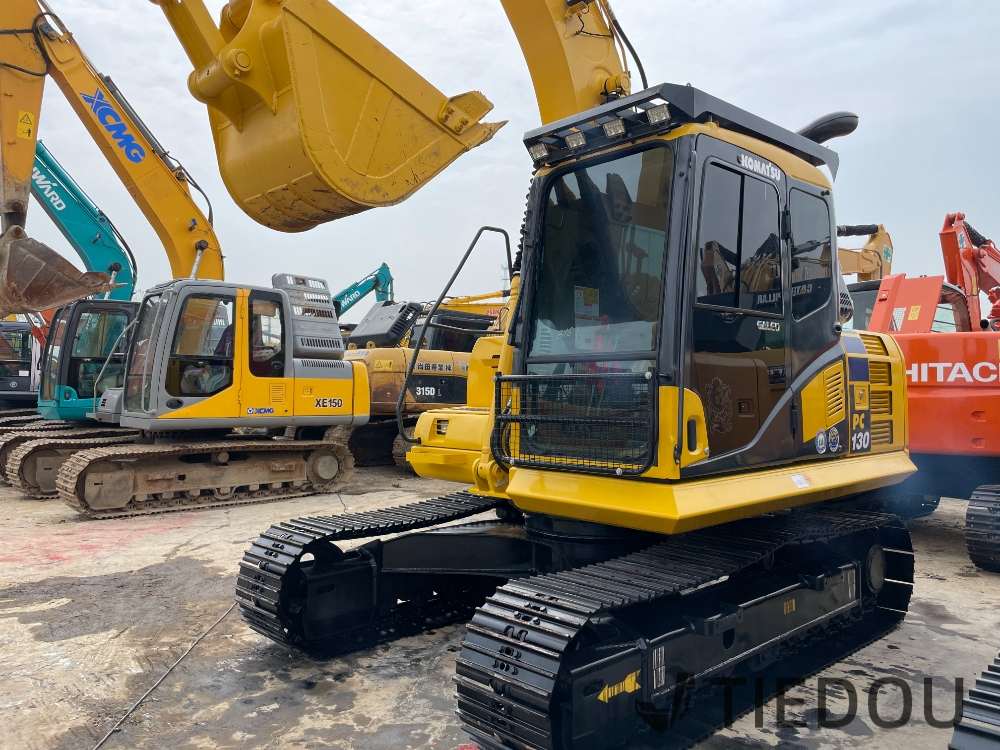

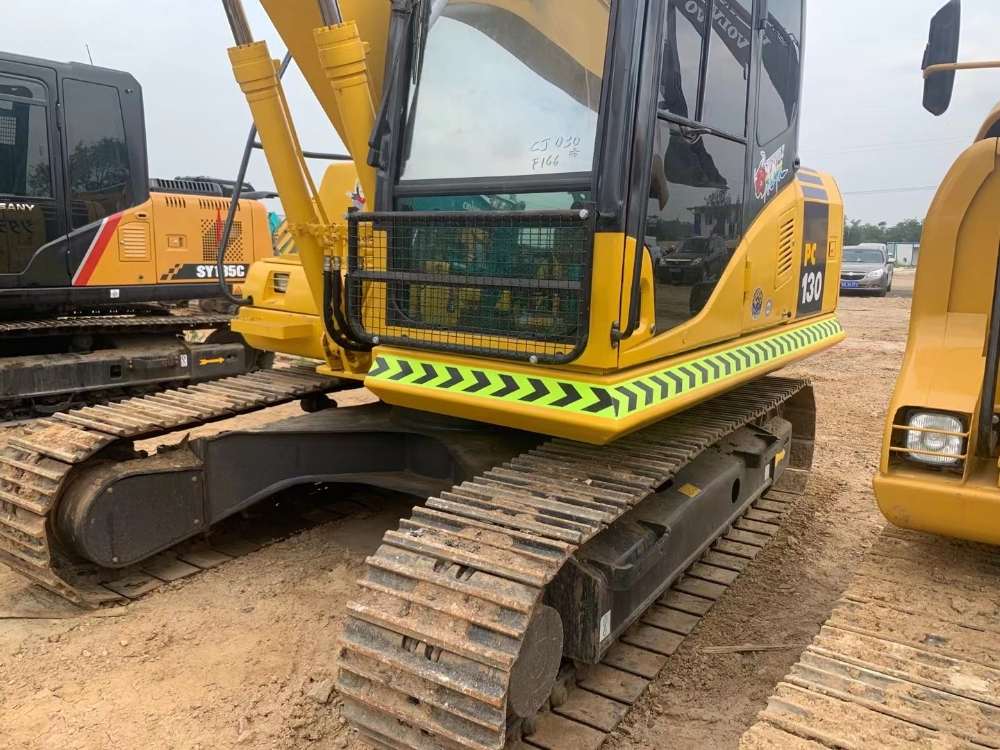

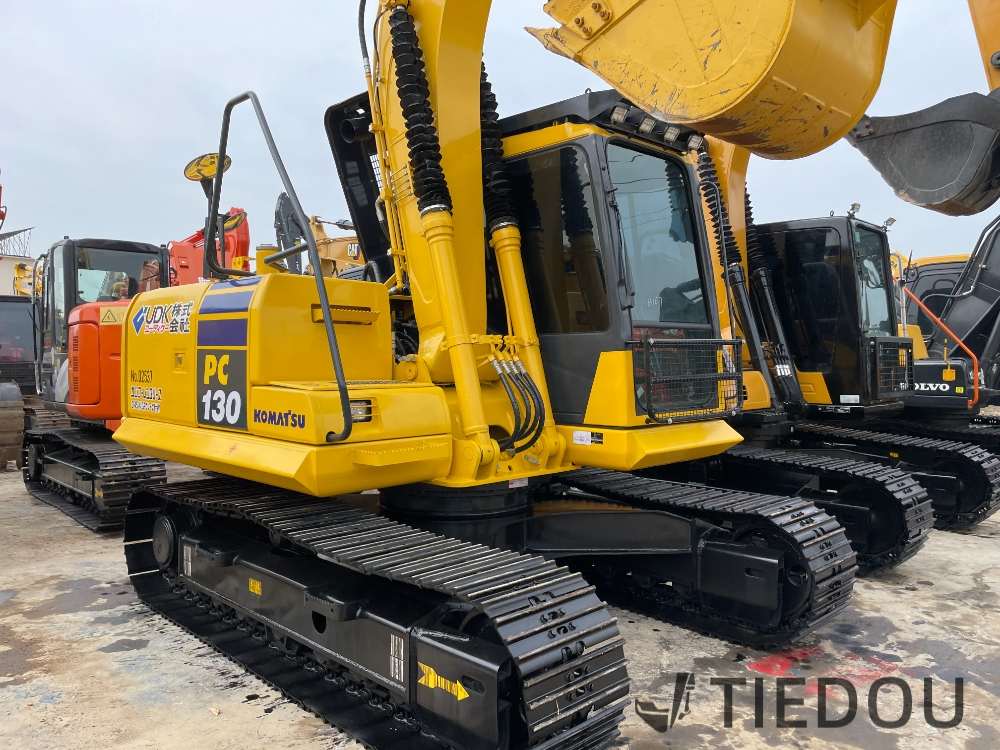

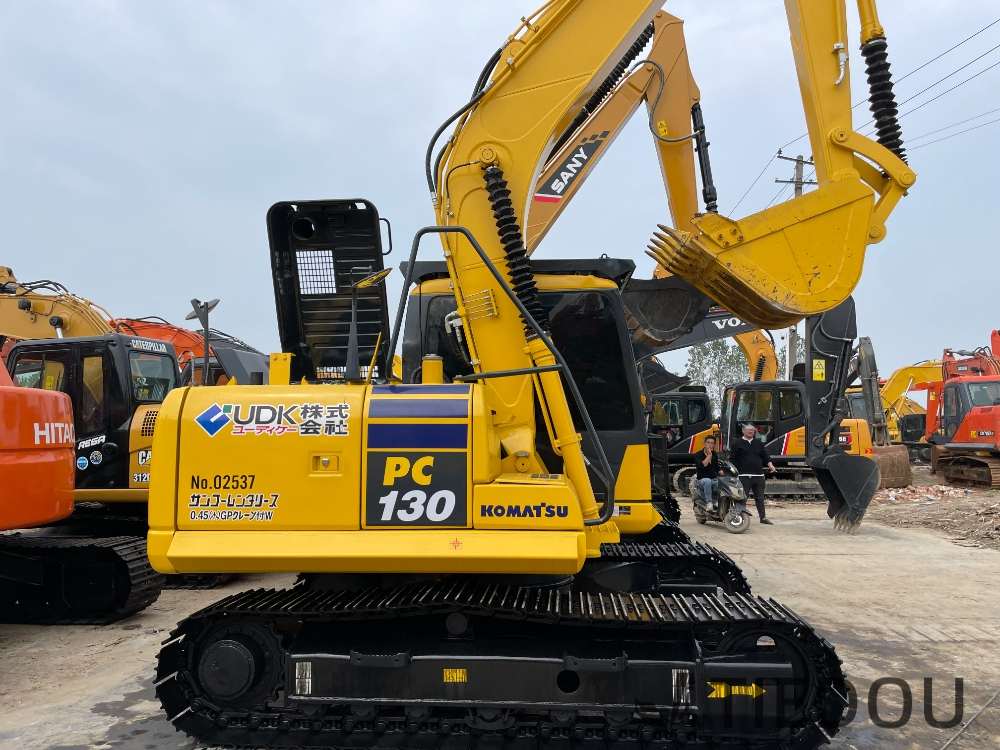

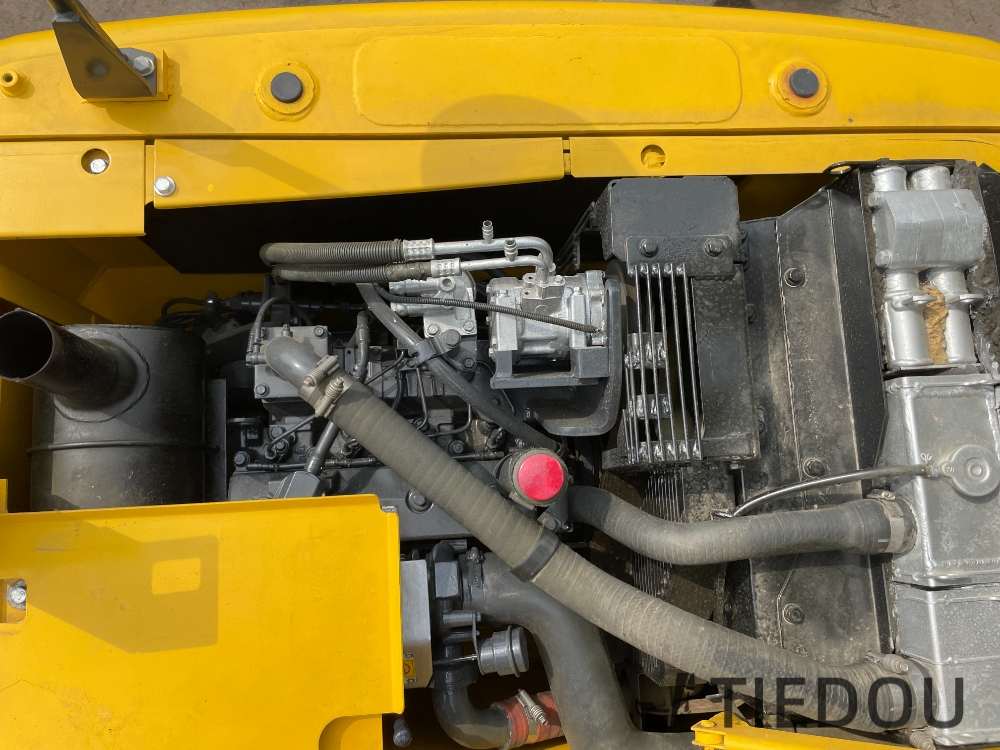

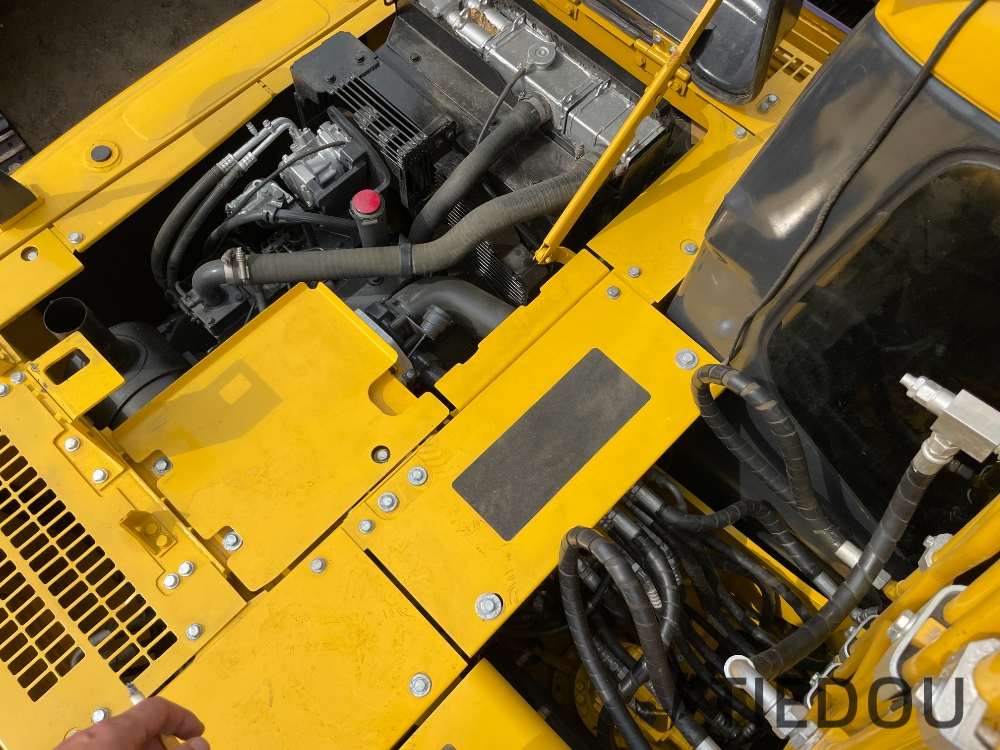

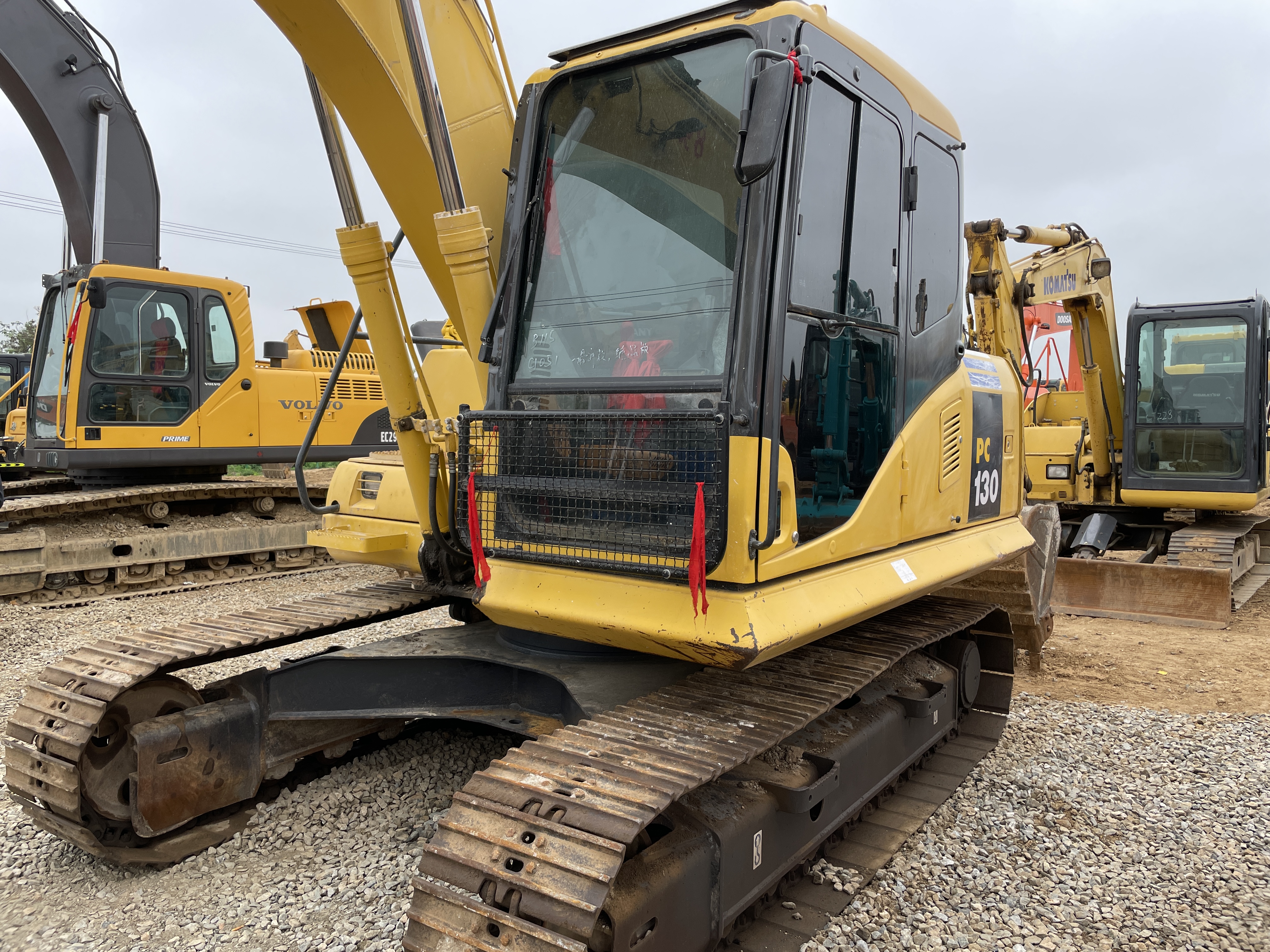

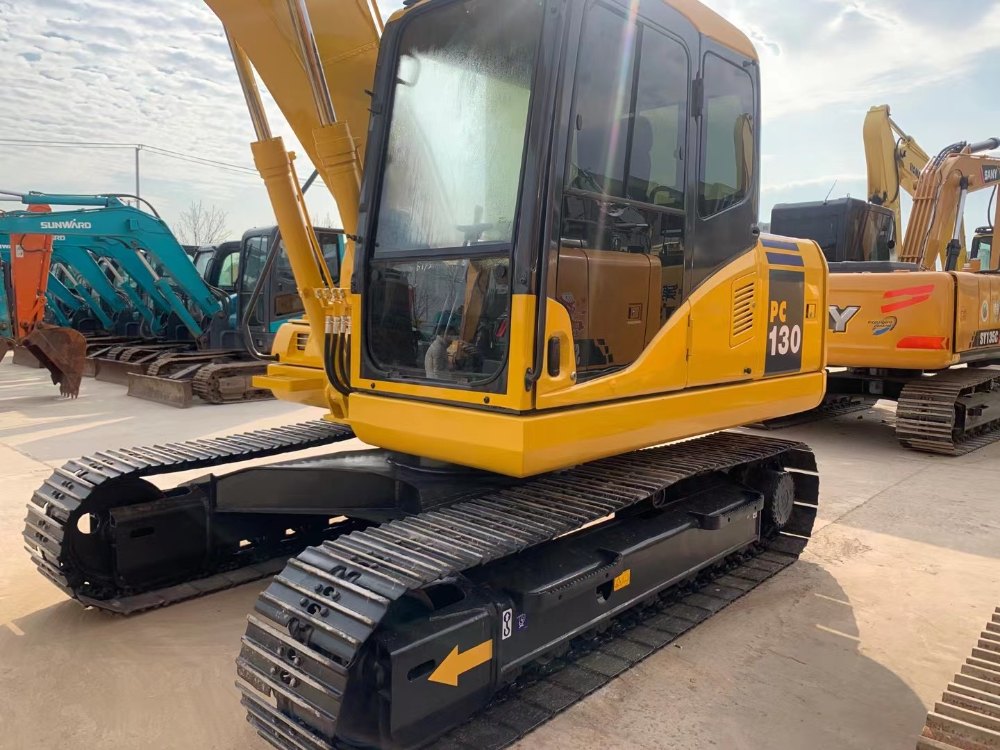

  This second-hand pine pine PC130-7 excavator has superior performance and is an ideal choice for construction site operations. It is especially suitable for small and medium-sized construction projects. The entire machine weighs 12.600 kg and is equipped with Komatsu Saa4D95le-3 engine with a power of 66.2kW, which provides strong power and adapt to complex operating conditions. Its large -capacity bucket of 0.48 cubic meters, combined with the strong 91.2kn bucket mining power and the 62.8kn hip pole mining power, can easily cope with all kinds of earth -and -ground operations. The model is equipped with an efficient hydraulic system. The hydraulic pump model is K3V63DT and the maximum hydraulic flow is 2 × 63L/min to ensure that the operation process is smooth and efficient.


  The transportation is convenient, and the size is 7760 × 2490 × 2800 mm, which is very suitable for various narrow venues. The curved width is 500 mm and the grounding ratio is 42kPa, which guarantees stable driving under various terrain. Kosamatsu PC130-7 also has excellent fuel consumption performance. The average fuel consumption per hour is only 13-16 liters, which further reduces operating costs.


  Whether it is excavation, loading, or flat ground, this model is excellent. If you are looking for a reliable and economical and efficient second-hand excavator, Kosamatsu PC130-7 is definitely the best choice.



Parameter

Specification

Brand

Komatsu

Model

PC130-7

Operating Weight

12,600 kg

Bucket Capacity

0.48 m³

Boom Length

4.6 m

Arm Length

2.5 m

Manufacturer

Komatsu

Swing Speed

12.5 rpm

Travel Speed

5.5 km/h (High) / 3.0 km/h (Low)

Gradeability

70% (35°)

Ground Pressure

42 kPa

Bucket Digging Force

91.2 kN

Arm Digging Force

62.8 kN

Engine Model

Komatsu SAA4D95LE-3

Engine Power

66.2 kW (90 HP) @ 2,200 rpm

Displacement

3.26 L

Number of Cylinders

4

Bore x Stroke

95 mm x 115 mm

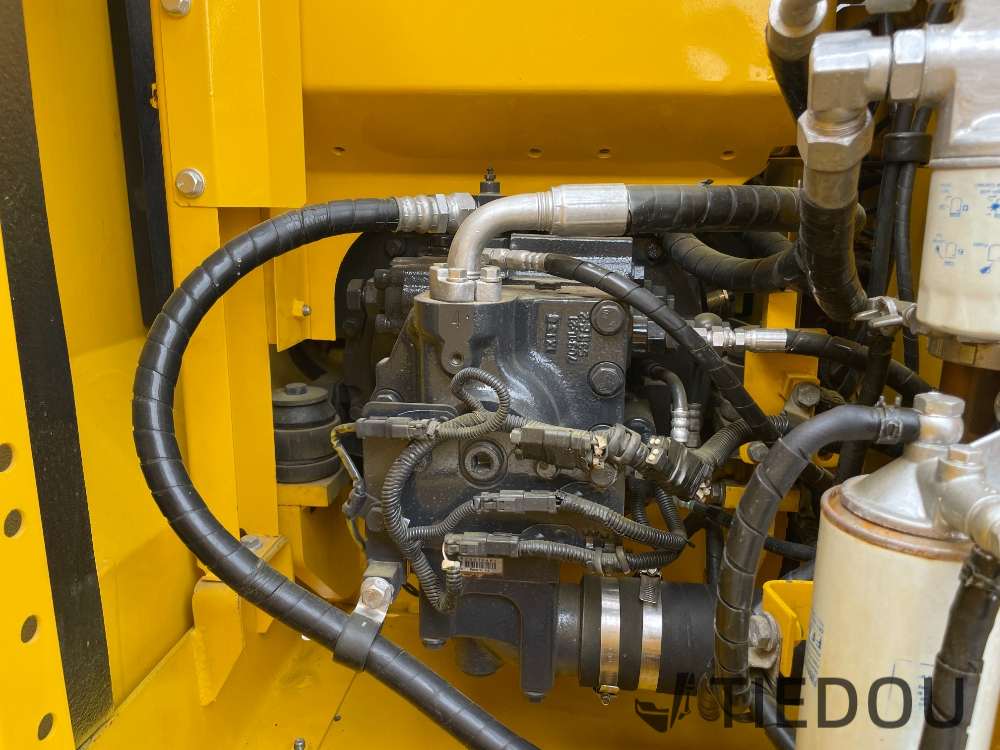

Hydraulic Pump Brand/Model

Komatsu K3V63DT

Maximum Hydraulic Flow

2 x 63 L/min

Travel Hydraulic Circuit

34.8 MPa

Control Hydraulic Circuit

24.5 MPa

Fuel Tank Capacity (L)

240 L

Hydraulic Oil Tank Capacity (L)

120 L

Engine Oil Replacement (L)

12 L

Coolant Capacity (L)

20 L

Transport Length

7,760 mm

Transport Width

2,490 mm

Transport Height

2,800 mm

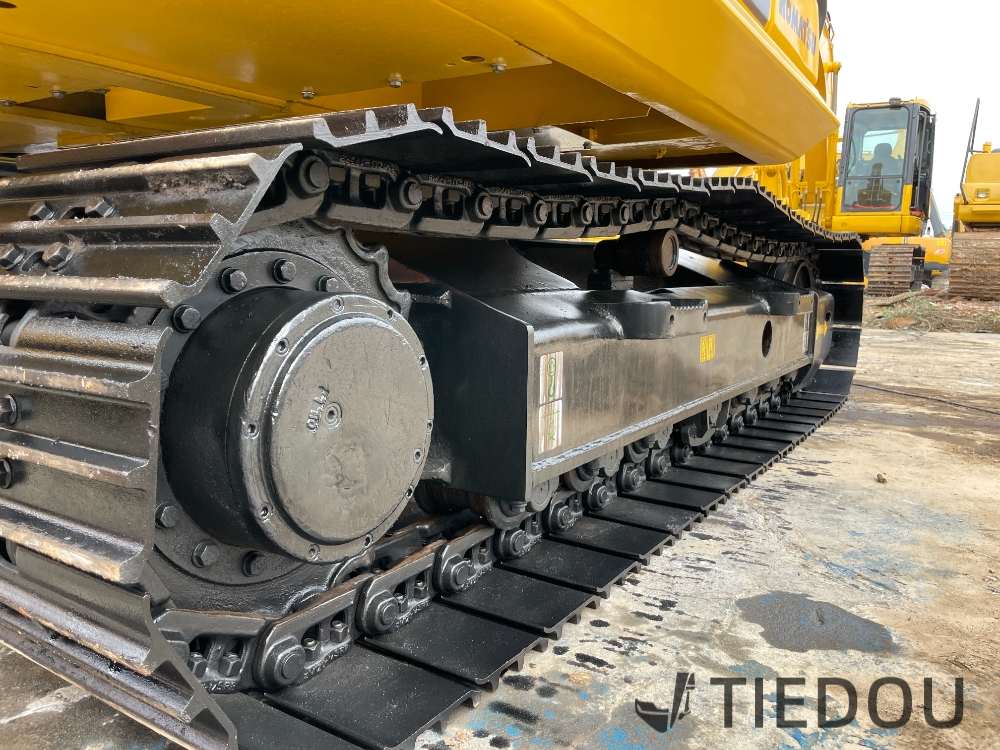

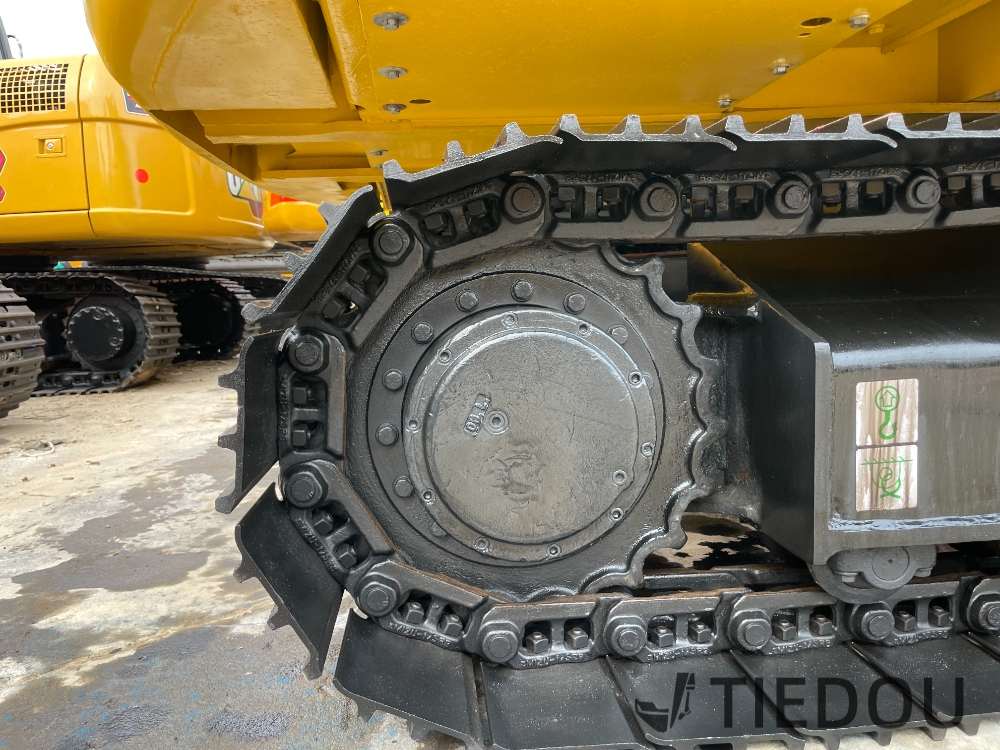

Track Shoe Width

500 mm

Track Length

3,250 mm

Maximum Digging Radius

8,310 mm

Maximum Digging Depth

5,500 mm

Maximum Digging Height

8,250 mm

Maximum Dumping Height

5,950 mm

Maximum Vertical Digging Depth

4,550 mm

Fuel Consumption

13-16 L/h (depending on conditions)

Air Conditioning

Standard

Fuel Injection Type

Direct Injection (Inline 4-cylinder Turbocharged)

Maintenance Interval

Every 500 hours

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
