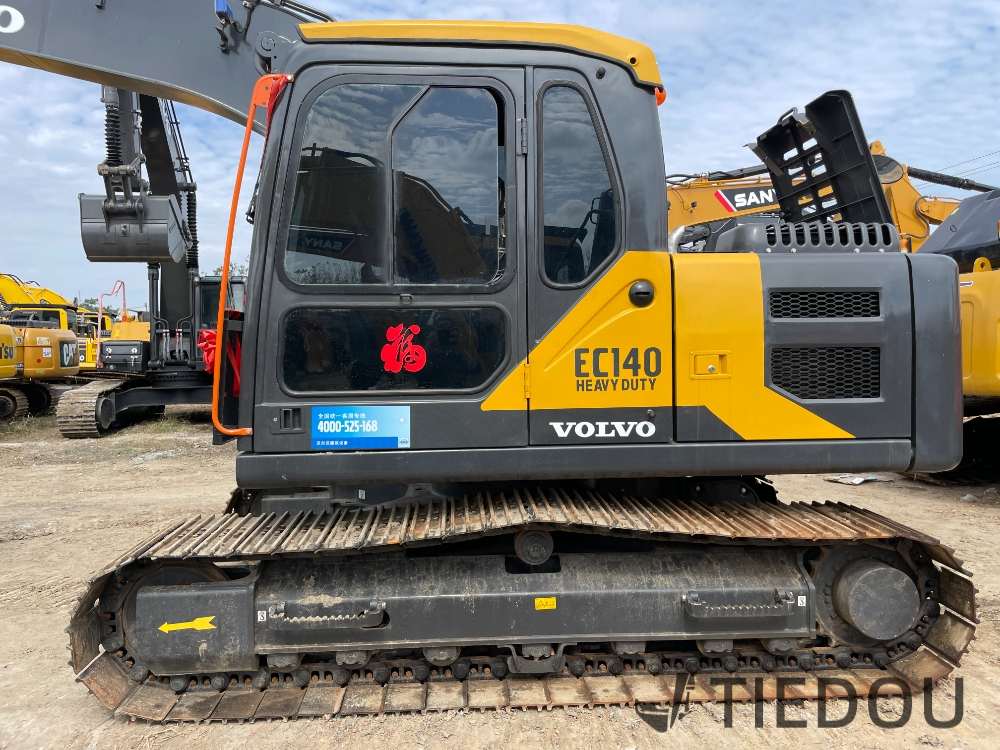

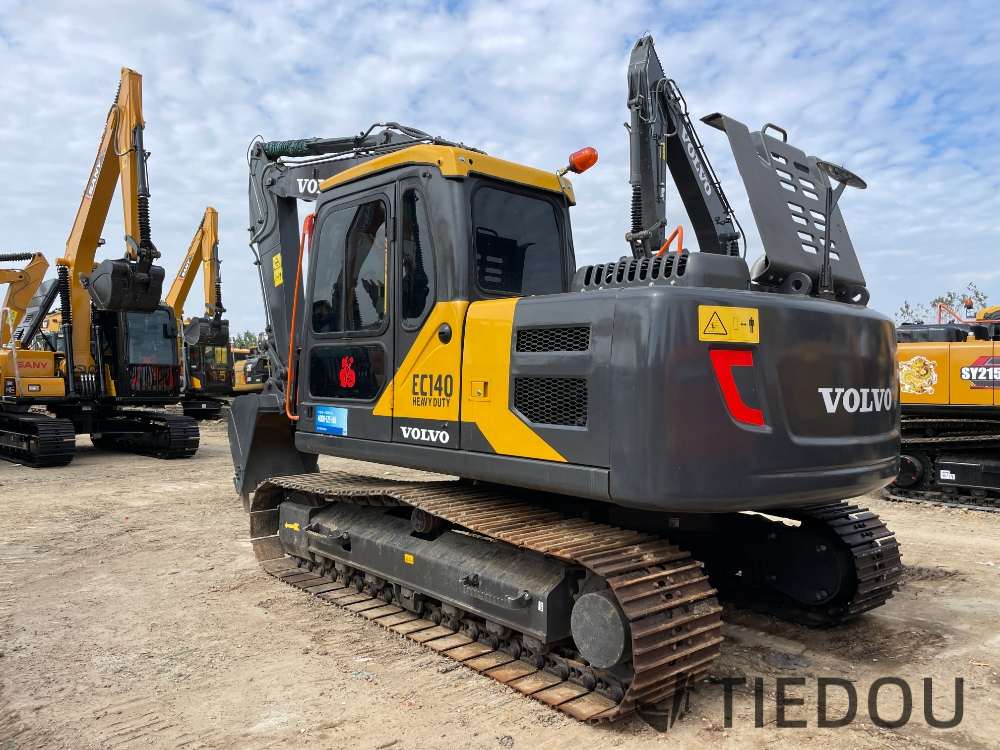

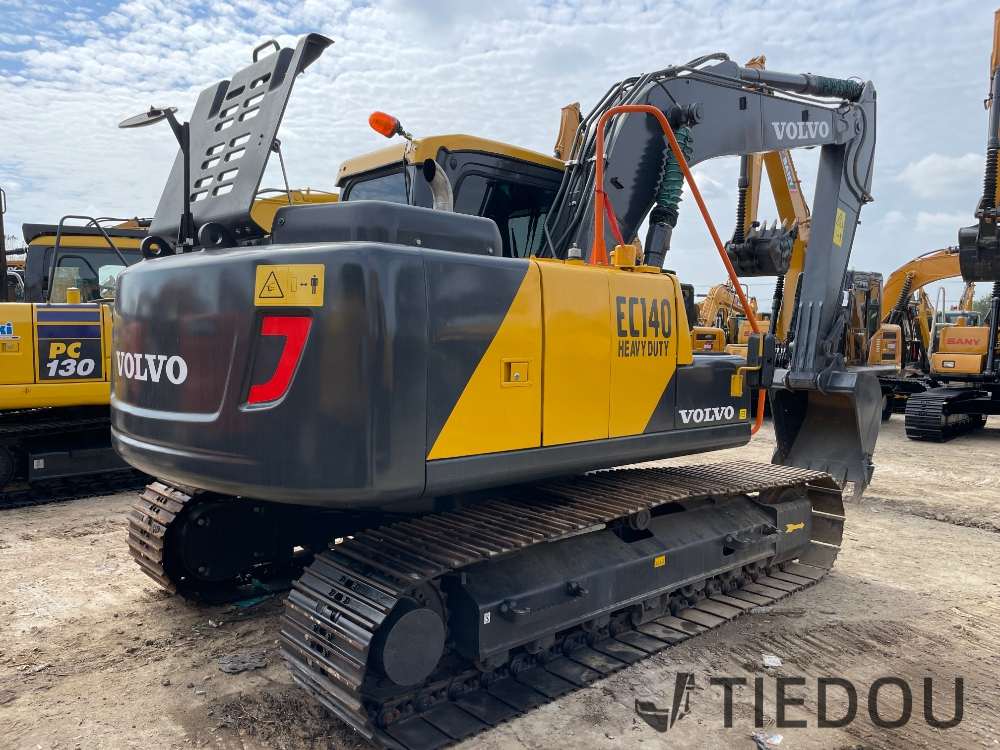

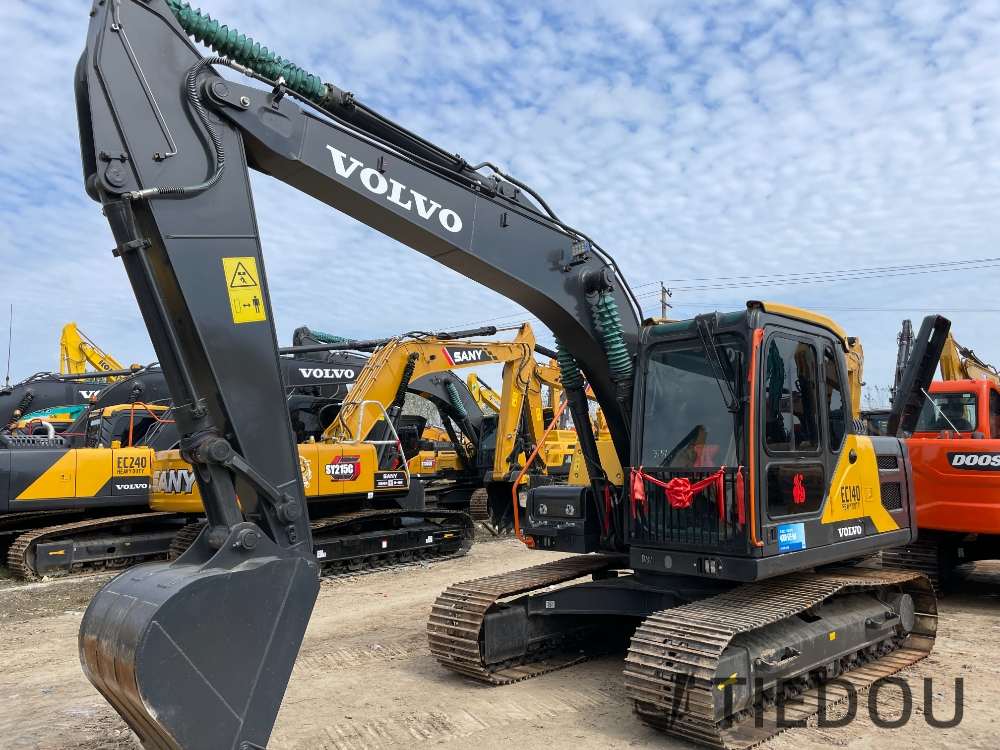

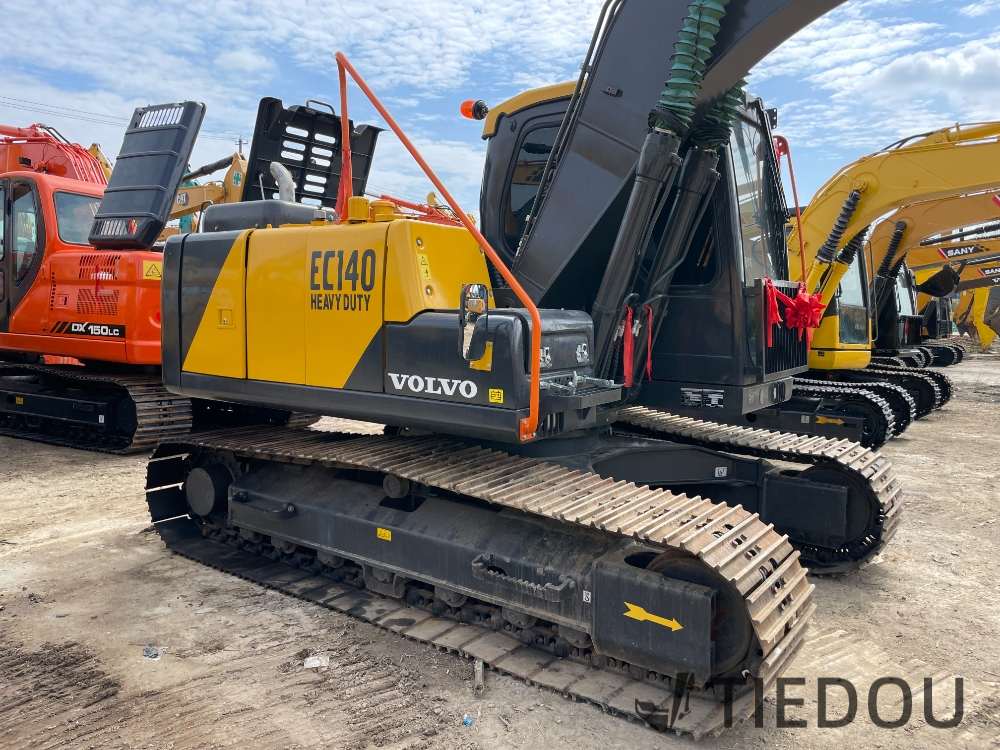

Our Volvo EC140 used excavator is your ideal choice! This equipment upholds the high standards of the Volvo brand, equipped with a 4.6-meter boom and a 2.5-meter dipper arm, suitable for various working conditions. From the bucket digging force of 89 kN to the powerful Volvo D4J engine, this excavator brings you a high-efficiency and low-fuel consumption construction experience. With a total weight of approximately 13.800 kg and excellent stability, it can easily operate on rugged terrain.
Equipment features:
Large-capacity bucket: suitable for large earthwork projects High efficiency and low consumption: 8-10 L/h fuel consumption, environmentally friendly and economical Easy maintenance: 500-hour maintenance cycle, improve work efficiency Comfortable control: standard air conditioning, making operation more comfortable This Volvo EC140 is maintained by a professional technical team, with reliable performance and no major failure history. Suitable for a variety of construction needs such as construction, earthwork, excavation, etc., it is an ideal choice to improve work efficiency! Contact now for detailed information and preferential prices!
Parameter | Specification |
Brand | Volvo |
Model | EC140 |
Operating Weight | Approx. 13,800 kg |
Bucket Capacity | 0.52 - 0.92 m³ |
Boom Length | 4.6 m |
Arm Length | 2.5 m |
Manufacturer | Volvo Construction Equipment |
Swing Speed | 12.3 rpm |
Travel Speed | 2.9 - 5.4 km/h |
Gradeability | 70% (approx. 35°) |
Ground Pressure | 37.5 kPa |
Bucket Digging Force | 89 kN |
Arm Digging Force | 64 kN |

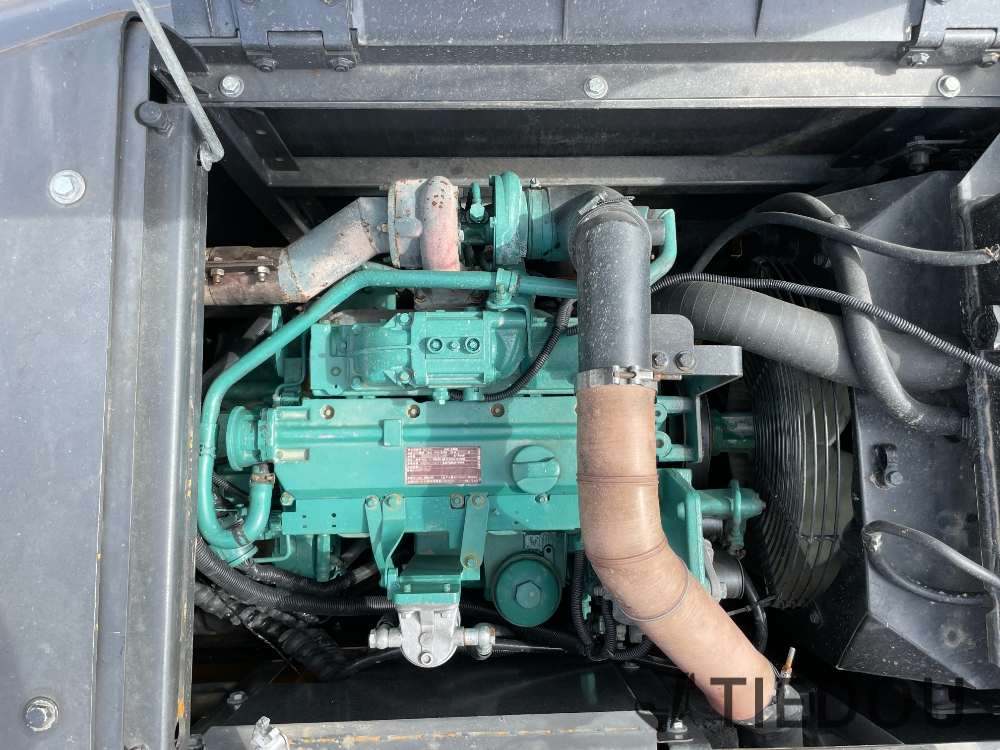

Engine Model | Volvo D4J |
Engine Power | 77 kW / 2,200 rpm |
Displacement | 4.0 L |
Number of Cylinders | 4 |
Bore & Stroke | 108 x 130 mm |

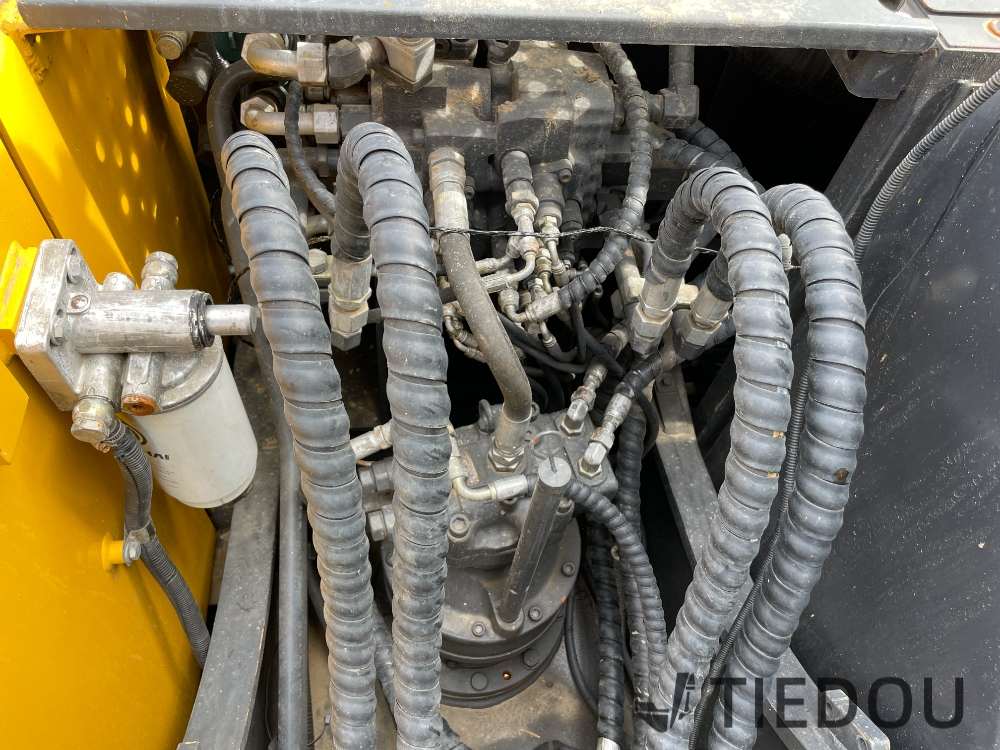

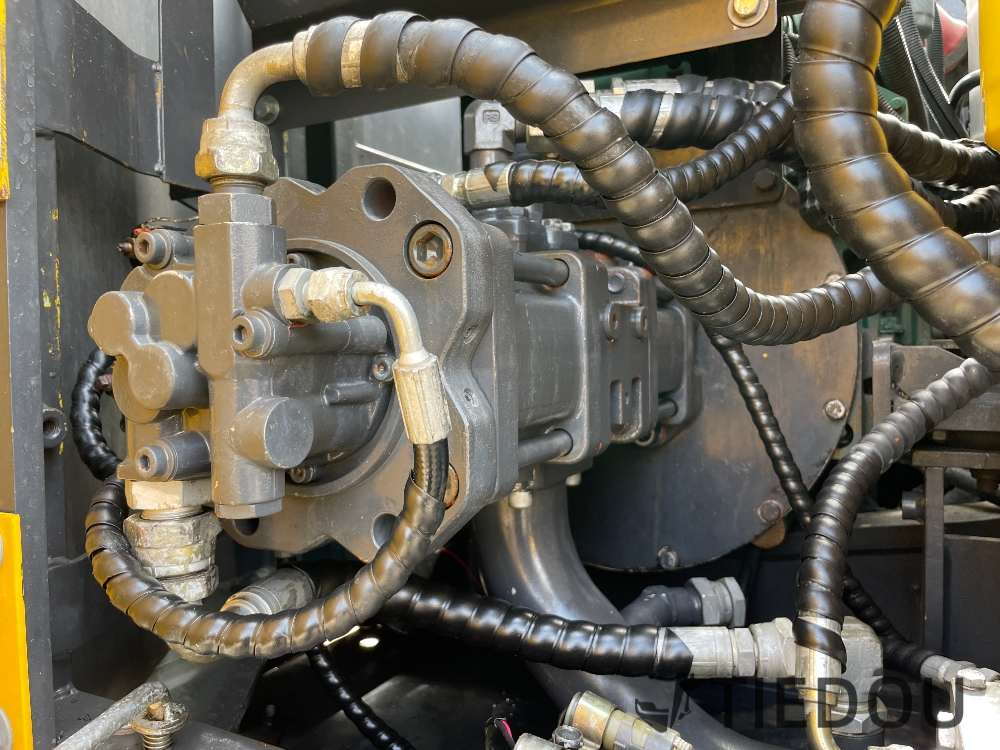

Hydraulic Pump Brand | Volvo |
Hydraulic Pump Model | - |
Max Hydraulic Flow | 200 L/min |
Travel Hydraulic Circuit | Dual-speed |
Control Hydraulic Circuit | Electro-hydraulic |
Fuel Tank | 235 L |
Hydraulic Tank | 125 L |
Engine Oil Change Volume | 12 L |
Coolant | 20 L |
Transport Length | 7,600 mm |
Transport Width | 2,500 mm |
Transport Height | 2,800 mm |

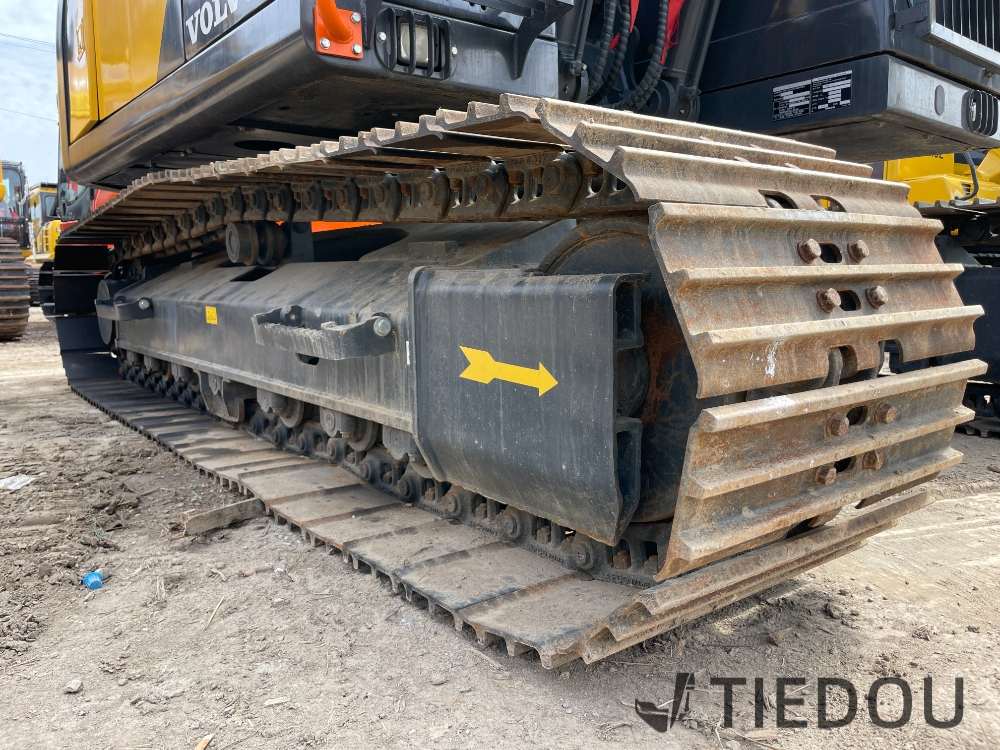

Track Width | 600 mm |
Track Length | 3,400 mm |
Max Digging Radius | 8,300 mm |
Max Digging Depth | 5,520 mm |
Max Digging Height | 9,150 mm |
Max Dump Height | 6,470 mm |
Max Vertical Digging Depth | 5,000 mm |
Fuel Consumption | 8-10 L/h |

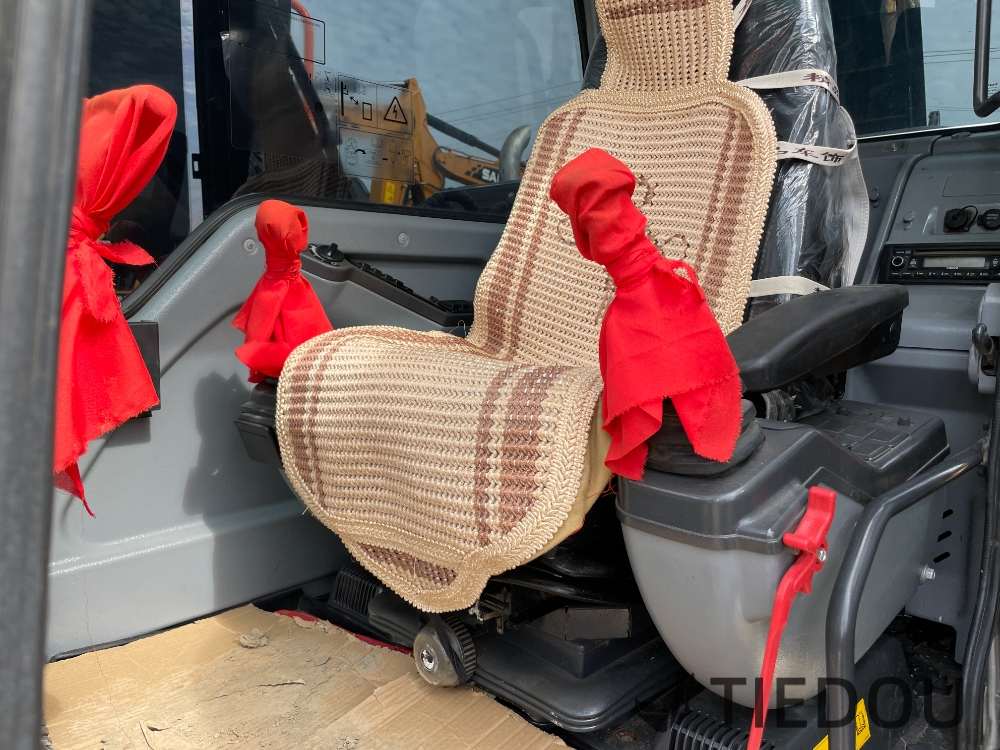

Air Conditioning | Standard |
Direct Injection | Direct injection |
Maintenance Interval | 500 hours |
Product Features
-
Rich models
Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.
-
Complete accessories
Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.
-
Customized production
Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.
-
Brand warranty
Famous brand, reliable quality, long service life, worry-free after-sales.
