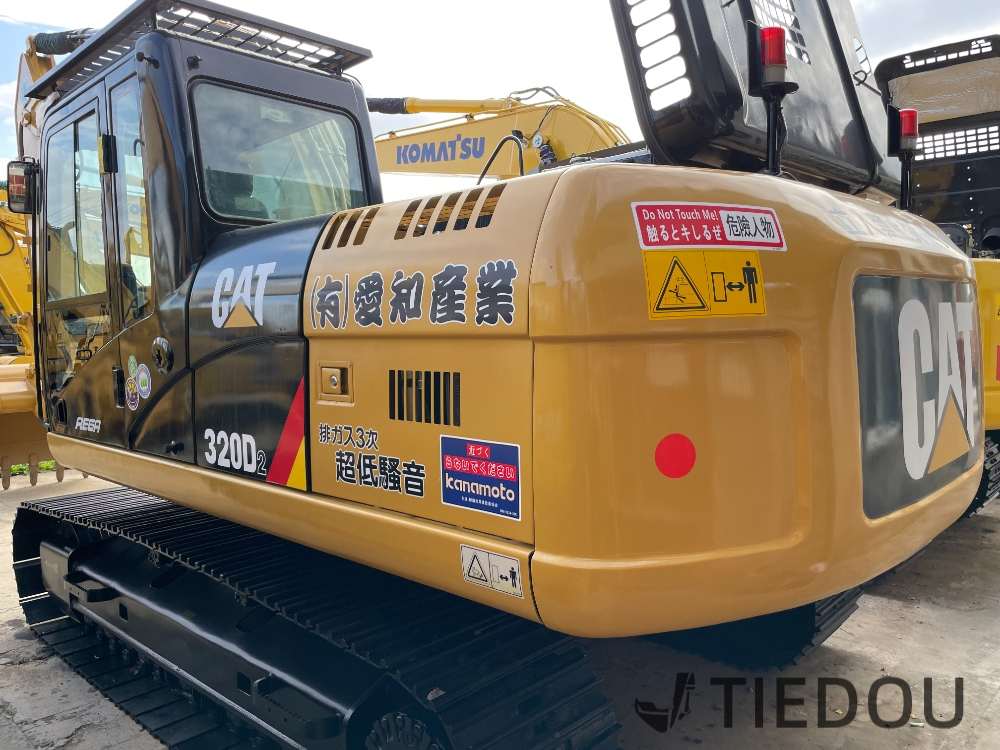

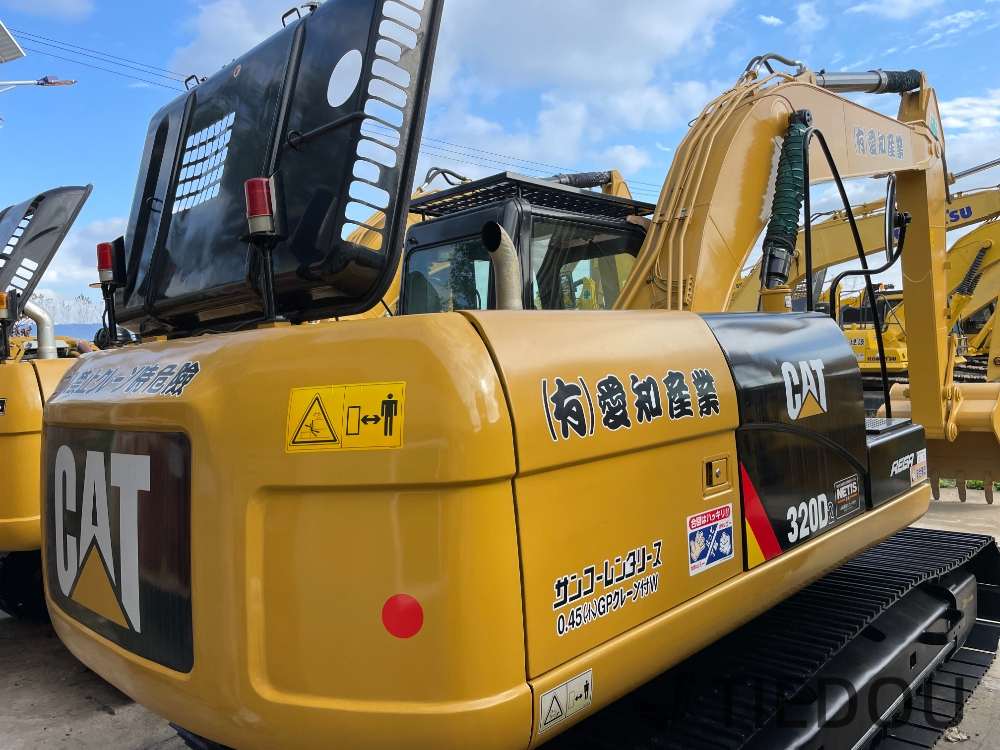

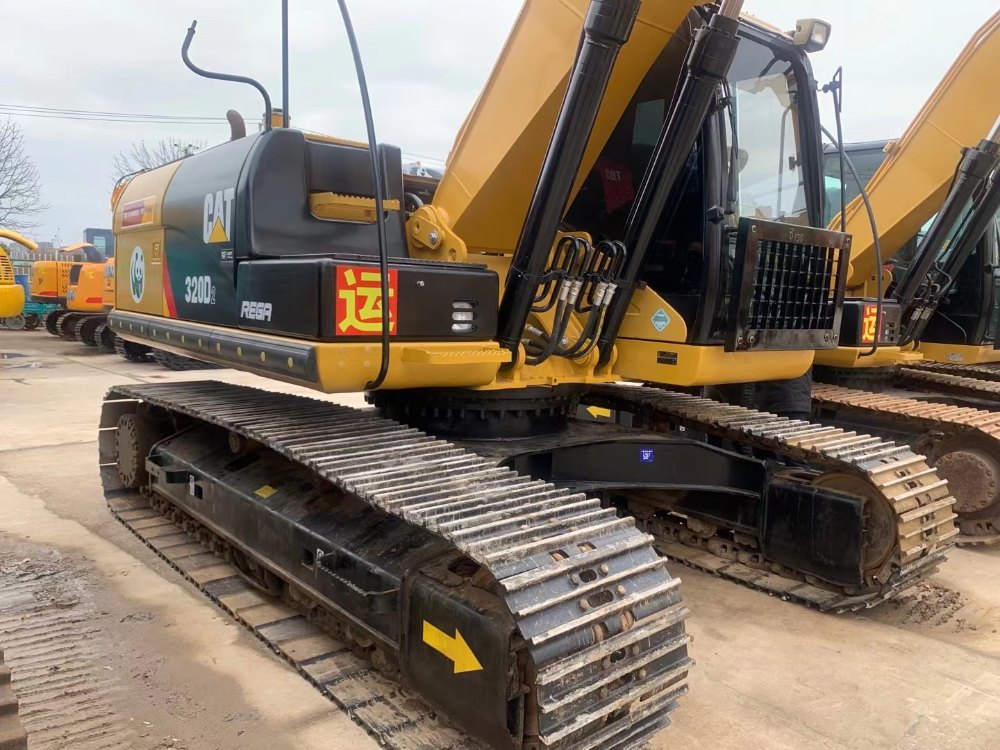

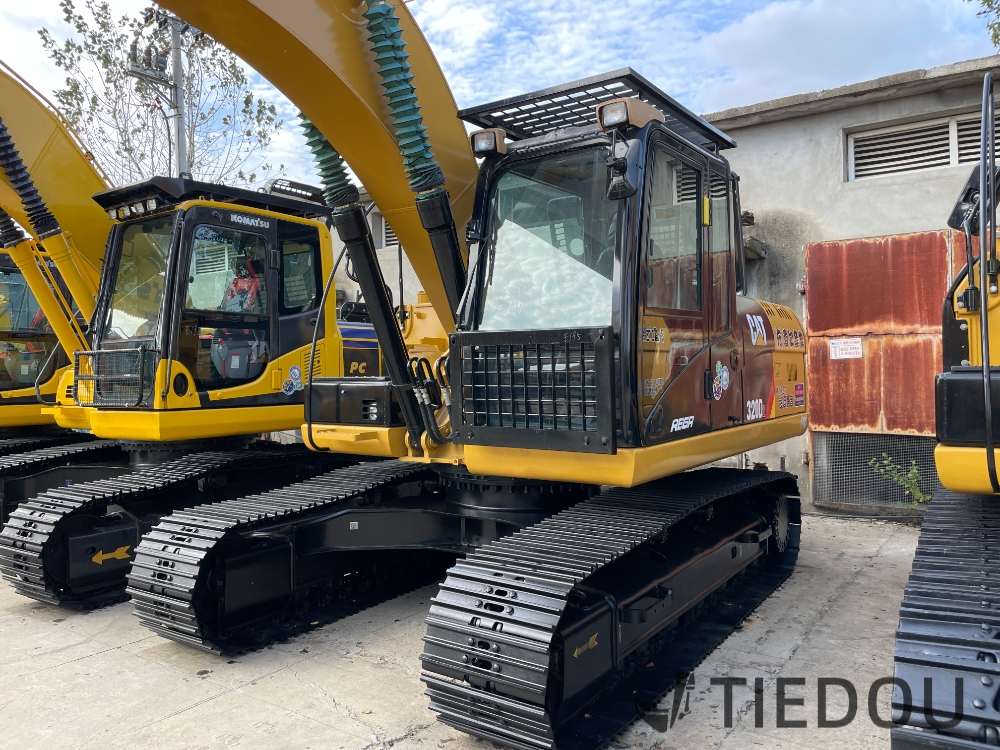

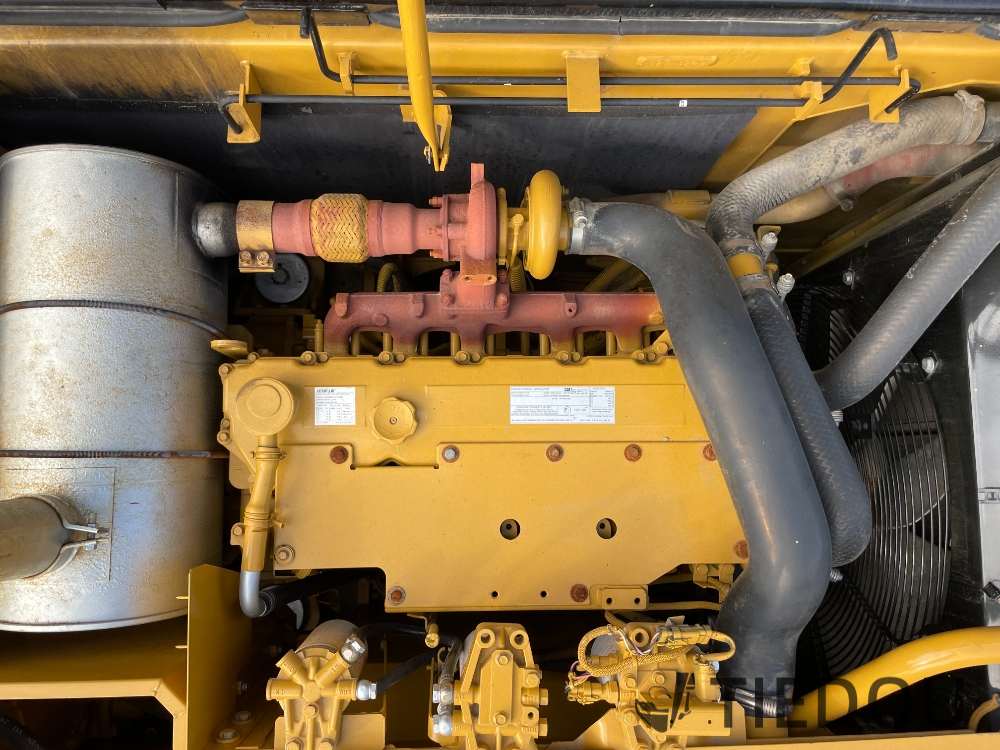

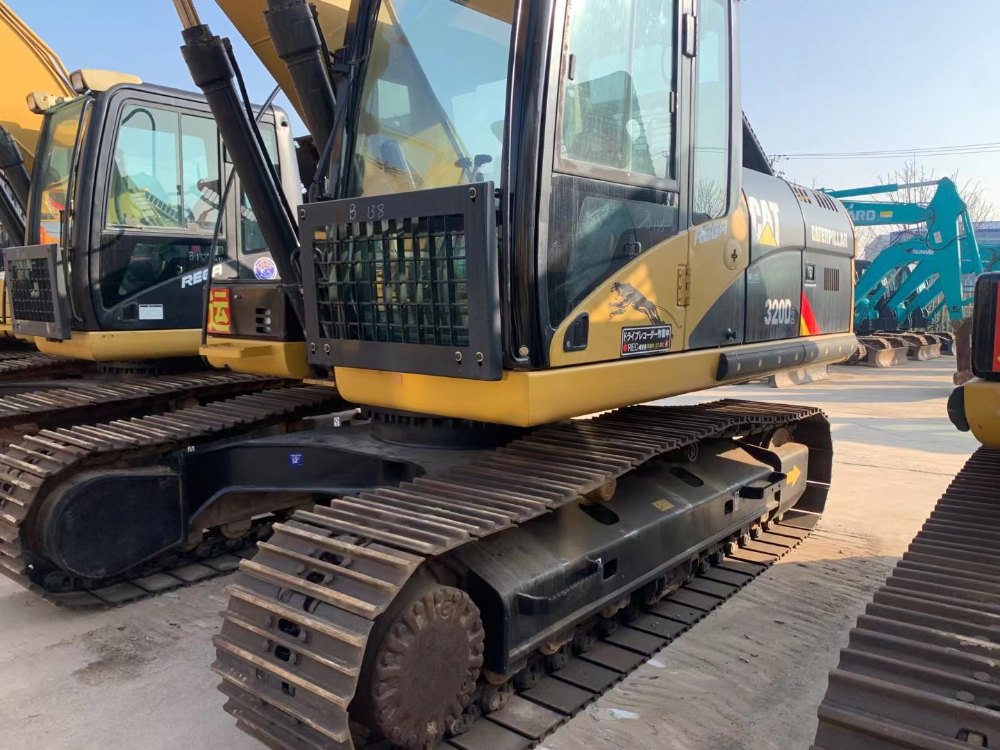

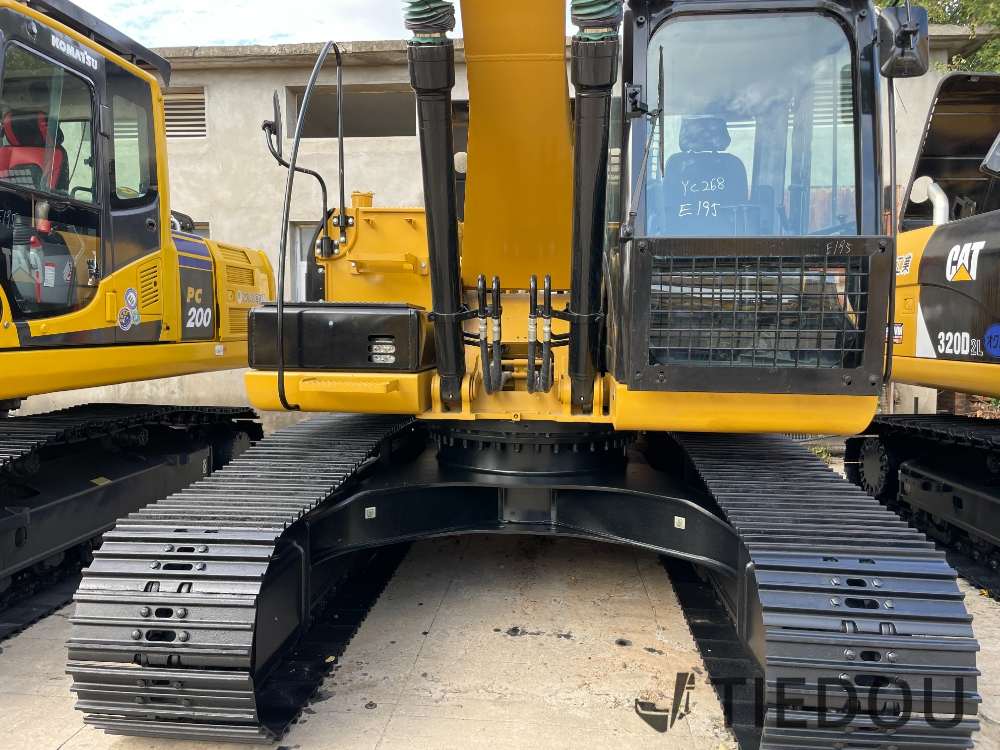

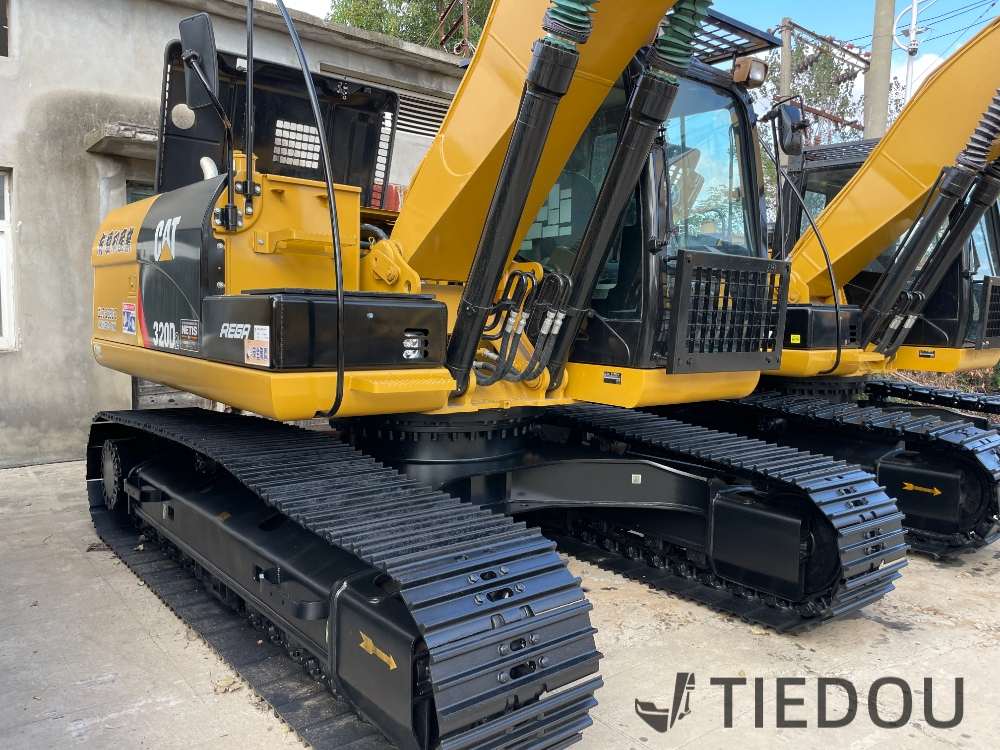

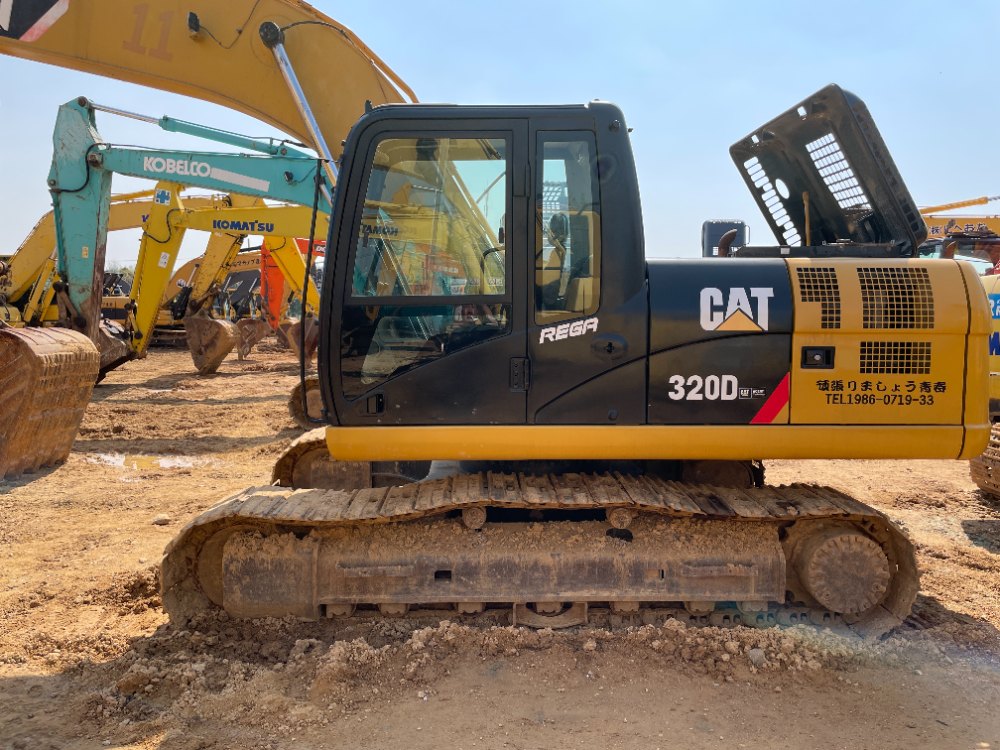

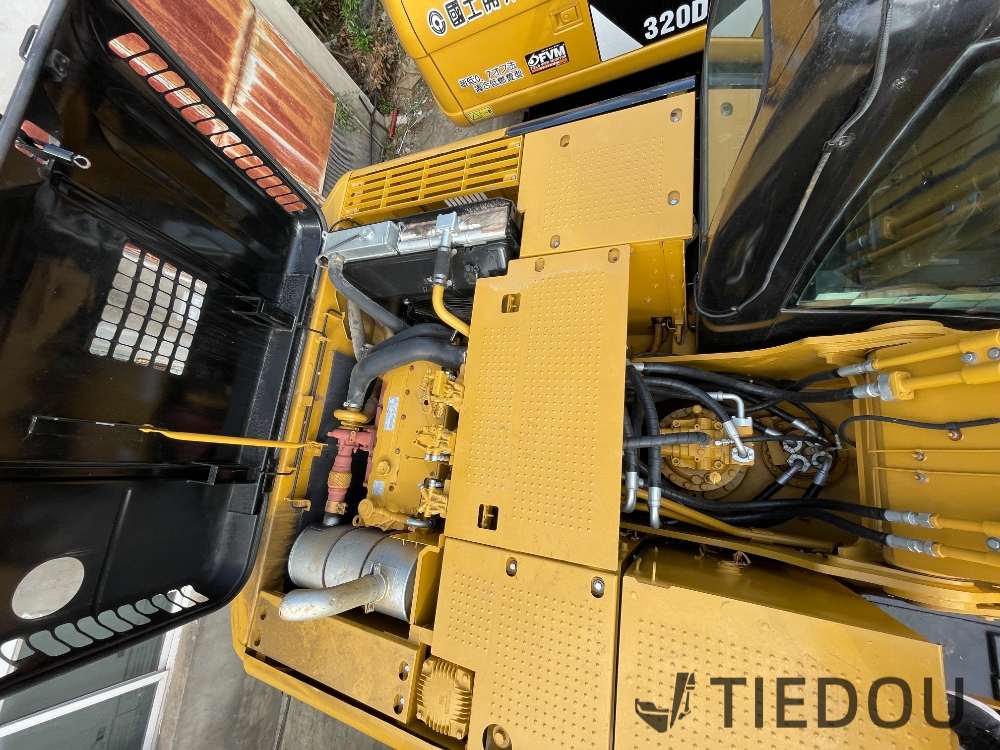

　　This Caterpillar CAT320D2 excavator has a total weight of 20.800 kg and a bucket capacity of 0.8-1.2 cubic meters, suitable for various earthwork, construction and mining operations. The equipment is equipped with a C7.1 engine with a power of 110 kW, which is powerful and fuel-efficient. Its boom length is 5.7 meters and its arm length is 2.9 meters, which can achieve a maximum digging radius of 9.93 meters and a digging depth of 6.76 meters, providing you with a larger operating range.

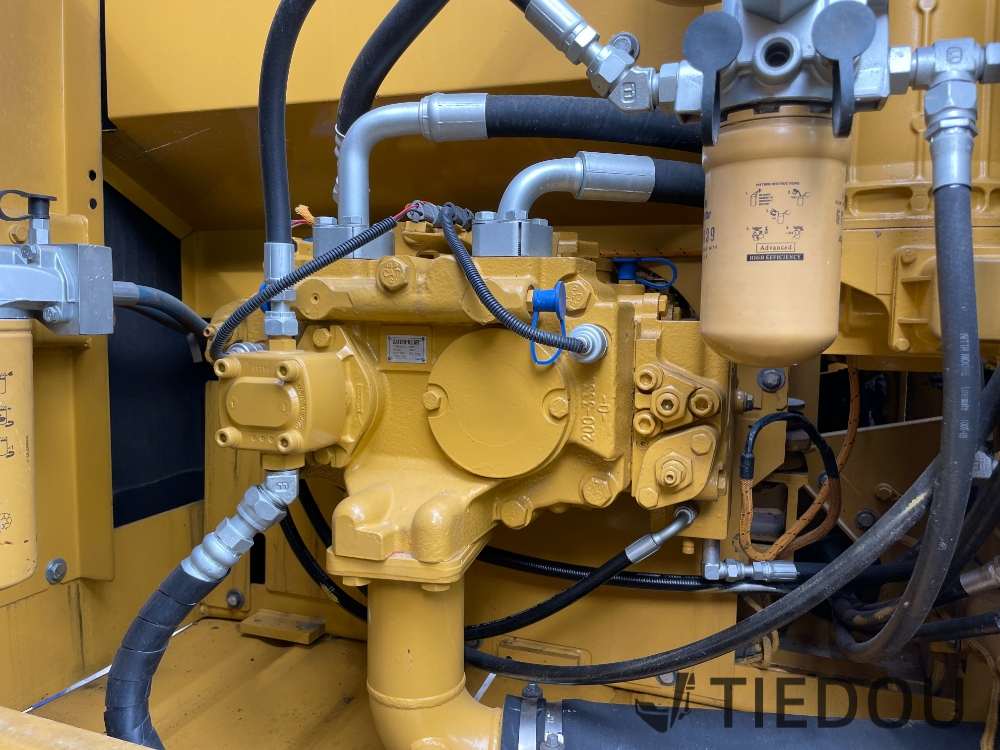

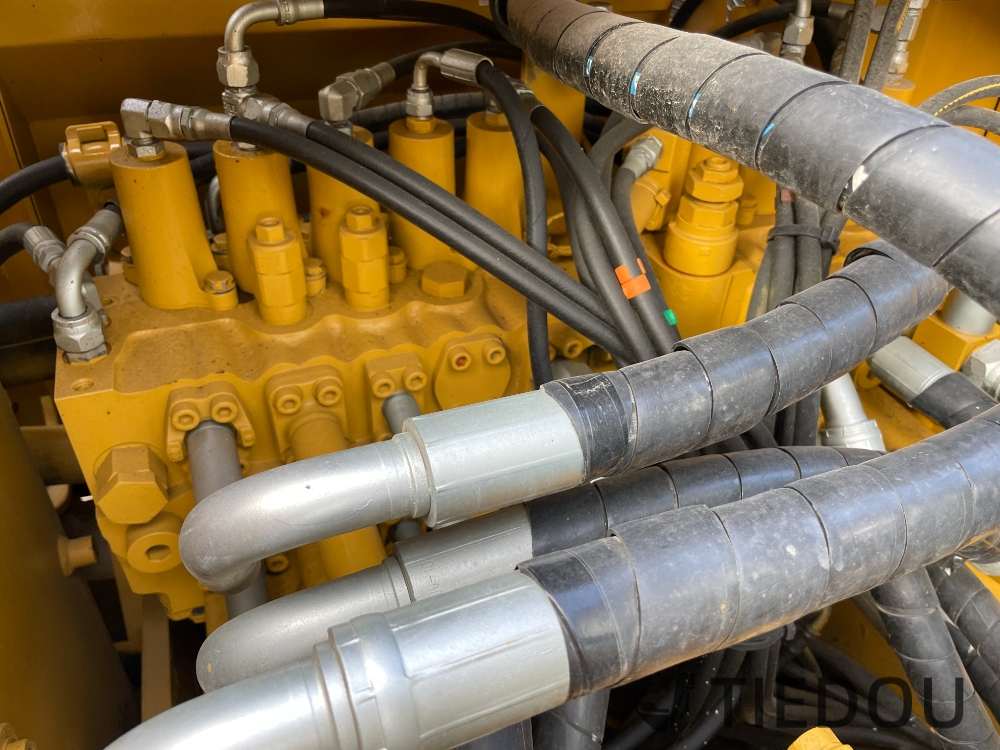

　　CAT320D2 adopts an electronic fuel injection engine and an advanced hydraulic system (hydraulic flow 232 L/min) to ensure efficient working speed and fuel efficiency. The 11.2 rpm rotation speed and 5.5 km/h walking speed enable it to operate quickly and efficiently in the work site. Its 46.8 kPa ground pressure ratio and 70% (35°) climbing ability are suitable for use in various terrain conditions.

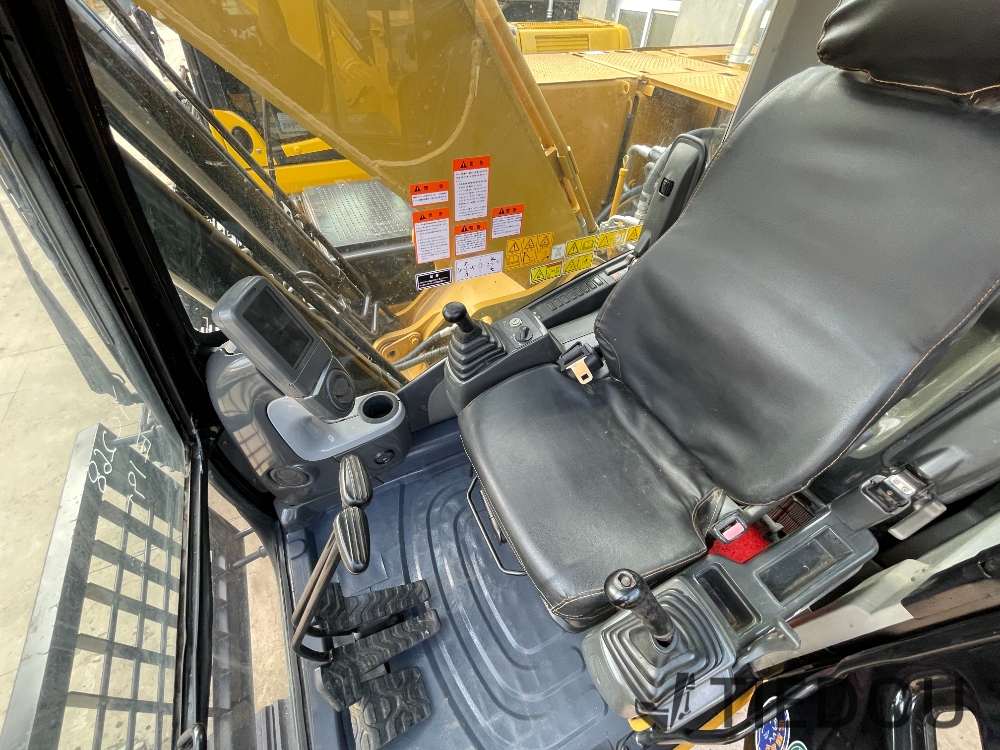

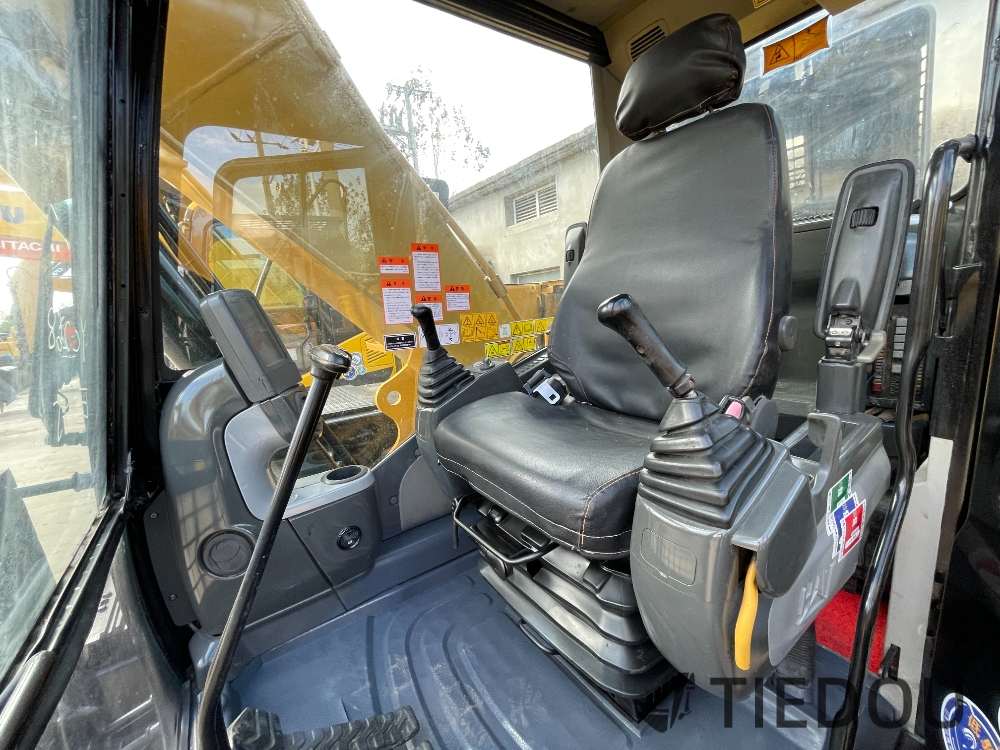

　　The equipment has been professionally inspected and is in good condition. It is equipped with air conditioning, suitable for long-term operation, and supports regular maintenance every 500 hours to ensure long-term reliable performance.




Parameter

Specification

Brand

Caterpillar

Model

CAT320D2

Operating Weight

20,800 kg

Bucket Capacity

0.8-1.2 m³

Boom Length

5.7 m

Stick Length

2.9 m

Manufacturer

Caterpillar Inc.

Swing Speed

11.2 rpm

Travel Speed

5.5 km/h

Gradeability

70% (35°)

Ground Pressure

46.8 kPa

Bucket Digging Force

125 kN

Stick Digging Force

92 kN

Engine Model

Caterpillar C7.1

Engine Power

110 kW

Displacement

7.01 L

Number of Cylinders

6

Bore & Stroke

105 x 135 mm

Hydraulic Pump Brand & Model

Caterpillar 328D

Max Hydraulic Flow

232 L/min

Travel Hydraulic Circuit

34.3 MPa

Control Hydraulic Circuit

25 MPa

Fuel Tank

410 L

Hydraulic Tank

127 L

Engine Oil Change

30 L

Coolant

33 L

Transport Length

9,570 mm

Transport Width

2,800 mm

Transport Height

3,080 mm

Track Width

600 mm

Track Length

4,360 mm

Max Digging Radius

9,930 mm

Max Digging Depth

6,760 mm

Max Digging Height

9,720 mm

Max Dumping Height

6,710 mm

Max Vertical Dig Depth

6,100 mm

Fuel Consumption

16 L/h

Air Conditioning

Yes

Injection Type

Electronic

Maintenance Interval

500 hours

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
