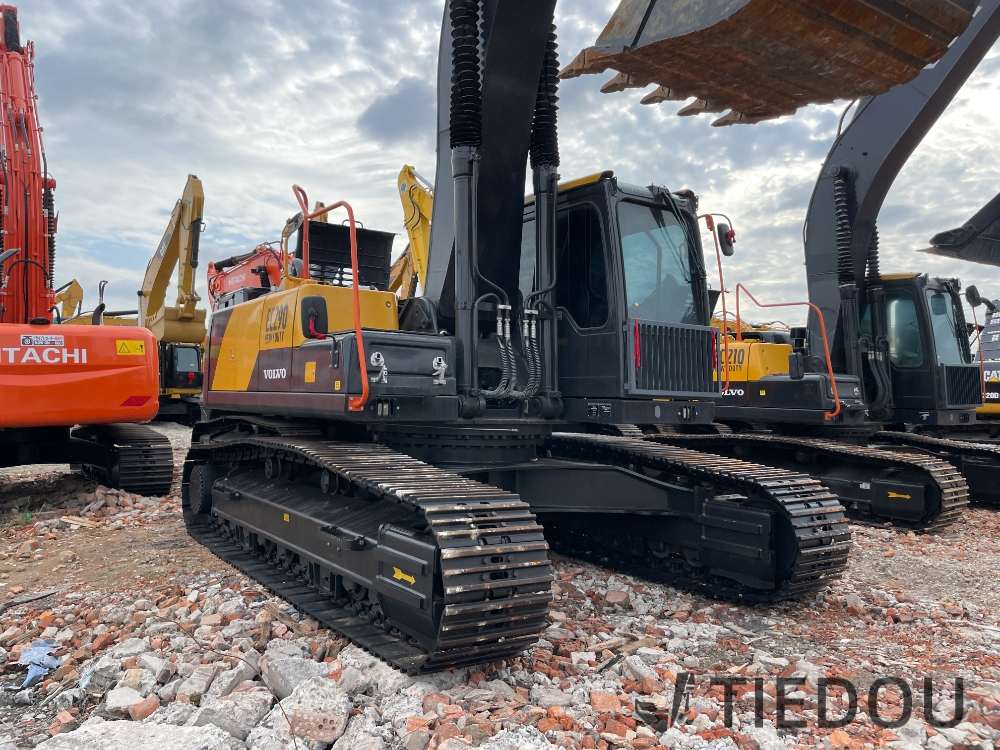

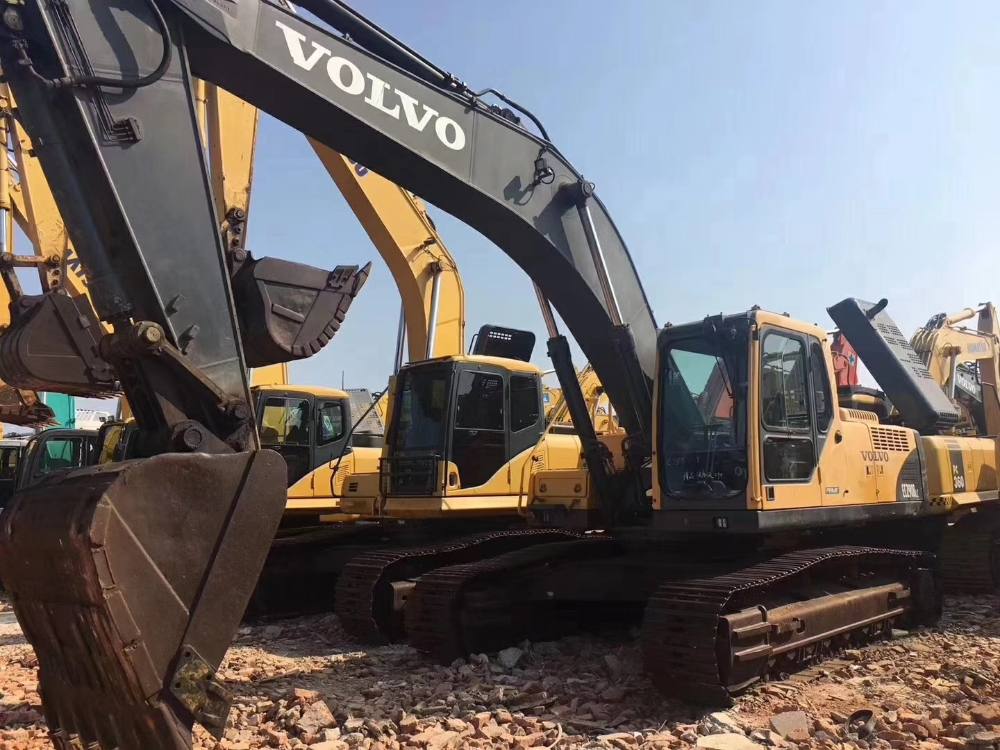

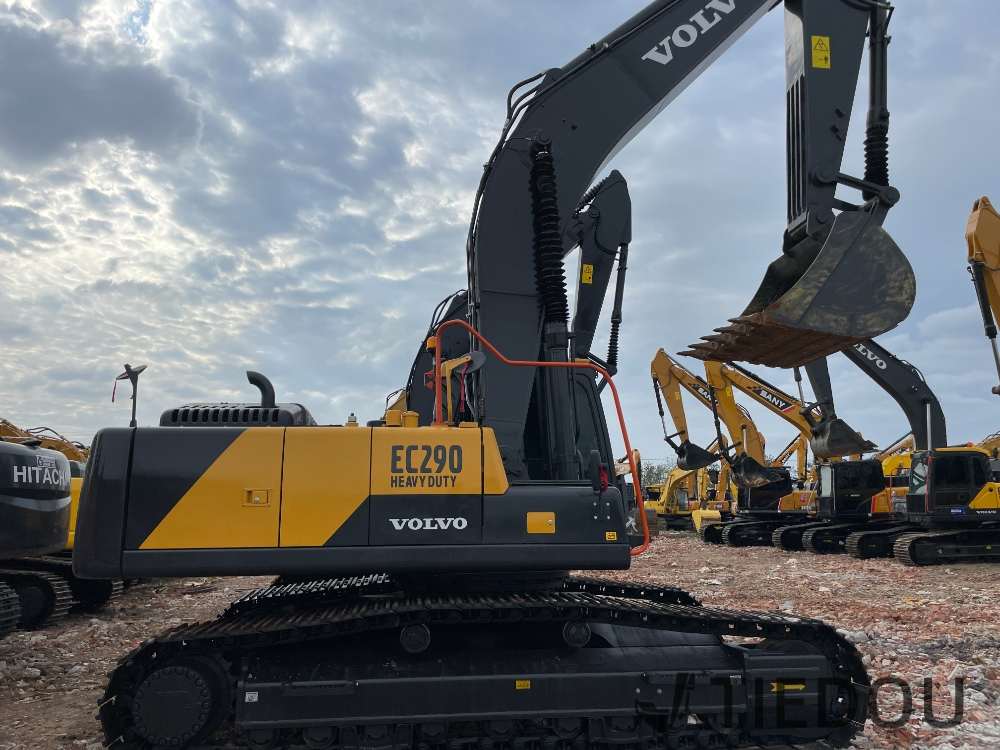

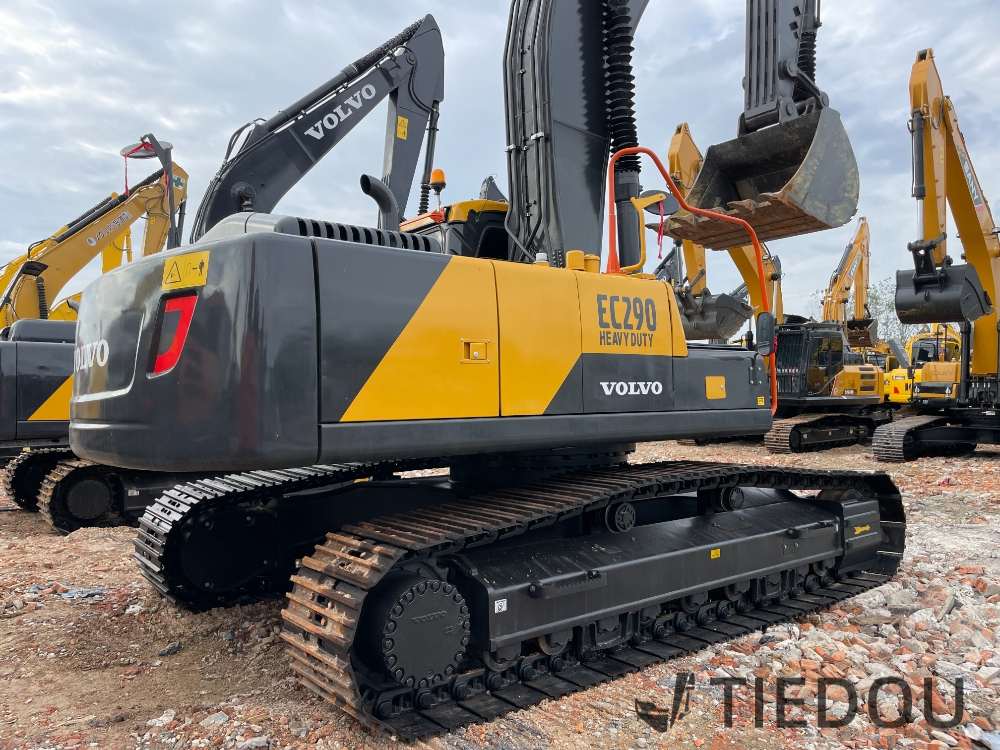

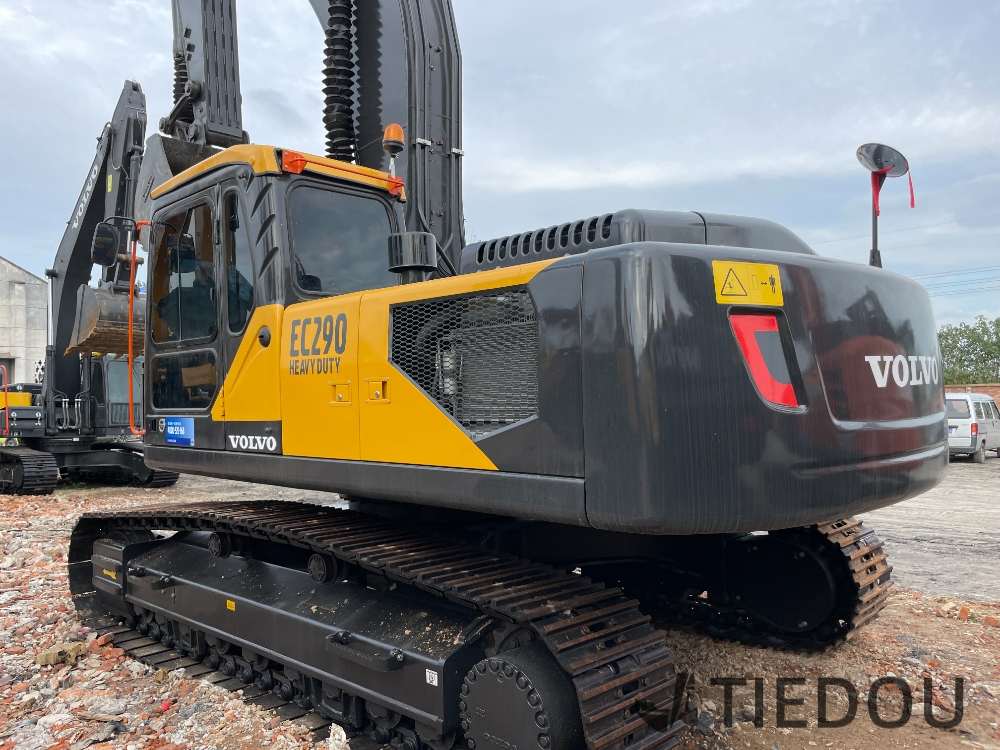

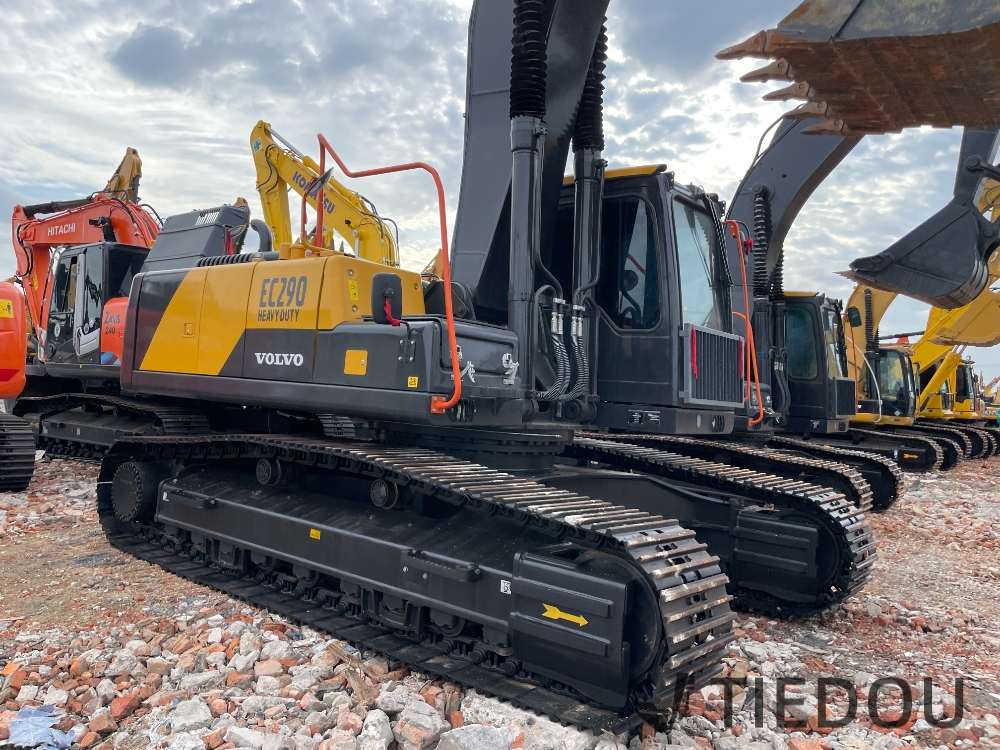

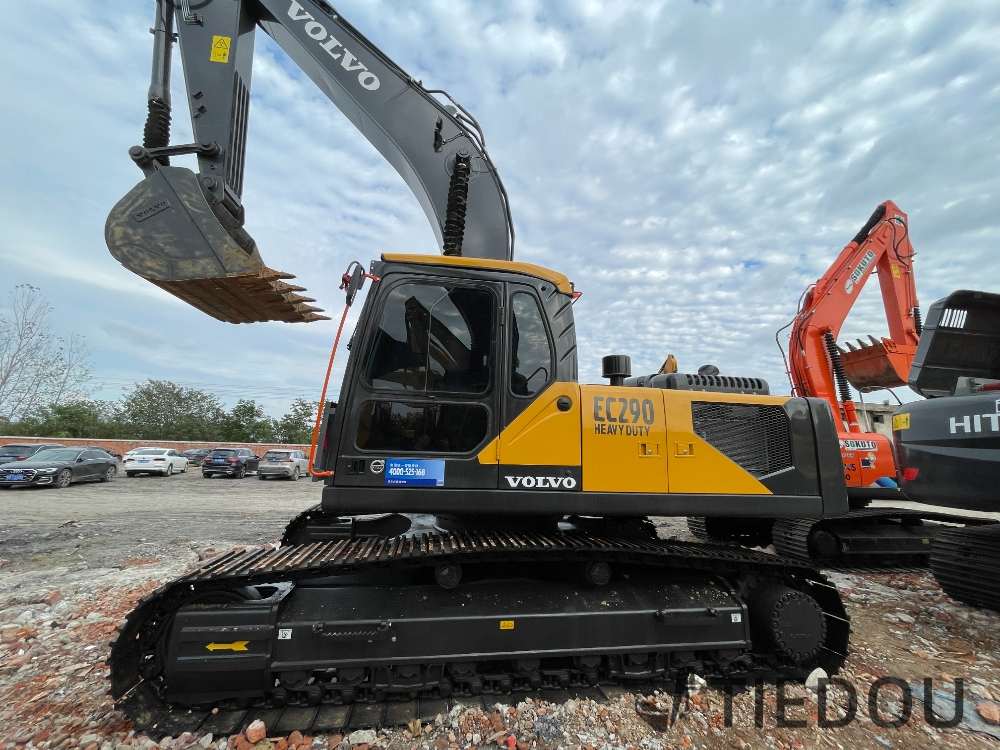

  Used Volvo EC290 excavator! Well-recognized for its powerful performance, durable design and excellent fuel economy, this machine is perfect for all kinds of construction projects. The Volvo EC290 is equipped with a large-capacity 1.35-1.75 m³ bucket, optimized boom and stick length, which allows it to reach a maximum digging depth of 7.2 meters and a bucket digging force of up to 188 kN, making it easy to cope with difficult working conditions. The built-in Volvo D7E engine provides 197 horsepower of surging power, and the efficient hydraulic system ensures smooth operation and effectively reduces fuel consumption.

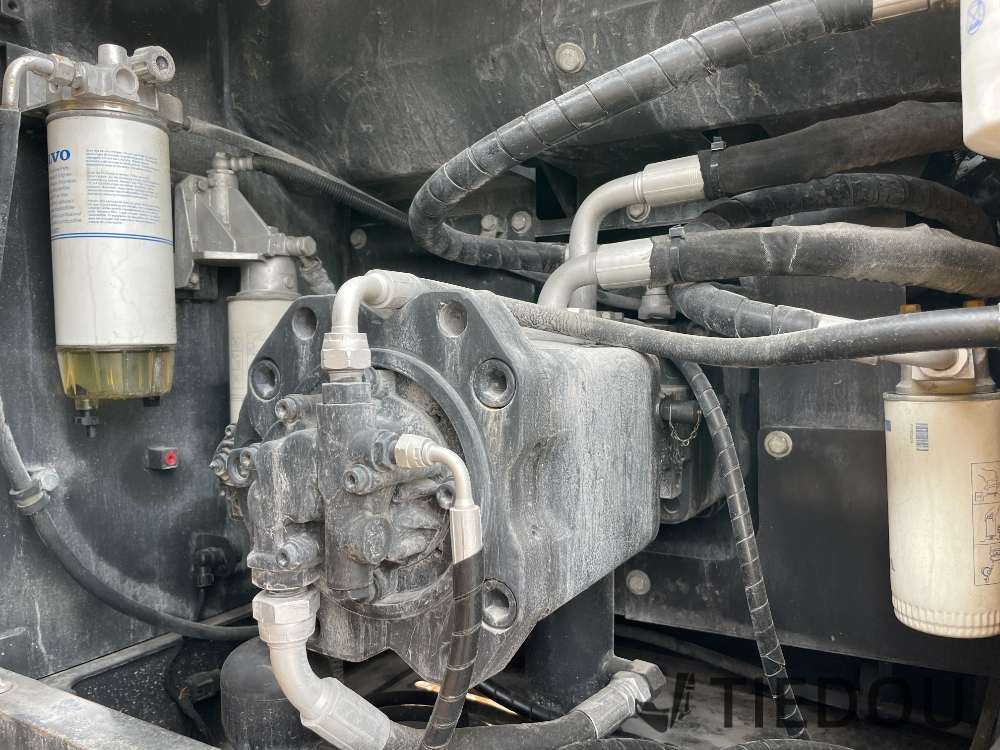

  This used Volvo EC290 has been professionally overhauled and is in good condition with excellent performance. It is suitable for earthwork, foundation construction and mining projects. The high-quality Volvo hydraulic pump ensures a stable maximum hydraulic flow, which is economical and efficient, with a fuel consumption of about 23-30L per hour, which can help you save a lot of operating costs.




Specification

Details

Brand

Volvo

Model

EC290

Operating Weight

29,000 kg

Bucket Capacity

1.35 - 1.75 m³

Boom Length

6.0 m

Arm Length

3.05 m

Swing Speed

11.3 rpm

Travel Speed

5.4 km/h

Gradeability

30°

Ground Pressure

55 kPa

Bucket Digging Force

188 kN

Arm Digging Force

120 kN

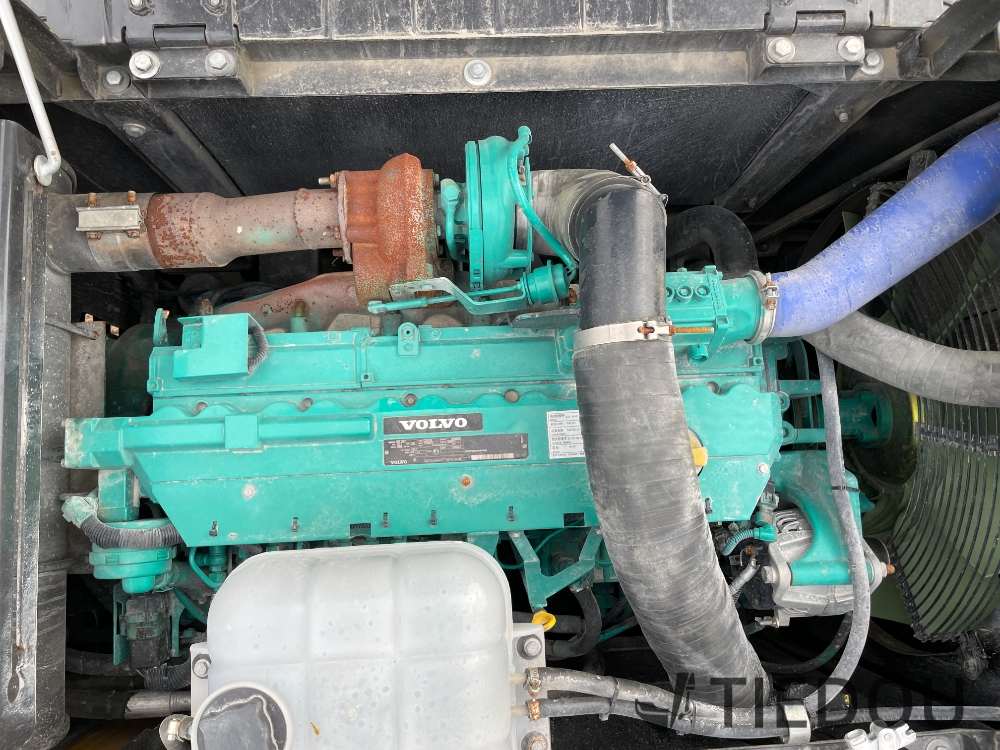

Engine Model

Volvo D7E

Engine Power

147 kW / 197 hp

Displacement

7.14 L

Number of Cylinders

6

Bore x Stroke

108 mm × 130 mm

Hydraulic Pump Brand/Model

Volvo, VPS125 Series

Max Hydraulic Flow

2 x 235 L/min

Travel Hydraulic Circuit

35 MPa

Control Hydraulic Circuit

5 MPa

Fuel Tank

435 L

Hydraulic Tank

220 L

Engine Oil Change

28 L

Coolant

33 L

Transport Length

10,410 mm

Transport Width

3,190 mm

Transport Height

3,380 mm

Track Shoe Width

700 mm

Track Length

4,430 mm

Max Digging Radius

10,200 mm

Max Digging Depth

7,200 mm

Max Digging Height

10,000 mm

Max Dumping Height

7,200 mm

Max Vertical Digging Depth

5,800 mm

Fuel Consumption

23-30 L/h

Air Conditioning

Standard

Injection Type

Electronic direct injection

Maintenance Interval

500 hours

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
