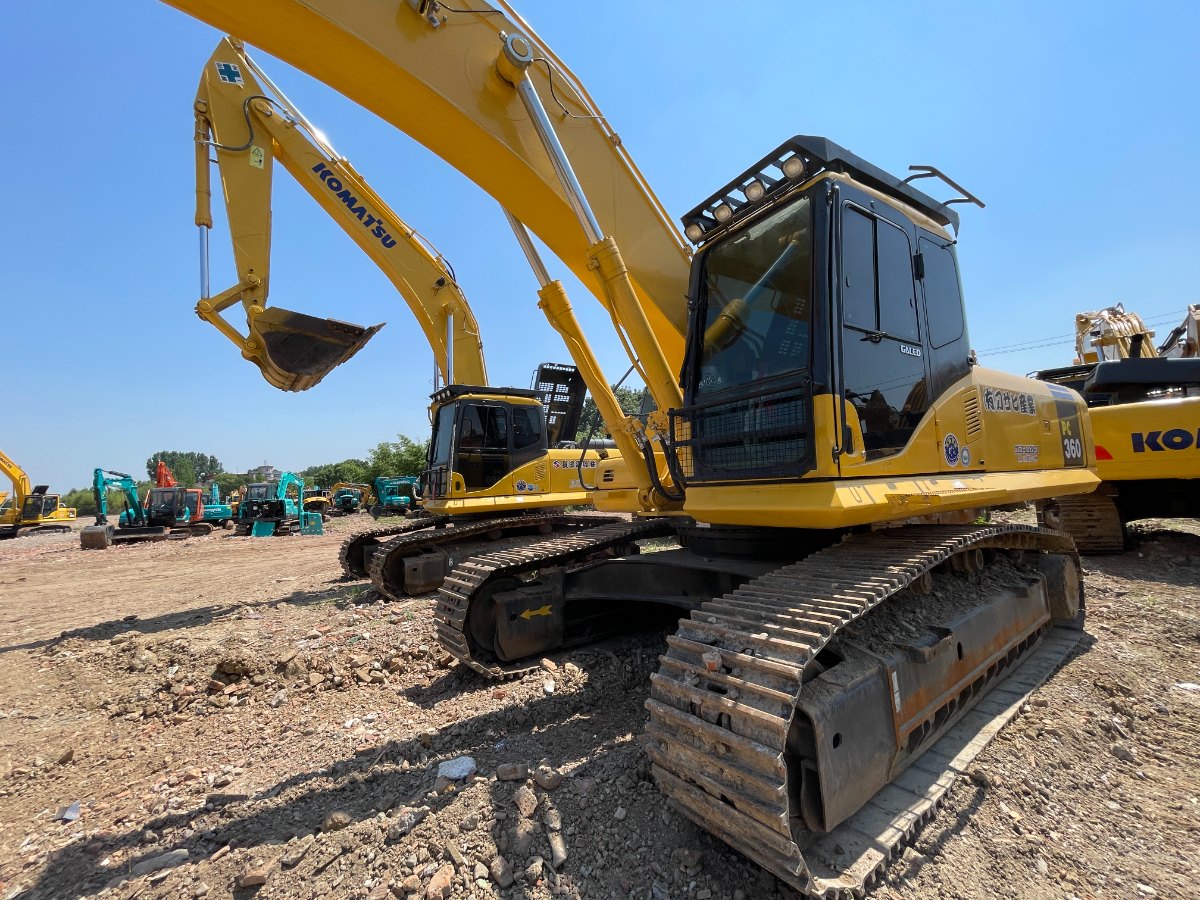

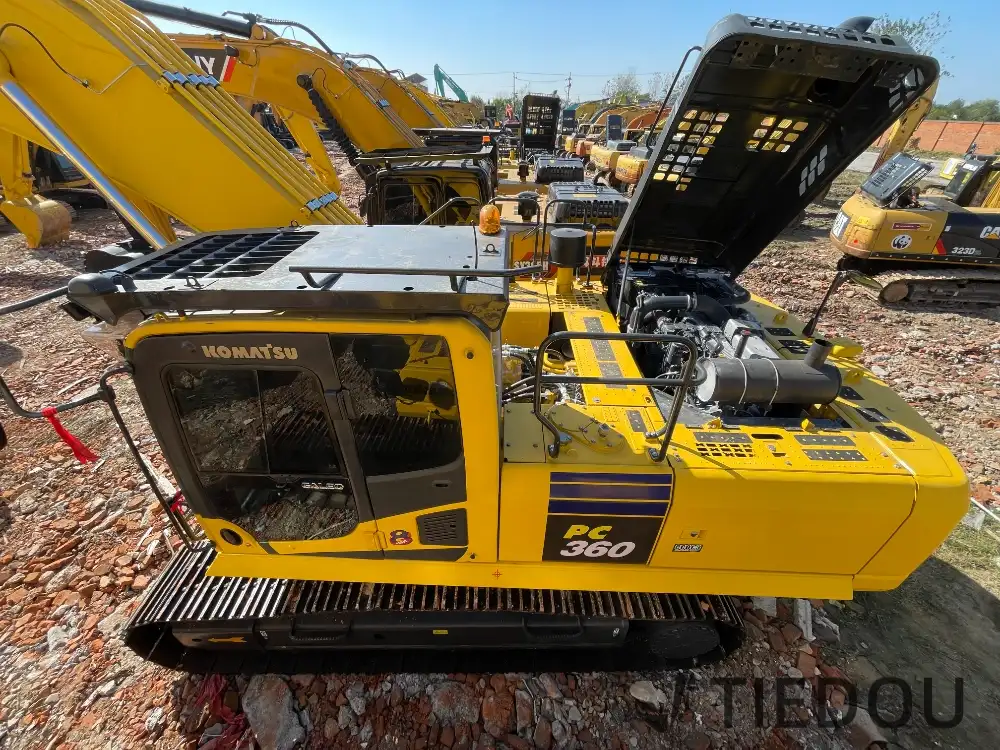

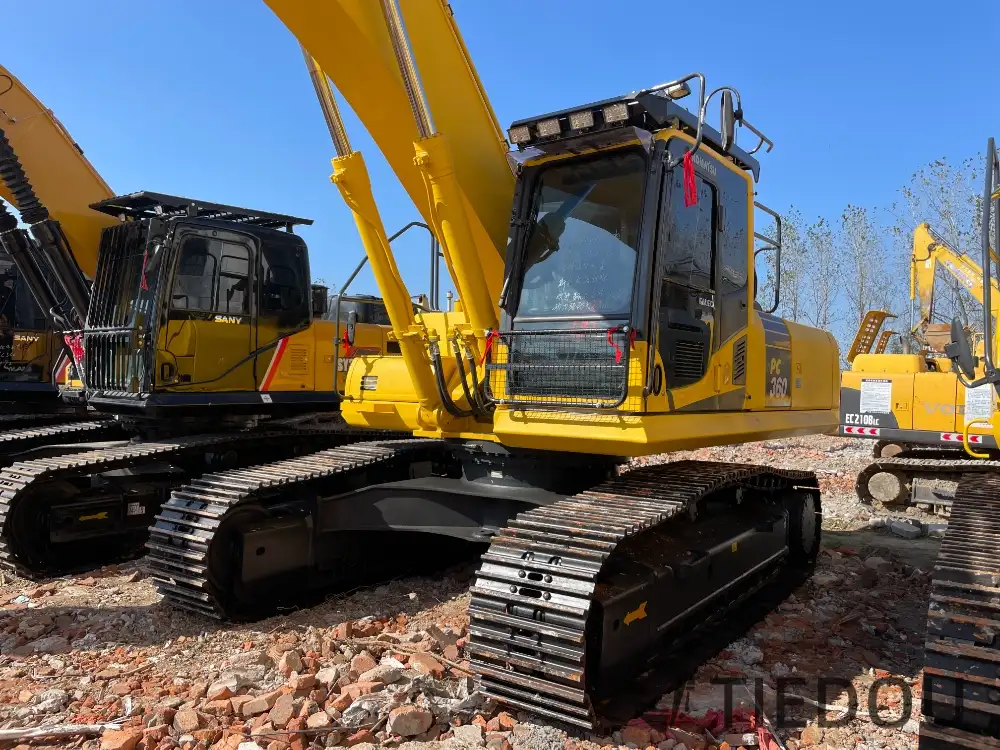

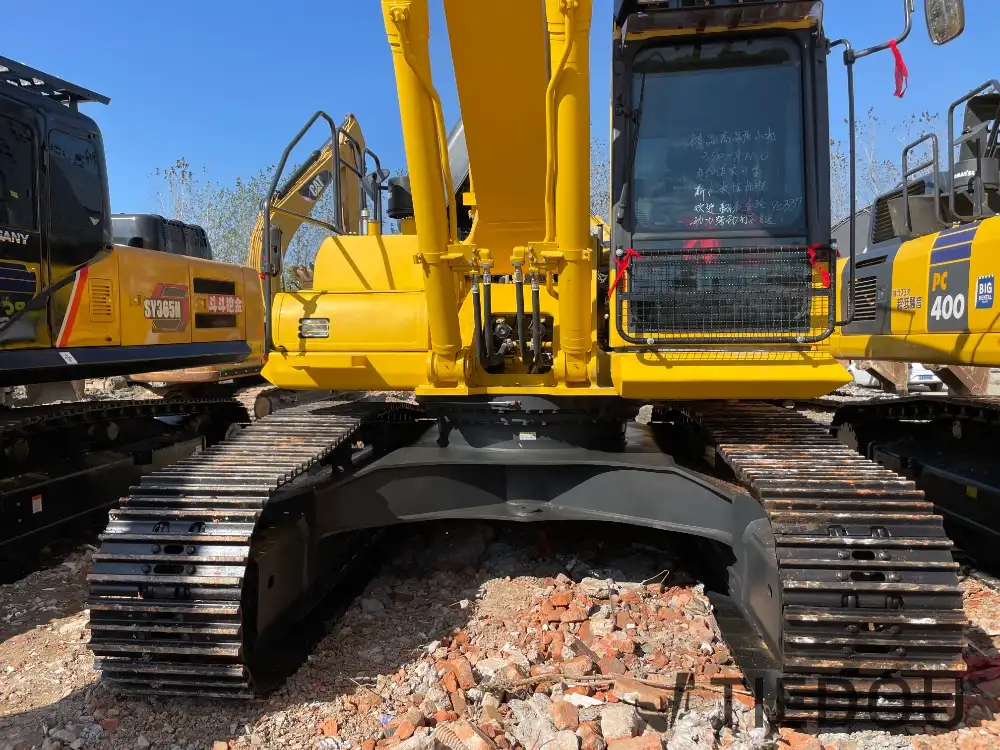

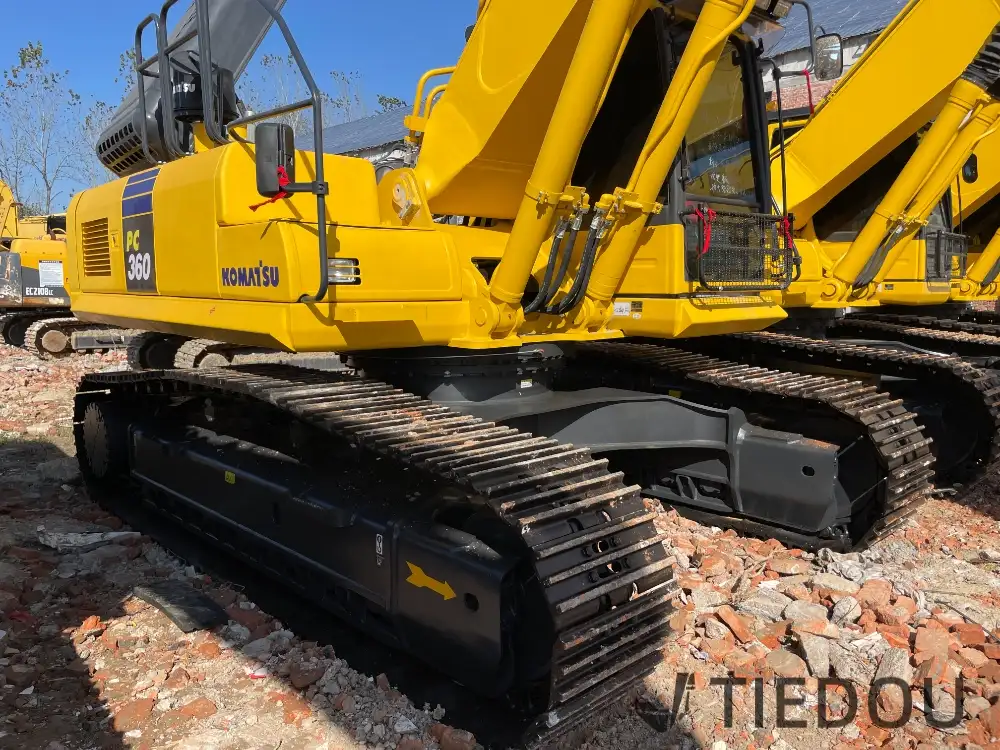

　　Used Komatsu PC360 - 8M0 Excavator - Great Performance and Value


　　As a world-renowned construction machinery brand, Komatsu has always been known for its excellent quality and advanced technology. The PC360-8M0 model is a classic in the Komatsu family. It incorporates Komatsu's years of R&D results and is widely used in various fields such as earthworks, mining, and construction. It is deeply trusted by users around the world.

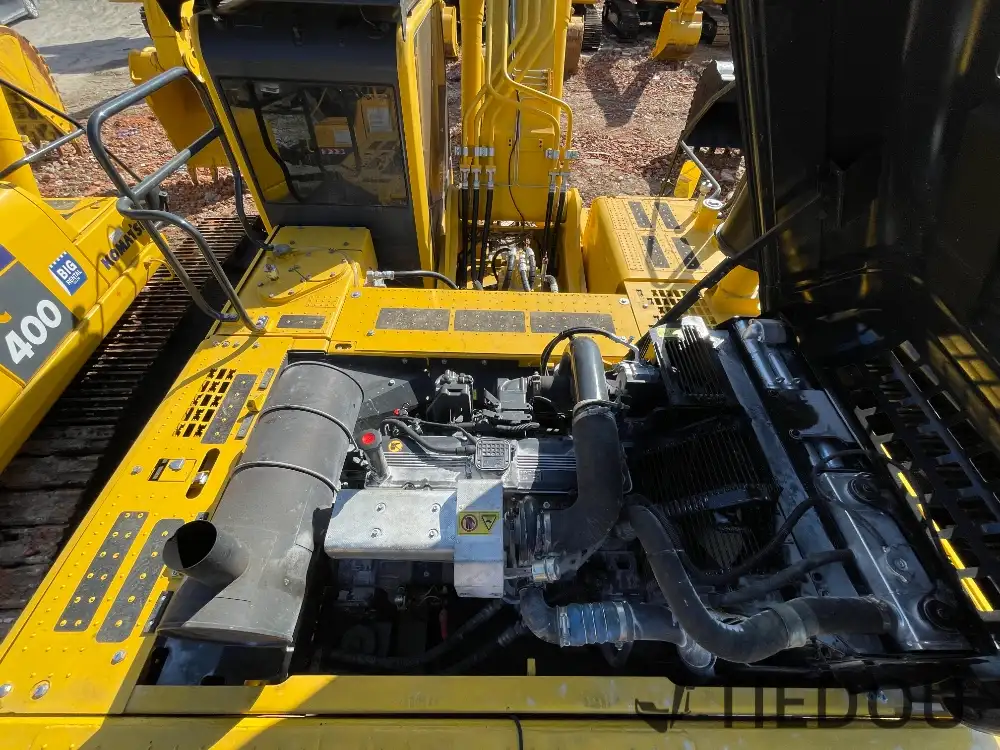

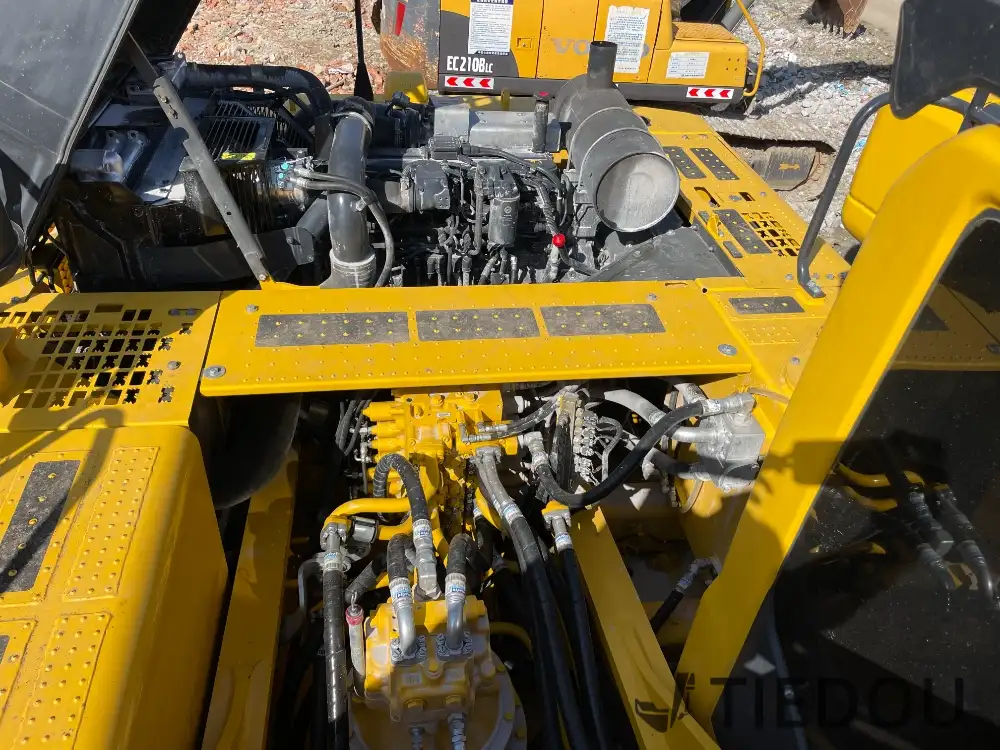

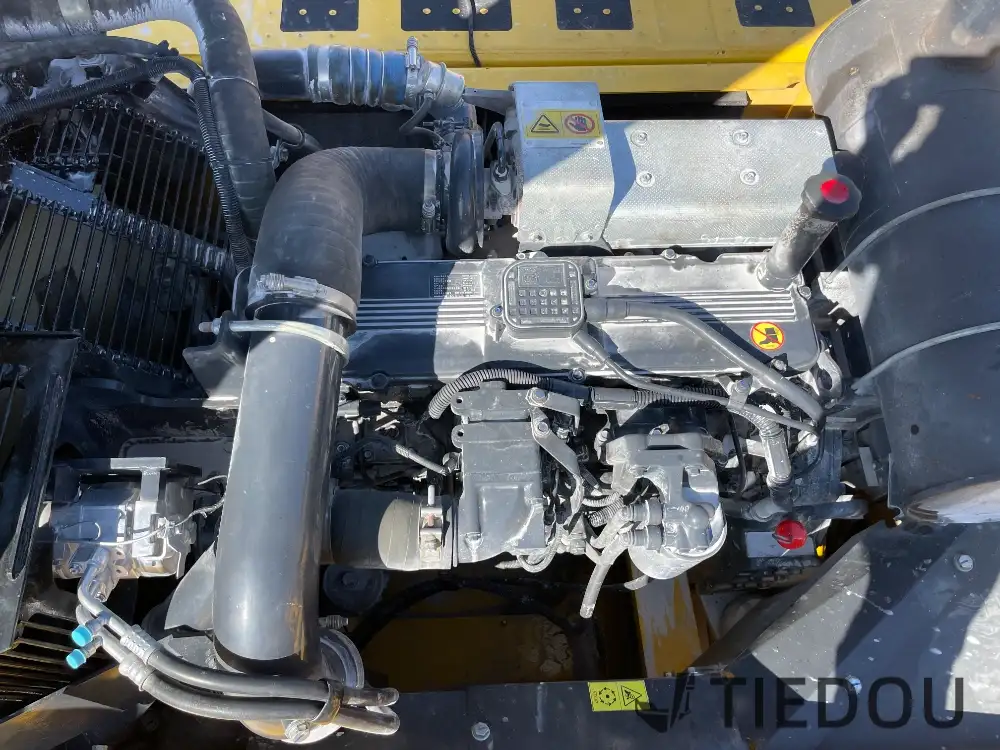

　　Equipped with Komatsu SAA6D114E-3 engine with power up to 180kW (2000r/min), displacement 8.27L, 6-cylinder design, bore 114mm, stroke 135mm. This powerful power core ensures that the excavator can stably output strong power under various complex working conditions, whether it is digging hard rocks or large amounts of earth, it can easily handle it.

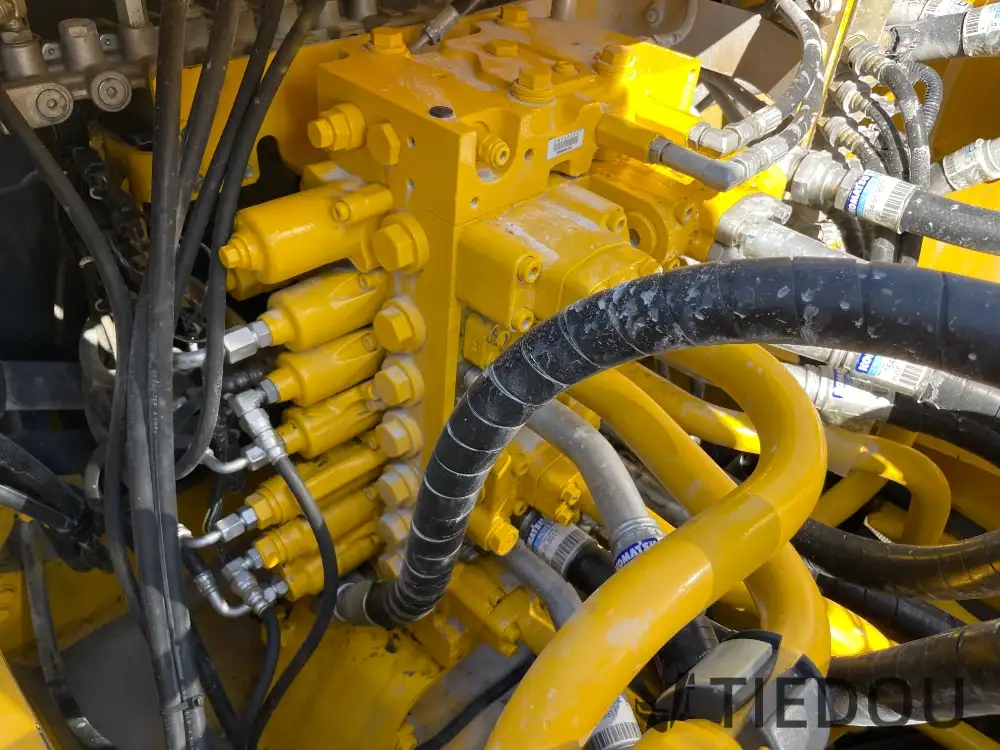

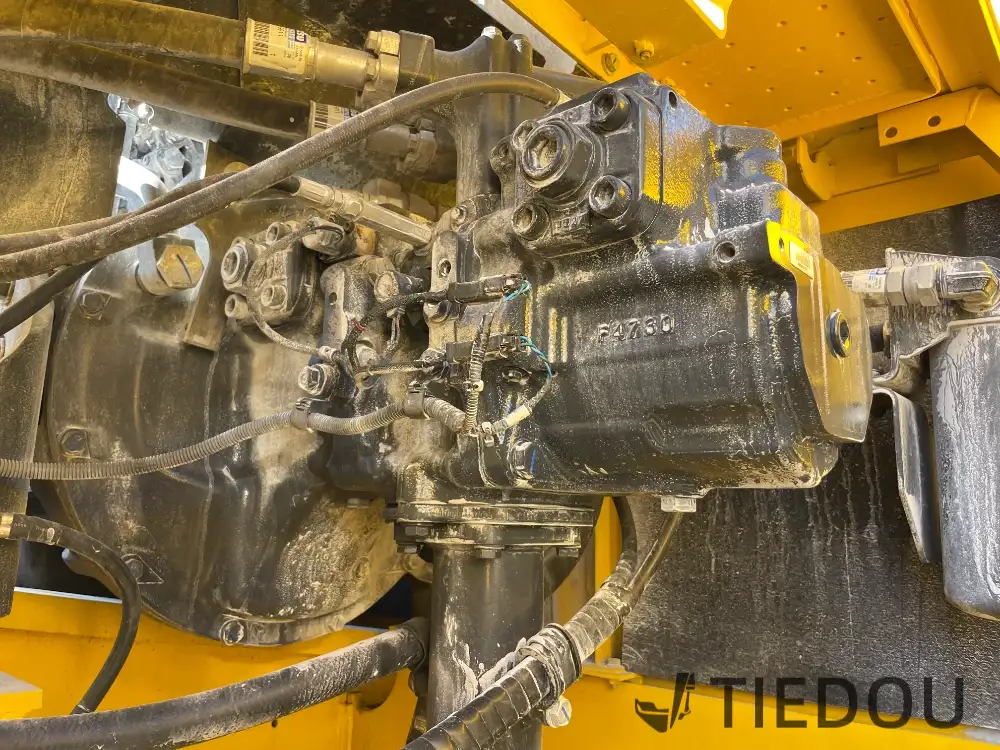

　　The hydraulic pump adopts Komatsu KMPC-36-3 model, with a maximum hydraulic flow of 2×503L/min. The advanced hydraulic system can not only ensure the smooth execution of each action, but also effectively improve work efficiency, reduce energy consumption, and extend the service life of the equipment.



Parameter

Details

Brand

Komatsu

Model

PC360 - 8M0

Machine weight

33000kg

Bucket capacity

1.6m³

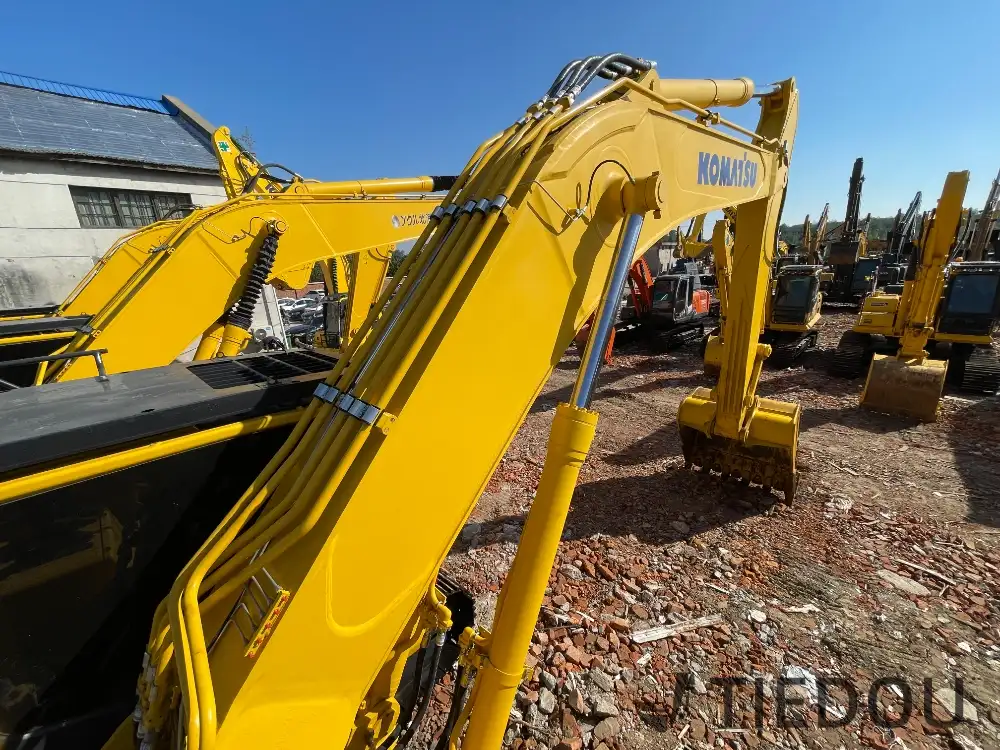

Boom length

6.495m

Arm length

2.94m, 3.35m (optional)

Manufacturer

Komatsu

Swing speed

9.5r/min

Travel speed

5.5km/h (low speed), 3.2km/h (high speed)

Climbing ability

35°

Ground pressure

60.7kPa

Bucket digging force

227kN

Arm digging force

171kN

Engine model

Komatsu SAA6D114E - 3

Engine power

180kW (2000r/min)

Displacement

8.27L

Number of cylinders

6

Cylinder bore and stroke

114mm×135mm

Hydraulic pump brand and model

Komatsu, KMPC - 36 - 3

Maximum hydraulic flow

2×503L/min

Travel hydraulic circuit

Dual - circuit

Control hydraulic circuit

Pilot - operated

Fuel tank (L)

670

Hydraulic oil tank (L)

247

Engine oil replacement volume (L)

36

Coolant (L)

40

Transport length

11140mm

Transport width

3190mm

Transport height

3275mm

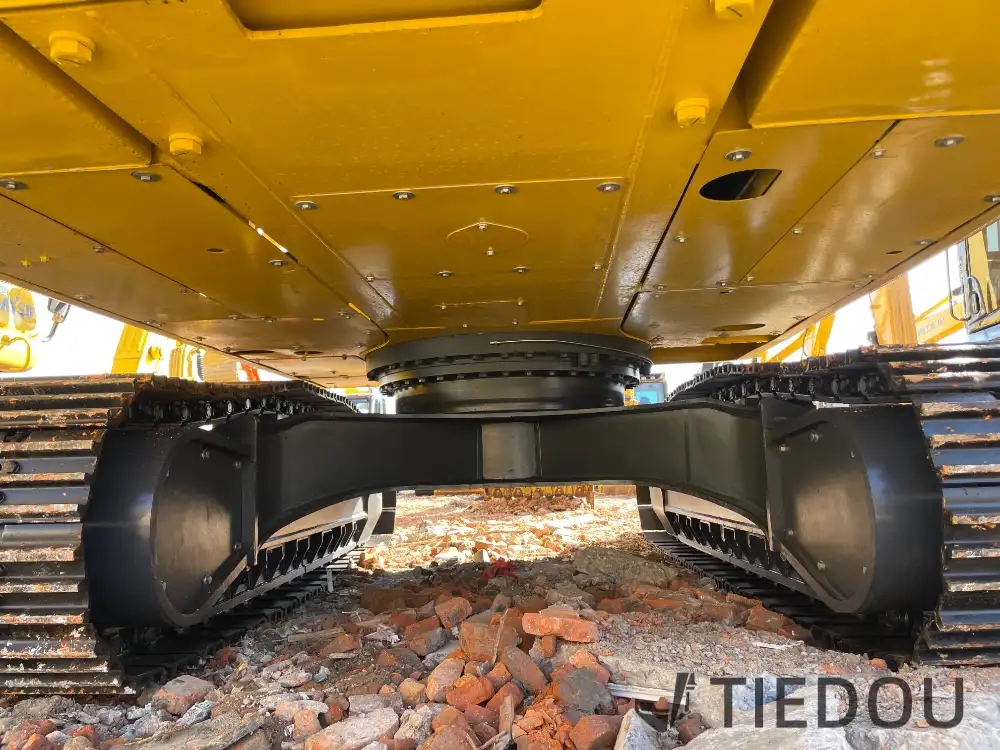

Track shoe width

600mm, 700mm, 800mm (optional)

Track shoe length

5060mm

Maximum digging radius

10925mm

Maximum digging depth

7380mm

Maximum digging height

10210mm

Maximum unloading height

7205mm

Maximum vertical digging depth

6505mm

Fuel consumption

Depends on working conditions

Air - conditioner

Yes

Common rail/direct injection

Common rail

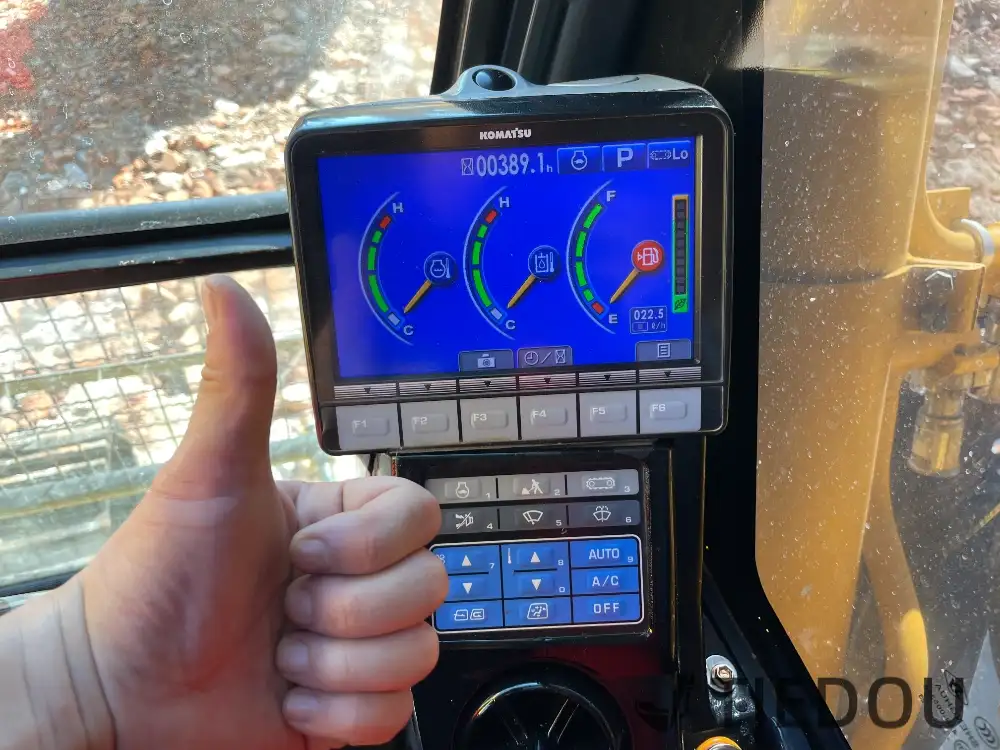

Maintenance cycle

Every 250 hours or according to the monitoring system

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
