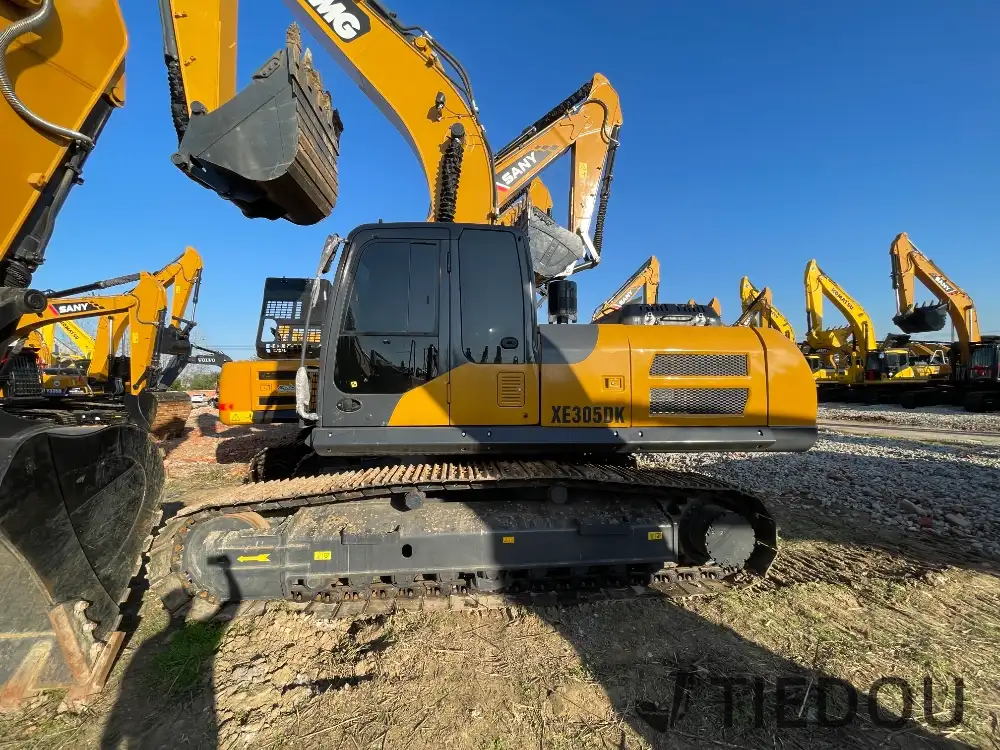

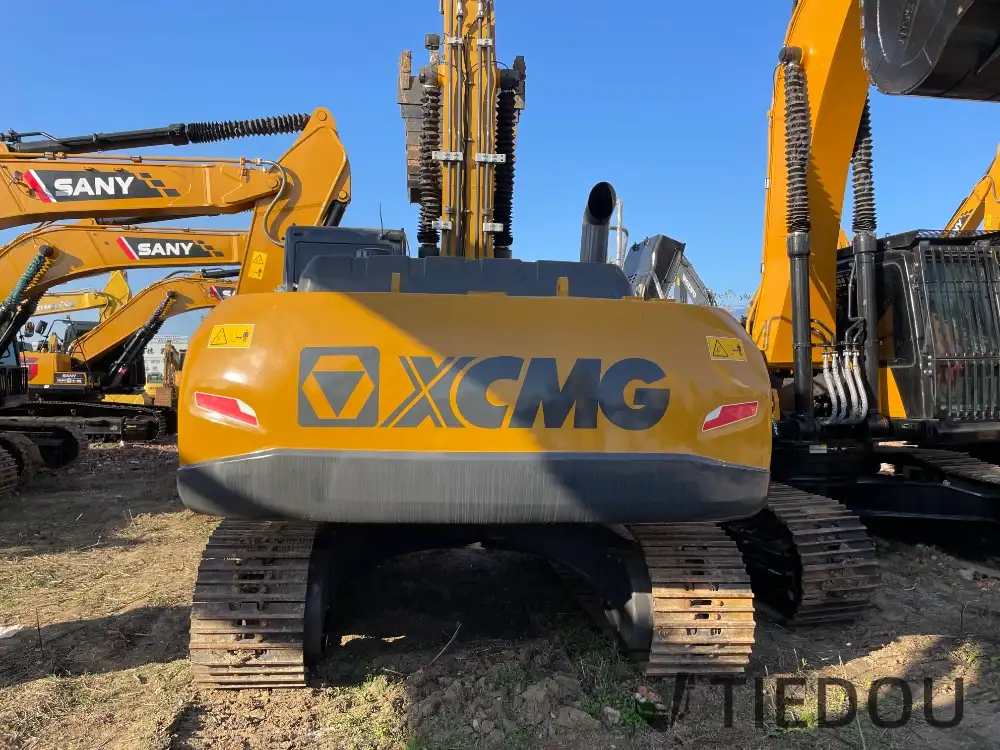

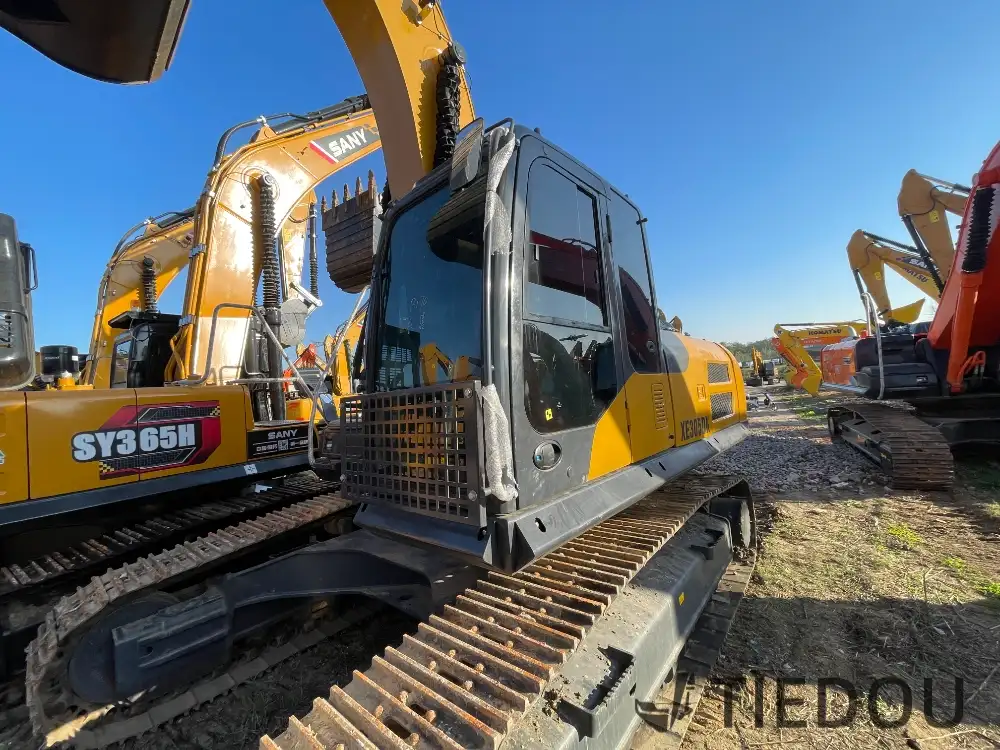

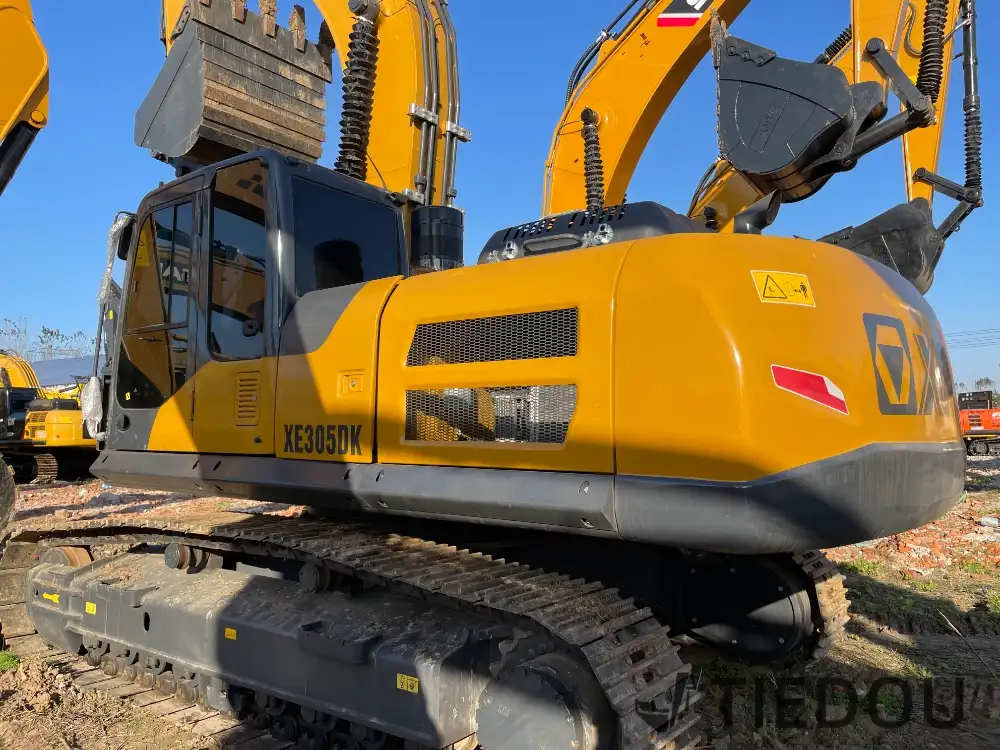

XCMG XE305DK second-hand excavator is now available! This high-performance second-hand excavator has excellent digging force and durability, and is very suitable for large-scale engineering projects such as earthworks, mining and construction. With a working weight of 30 tons and a sturdy hydraulic system, the XE305DK can cope with harsh working conditions and improve your work efficiency.

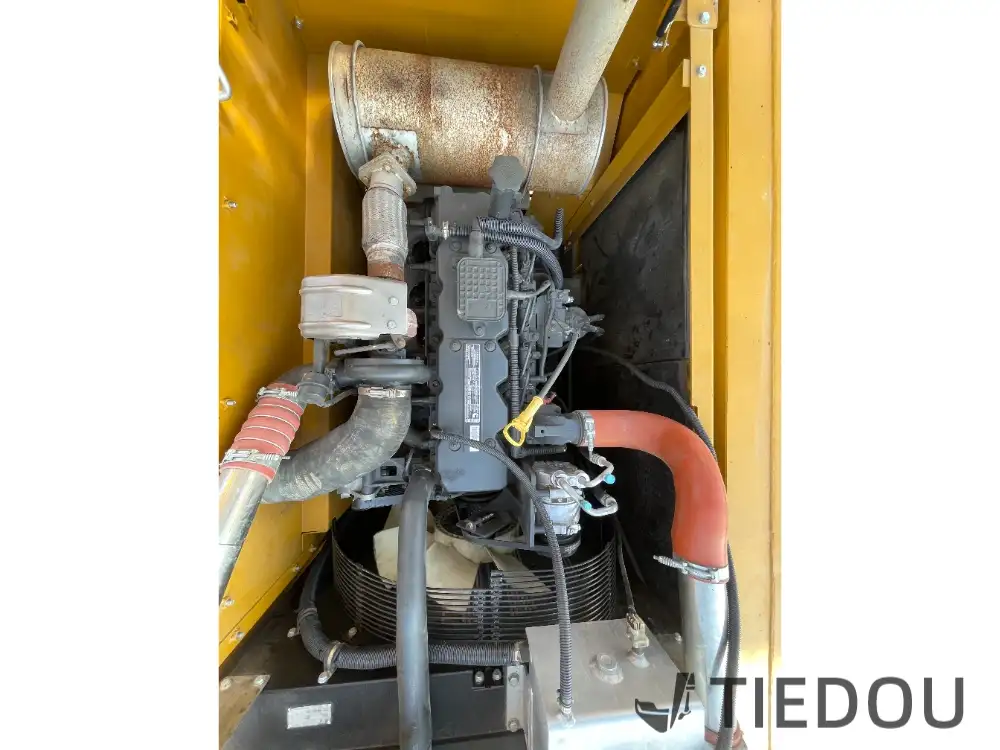

The equipment is equipped with a powerful Cummins QSB7 engine with an output power of up to 186 kW, which meets the needs of efficient operation. At the same time, its hydraulic system uses an advanced Kawasaki hydraulic pump to ensure stable hydraulic flow and fast response speed, making operation smoother and smoother. Whether it is excavation, handling or leveling, the XE305DK can easily do it.
Advantages Description
Efficient and stable power system: equipped with a Cummins QSB7 engine, it has strong performance, low fuel consumption, environmental protection and reliability.

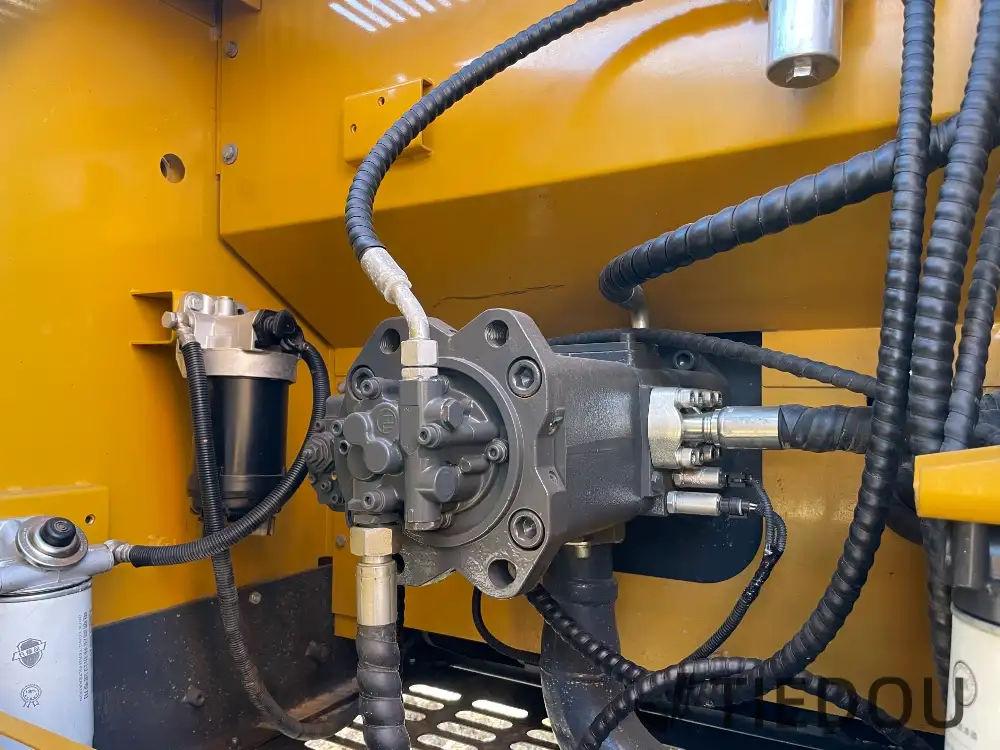

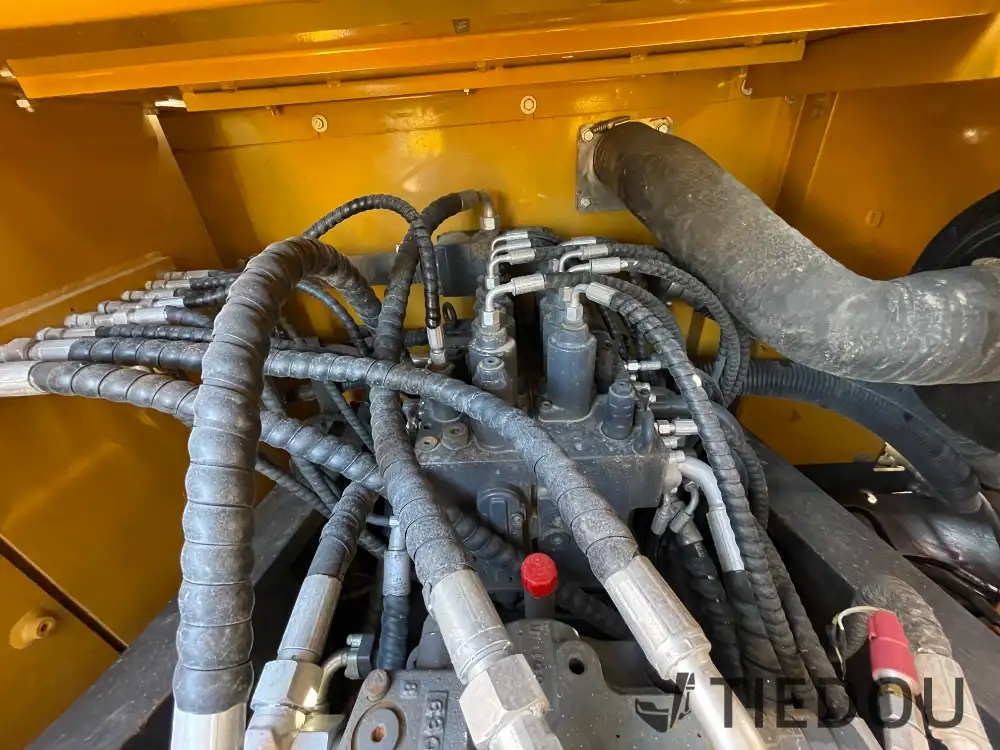

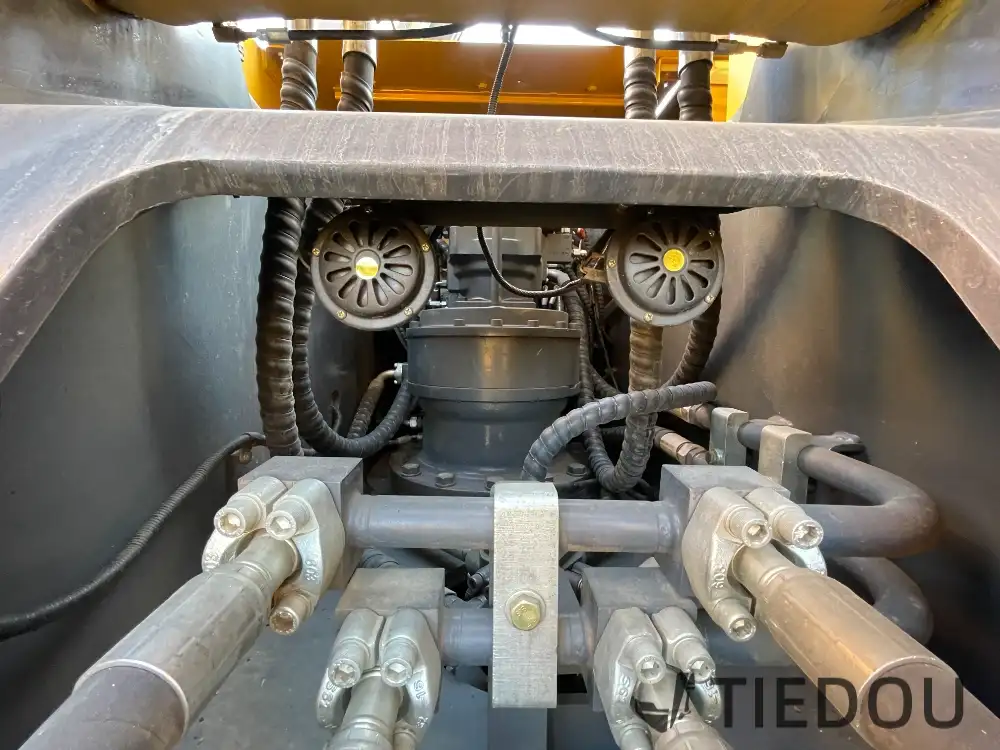

Advanced hydraulic system: Kawasaki hydraulic pump provides a maximum hydraulic flow of 570 L/min, making the equipment flexible to operate and adapt to various working environments.
Excellent digging force: With 215 kN bucket digging force and 155 kN arm digging force, it is suitable for high-intensity operations.

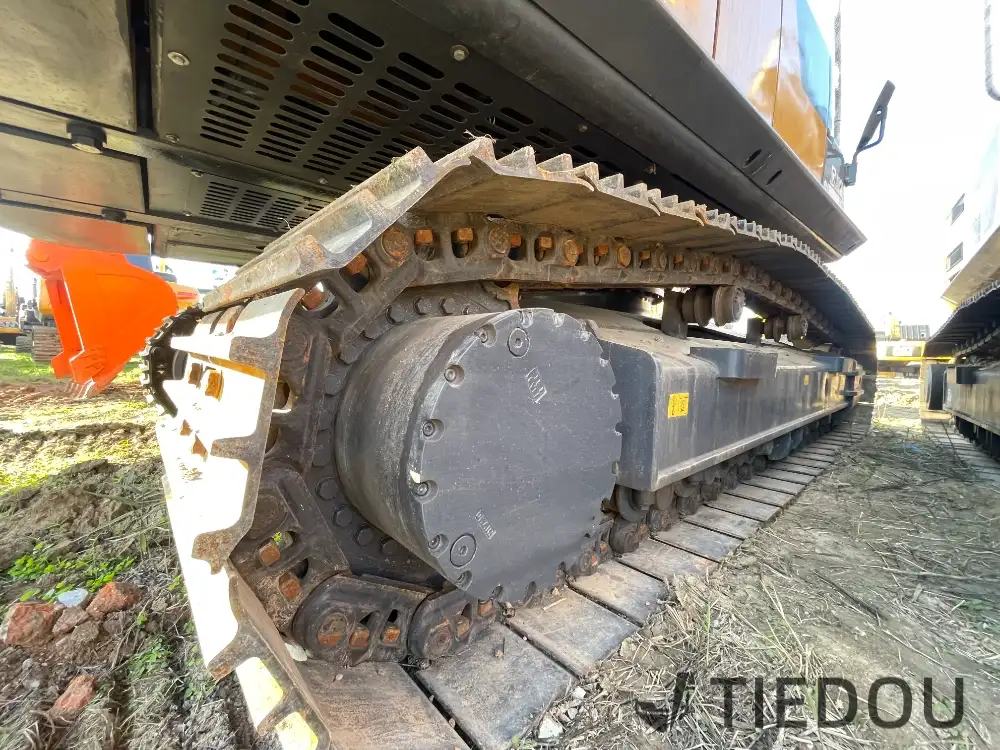

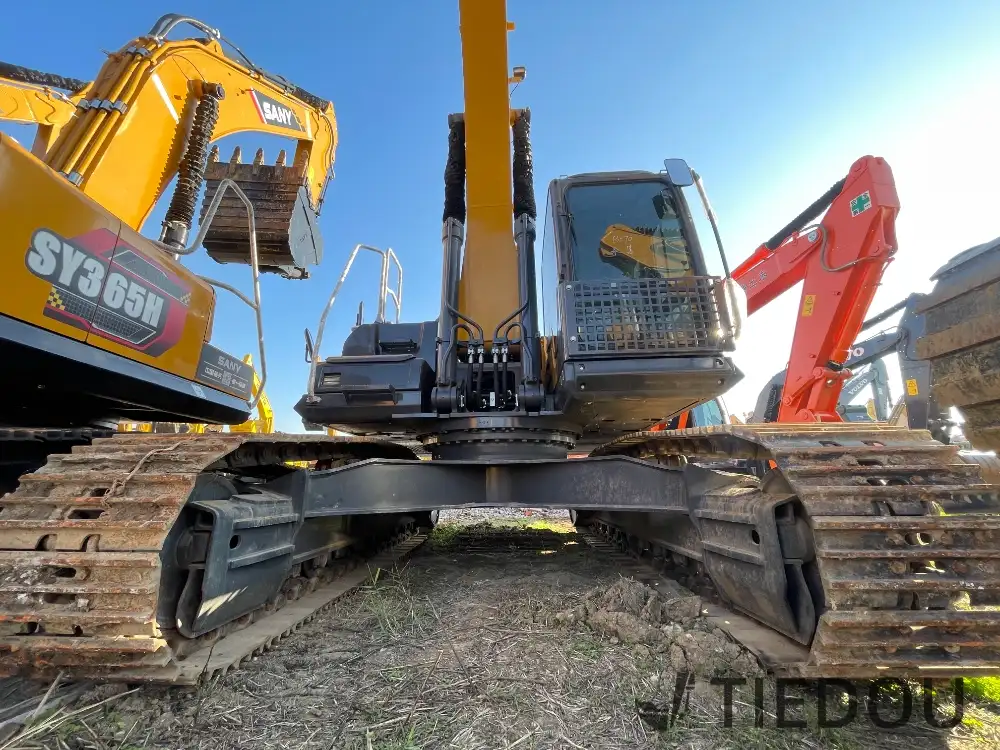

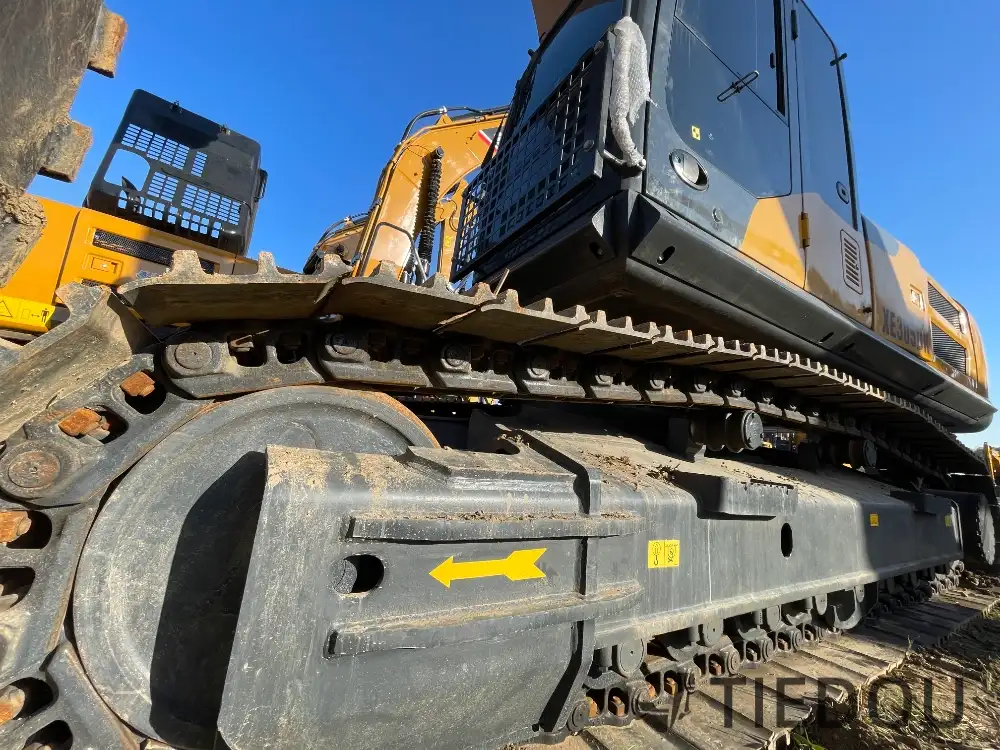

Durable design: The high-quality chassis and crawler system ensure the stability and durability of the equipment.
User-friendly maintenance design: The structural design is easy to maintain, reducing maintenance costs and extending service life.
Versatile applicability: It is suitable for a variety of construction environments such as earthwork, mining, and demolition, bringing high returns to enterprises.
This second-hand XCMG XE305DK excavator has been professionally maintained and tested, and its performance is as good as new. It is your best choice. Seize this opportunity to equip your construction project with a cost-effective and high-quality equipment!
Parameter | Specification |
Brand | XCMG |
Model | XE305D |
Operating Weight | 30,200 kg |
Bucket Capacity | 1.3 m³ |
Boom Length | 6.3 m |
Arm Length | 3.1 m |
Manufacturer | XCMG |
Swing Speed | 9.5 rpm |
Travel Speed | 5.5 km/h |
Gradeability | 35° |
Ground Pressure | 63 kPa |
Bucket Digging Force | 215 kN |
Arm Digging Force | 155 kN |
Engine Brand | Cummins |
Engine Model | QSB7 |
Engine Power | 186 kW (2200 rpm) |
Displacement | 6.7 L |
Number of Cylinders | 6 |
Cylinder Bore × Stroke | 107 mm × 124 mm |
Hydraulic Pump Brand/Model | Kawasaki |
Maximum Hydraulic Flow | 570 L/min |
Travel Hydraulic Circuit | Dual Circuit |
Control Hydraulic Circuit | Load Sensing Hydraulic System |
Fuel Tank Capacity | 580 L |
Hydraulic Oil Tank Capacity | 300 L |
Engine Oil Capacity | 24 L |
Coolant Capacity | 30 L |
Transportation Length | 10,590 mm |
Transportation Width | 3,190 mm |
Transportation Height | 3,470 mm |
Track Width | 600 mm |
Track Length | 4,640 mm |
Maximum Digging Radius | 10,700 mm |
Maximum Digging Depth | 7,305 mm |
Maximum Digging Height | 10,270 mm |
Maximum Dumping Height | 7,230 mm |
Maximum Vertical Digging Depth | 5,900 mm |
Fuel Consumption | 210 g/kWh |
Air Conditioner | Yes |
Fuel Injection System | Direct Injection |
Maintenance Interval | 500 hours |
