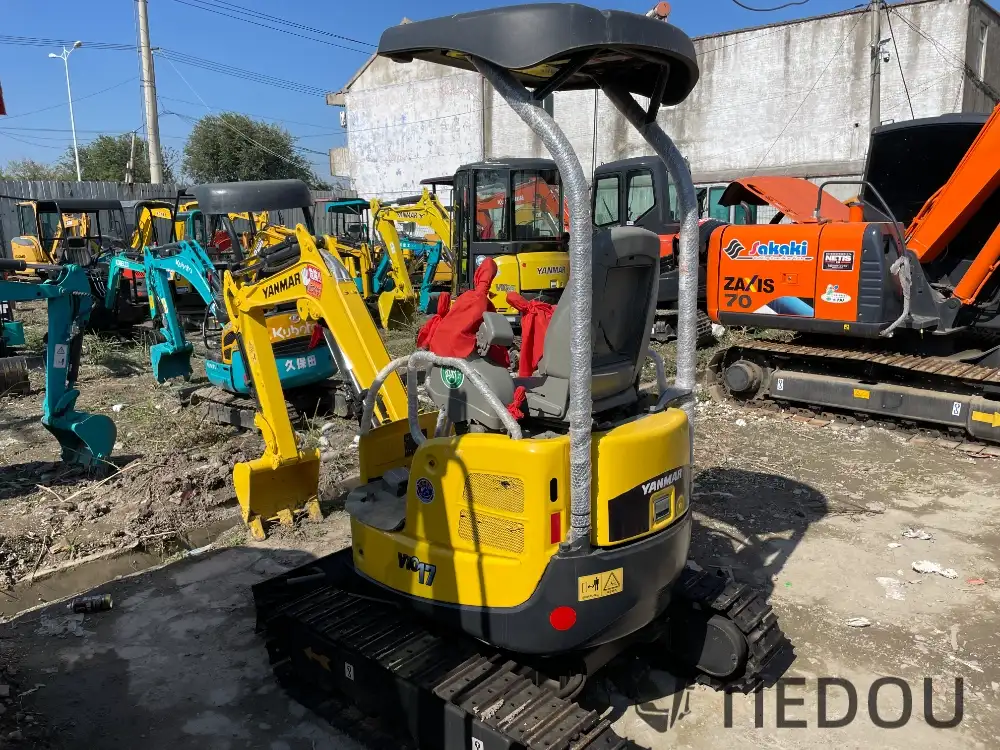

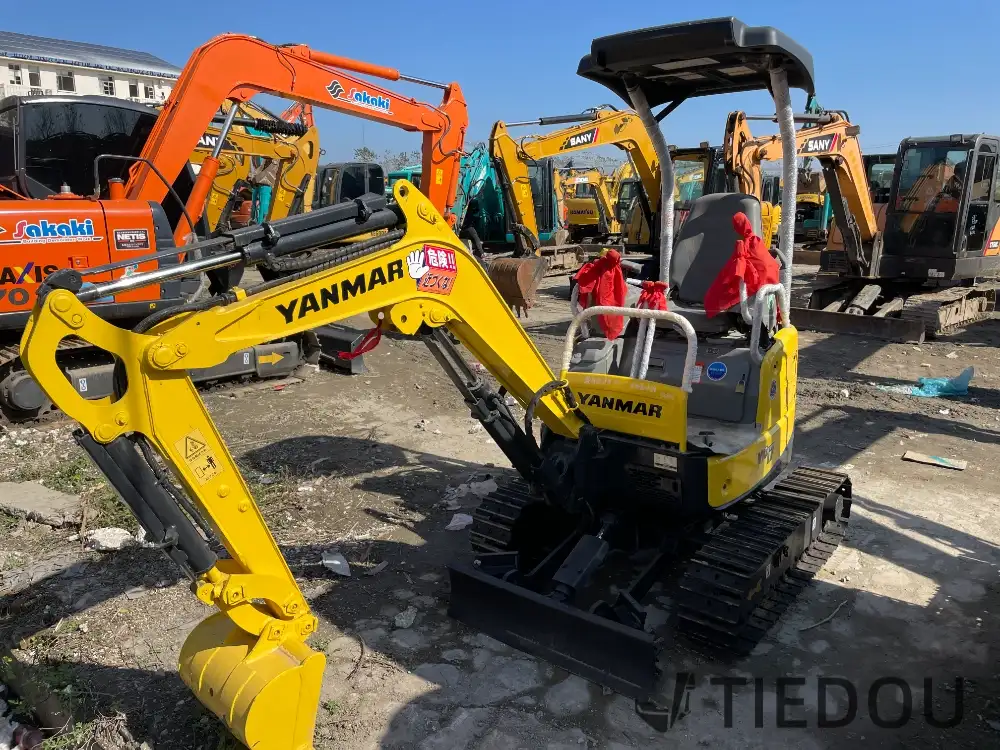

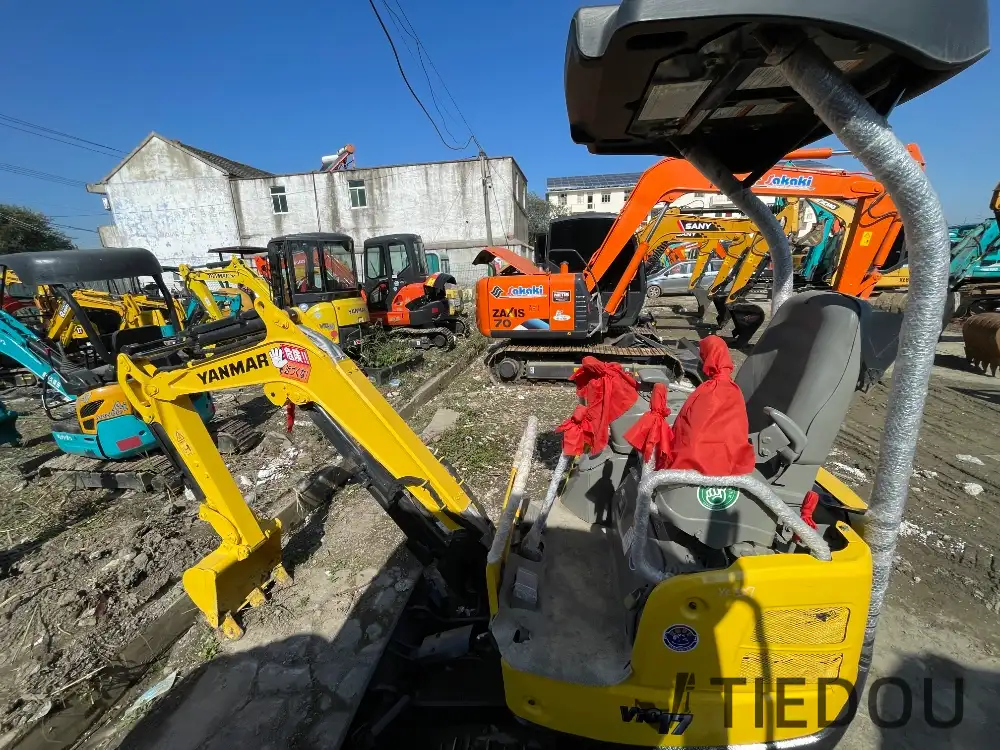

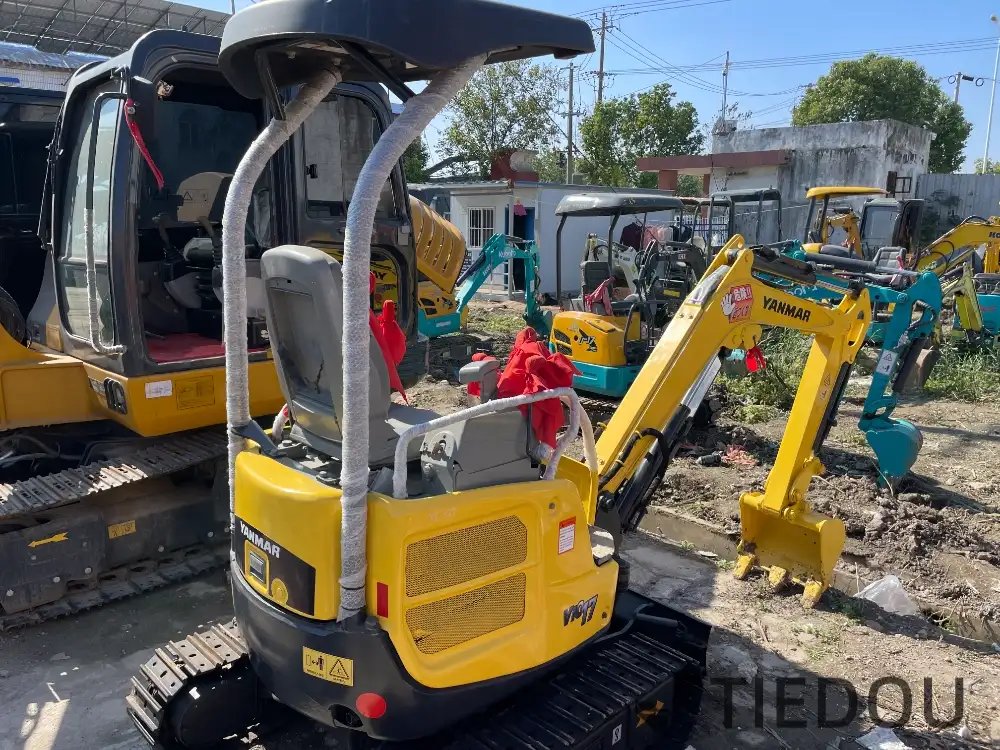

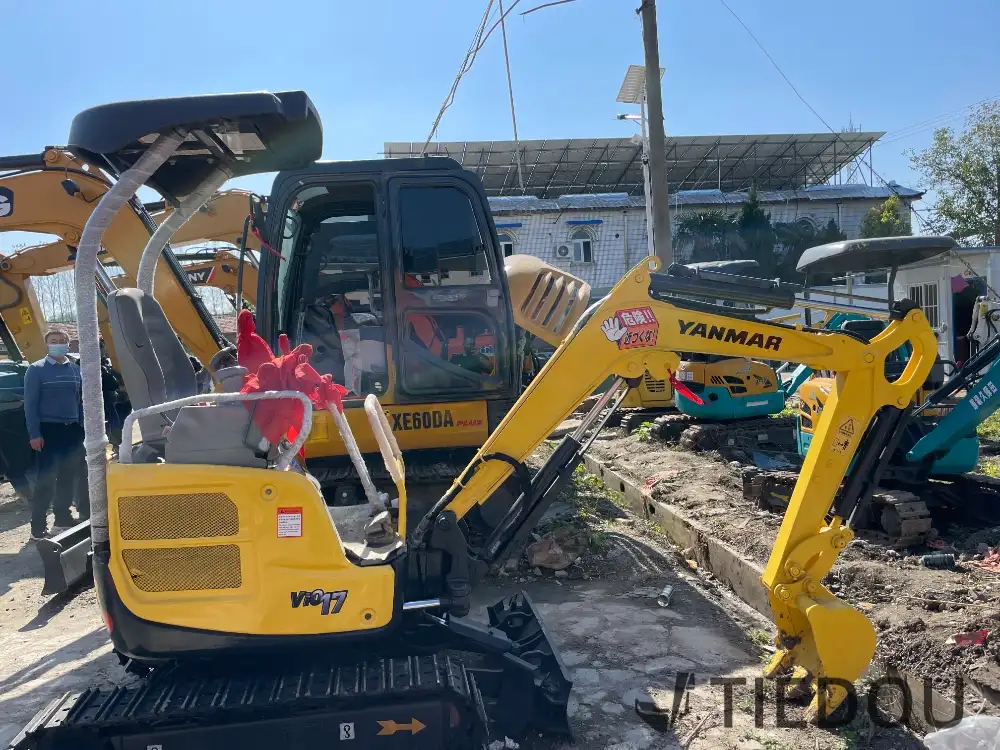

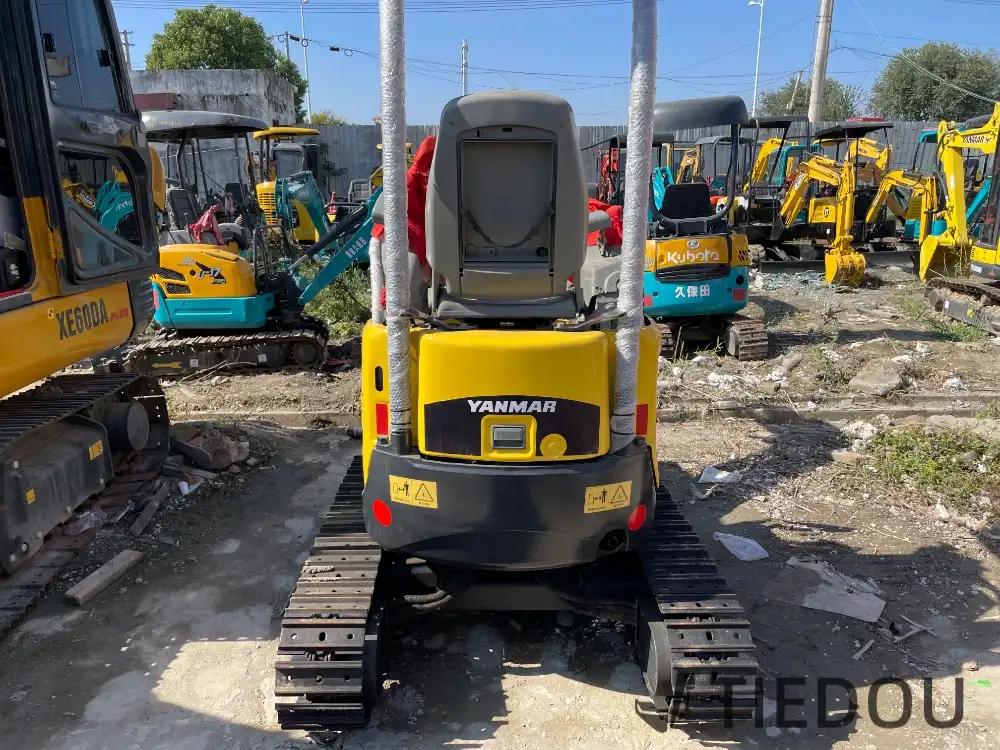

  The all-around small steel cannon - Yanmar VIO17 excavator, exquisite and compact, extraordinary strength!

  Yanmar VIO17 is a small excavator that is both efficient and flexible, especially suitable for narrow working environments such as landscaping, municipal engineering, and farmland transformation. The whole machine weighs only 1.790 kg, but it is equipped with a powerful Yanmar 3TNV70 engine with an output power of 10.2 kW, ensuring excellent excavation performance and low fuel consumption (only 2.5 liters/hour).

  Product highlights:

  Zero tail swing design: comprehensively improve mobility and easily cope with narrow construction sites.

  Powerful digging force: bucket digging force of 15.2 kN, bucket digging force of 8.4 kN, easy to handle heavy-duty tasks. Flexible adaptation to a variety of environments: the transport width can be adjusted to 950 mm and can pass through most standard door frames. Efficient hydraulic system: the hydraulic pump flow rate reaches 40.4 liters/minute, supporting quick switching of working accessories. Environmental protection and energy saving: equipped with a direct injection engine, reducing emissions and meeting environmental protection requirements. Whether it is a small construction site or a private courtyard renovation, Yanmar VIO17 can create great returns for you with its reliability and excellent performance! Contact us now to learn more details and start your efficient construction journey!


Parameter

Specification

Brand

Yanmar

Model

VIO17

Operating Weight

1,790 kg

Bucket Capacity

0.04 m³

Boom Length

1,450 mm

Arm Length

960 mm

Manufacturer

Yanmar Co., Ltd.

Swing Speed

9.2 rpm

Travel Speed

2.4/4.5 km/h

Gradeability

30%

Ground Pressure

27.3 kPa

Bucket Digging Force

15.2 kN

Arm Digging Force

8.4 kN

Engine Brand

Yanmar

Engine Model

3TNV70

Engine Power

10.2 kW (13.7 hp)

Displacement

0.854 L

Number of Cylinders

3

Bore x Stroke

70 x 74 mm

Hydraulic Pump Brand

Yanmar

Hydraulic Pump Model

Variable displacement pump

Max Hydraulic Flow

40.4 L/min

Travel Hydraulic Circuit

18.5 MPa

Control Hydraulic Circuit

20.6 MPa

Fuel Tank Capacity

24 L

Hydraulic Oil Tank Capacity

19 L

Engine Oil Capacity

3.5 L

Coolant Capacity

3 L

Transport Length

3,455 mm

Transport Width

950/1,280 mm

Transport Height

2,370 mm

Track Shoe Width

230 mm

Track Length

1,610 mm

Max Digging Radius

3,900 mm

Max Digging Depth

2,360 mm

Max Digging Height

3,560 mm

Max Dumping Height

2,470 mm

Max Vertical Digging Depth

2,000 mm

Average Fuel Consumption

2.5 L/h

Air Conditioning

None

Fuel Injection Type

Direct Injection

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
