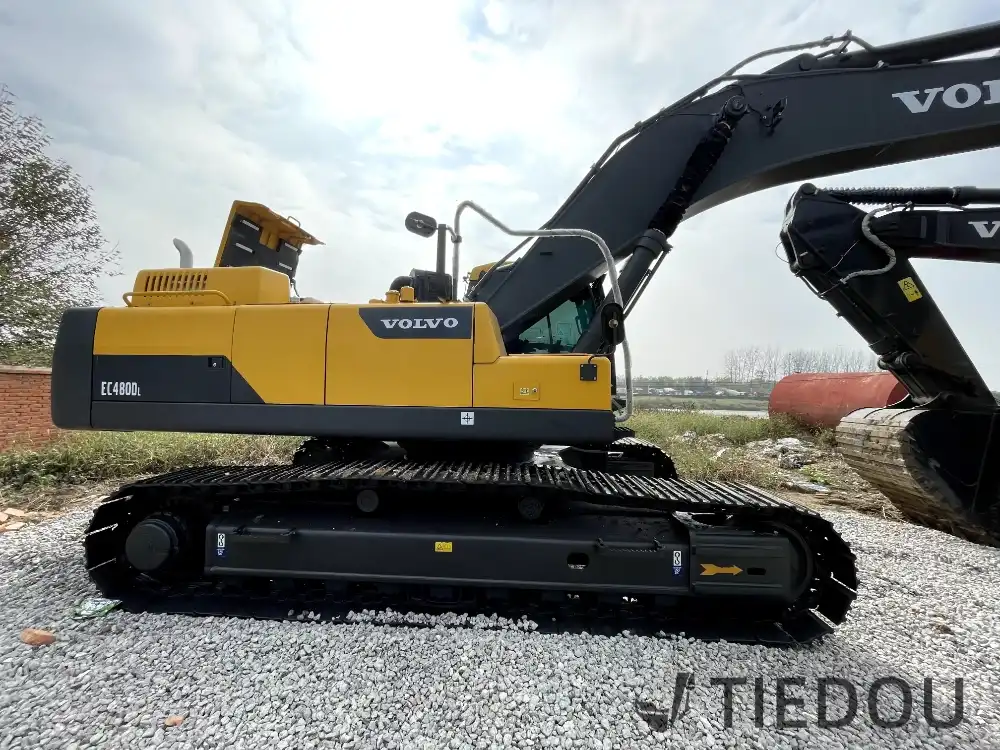

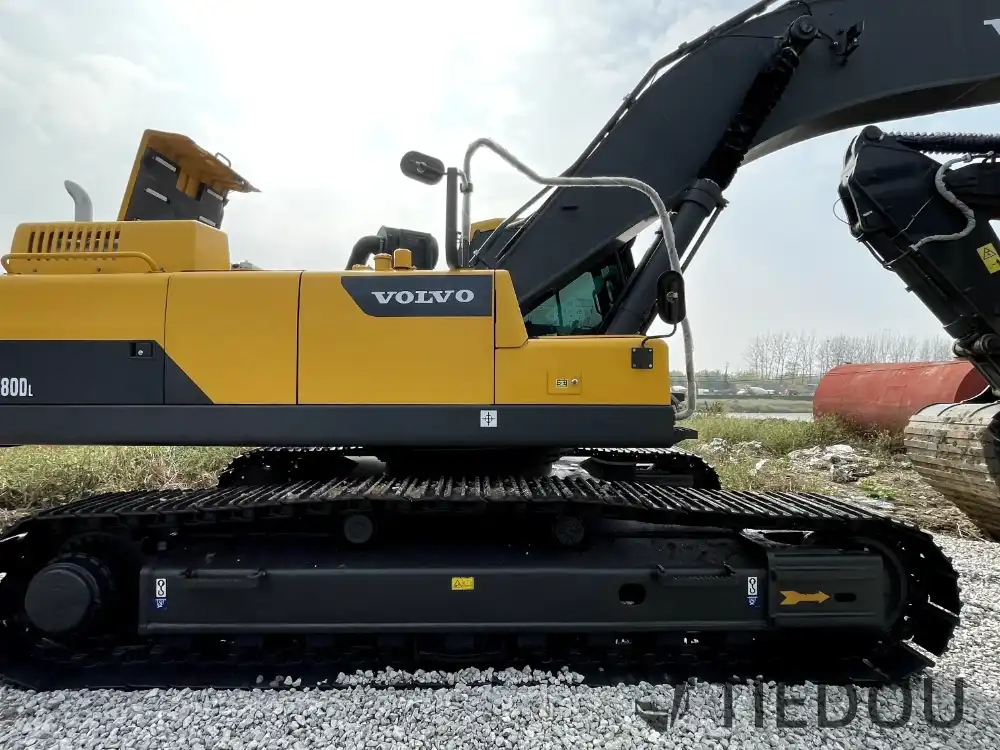

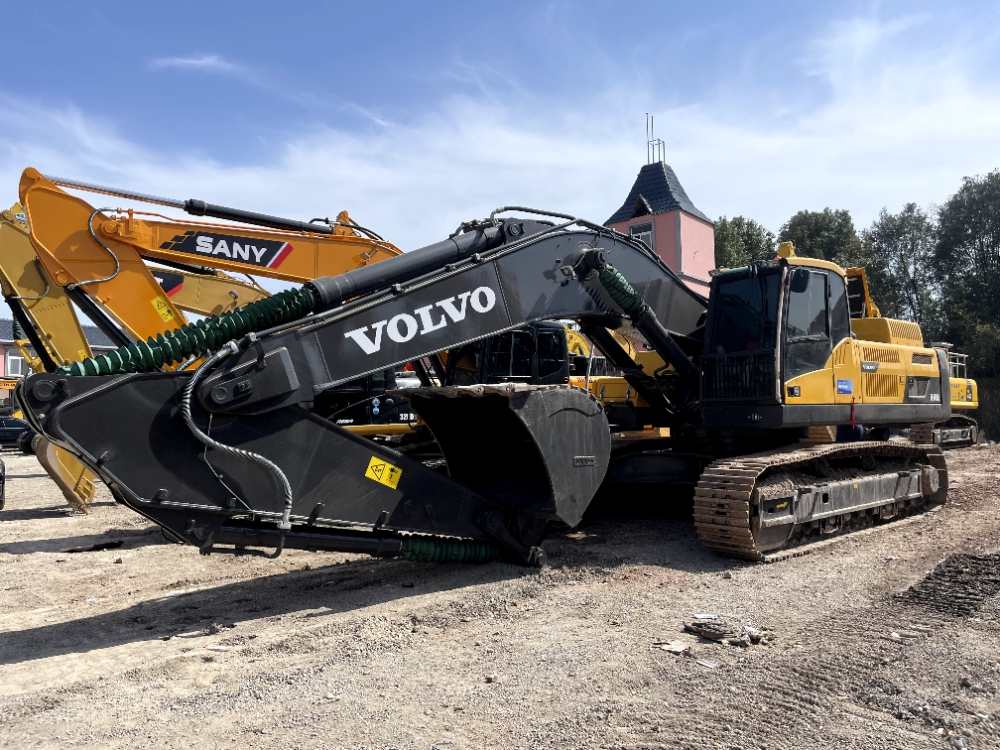

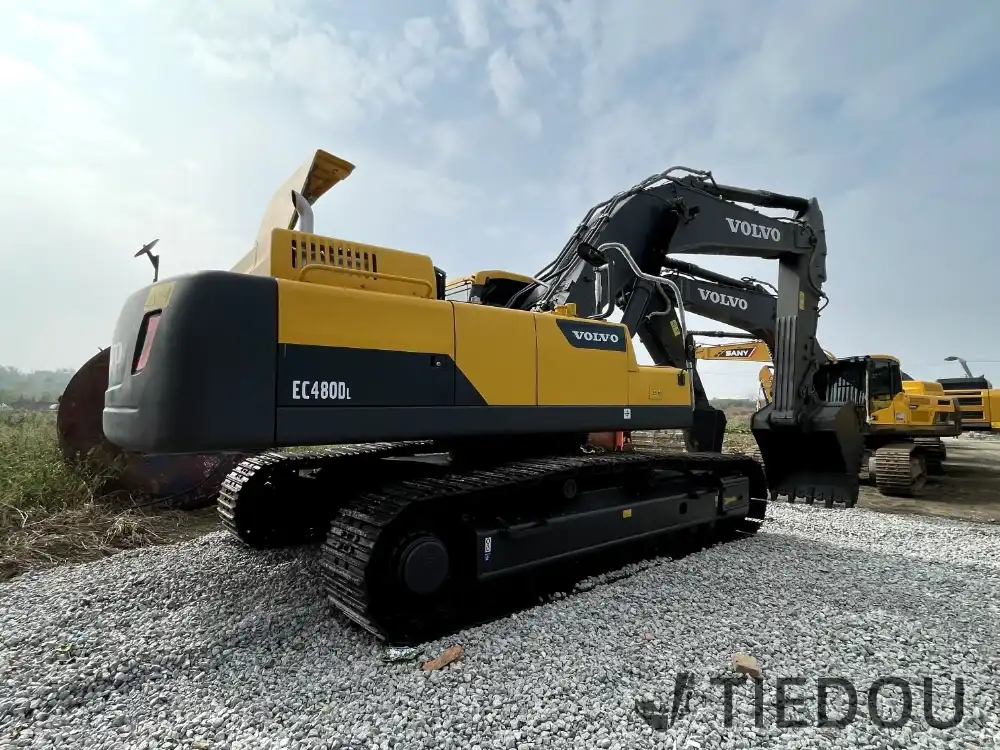

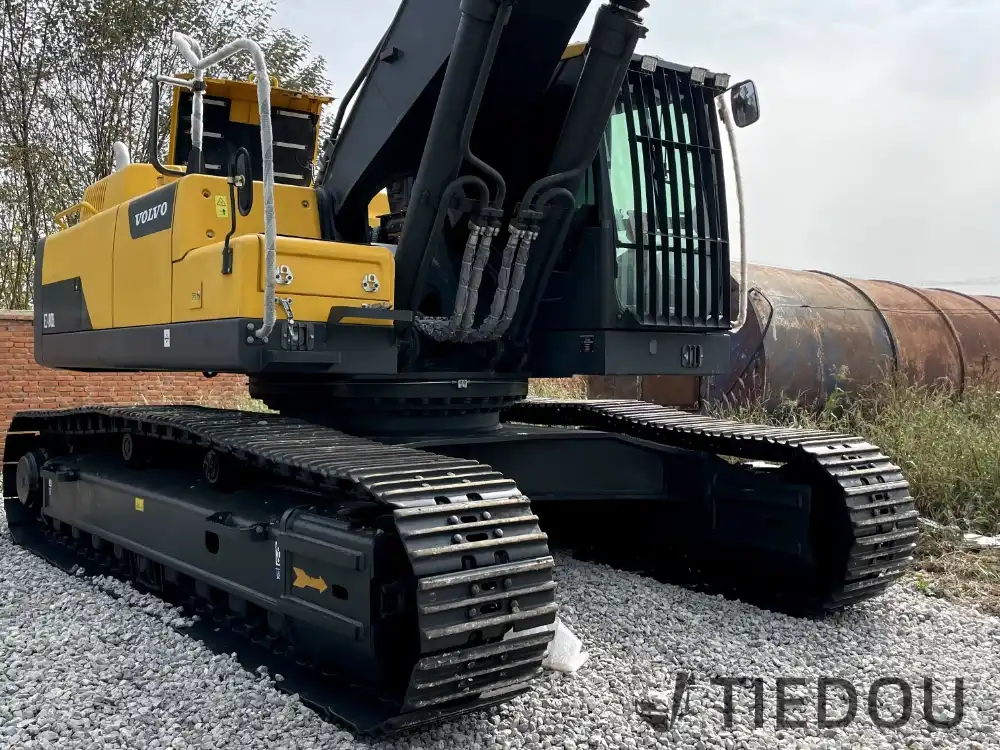

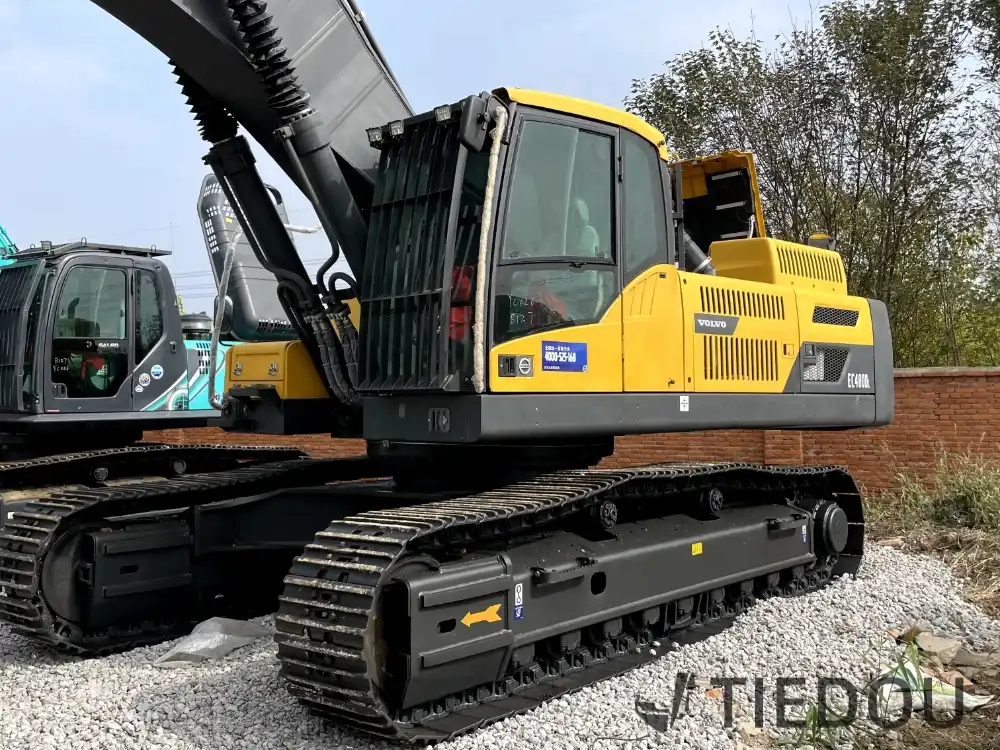

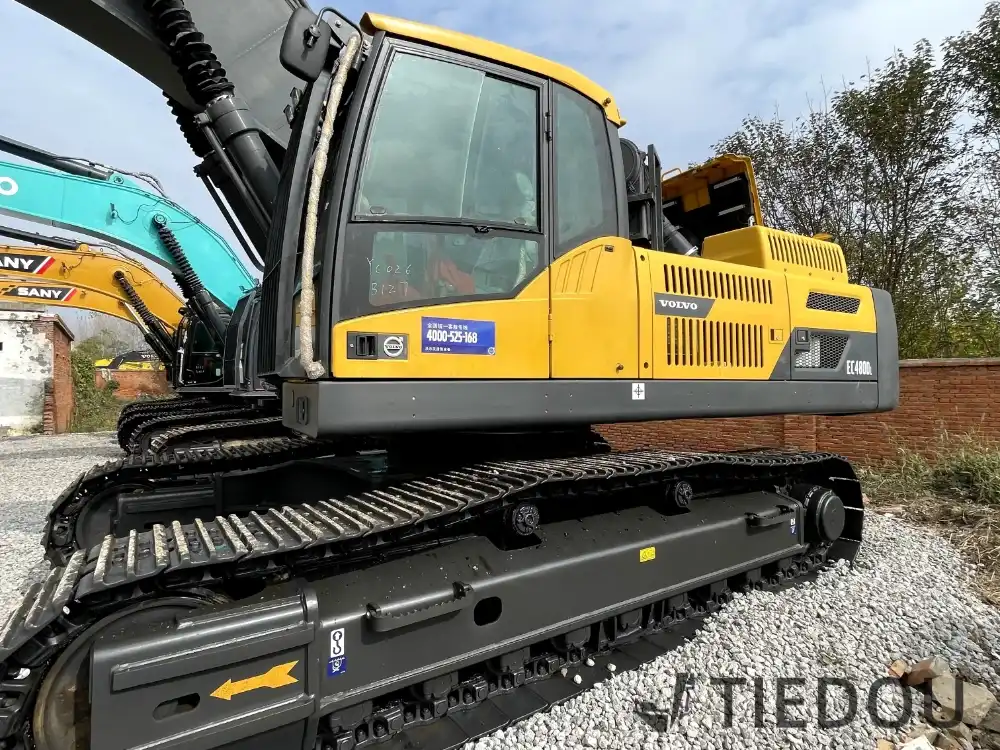

Volvo EC480DL Used Excavator: A Premium Choice for Performance and Value
The Volvo EC480DL is an exceptional choice for large-scale earthmoving projects, celebrated for its superior performance, reliable quality, and efficient operation. Equipped with the powerful Volvo D13H engine, this excavator delivers 371 horsepower, ensuring stable operation even under heavy workloads. Its 12.8-liter high-displacement engine, combined with an advanced hydraulic system, provides robust digging force and swift operational efficiency, making it the ultimate support for large construction projects.
Key Performance Highlights
- Outstanding Power: With a bucket digging force of 284 kN and an arm digging force of 239 kN, the EC480DL tackles hard soil and rock effortlessly.

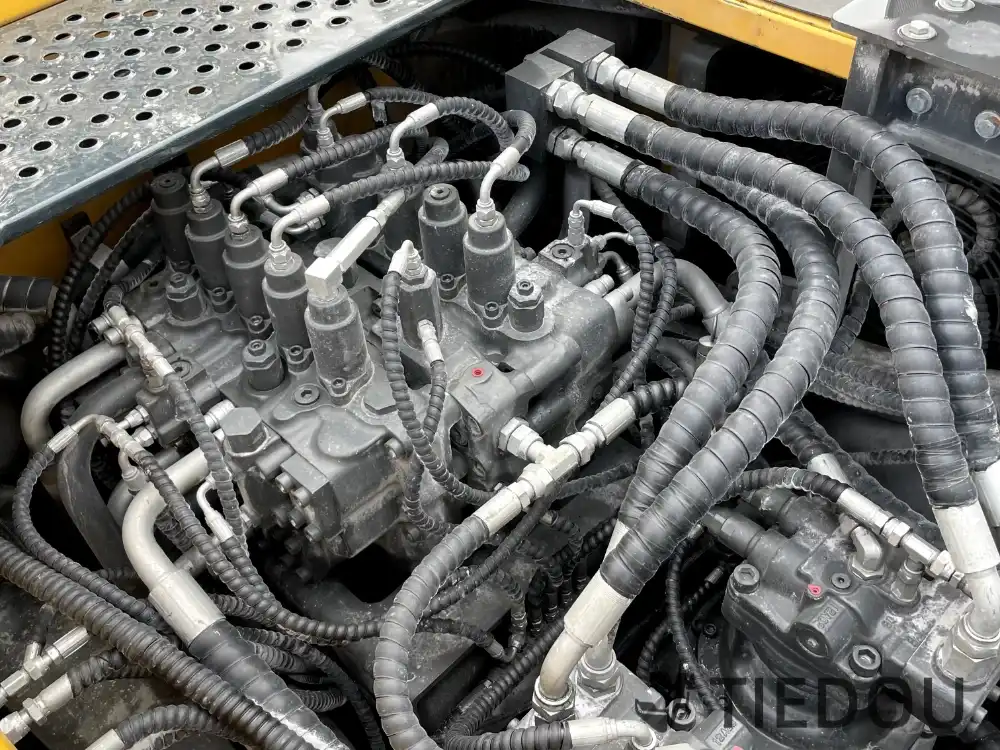

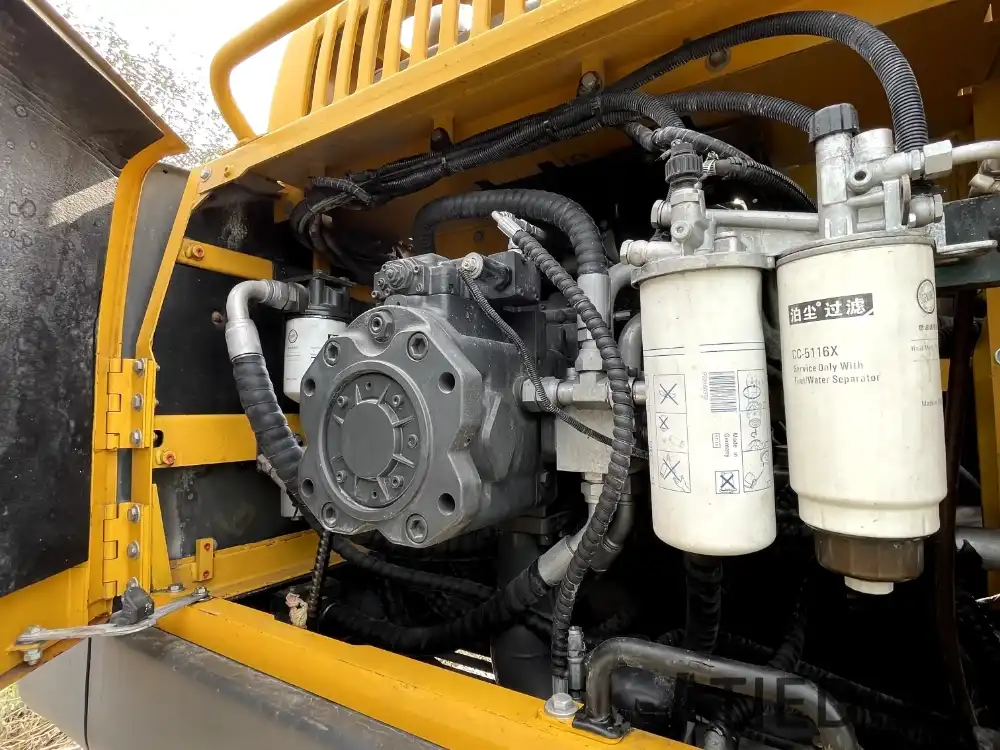

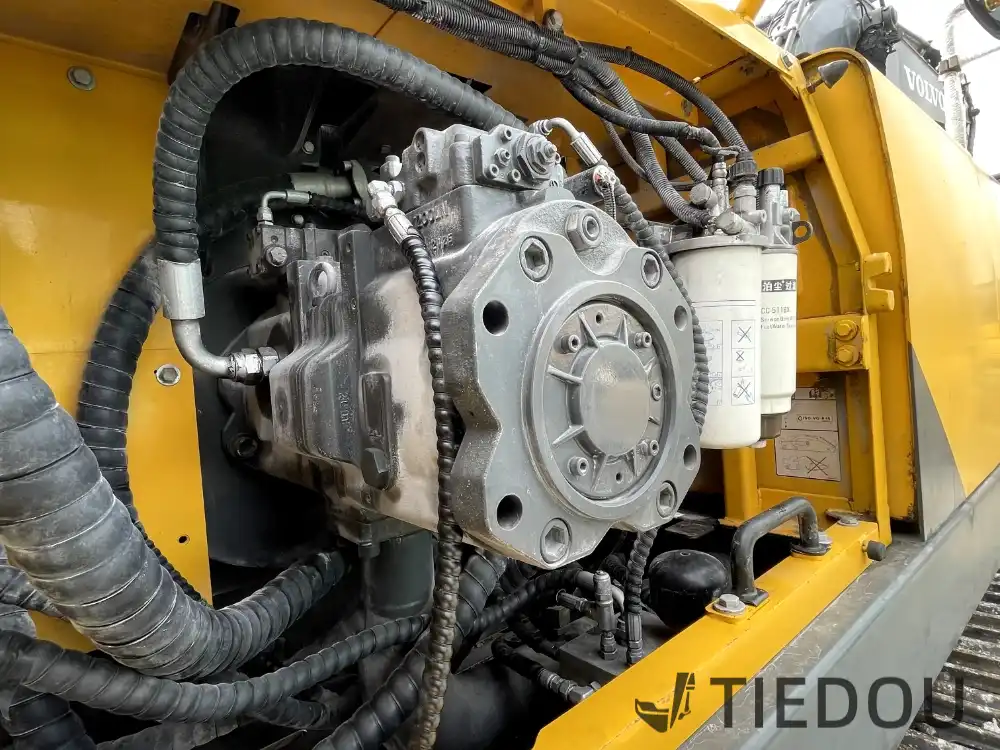

- Efficient Hydraulic System: Dual variable displacement piston pumps deliver a maximum hydraulic flow of 720 L/min, enhancing both operational flexibility and speed.
- Broad Working Range: Boasting a maximum digging depth of 7.75 meters and a digging radius of 12 meters, this machine is suited for a wide variety of challenging tasks.
- Eco-Friendly and Fuel-Efficient: Its electronically controlled engine, coupled with optimized fuel management, keeps average fuel consumption at just 35–38 liters per hour, lowering both operational costs and emissions.
Exceptional Value for Money
As a pre-owned machine, the Volvo EC480DL offers an incredibly competitive price point while delivering performance that rivals new models. Compared to other excavators in its class, it stands out with superior power, fuel efficiency, and lower maintenance costs. Volvo's renowned reliability further enhances its desirability in the used equipment market.
Market Reputation
The Volvo EC480DL has earned widespread acclaim for its robust design, low maintenance rates, and exceptional work capabilities. Many construction companies regard it as the ideal solution for heavy-duty applications. Whether it’s mining, large-scale earthmoving, or municipal construction, this excavator handles every challenge with ease.
Why Choose Tiedou for Used Excavators?
At Tiedou, we provide a trustworthy and secure purchasing experience with:
- Transparent Transactions: Enjoy a clear, straightforward buying process with no hidden fees.
- Professional Inspections: Every machine undergoes rigorous testing to ensure reliable performance and quality.
- Comprehensive After-Sales Support: Our dedicated team is always ready to assist you, providing peace of mind for your purchase.
Conclusion
Purchasing the Volvo EC480DL used excavator from Tiedou combines the benefits of a premium machine with the cost-efficiency of used equipment. Enjoy top-tier performance, reduced costs, and peace of mind knowing you're supported by a professional team.
Contact us today to learn more and secure the Volvo EC480DL for your next project!
Parameter | Details |
Brand | Volvo |
Model | EC480DL |
Operating Weight | 47,300 kg |
Bucket Capacity | 2.5-3.5 m³ |
Boom Length | 7.0 m |
Arm Length | 2.9 m |
Manufacturer | Volvo Construction Equipment |
Swing Speed | 9.5 rpm |
Travel Speed | 3.0-5.3 km/h |
Gradeability | 35° |
Ground Pressure | 82.8 kPa |
Bucket Digging Force | 284 kN |
Arm Digging Force | 239 kN |
Engine Brand | Volvo |
Engine Model | D13H |
Engine Power (HP) | 371 HP (276 kW) |
Displacement | 12.8 L |
Number of Cylinders | 6 |
Bore and Stroke | 131 mm × 158 mm |
Hydraulic Pump Brand/Model | Parker / Dual Variable Piston Pumps |
Max Hydraulic Flow | 2 × 360 L/min |
Travel Hydraulic Circuit | 35 MPa |
Control Hydraulic Circuit | 29 MPa |
Fuel Tank (L) | 727 L |
Hydraulic Tank (L) | 310 L |
Engine Oil Capacity (L) | 38 L |
Coolant Capacity (L) | 50 L |
Transport Length | 11,520 mm |
Transport Width | 3,340 mm |
Transport Height | 3,460 mm |
Track Shoe Width | 600 mm |
Track Length | 5,080 mm |
Max Digging Radius | 12,000 mm |
Max Digging Depth | 7,750 mm |
Max Digging Height | 10,200 mm |
Max Dump Height | 7,100 mm |
Max Vertical Digging Depth | 6,550 mm |
Average Fuel Consumption | 35-38 L/h |
Air Conditioning | Yes |
Fuel Injection System | Electronic Injection |
