The Sany 65C used excavator is a high-performance, miniaturized all-around equipment designed for narrow working conditions and small and medium-sized projects. It uses an advanced hydraulic system and an energy-efficient engine, has excellent digging force and operational flexibility, and can easily cope with various construction needs. The durable structural design and sophisticated manufacturing process ensure a longer service life and stability.
Compared with products of the same level, the Sany 65C has lower fuel consumption and higher construction efficiency, and is easy to maintain, which can significantly reduce operating costs. Now sold at a very competitive price, it has strong performance and outstanding cost-effectiveness, making it an ideal choice for users of small and medium-sized construction machinery. Seize the opportunity to improve efficiency and value for your project!
Item | Parameter Specifications |
Brand | SANY |
Model | SY65C |
Operating weight (kg) | 6500 |
Bucket capacity (m³) | 0.10 - 0.28 |
Boom length (mm) | 3000 |
Arm length (mm) | 1600 |
Manufacturer | SANY Heavy Industry Co., Ltd. |
Swing speed (r/min) | 12 |
Travel speed (km/h) | 4.2/2.2 |
Climbing ability (°) | 35 |
Ground pressure (kPa) | 30.7 |
Bucket digging force (kN) | 45 |
Arm digging force (kN) | 33 |

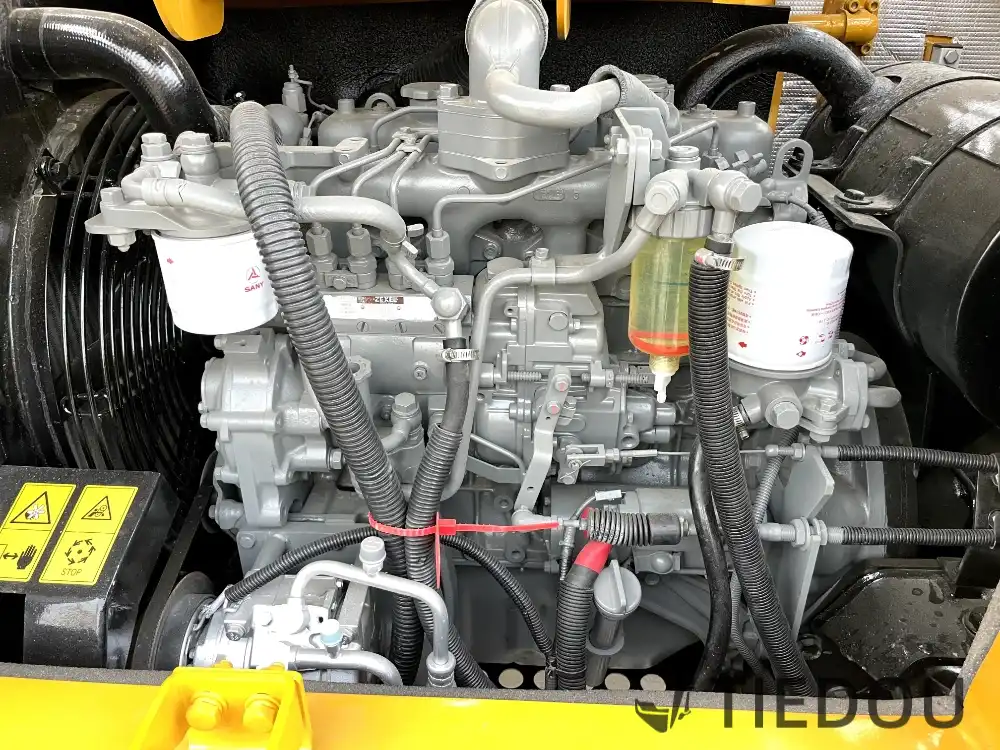

Engine brand | Isuzu |
Engine model | 4JG1 |
Engine power (hp) | 48.9 |
Displacement (L) | 3.059 |
Number of cylinders | 4 |
Cylinder bore and stroke (mm) | 95.4×104.9 |

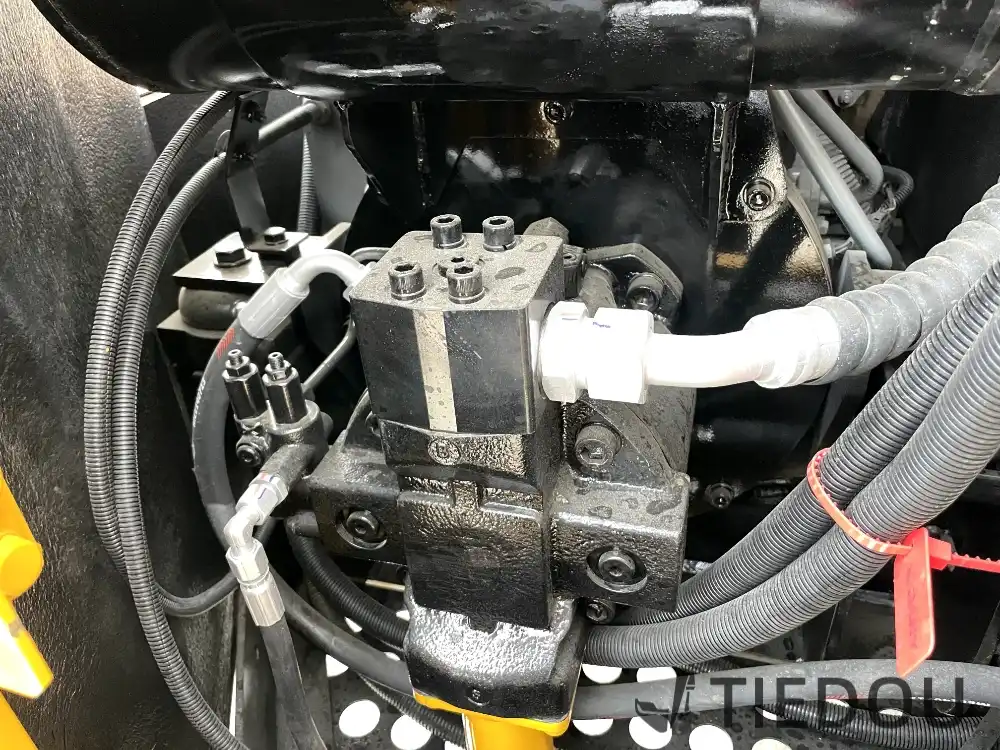

Hydraulic pump brand | Kawasaki |
Hydraulic pump model | K3V63DT |
Maximum hydraulic flow (L/min) | 150 |
Travel hydraulic circuit (MPa) | 31.4 |
Control hydraulic circuit (MPa) | 3.9 |
Fuel tank (L) | 130 |
Hydraulic oil tank (L) | 85 |
Engine oil change volume (L) | 9.5 |
Coolant (L) | 11 |
Transport length (mm) | 6090 |
Transport width (mm) | 2220 |
Transport height (mm) | 2620 |
Track shoe width (mm) | 400 |
Track shoe length (mm) | 2920 |
Maximum digging radius (mm) | 6130 |
Maximum digging depth (mm) | 3770 |
Maximum digging height (mm) | 5735 |
Maximum unloading height (mm) | 4075 |
Maximum vertical digging depth (mm) | 2880 |
Average fuel consumption (L/h) | Approximately 3 - 5 (varies according to actual working conditions) |

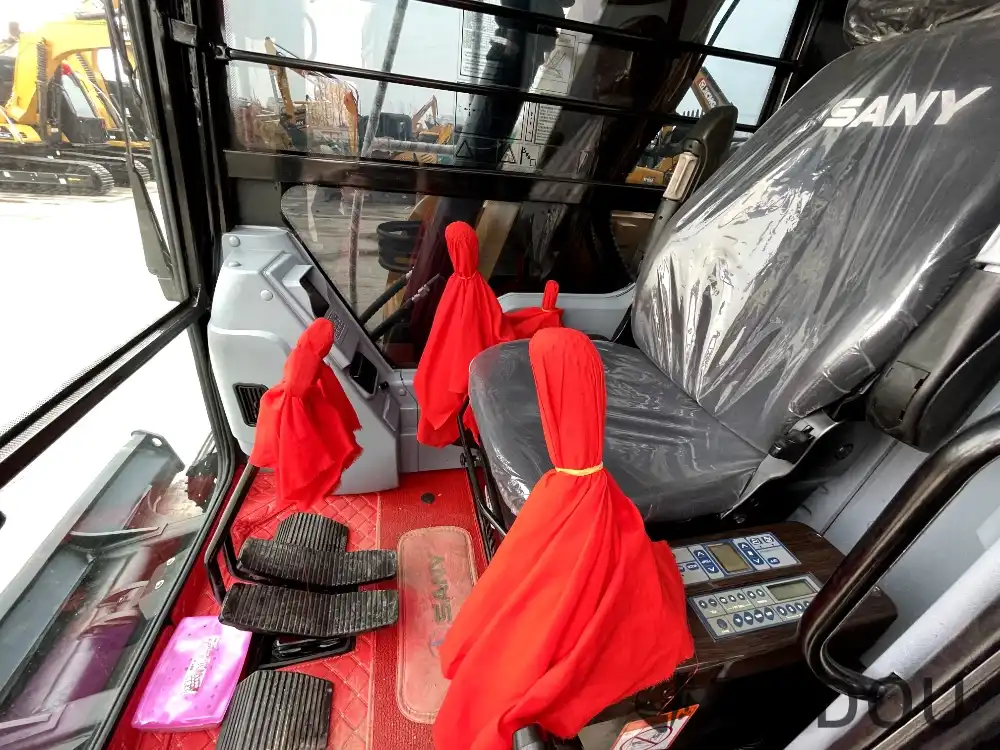

Air conditioner | Yes |
Electronic injection/Direct injection | Direct injection |
Product Features
-
Rich models
Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.
-
Complete accessories
Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.
-
Customized production
Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.
-
Brand warranty
Famous brand, reliable quality, long service life, worry-free after-sales.
