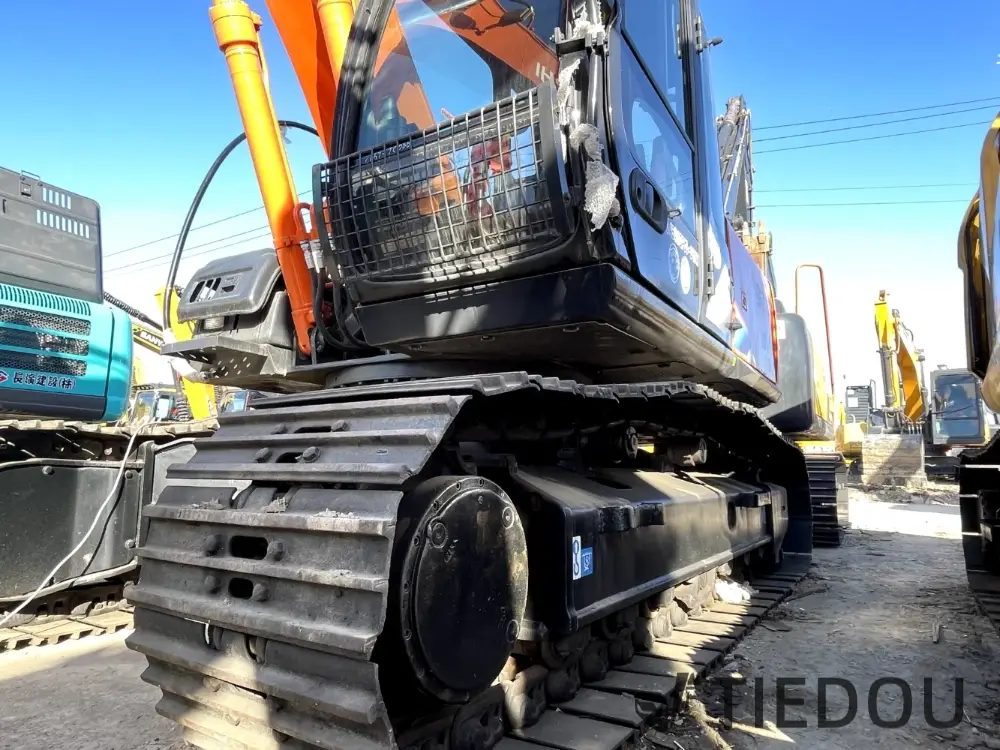

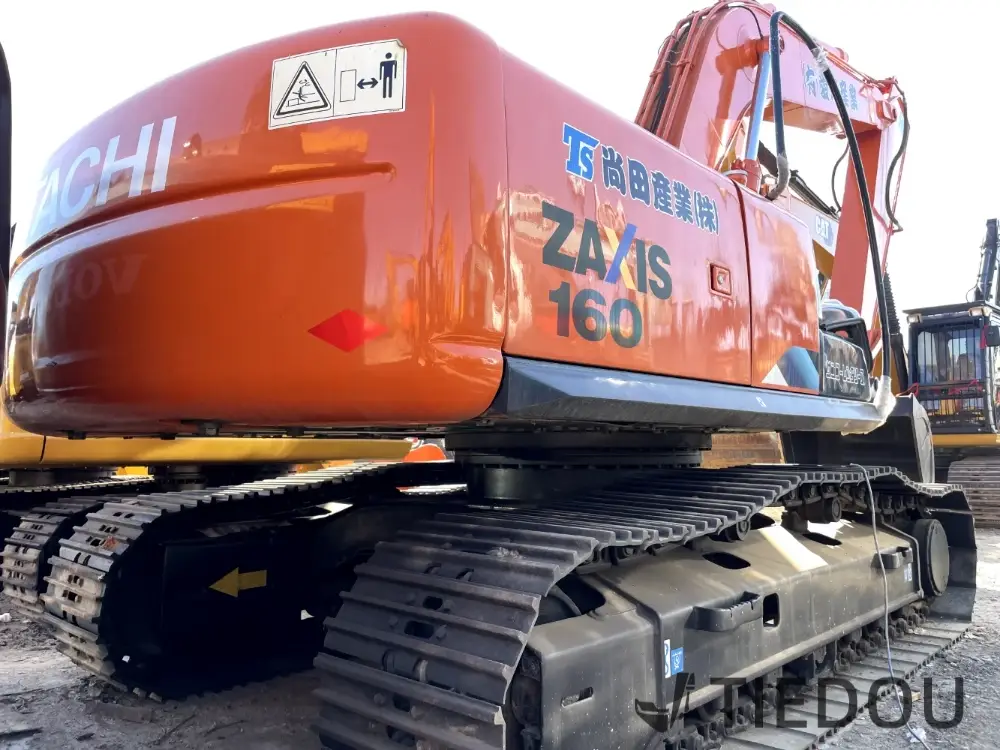

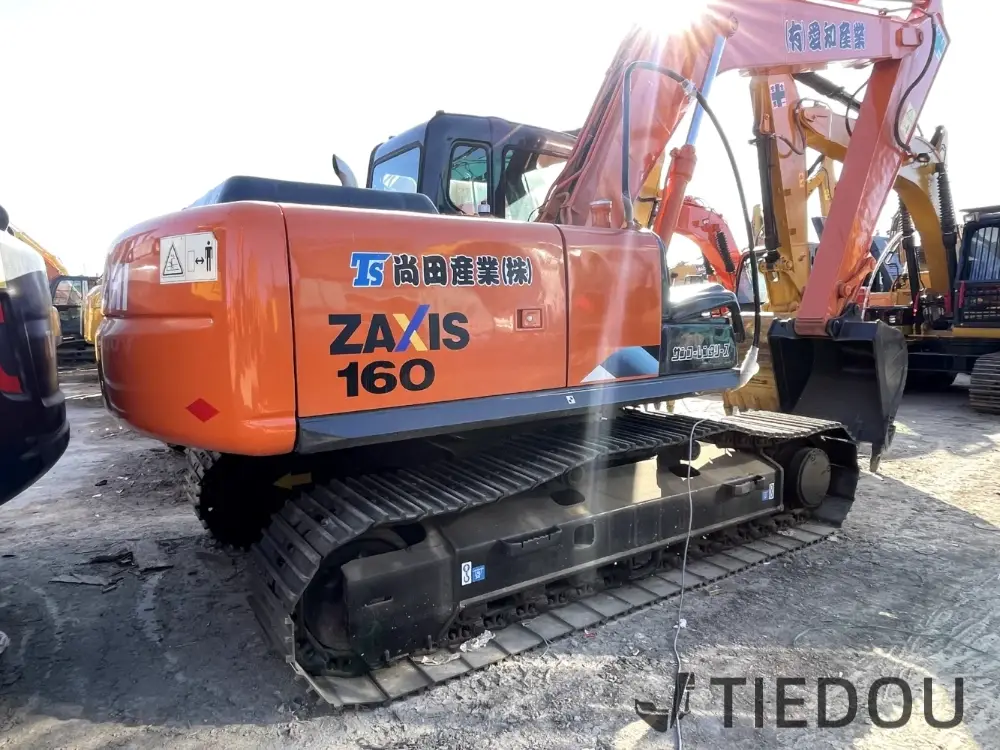

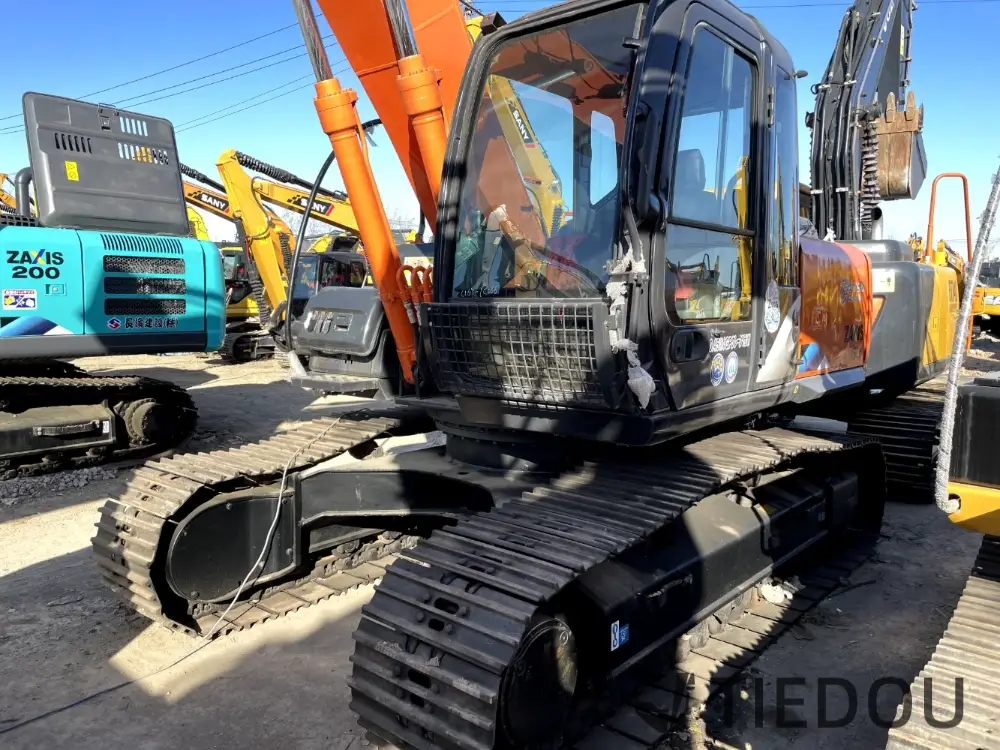

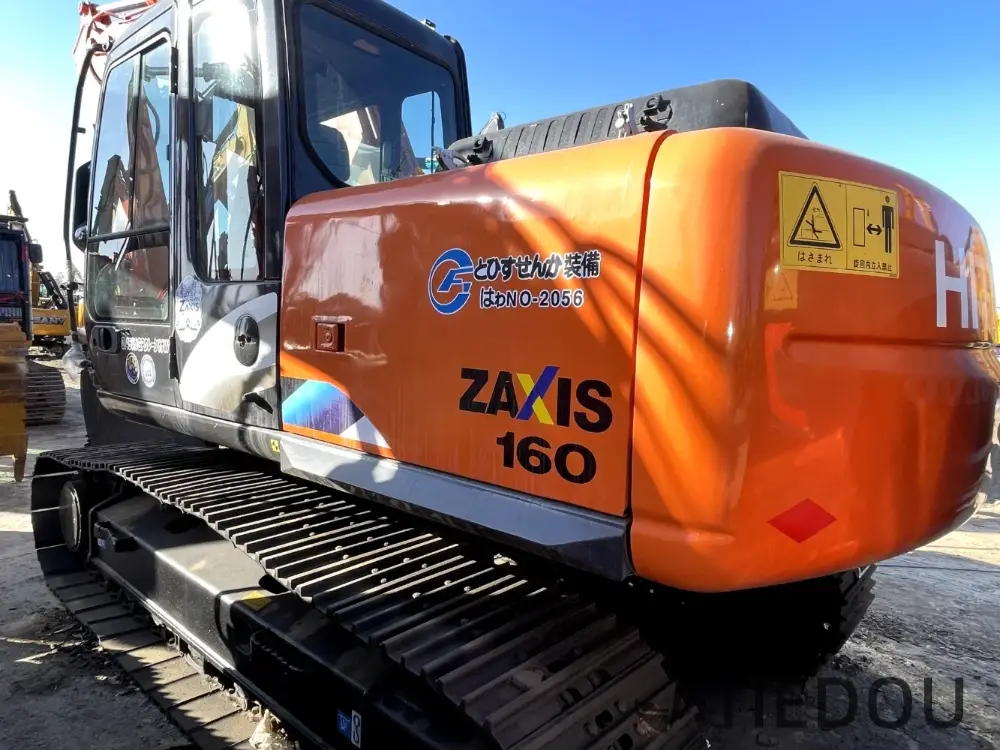

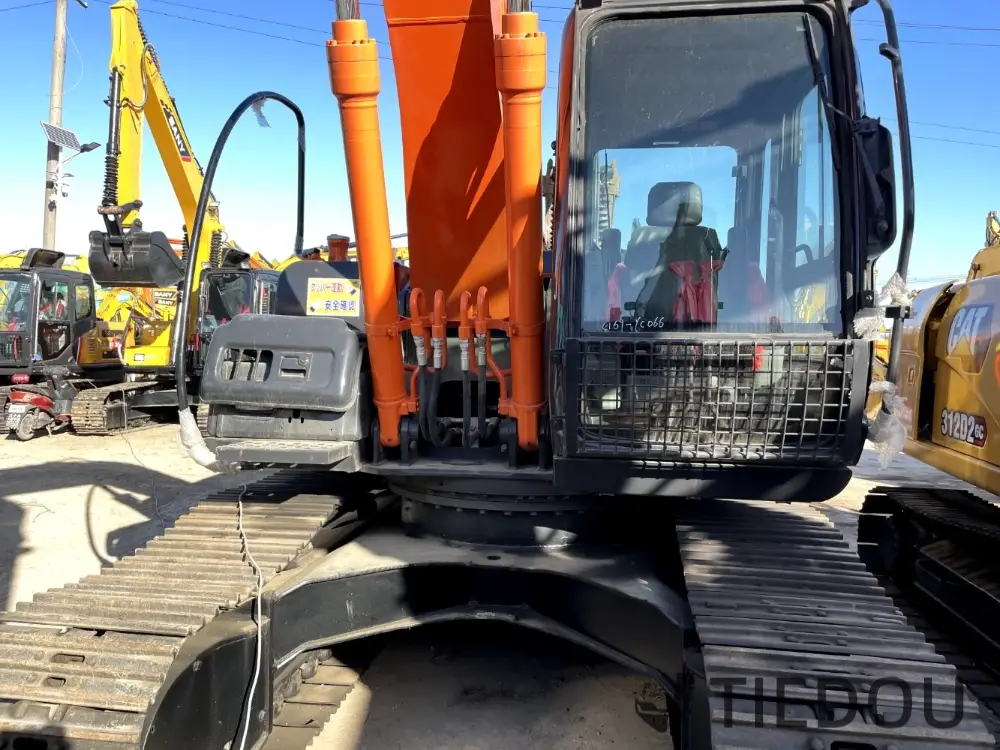

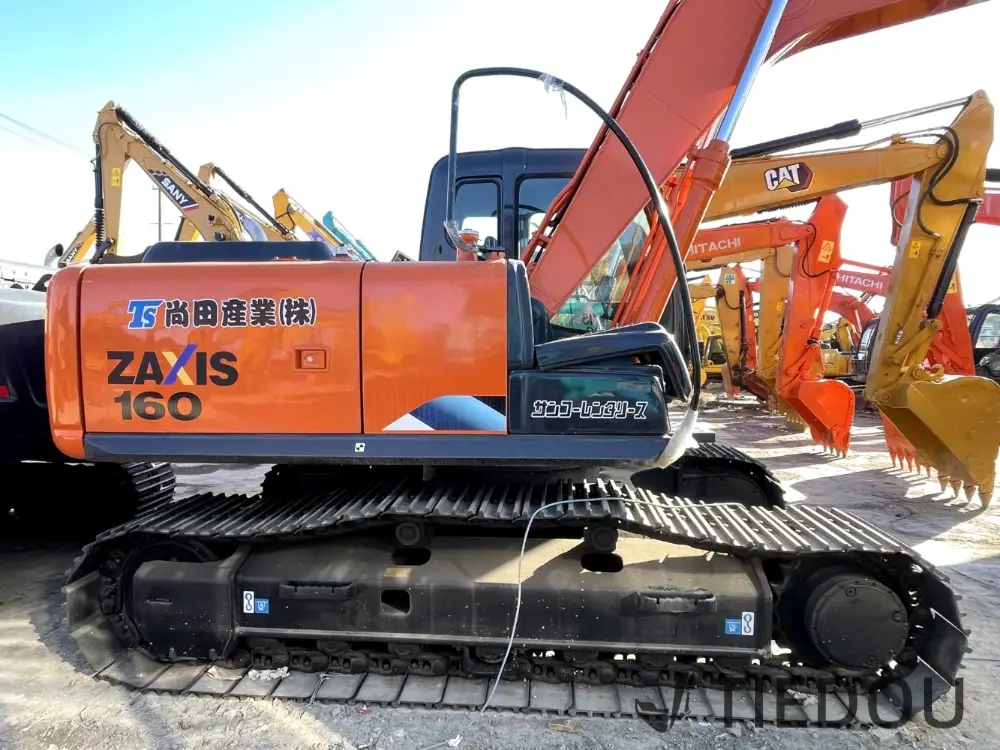

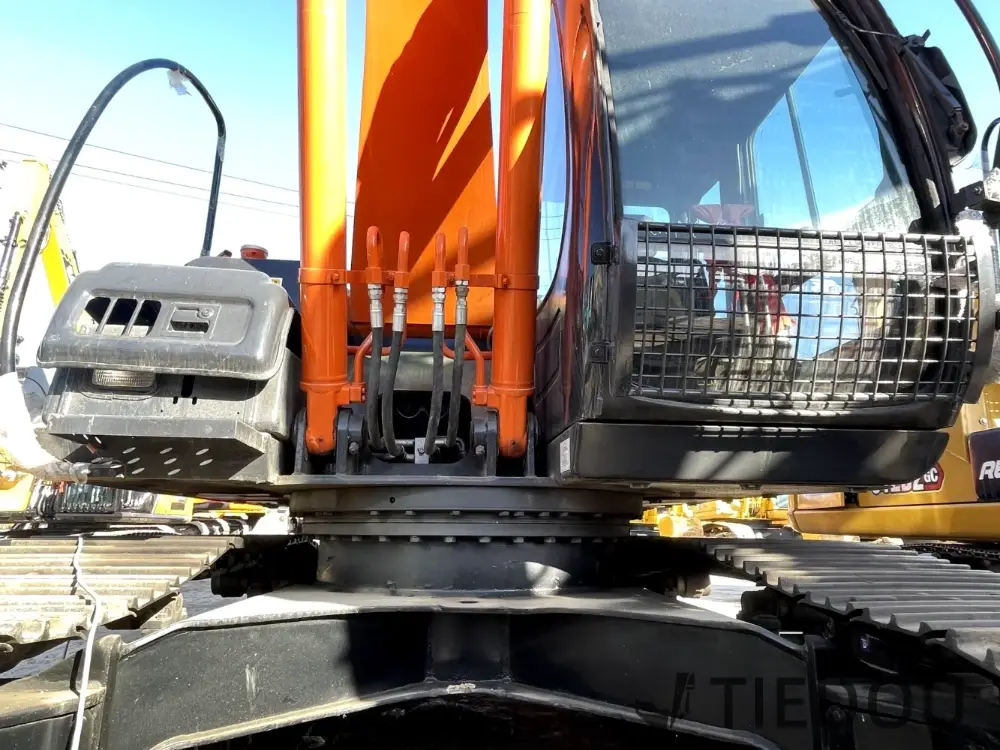

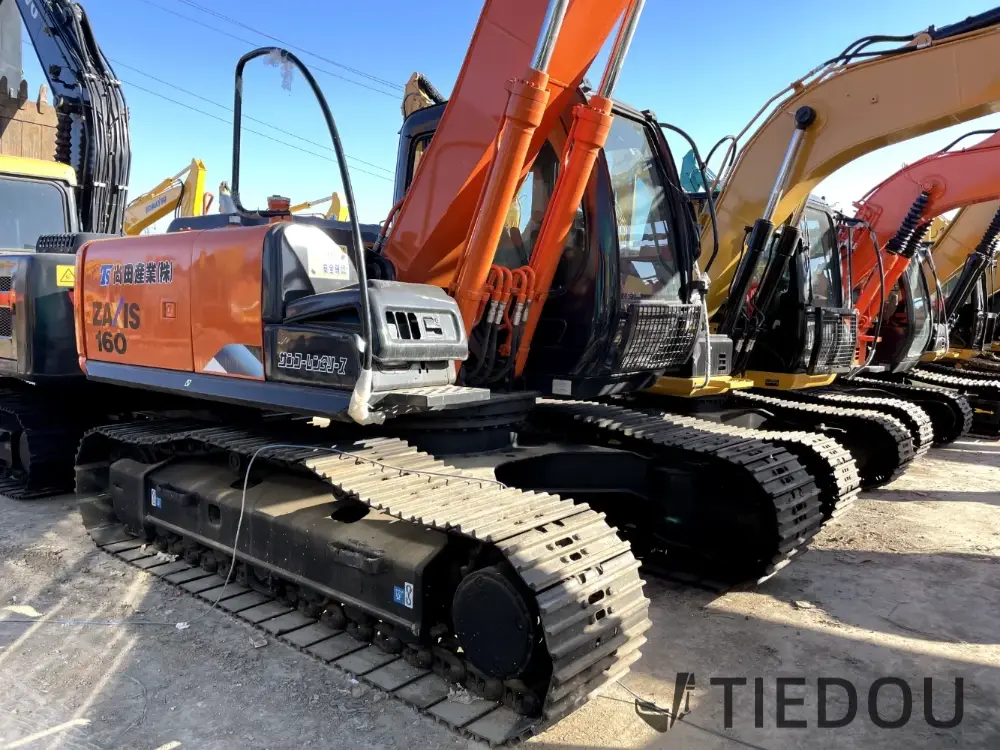

　　Hitachi ZX160 used excavator - cost-effective choice, stable and reliable working partner

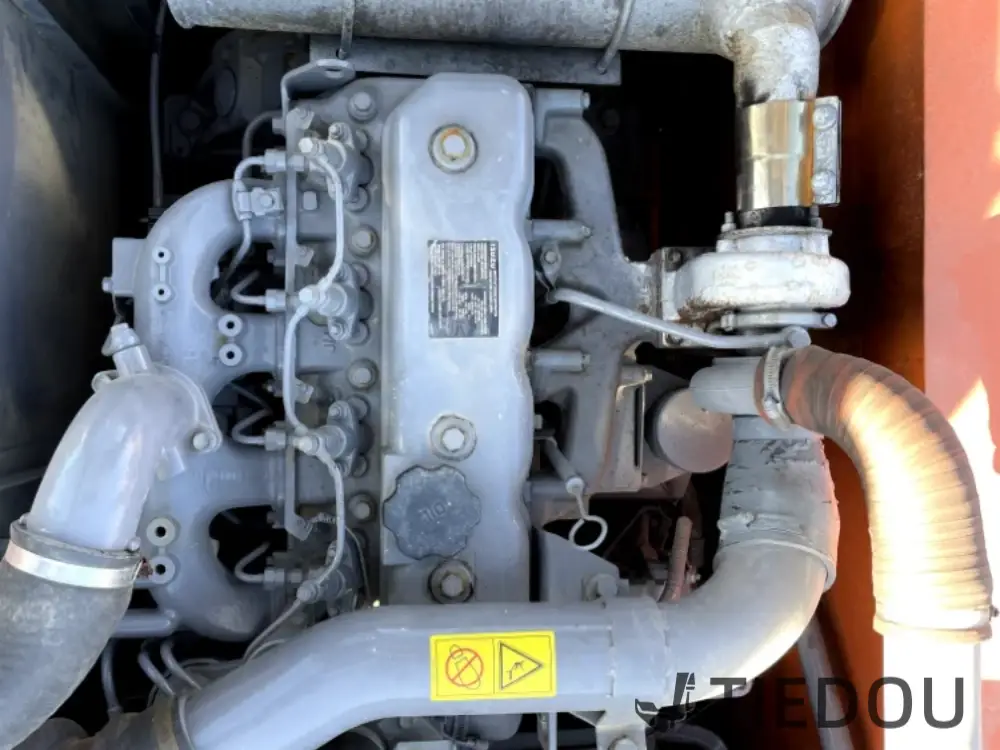

　　This Hitachi ZX160 used excavator is popular for its affordable price and stable performance. The machine weighs 16 tons and is equipped with ISUZU AI-4JJ1X turbocharged engine with a power of up to 90.2kW. It has strong power and efficient fuel economy, with an average fuel consumption of only about 16 liters/hour, helping you significantly reduce operating costs.

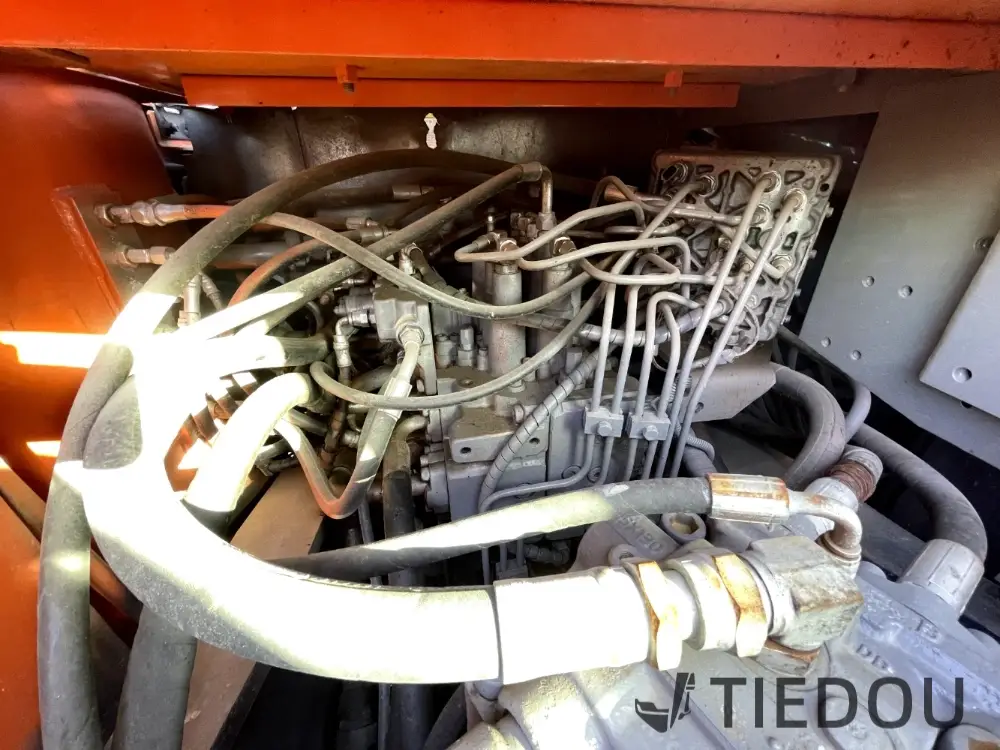

　　The equipment has a sturdy and durable structure, and the hydraulic system is precise and efficient, providing 116 kN bucket digging force, which can adapt to a variety of working environments. Whether it is earthwork excavation or small and medium-sized engineering construction, it can perform well. In addition, this model is easy to maintain and the parts are durable, ensuring long-term stable operation and providing reliable protection for your engineering projects.

　　For customers with limited budgets but pursuing high cost-effectiveness, this ZX160 used excavator is an ideal choice. Contact Tiedou now for more details or to make an appointment to see the machine!


Parameter Category

Specifications

Brand

Hitachi

Model

ZX160

Operating Weight

16,000 kg

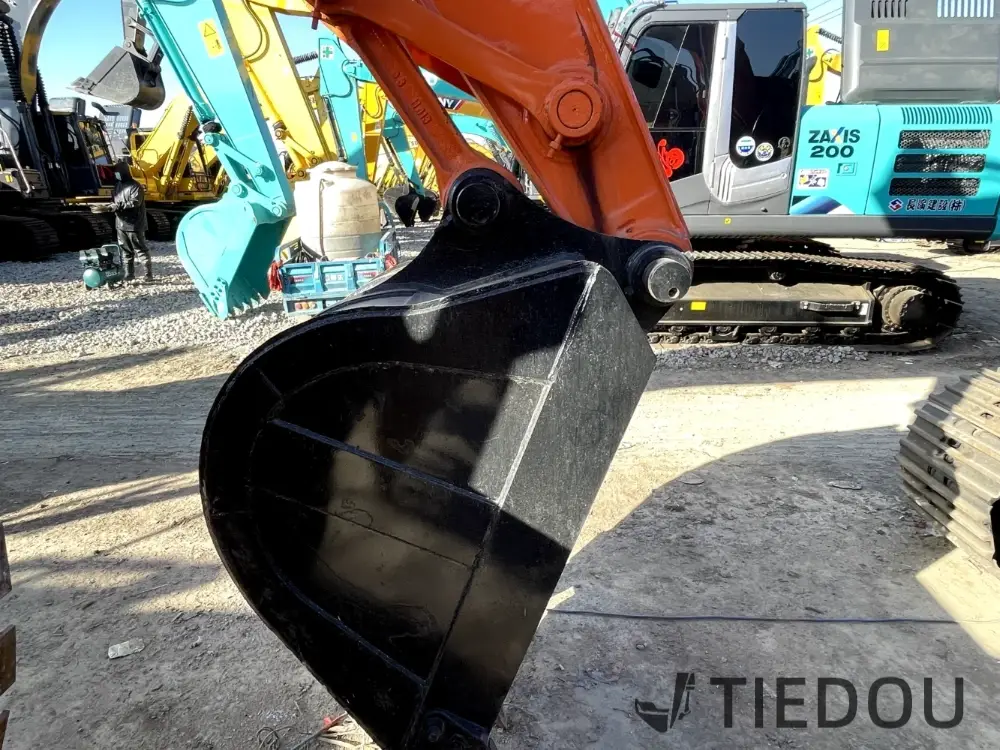

Bucket Capacity

0.52~0.82 m³

Boom Length

5.2 m

Arm Length

2.6 m

Manufacturer

Hitachi Construction Machinery

Swing Speed

12.1 rpm

Travel Speed

High: 5.5 km/h, Low: 3.3 km/h

Gradeability

70% (35°)

Ground Pressure

45 kPa

Bucket Digging Force

116 kN

Arm Digging Force

82 kN

Engine Brand

Isuzu

Engine Model

ISUZU AI-4JJ1X

Rated Power

90.2 kW / 2200 rpm

Displacement

2.999 L

Number of Cylinders

4

Bore and Stroke

95.4 × 104.9 mm

Cooling Method

Water-cooled

Working Type

Direct injection, Turbocharged

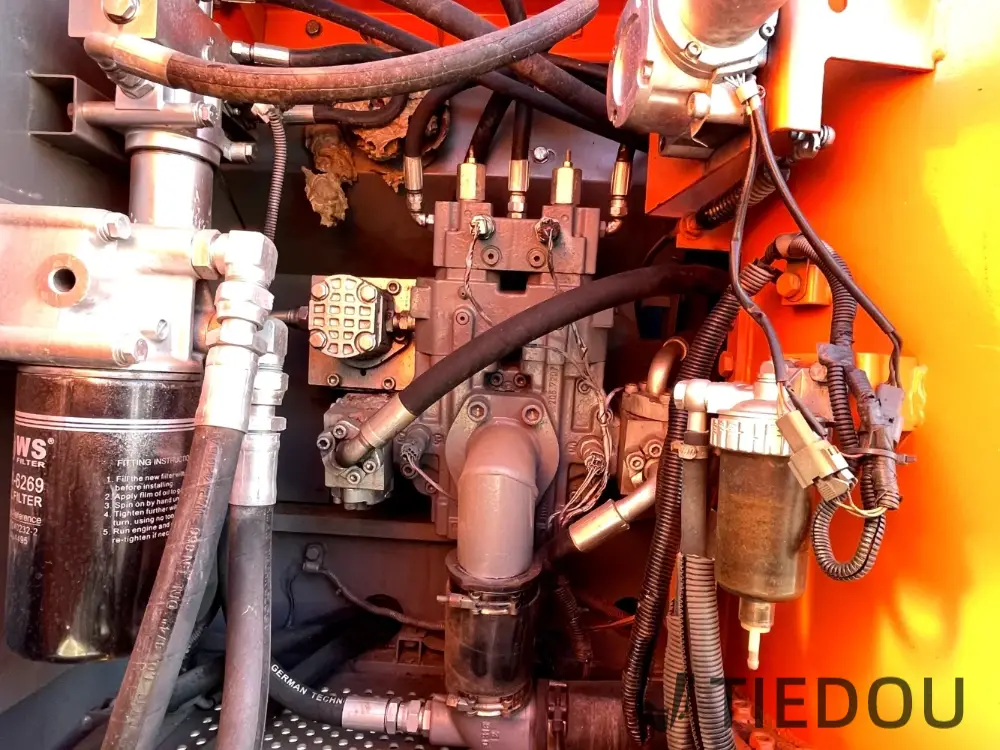

Hydraulic Pump Brand

Hitachi

Hydraulic Pump Model

Dual variable axial piston pumps

Max Hydraulic Flow

2 × 200 L/min

Travel Hydraulic Circuit

34.3 MPa

Control Hydraulic Circuit

3.9 MPa

Fuel Tank Capacity

260 L

Hydraulic Oil Tank Capacity

135 L

Engine Oil Capacity

14 L

Coolant Capacity

20 L

Transport Length

8,620 mm

Transport Width

2,590 mm

Transport Height

2,870 mm

Track Shoe Width

600 mm

Track Length

4,060 mm

Max Digging Radius

8,790 mm

Max Digging Depth

5,530 mm

Max Digging Height

8,830 mm

Max Dumping Height

6,130 mm

Max Vertical Digging Depth

4,920 mm

Average Fuel Consumption

16 L/h

Air Conditioner

Standard

Fuel Injection Type

Direct injection


Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
