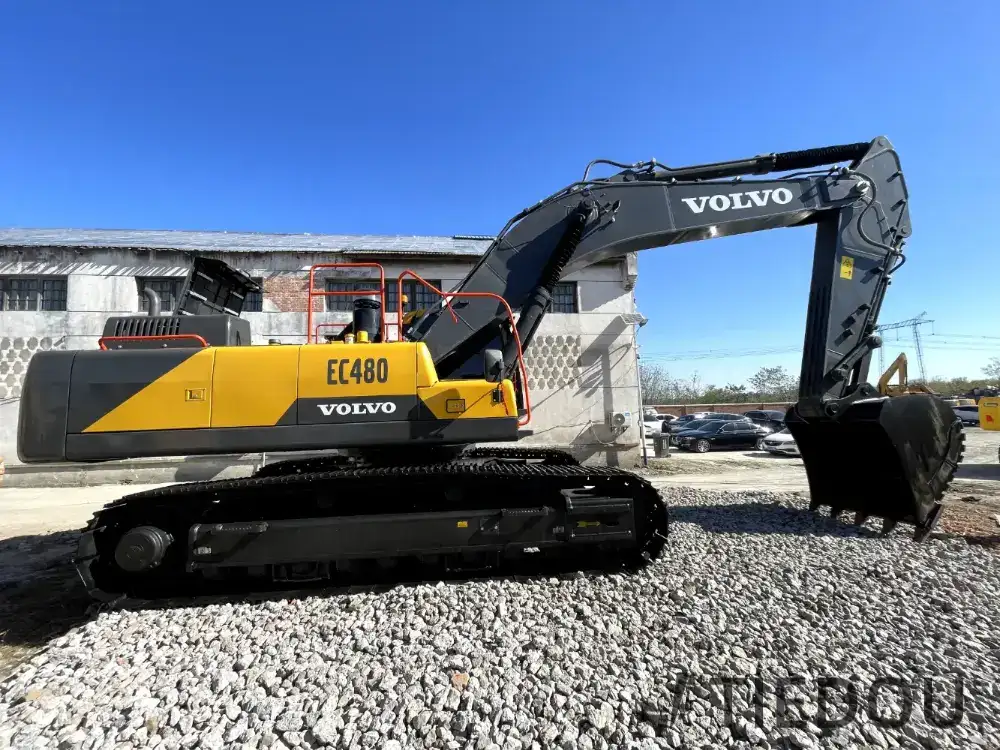

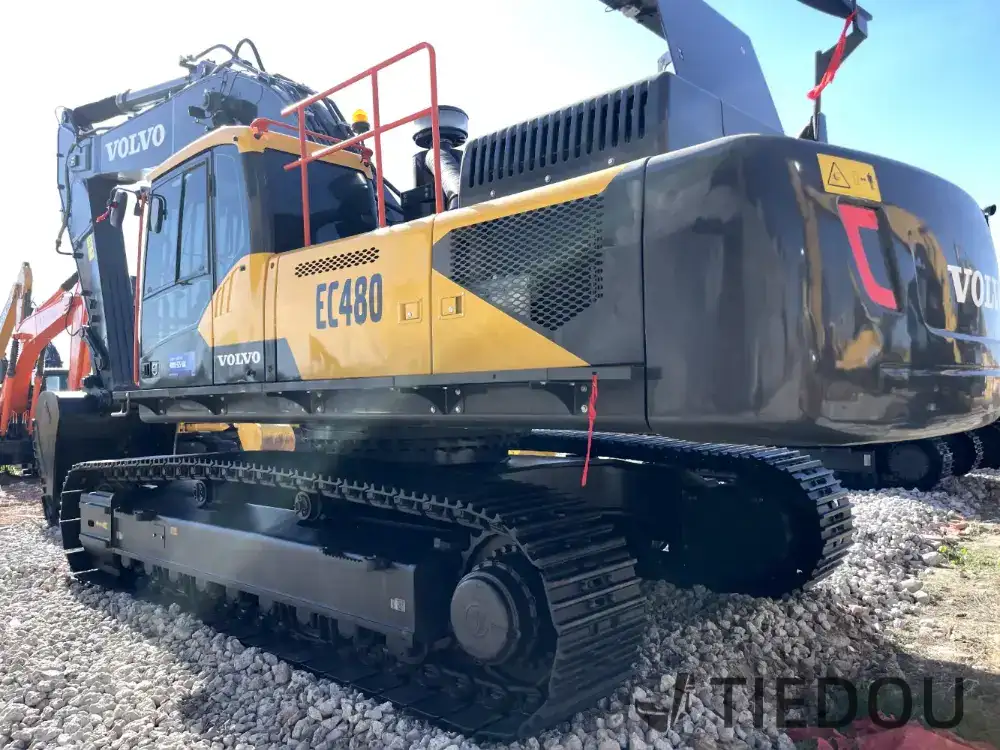

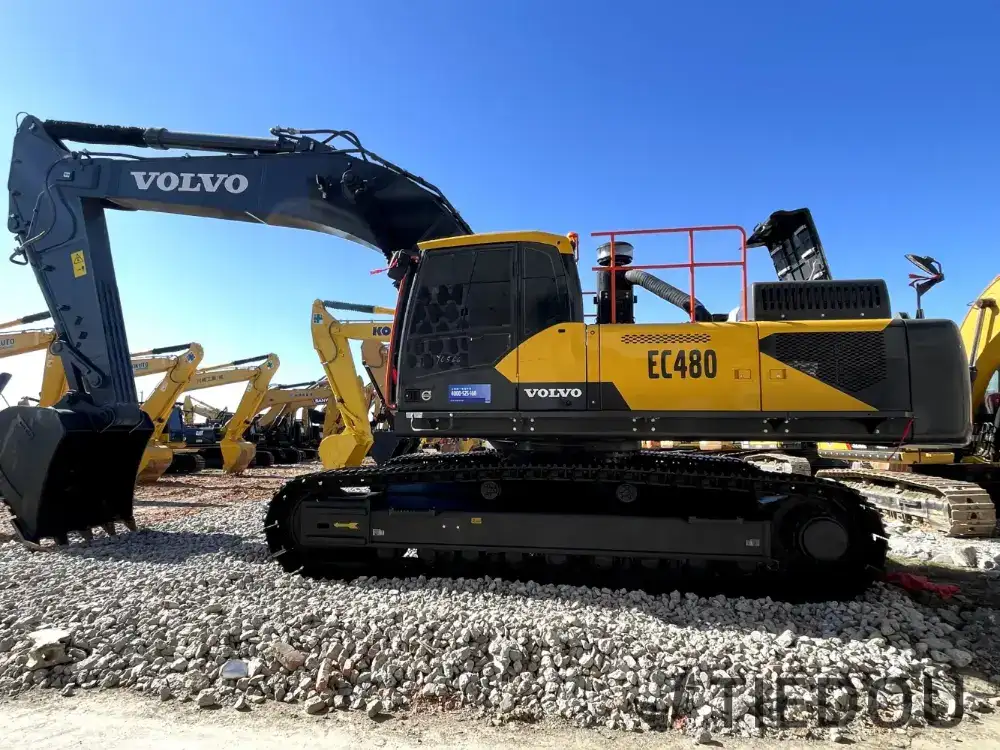

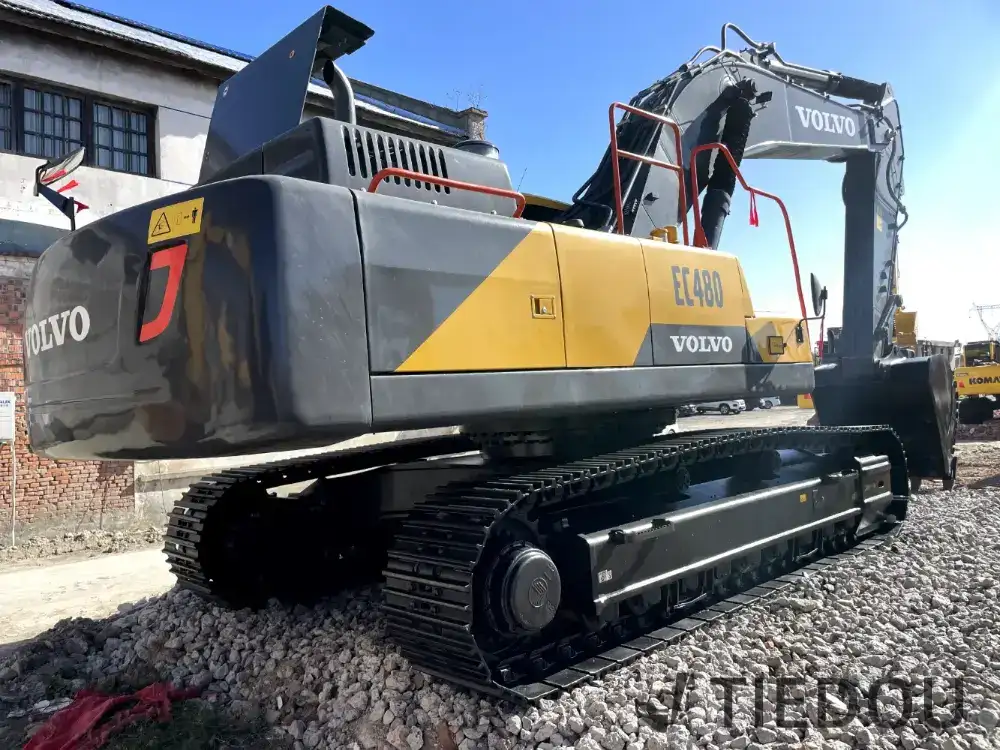

　　This used Volvo EC480DL excavator is one of the most popular and high-quality models on the market. The whole machine has a novel appearance, minimal wear, proper maintenance, and strong power system operation to ensure efficient operating performance.

　　This model is known for its excellent fuel economy, with excellent fuel consumption performance and significantly reduced operating costs. At the same time, it has fast speed and strong digging force, and is suitable for various complex working conditions. It has excellent performance in terms of stability and ensures safety and reliability under high-load operations, making it the best choice for engineering construction.

　　Welcome to visit and test the machine. For more details, please contact the Tiedou second-hand excavator team. We will serve you wholeheartedly!


Parameter

Details

Brand

Volvo

Model

EC480DL

Operating Weight

47,300 kg

Bucket Capacity

2.5-3.5 m³

Boom Length

7.0 m

Arm Length

2.9 m

Manufacturer

Volvo Construction Equipment

Swing Speed

9.5 rpm

Travel Speed

3.0-5.3 km/h

Gradeability

35°

Ground Pressure

82.8 kPa

Bucket Digging Force

284 kN

Arm Digging Force

239 kN

Engine Brand

Volvo

Engine Model

D13H

Engine Power (HP)

371 HP (276 kW)

Displacement

12.8 L

Number of Cylinders

6

Bore and Stroke

131 mm × 158 mm

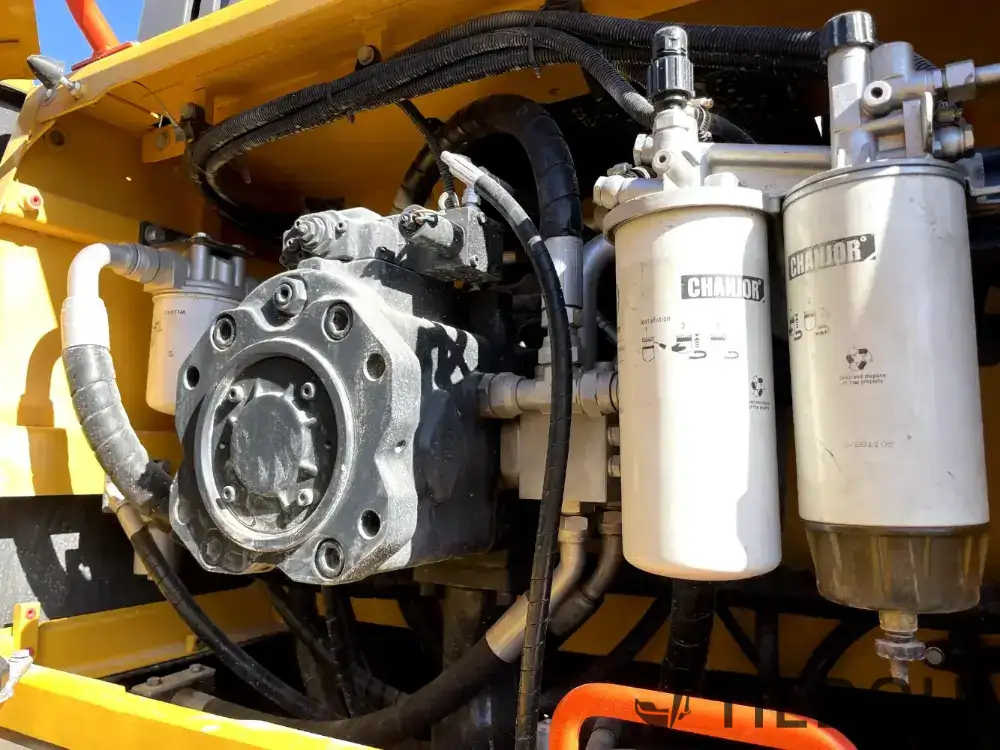

Hydraulic Pump Brand/Model

Parker / Dual Variable Piston Pumps

Max Hydraulic Flow

2 × 360 L/min

Travel Hydraulic Circuit

35 MPa

Control Hydraulic Circuit

29 MPa

Fuel Tank (L)

727 L

Hydraulic Tank (L)

310 L

Engine Oil Capacity (L)

38 L

Coolant Capacity (L)

50 L

Transport Length

11,520 mm

Transport Width

3,340 mm

Transport Height

3,460 mm

Track Shoe Width

600 mm

Track Length

5,080 mm

Max Digging Radius

12,000 mm

Max Digging Depth

7,750 mm

Max Digging Height

10,200 mm

Max Dump Height

7,100 mm

Max Vertical Digging Depth

6,550 mm

Average Fuel Consumption

35-38 L/h

Air Conditioning

Yes

Fuel Injection System

Electronic Injection

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
