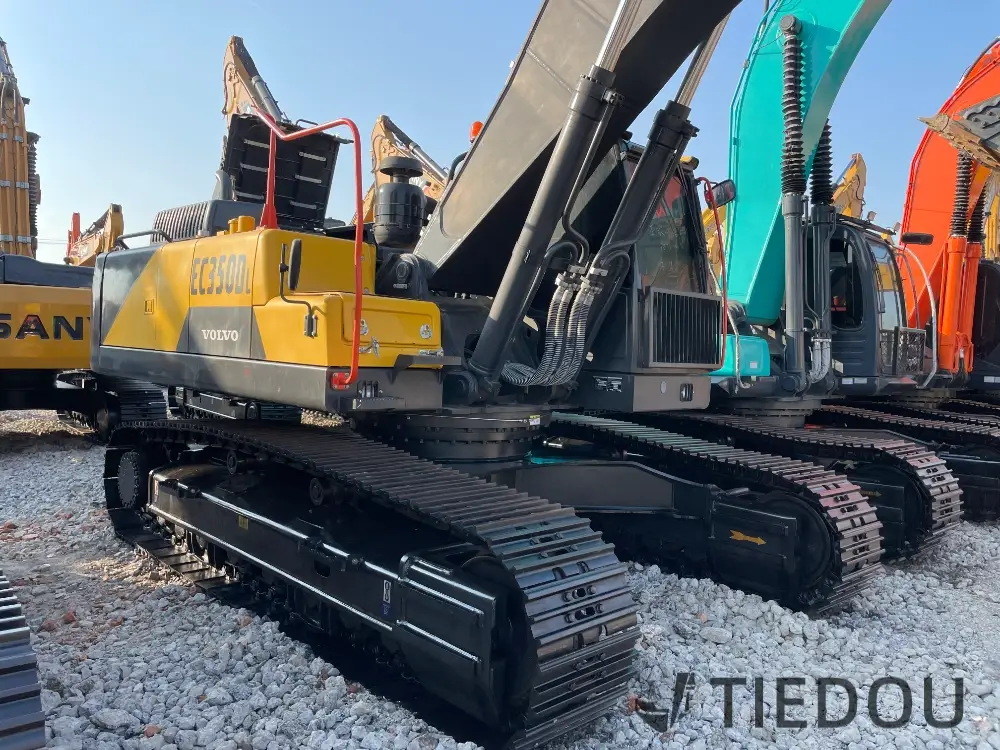

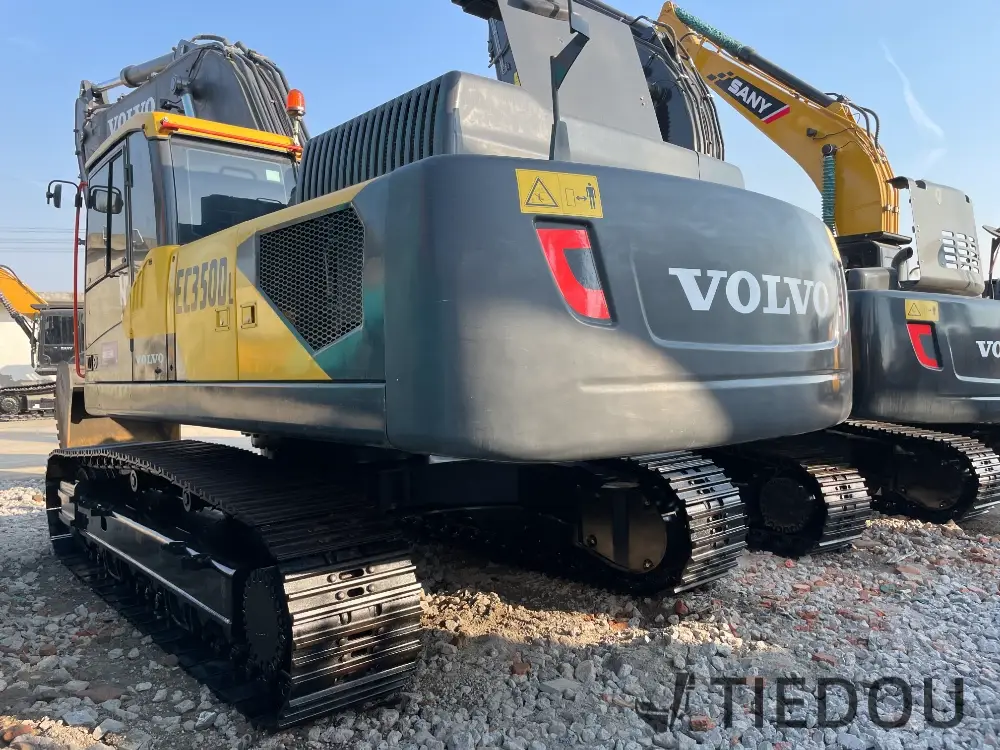

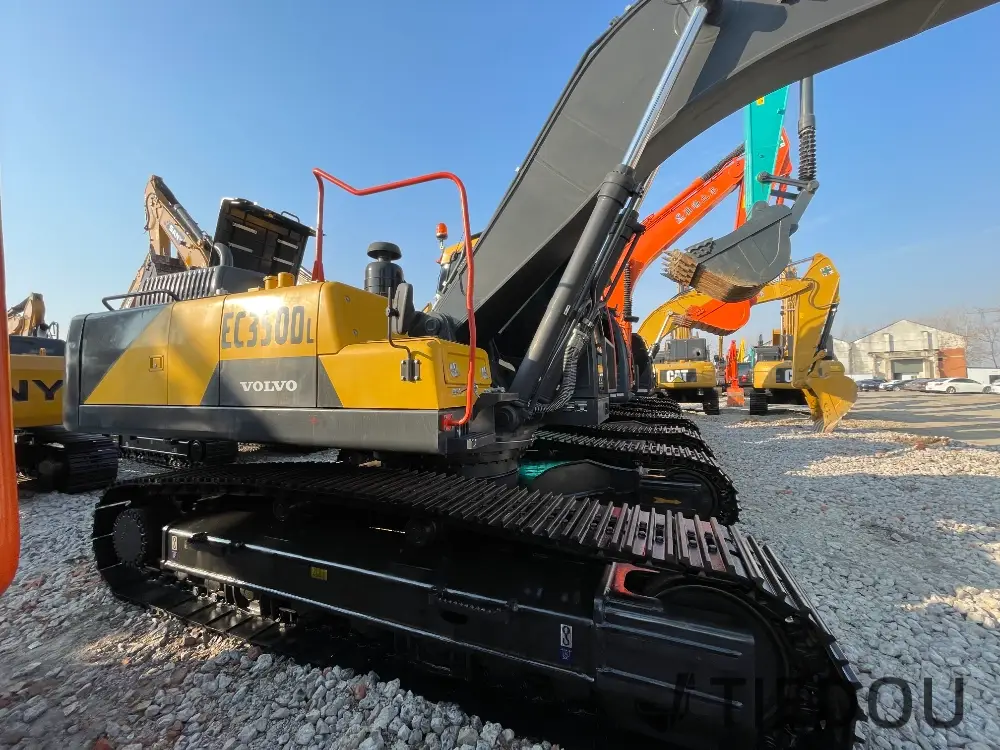

Volvo EC350D Used Excavator: High-Performance and Reliable Engineering Equipment

If you’re looking for a machine that combines exceptional performance with outstanding durability, the Volvo EC350D excavator is your ideal choice. With its powerful engine, superior operational efficiency, and eco-friendly design, this machine is a top performer for earthmoving, mining, and construction projects.

Key Features:

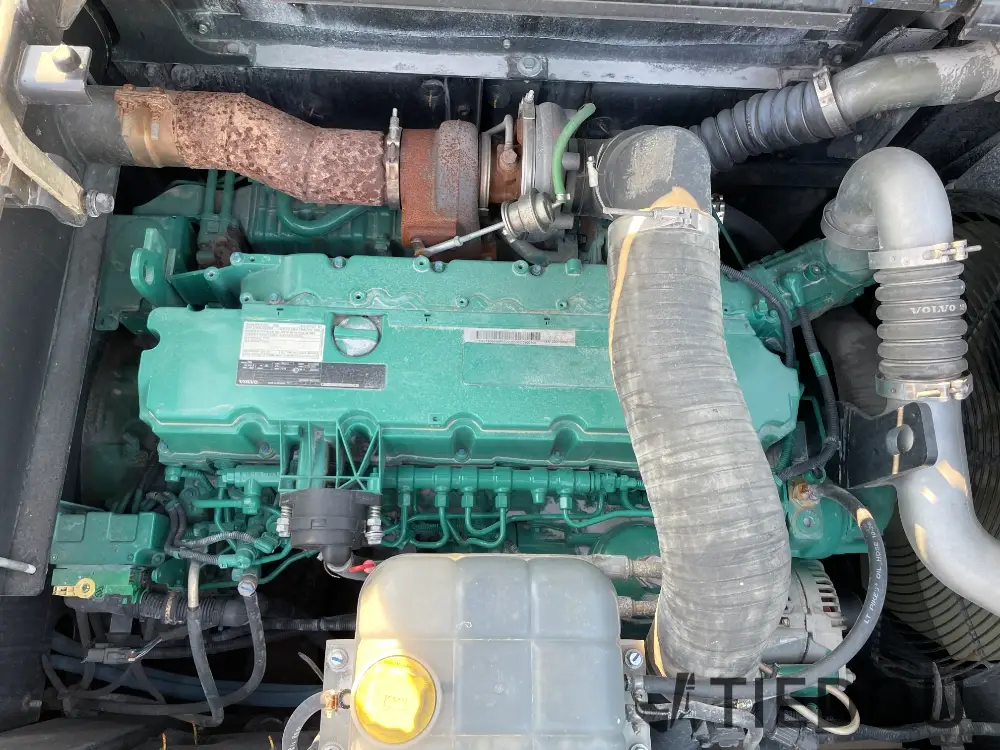

  1. Powerful Engine, Stable Performance:
    Equipped with the Volvo D8K engine, delivering 197 kW of rated power and a robust torque of 1340 Nm, this machine handles heavy-duty excavation tasks and challenging conditions with ease.

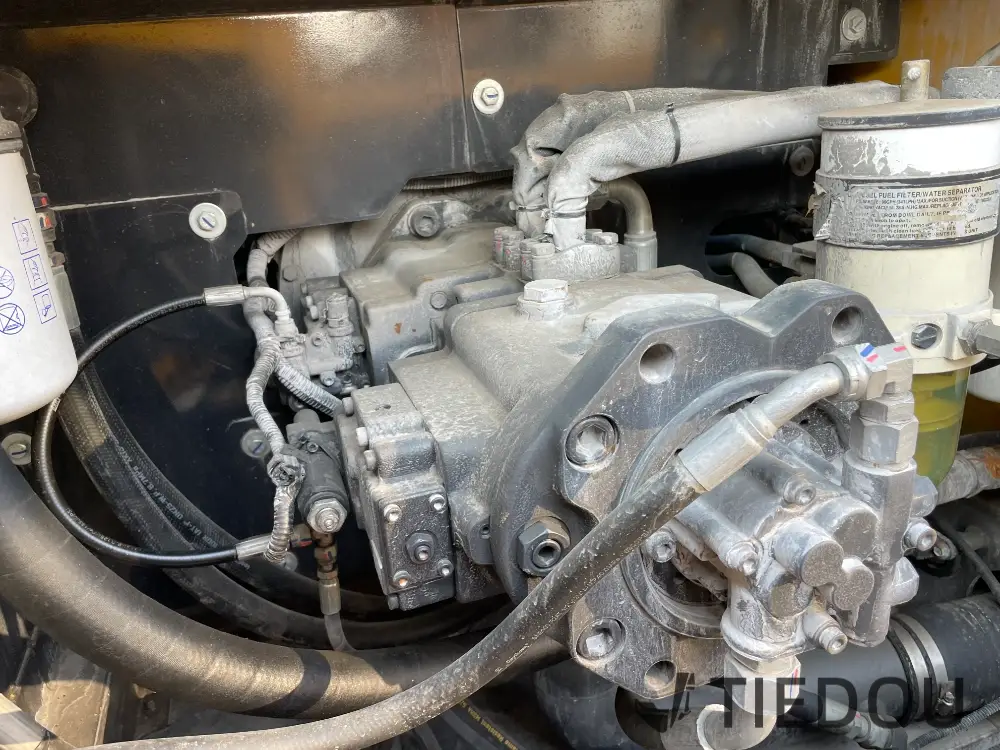

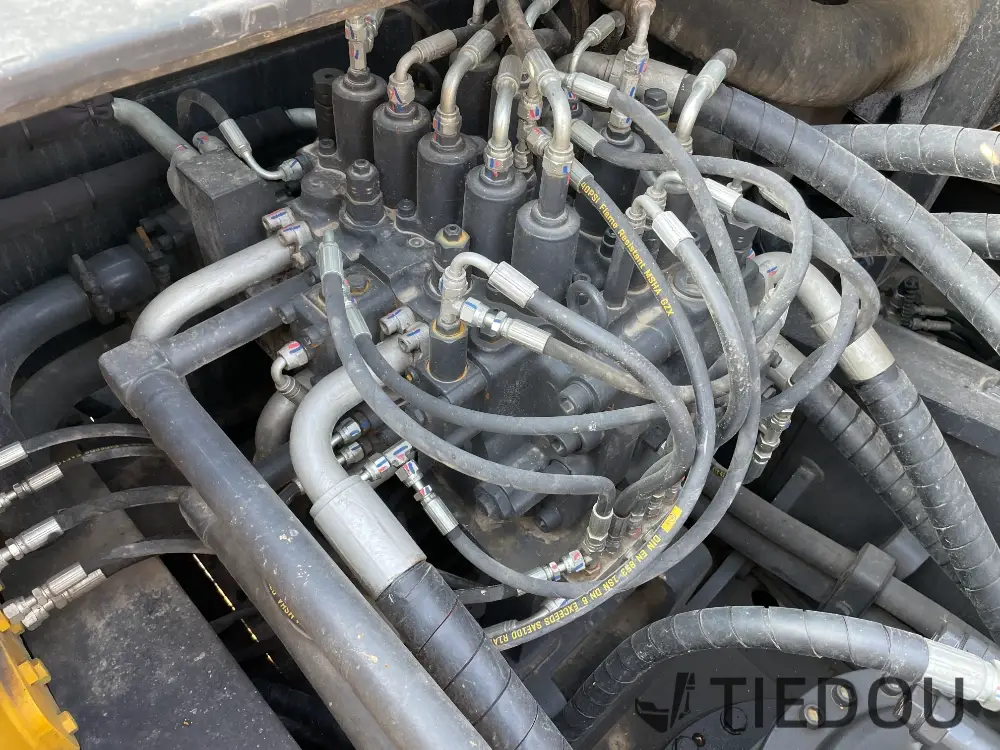

  2. Efficient Hydraulic System:
    The main pump offers up to 576 L/min of hydraulic flow. Combined with intelligent hydraulic control technology, it significantly boosts work efficiency while minimizing fuel consumption.

  3. Exceptional Working Range:
    A maximum digging radius of 11,110 mm and a digging depth of 7,480 mm allow the machine to handle deep excavation and wide-range operations effortlessly.

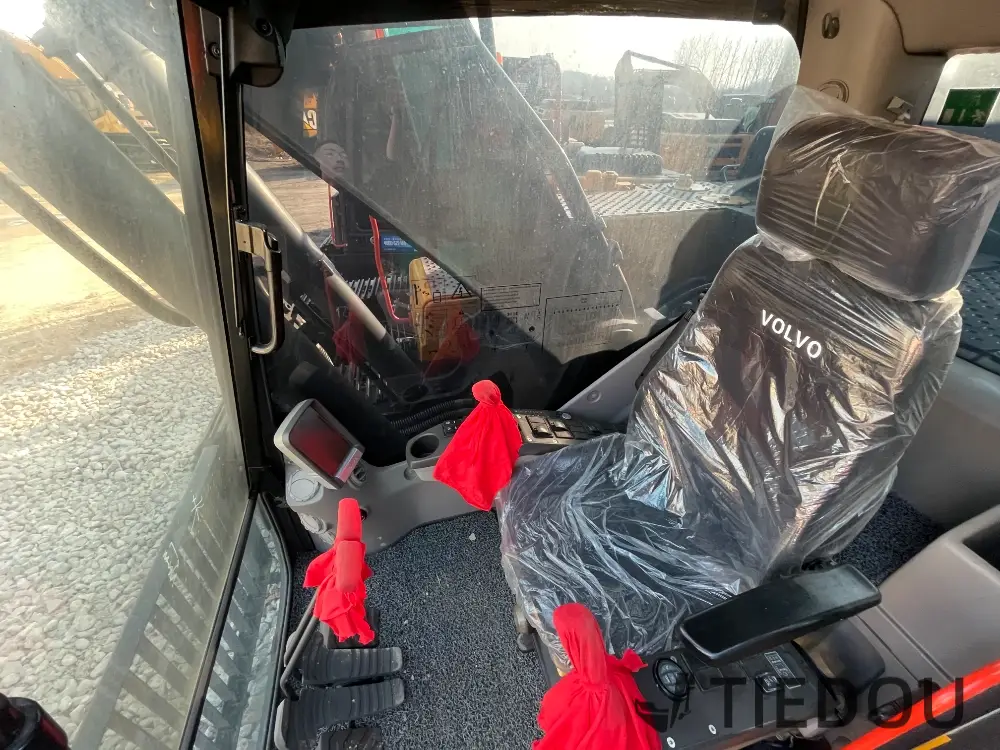

  4. Operator Comfort:

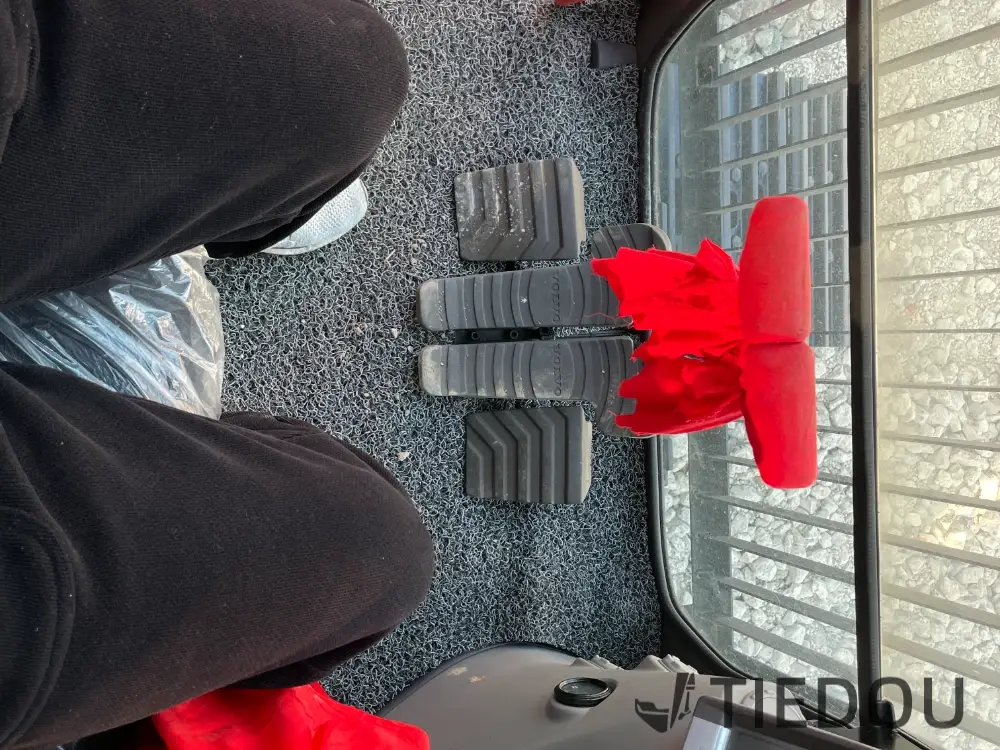

    The cab is designed for comfort and productivity, featuring a suspension seat, air conditioning system, and user-friendly controls, ensuring operator comfort even during long working hours.

  5. Durability and Reliability:
    Built with high-strength structural steel and an optimized counterweight design, the excavator performs exceptionally well in tough working environments, providing outstanding stability and durability.

  6. Eco-Friendly and Cost-Effective:
    The engine and hydraulic system are perfectly integrated to maximize fuel efficiency, reduce operating costs, and meet global environmental standards.

Applications:

  • Construction Projects: Earthmoving, site leveling
  • Mining Operations: Mineral extraction, stone handling
  • Water Conservancy Projects: River dredging, dam construction

Current Condition:

This Volvo EC350D excavator has been meticulously maintained, features a clean exterior, and its core components are in excellent condition. It delivers reliable performance and is an outstanding value for any construction or mining operation.

Don’t miss this opportunity to add the high-performing Volvo EC350D used excavator to your fleet and take your projects to the next level!



Category

Parameter

Value

Specification

Power Type

Conventional Power


Manufacturer

Joint Venture/Imported


Bucket Type

Backhoe


Tonnage (tons)

35


Operating Weight (kg)

34300-38700


Bucket Capacity (m³)

1.0-2.53


Origin

South Korea

Performance

Swing Speed (rpm)

10.3


Swing Torque (Nm)

126


Travel Speed (km/h)

3.3/5.1


Gradeability (%)

35°


Max Traction Force (kN)

261

Power System

Engine Model

Volvo D8K


Rated Power (kW/rpm)

197/1800


Max Torque (N.m)

1340


Displacement (L)

7.8


Bore × Stroke (mm)

110×138

Hydraulic System

Max Pump Flow (l/min)

2×288


Working Pressure (Mpa)

33.3/36.3


Travel Circuit (Mpa)

33.3


Swing Circuit (Mpa)

27.9


Control Circuit (Mpa)

3.9


Boom Cylinder (No.×Bore×Stroke)

2×150×1530


Arm Cylinder (No.×Bore×Stroke)

1×170×1700

Fluid Capacities

Fuel Tank (L)

580


Hydraulic Tank (L)

215


Hydraulic System (L)

465


Engine Oil (L)

32


Coolant (L)

41

Dimensions

Transport Length (mm)

11190


Transport Width (mm)

3190


Transport Height (mm)

3230


Cab Height (mm)

3030


Upper Width (mm)

2990


Track on Ground (mm)

3700


Track Length (mm)

4630


Track Shoe Width (mm)

600


Track Gauge (mm)

2590


Ground Clearance (mm)

500


Counterweight Clearance (mm)

1180


Tail Swing Radius (mm)

4120

Working Range

Max Digging Radius (mm)

11110


Max Digging Radius at Ground Level (mm)

10900


Max Digging Depth (mm)

7480


Max Digging Height (mm)

10330


Max Dump Height (mm)

7250


Max Vertical Dig Depth (mm)

5890
