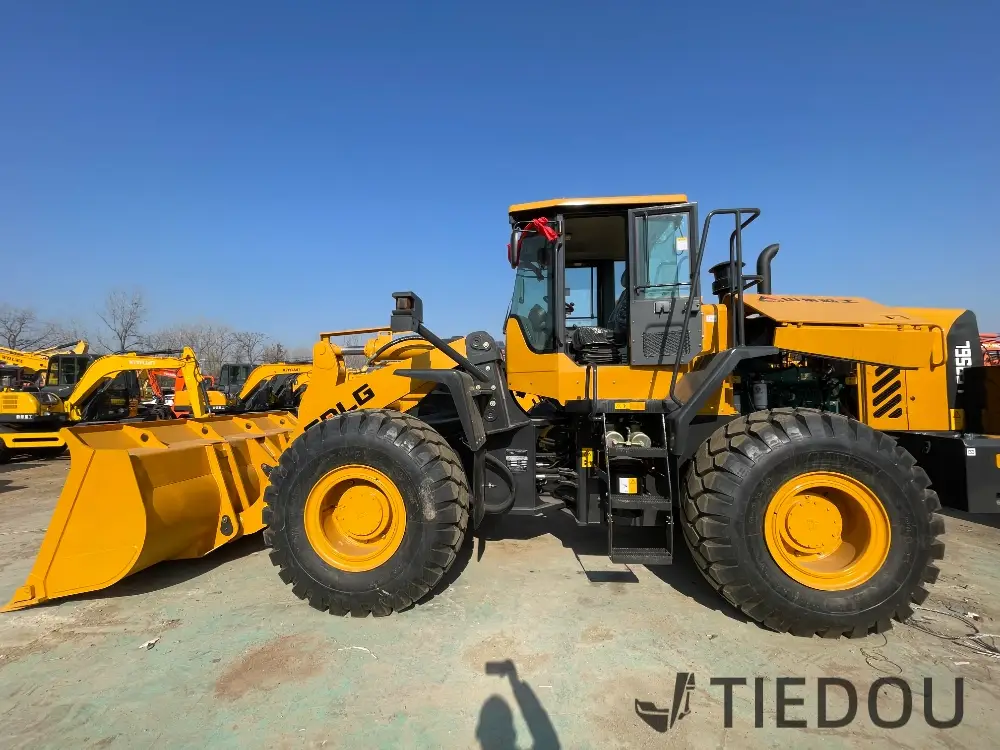

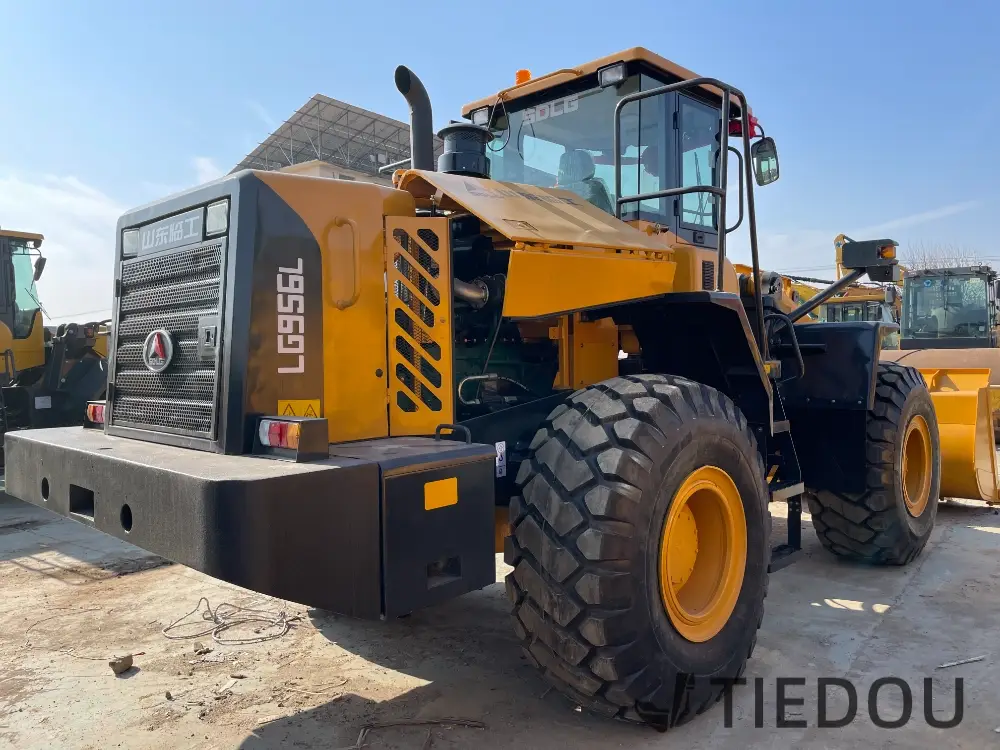

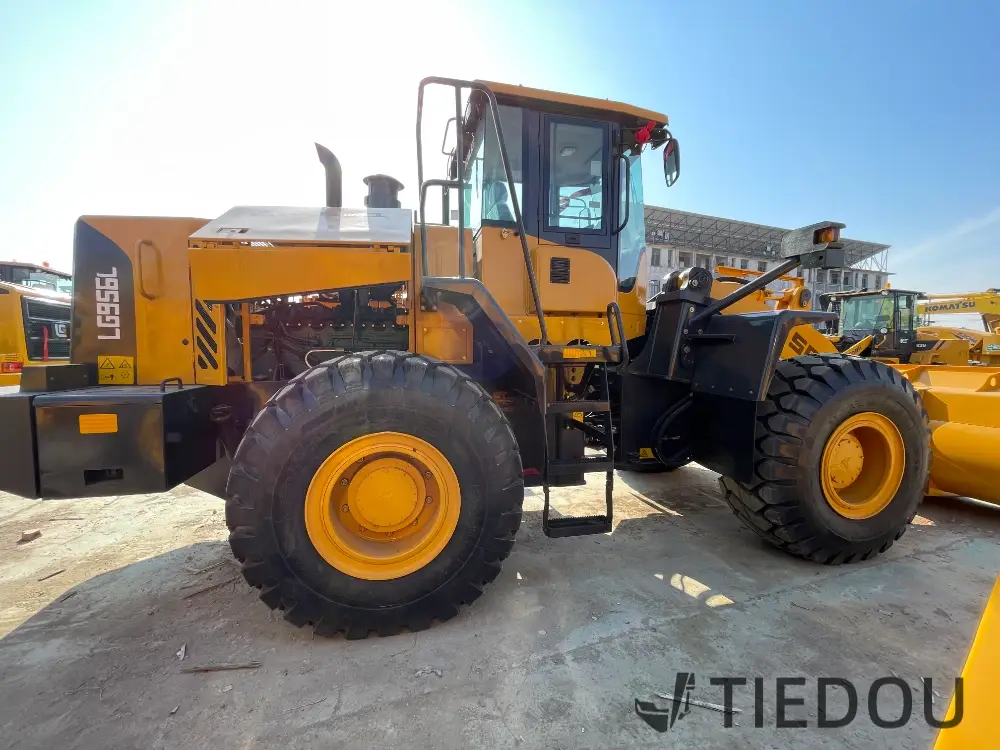

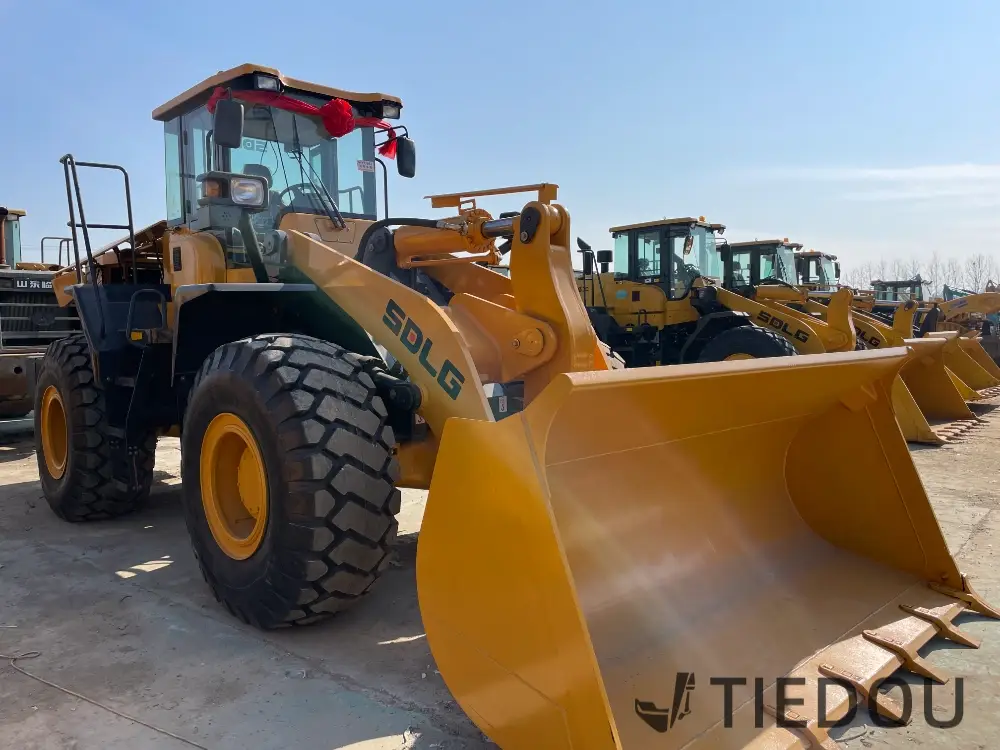

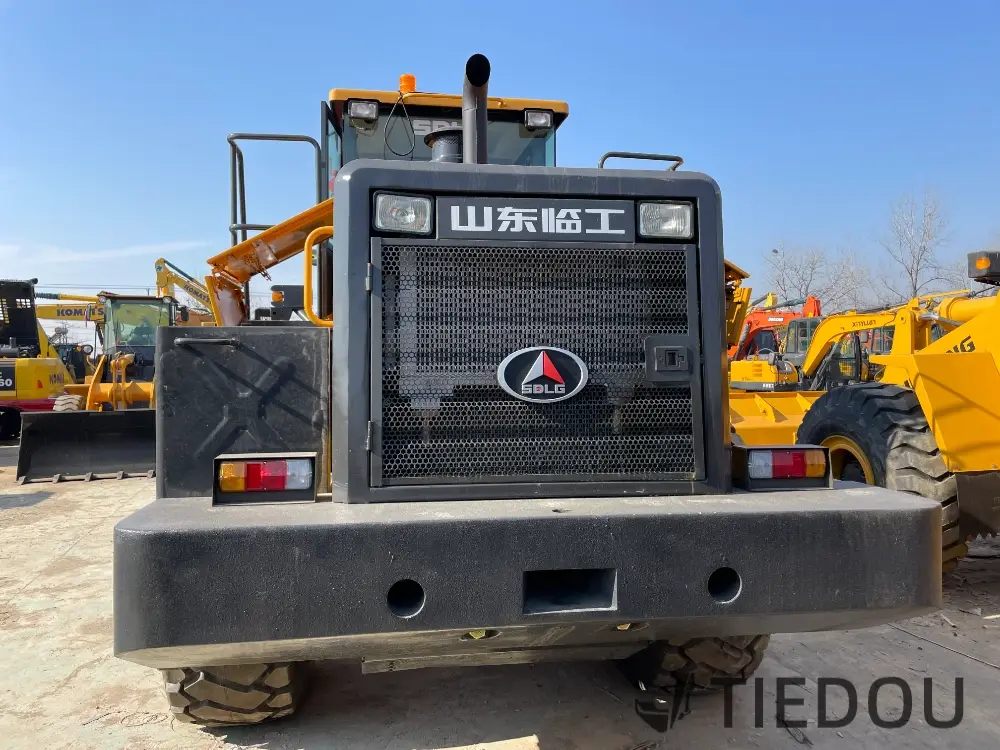

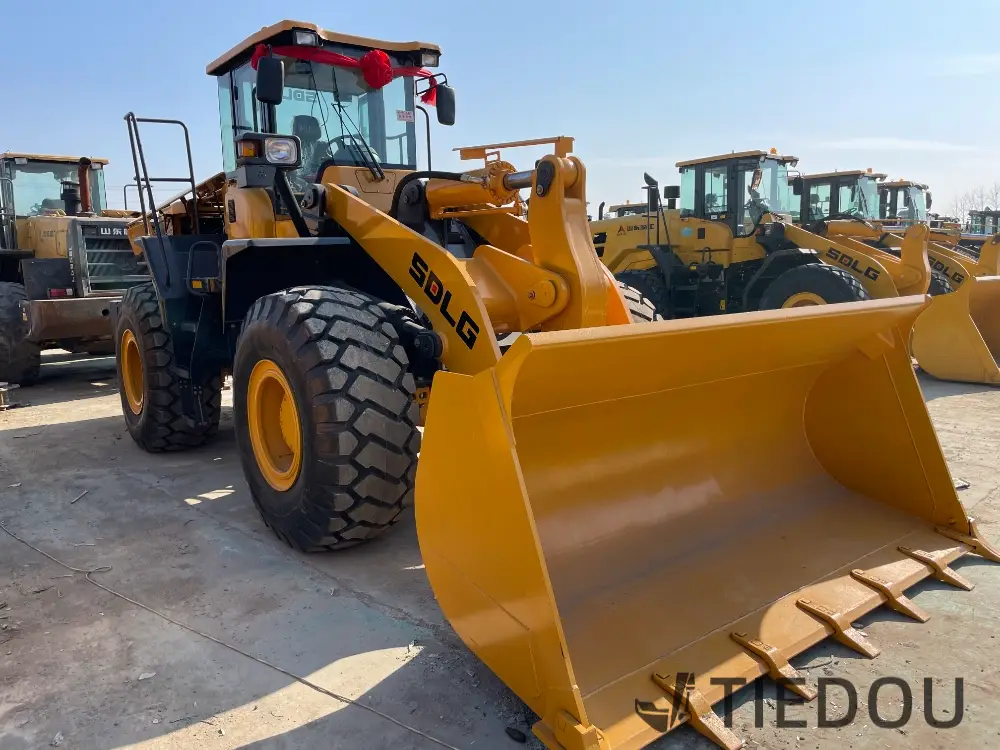

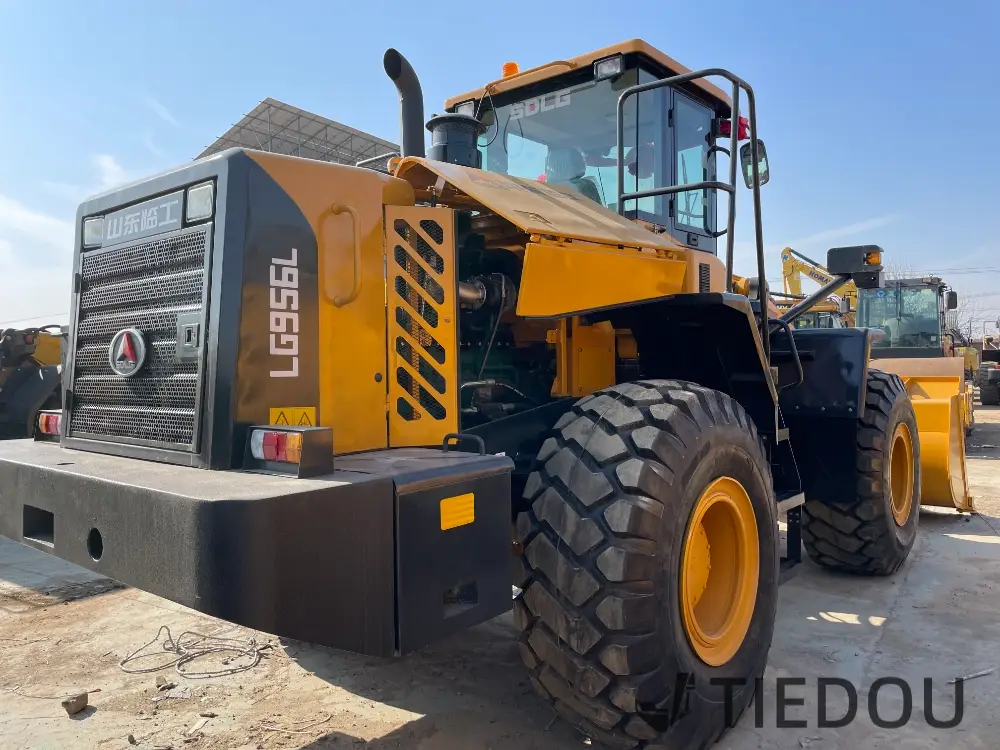

Shandong Lingong 956 - 2 Loader - An Outstanding Choice in the Second-hand Equipment Market
The Shandong Lingong 956 - 2 loader demonstrates remarkable strength and reliable quality in various engineering operations, making it an ideal option for your second-hand equipment purchase.

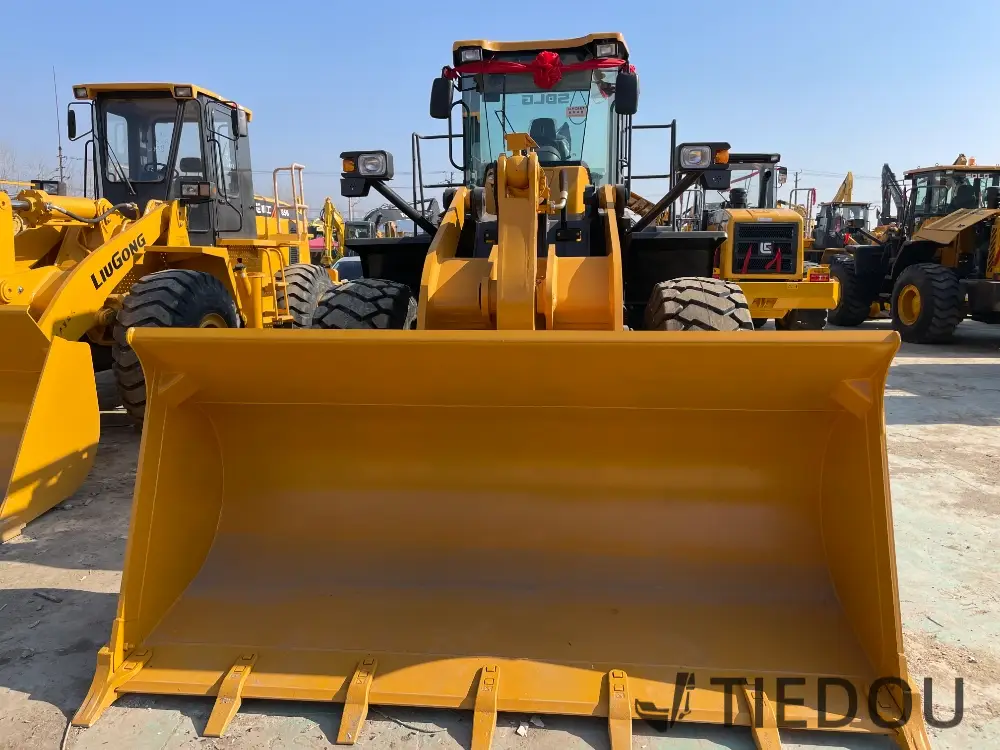

This loader has an operating weight of 17,200 kg and a rated load capacity of 5,000 kg, paired with a large 3 m³ rated bucket, enabling efficient material loading and transportation. Its maximum breakout force reaches 175 kN, ensuring it can easily handle even tough materials, showing strong working capabilities.

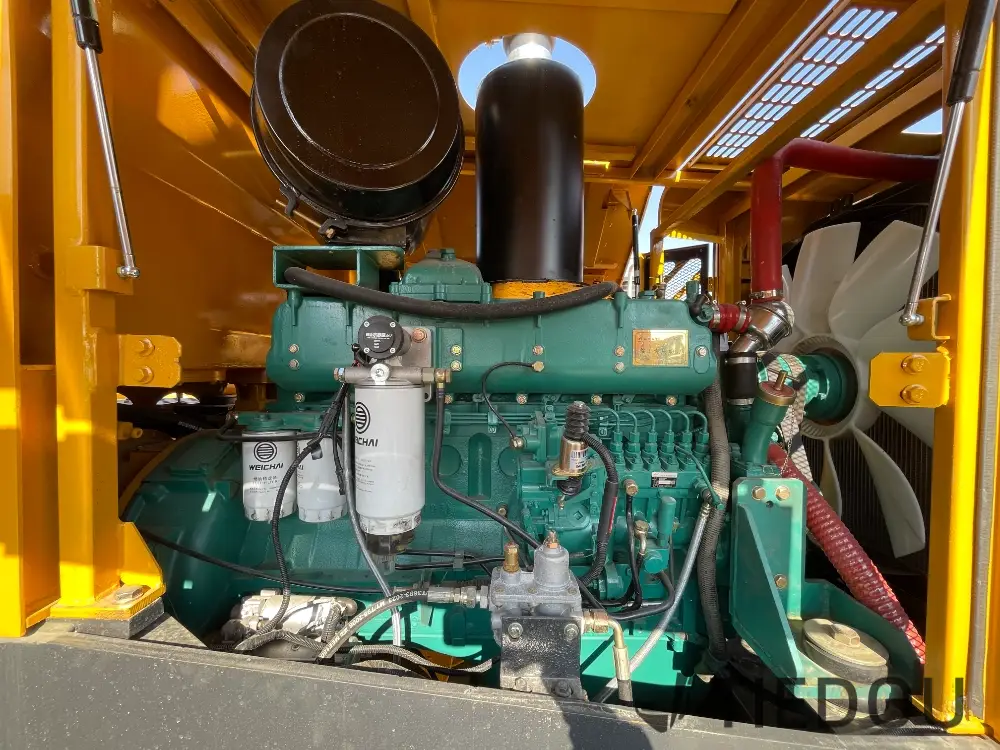

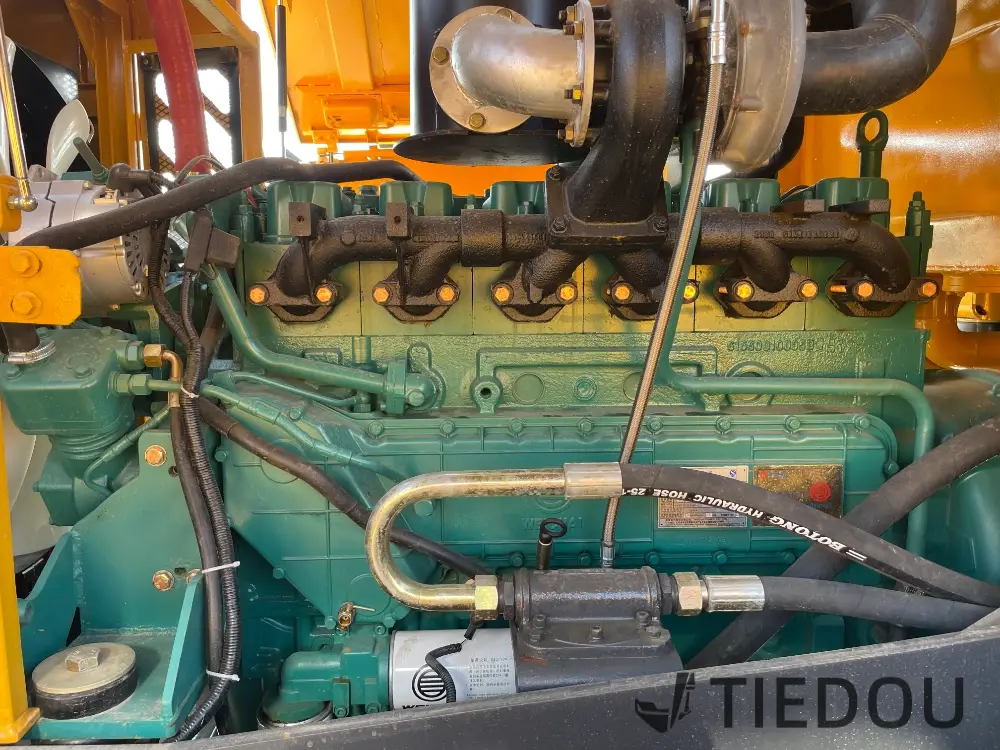

In terms of power, it is equipped with a Weichai WD10G220E21 engine, with a rated power of 162 kW, a rated speed of 2,200 r/min, and a maximum torque of 1,000 N·m, providing a solid power guarantee for the stable operation of the equipment. Whether on a flat construction site or in a complex terrain environment, it can maintain excellent working conditions.
The fixed-shaft power shift transmission, with a two-forward and one-reverse gear design, is easy and flexible to operate. The maximum travel speed can reach 38 km/h, allowing for quicker transfer between job sites. Meanwhile, the maximum gradeability is 29°, ensuring good passing ability and adaptability to handle various slope challenges with ease.
The dimensions of the equipment are 8,066 × 3,024 × 3,423 mm. The reasonable body design not only guarantees the stability of operation but also provides good mobility. The 23.5 - 25 tire specification offers reliable support and traction, ensuring the equipment can travel safely on different road conditions.

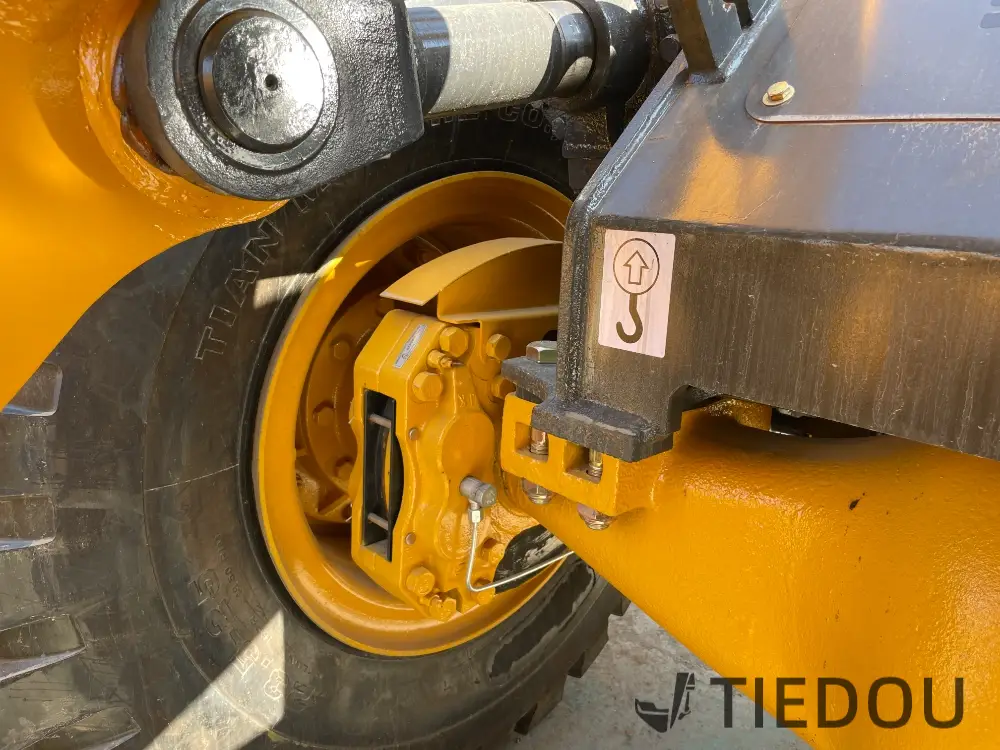

Its fuel tank capacity is 300 L, and the hydraulic oil tank capacity is 240 L, meeting the demands of long working hours and reducing the hassle of frequent refueling and fluid replenishment. The working device operates quickly, with a lifting time of only 6.5 seconds, a lowering time of 3.5 seconds, and a forward tilting time of 1.5 seconds, significantly improving work efficiency. The steering angle is ±38°, enabling flexible and precise operation. The braking system features an air-over-oil four-wheel disc brake for service braking and a spring-applied internal expanding shoe brake for parking, ensuring the safe operation of the equipment. The minimum fuel consumption rate is 214 g/kw·h, indicating good fuel economy.
Choosing this second-hand Shandong Lingong 956 - 2 loader means not only selecting a highly cost-effective device but also adding a reliable and capable assistant to your engineering business, helping you complete various loading operations efficiently and embark on the road to success.
Item | Parameter |
Brand | Shandong Lingong |
Model | LG956 - 2 |
Operating Weight (kg) | 17200 |
Rated Load Capacity (kg) | 5000 |
Rated Bucket Capacity (m³) | 3 |
Dumping Height (mm) | 3050 |
Dumping Distance (mm) | 1150 |
Maximum Breakout Force (kN) | 175 |
Dimensions (Length × Width × Height) (mm) | 8066 × 3024 × 3423 |
Engine Model | Weichai WD10G220E21 |
Rated Engine Power (kW) | 162 |
Rated Engine Speed (r/min) | 2200 |
Maximum Torque (N·m) | 1000 |
Transmission Type | Fixed-shaft Power Shift |
Number of Gears | Two forward and one reverse |
Maximum Travel Speed (km/h) | 38 |
Maximum Gradeability (°) | 29 |
Tire Specification | 23.5 - 25 |
Fuel Tank Capacity (L) | 300 |
Hydraulic Oil Tank Capacity (L) | 240 |
Working Device Operation Time (s) | Lifting: 6.5, Lowering: 3.5, Tilting forward: 1.5 |
Steering Angle (°) | ±38 |
Braking Method | Service brake: Air-over-oil four-wheel disc brake; Parking brake: Spring-applied internal expanding shoe brake |
Minimum Fuel Consumption Rate (g/kw.h) | 214 |
