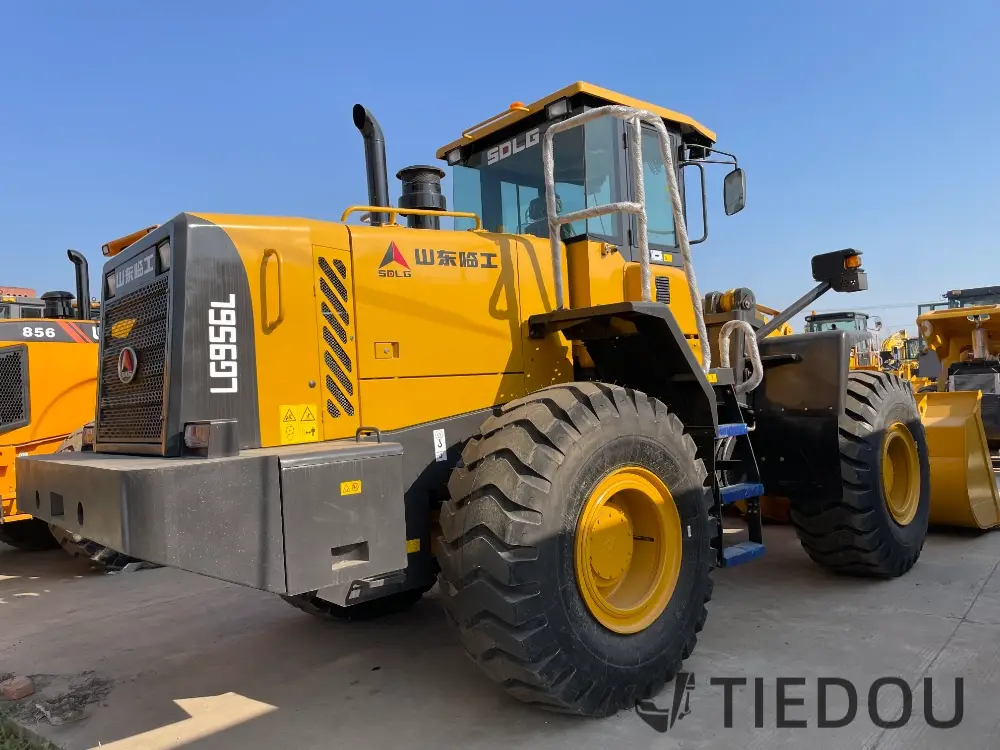

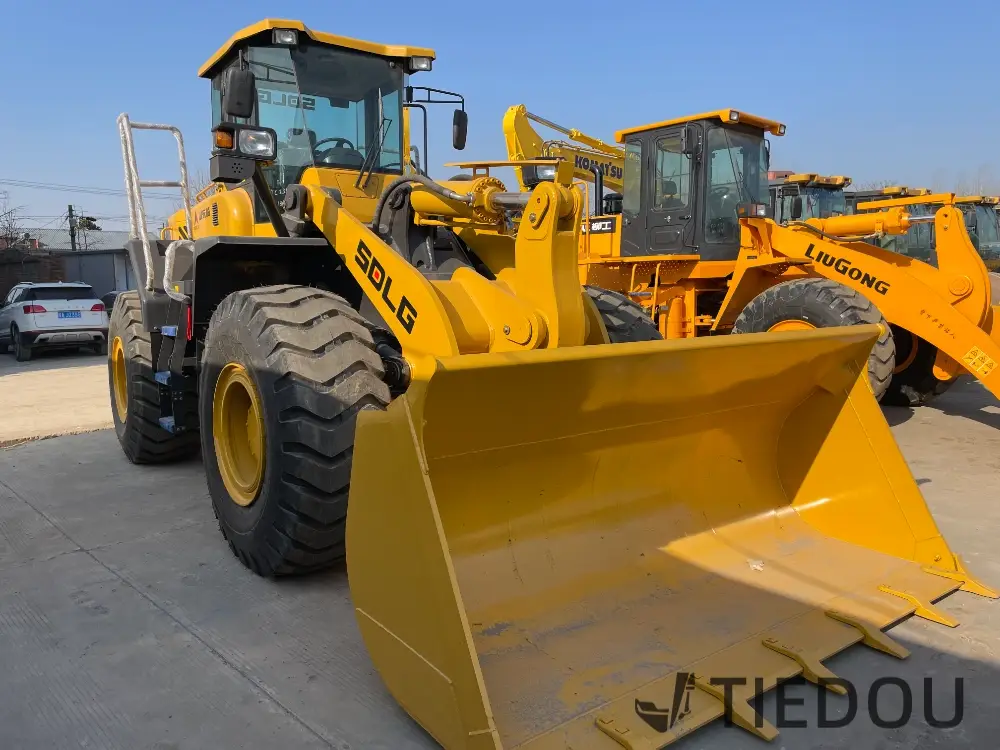

The Shandong Lingong 956-2 Loader: Your Ultimate Choice for Construction Tasks

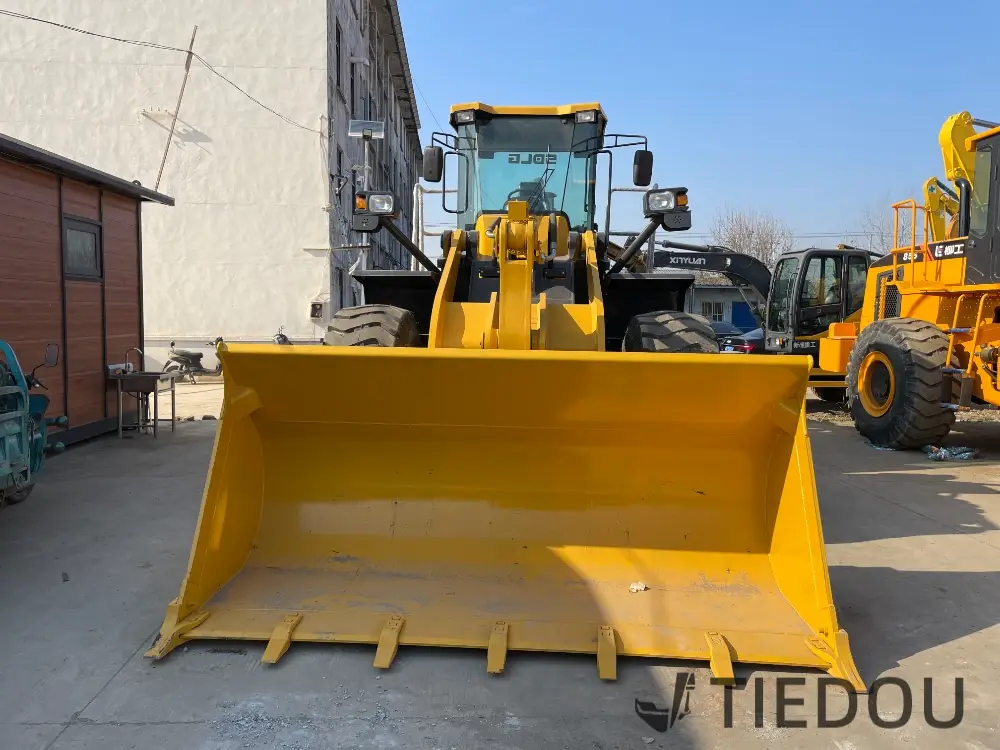

In the realm of construction machinery, the Lingong 956-2 loader stands out as a remarkable piece of equipment. Boasting a robust build with an operating weight of 17,200 kg, it is engineered to handle the toughest jobs with ease. Its 5,000 kg rated load capacity and a capacious 3 m³ bucket are designed to maximize productivity, ensuring that every scoop and transfer of materials is done efficiently.

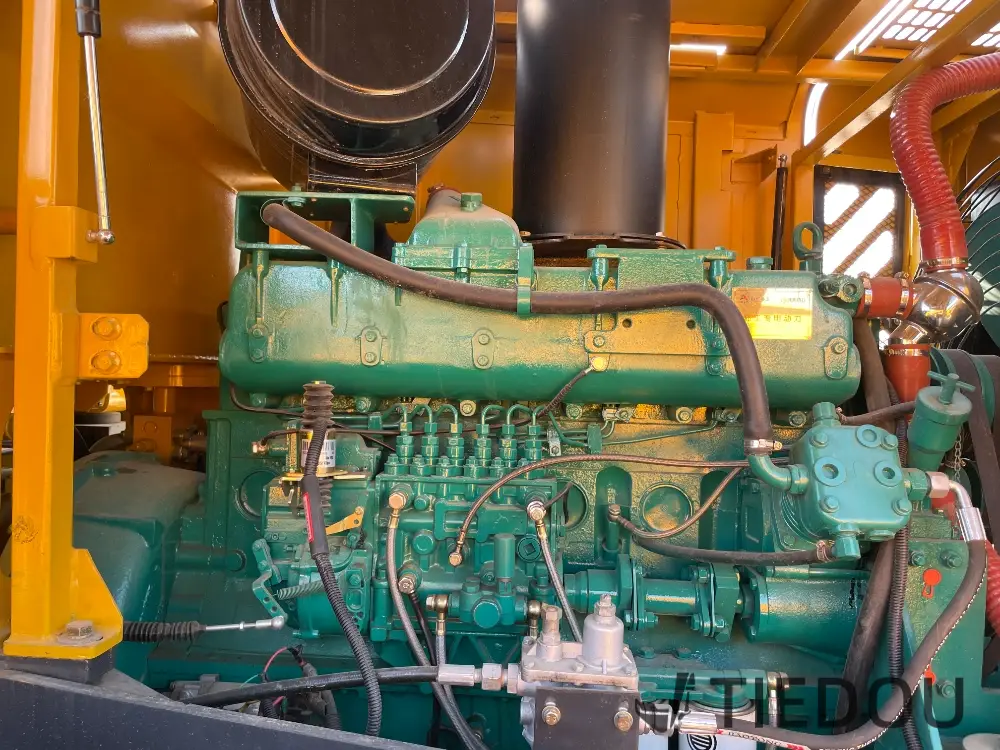

Powered by the reliable Weichai WD10G220E21 engine, which churns out a rated power of 162 kW at 2,200 r/min, this loader offers consistent and potent performance. The engine's might is complemented by a well-designed fixed-shaft power shift transmission, providing smooth gear transitions and precise control. With a top speed of 38 km/h, it can swiftly move around the worksite, while its impressive 29° maximum gradeability allows it to ascend and descend slopes without breaking a sweat.

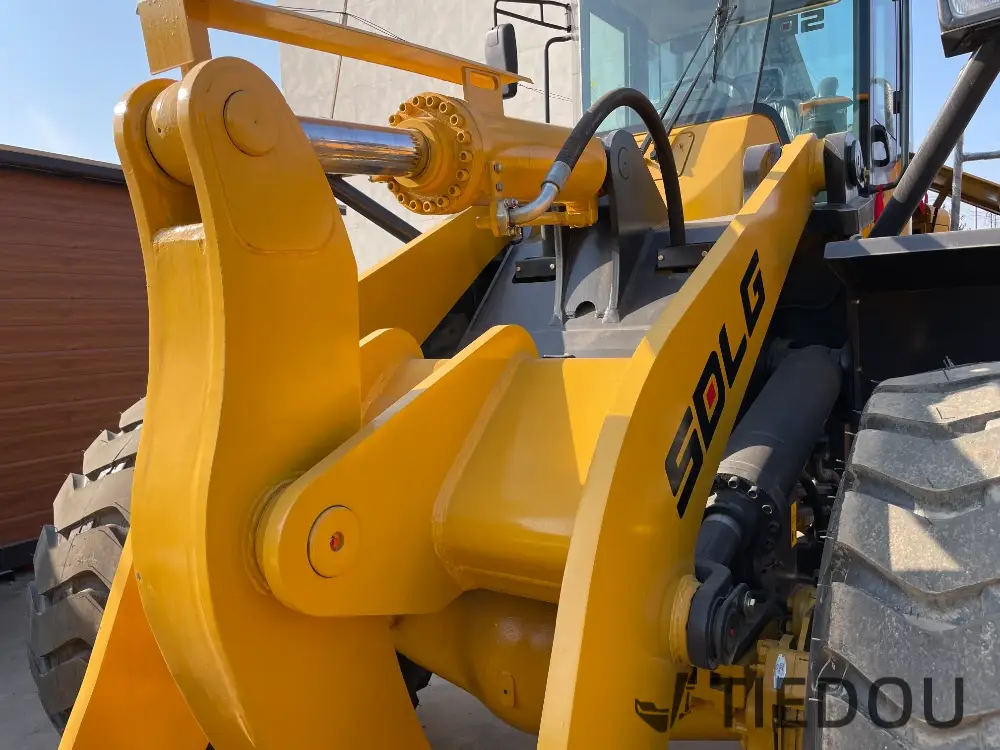

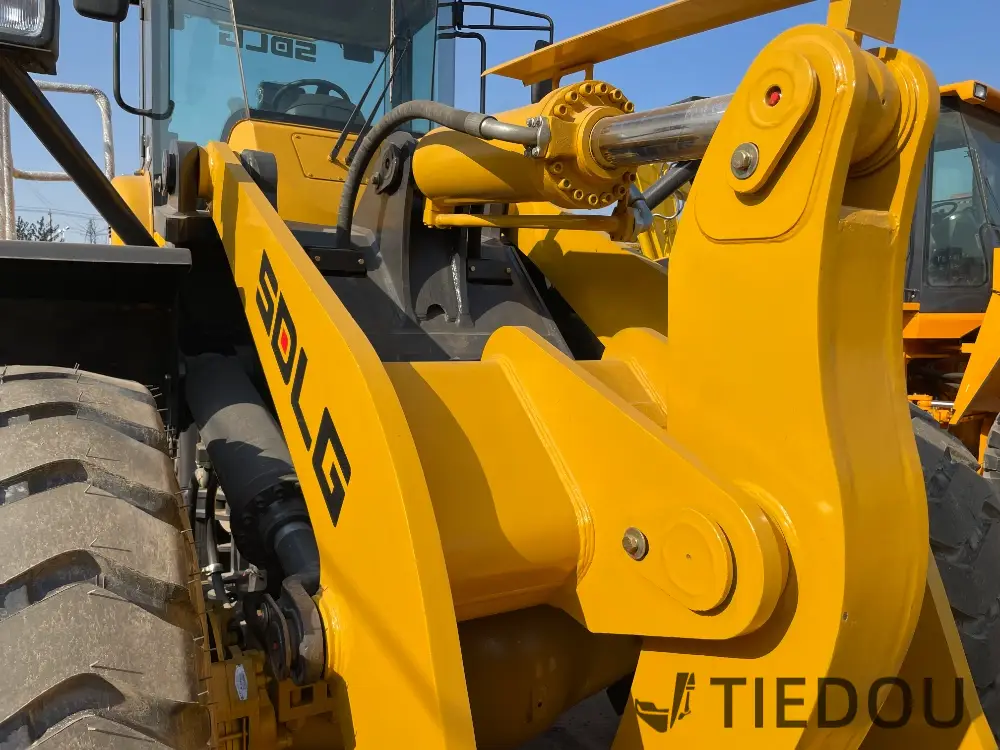

The loader's working device is a marvel in itself. With a maximum breakout force of 175 kN, it can effortlessly penetrate and lift heavy loads. The quick operation times of the working parts - 6.5 seconds for lifting, 3.5 seconds for lowering, and 1.5 seconds for

tilting forward - mean that you can get more work done in less time.

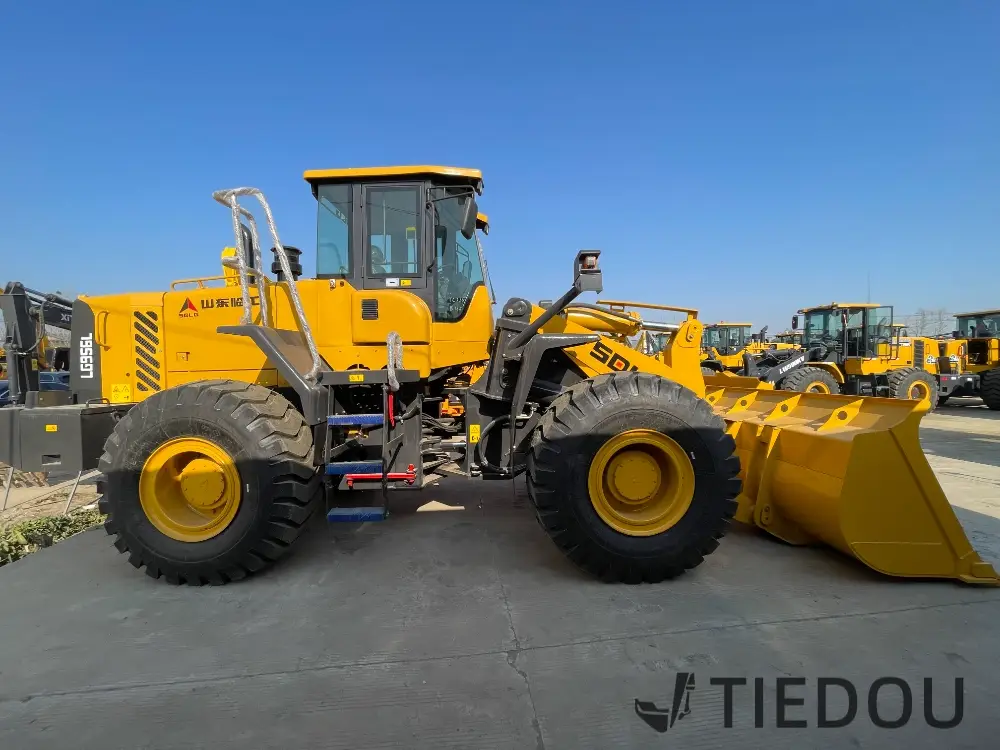

Measuring 8,066 × 3,024 × 3,423 mm, it strikes a balance between a compact footprint and the necessary size for efficient operation. The 23.5-25 tires offer excellent traction and stability, enabling it to operate on various terrains.


Whether you're engaged in large-scale construction projects or smaller, more intricate tasks, the Lingong 956-2 loader is a dependable and cost-effective solution. It's not just a machine; it's a partner that helps you build with confidence and efficiency.


Item

Parameter

Brand

Shandong Lingong

Model

LG956 - 2

Operating Weight (kg)

17200

Rated Load Capacity (kg)

5000

Rated Bucket Capacity (m³)

3

Dumping Height (mm)

3050

Dumping Distance (mm)

1150

Maximum Breakout Force (kN)

175

Dimensions (Length × Width × Height) (mm)

8066 × 3024 × 3423

Engine Model

Weichai WD10G220E21

Rated Engine Power (kW)

162

Rated Engine Speed (r/min)

2200

Maximum Torque (N·m)

1000

Transmission Type

Fixed-shaft Power Shift

Number of Gears

Two forward and one reverse

Maximum Travel Speed (km/h)

38

Maximum Gradeability (°)

29

Tire Specification

23.5 - 25

Fuel Tank Capacity (L)

300

Hydraulic Oil Tank Capacity (L)

240

Working Device Operation Time (s)

Lifting: 6.5, Lowering: 3.5, Tilting forward: 1.5

Steering Angle (°)

±38

Braking Method

Service brake: Air-over-oil four-wheel disc brake; Parking brake: Spring-applied internal expanding shoe brake

Minimum Fuel Consumption Rate (g/kw.h)

214

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
