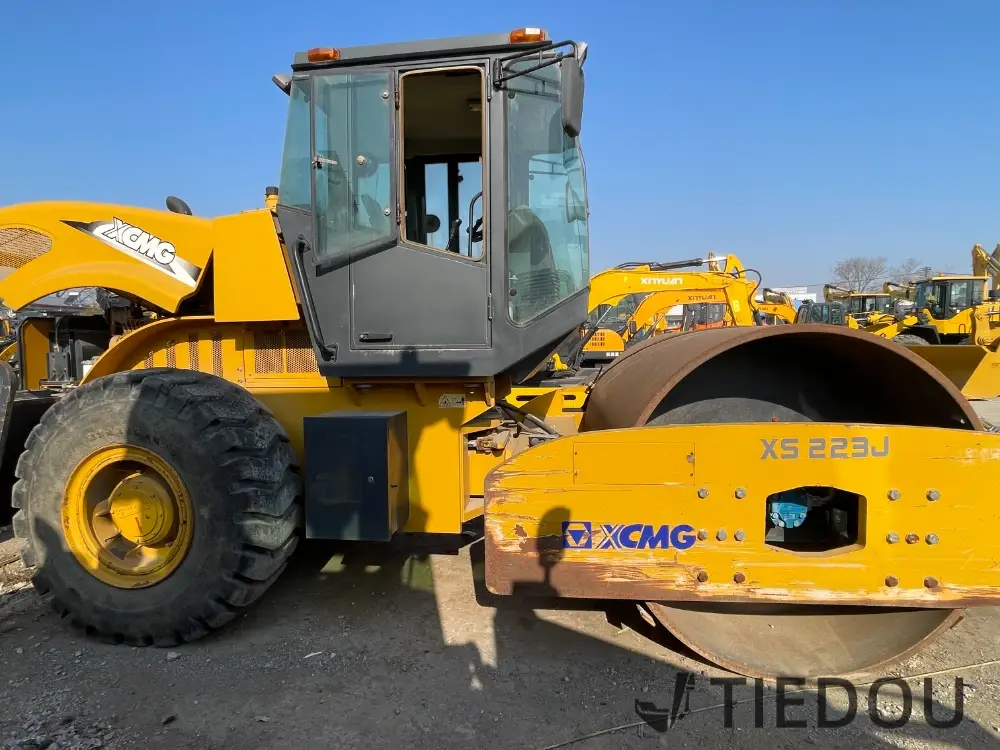

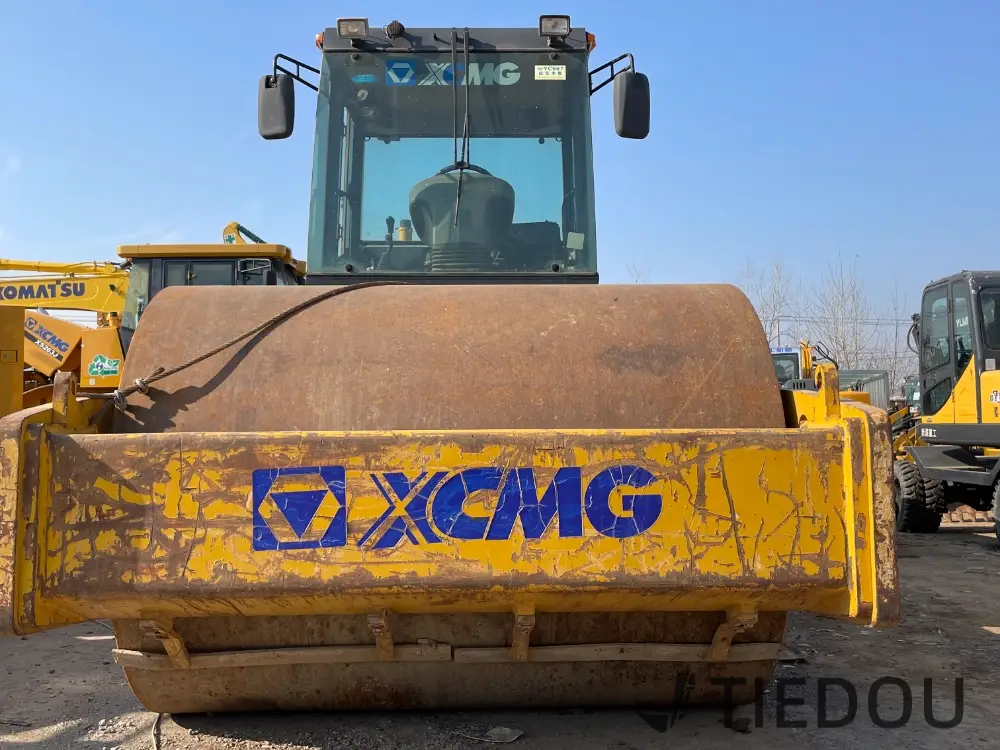

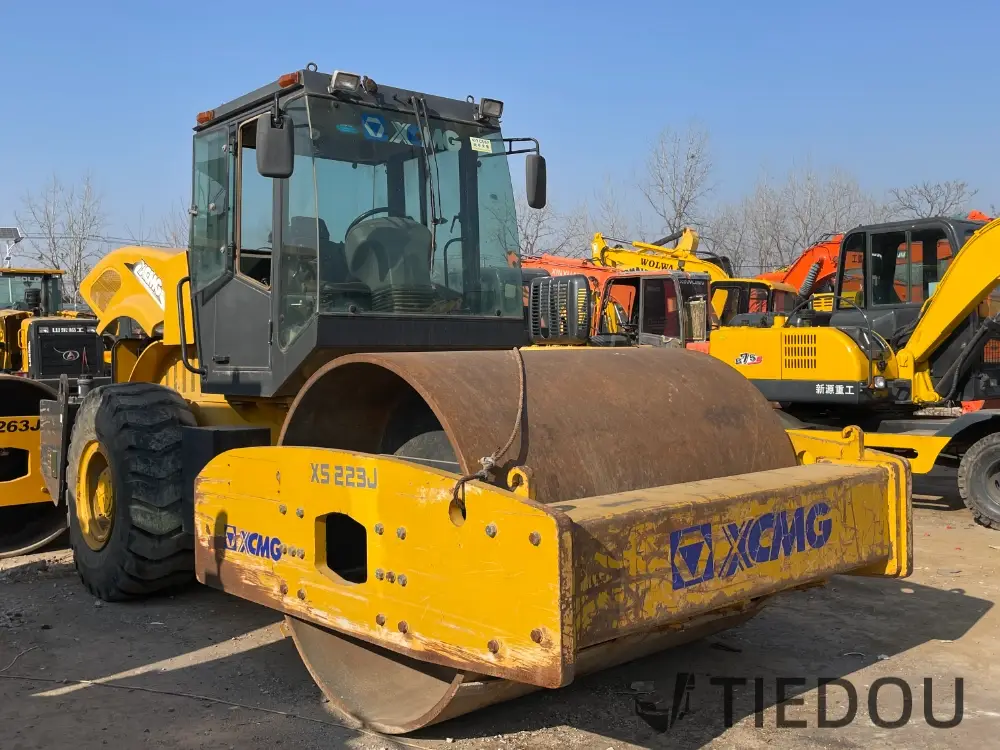

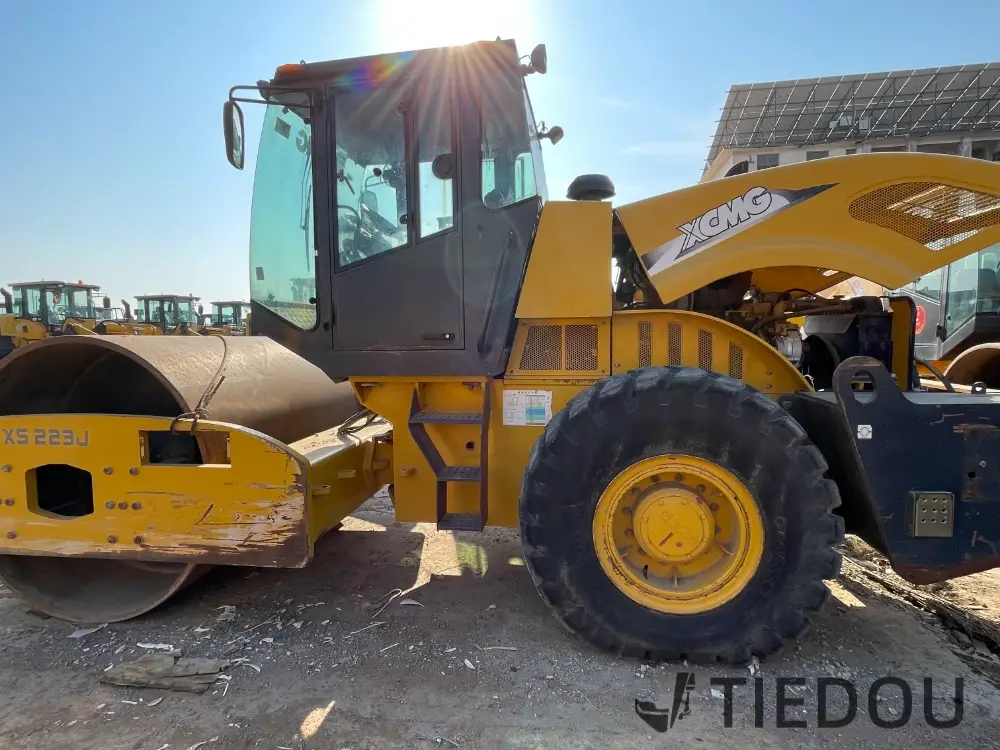

XCMG XS223J Used Road Roller: Efficient, Reliable, and Built to Last

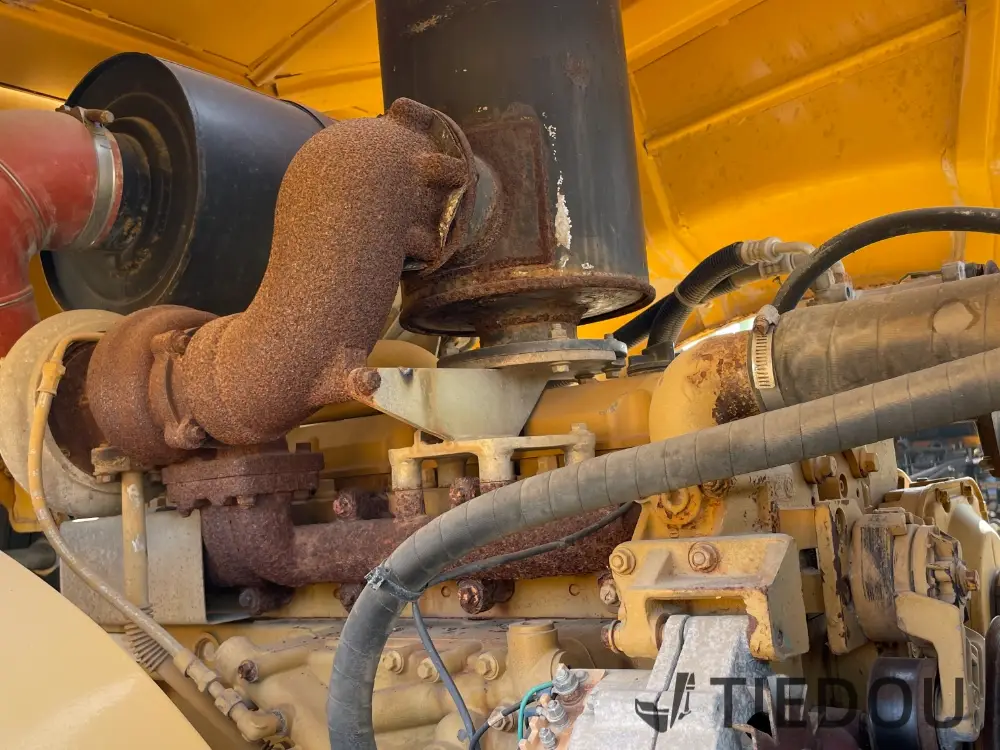

The XCMG XS223J is a 22-ton single-drum vibratory road roller, specifically designed for large-scale roadbed compaction projects. Equipped with a Shangchai SC8D185.2G2B1 engine, it delivers 136 kW (approximately 182 hp) of robust power, ensuring high operational efficiency and low fuel consumption.

With high/low vibration frequency (33/28 Hz) and 374/290 kN centrifugal force, the XS223J effortlessly meets varying compaction requirements, delivering outstanding results. Its ±33° steering angle and ±10° oscillation angle provide excellent maneuverability, even in challenging working conditions.

The machine is in good condition, with stable performance and all functions thoroughly inspected to guarantee high reliability and long-lasting durability.

Choose the XCMG XS223J to make your projects more efficient and worry-free! Contact us now for more details and special offers!

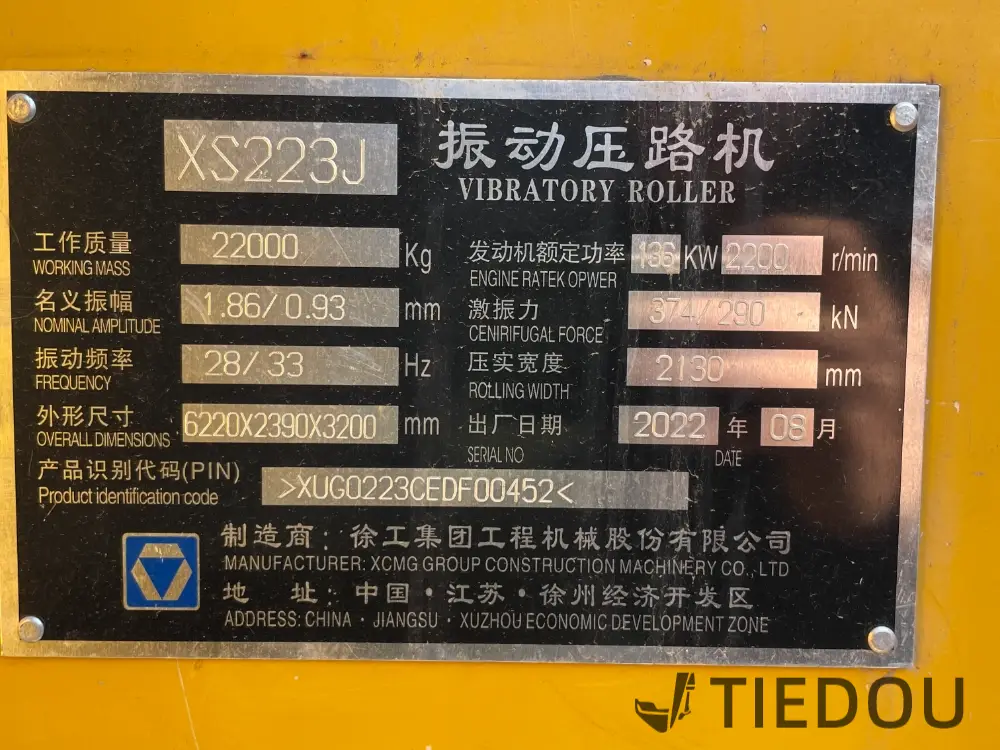

Parameter

Specification

Operating Weight

22,000 kg

Front Axle Load

11,000 kg

Rear Axle Load

11,000 kg

Static Linear Load

516 N/cm

Vibration Frequency (High/Low)

33/28 Hz

Nominal Amplitude (High/Low)

1.86/0.93 mm

Centrifugal Force (High/Low)

374/290 kN

Drum Diameter

1,600 mm

Drum Width

2,130 mm

Dimensions (L×W×H)

6,220 × 2,430 × 3,200 mm

Wheelbase

3,230 mm

Minimum Ground Clearance

440 mm

Minimum Turning Radius

6,500 mm

Steering Angle

±33°

Oscillation Angle

±10°

Travel Speed Range

2.95/5.78/9.4 km/h

Theoretical Gradeability

30%

Engine Model

Shangchai SC8D185.2G2B1

Rated Power

136 kW (approx. 182 hp) @ 1,800 rpm

Hydraulic Tank Capacity

170 L

Fuel Tank Capacity

310 L

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
