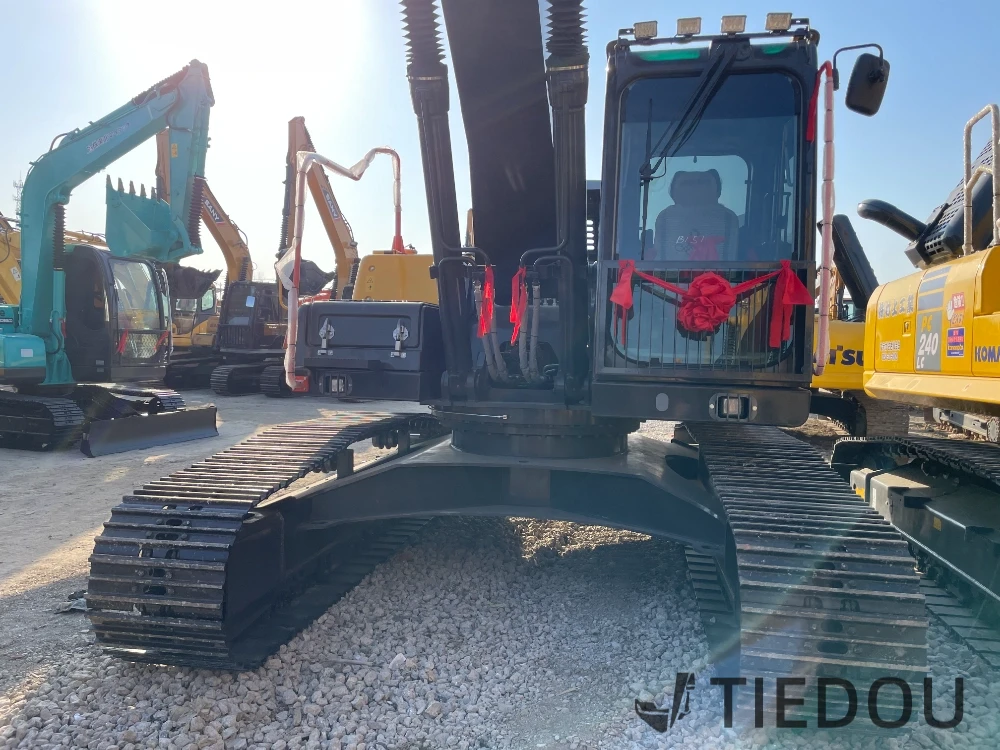

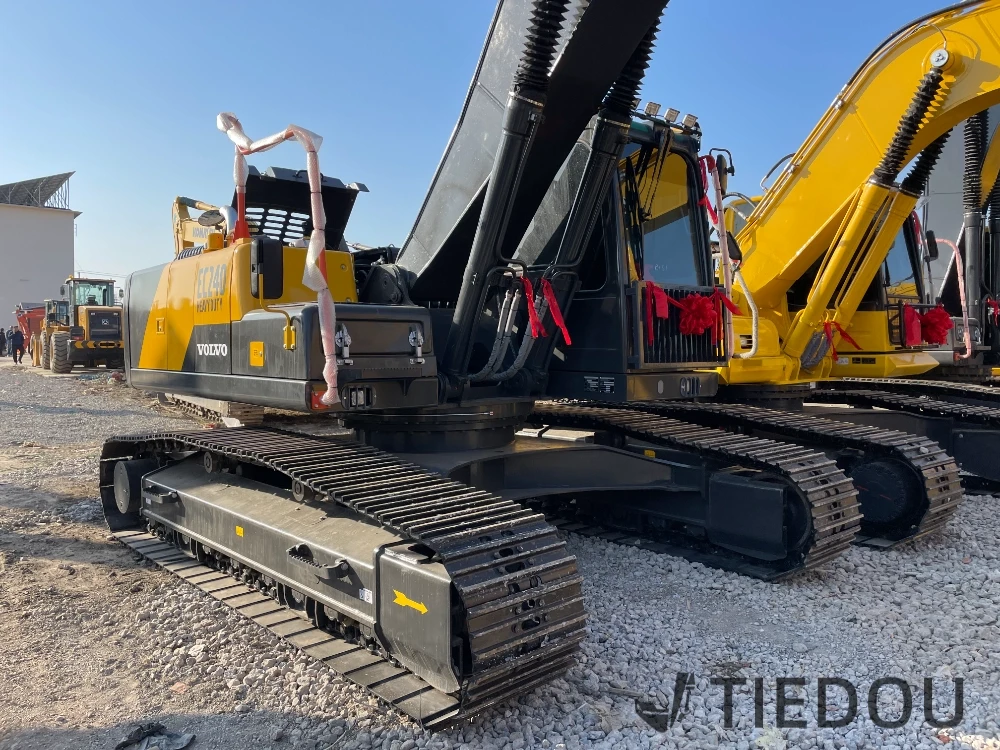

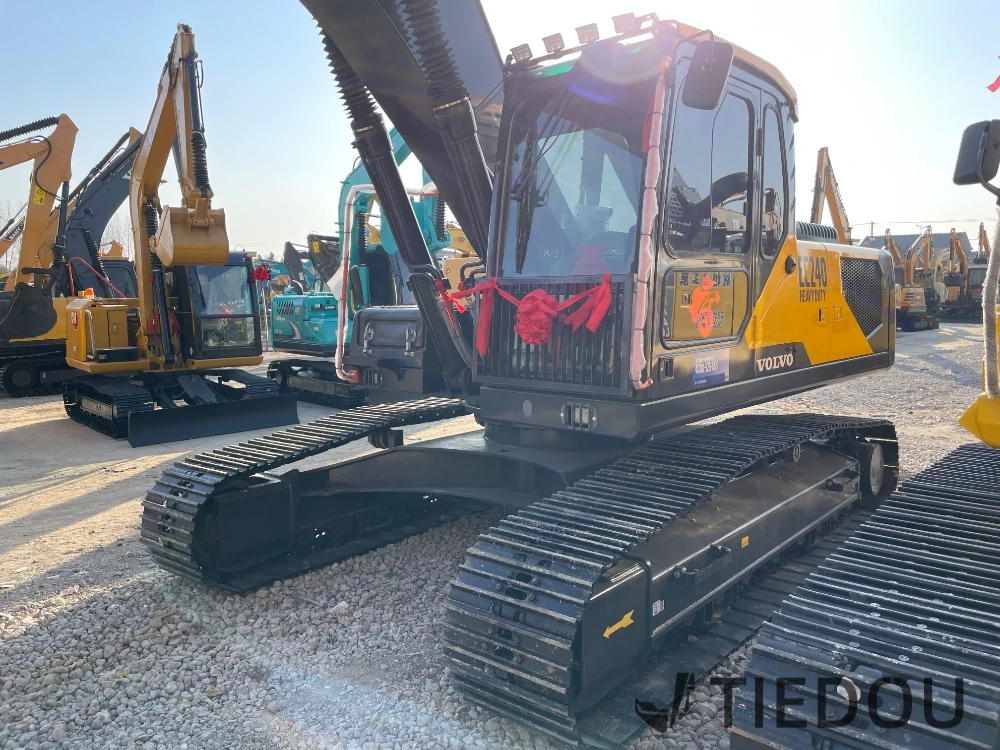

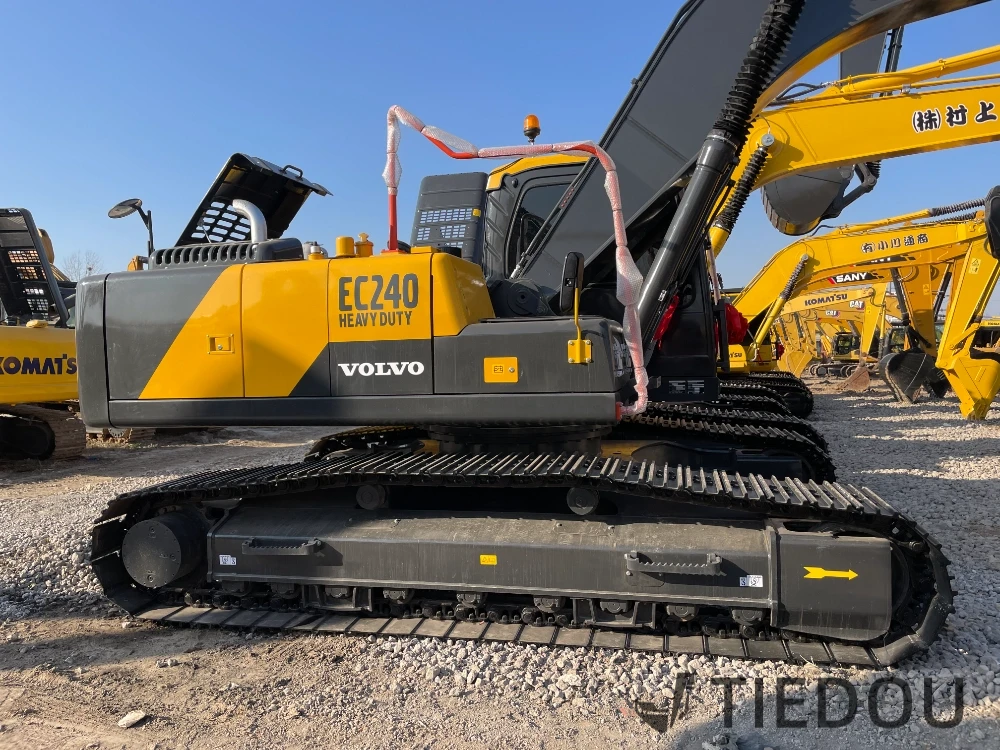

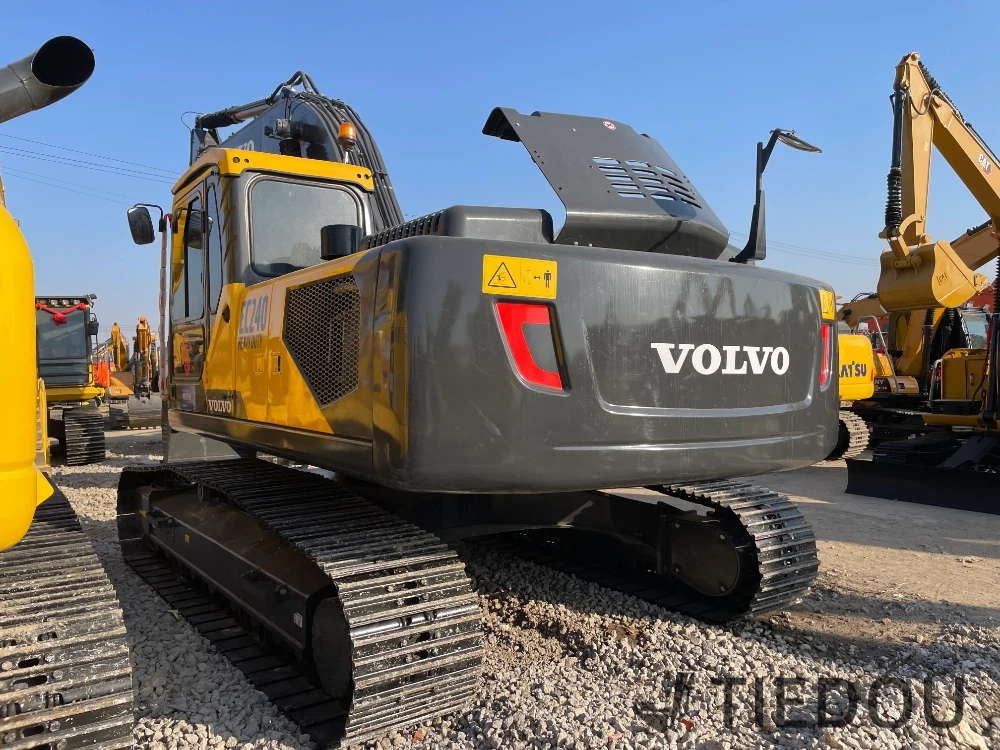

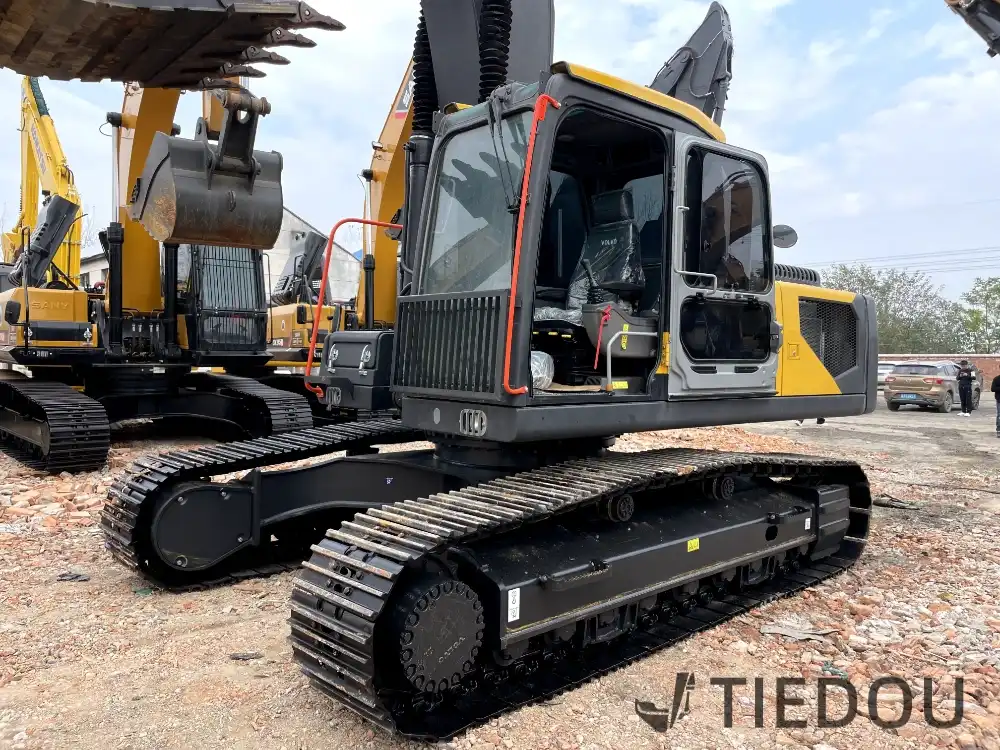

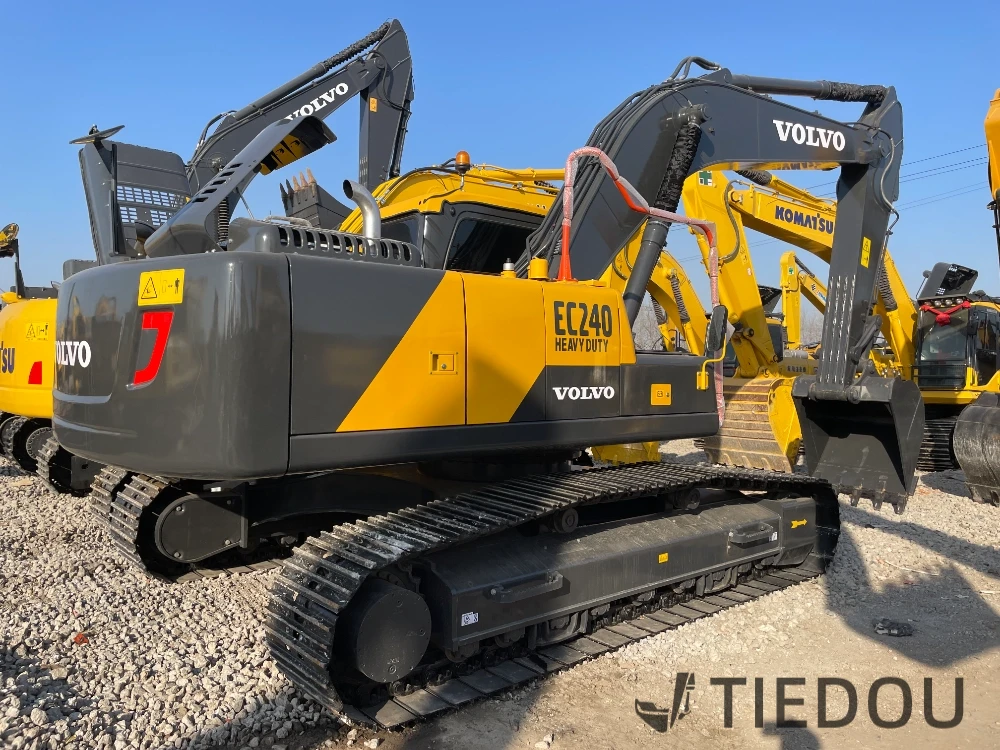

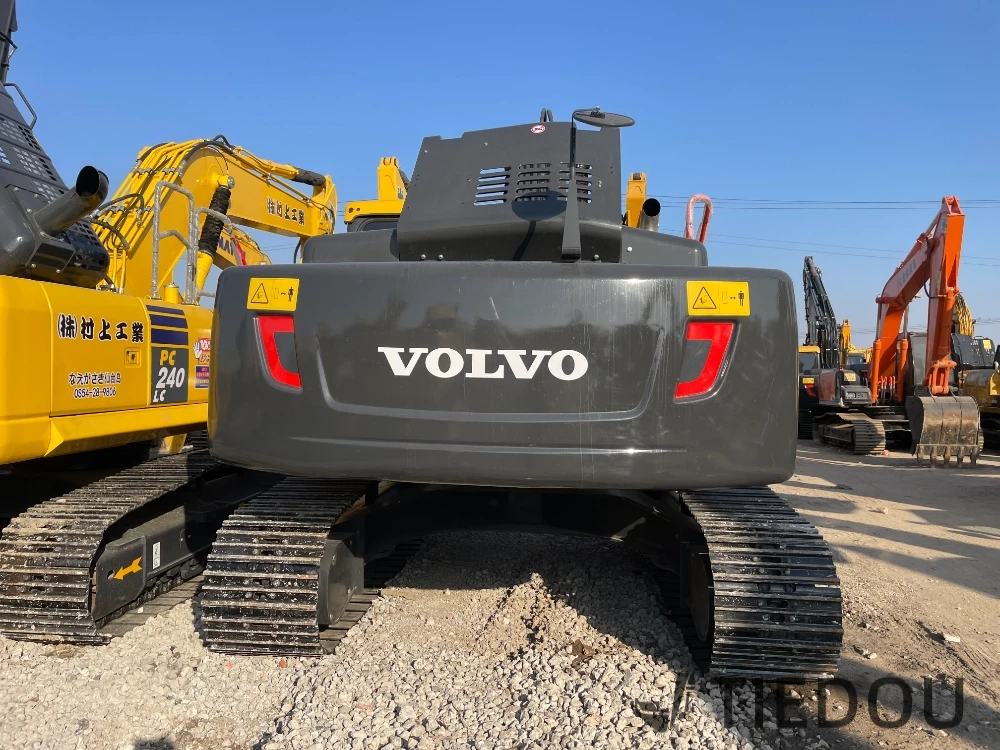

Value - for - money Used Volvo 240 Excavator: A Must - have Construction Tool!


Still overwhelmed by choices in the used excavator market? The used Volvo 240 excavator is definitely an excellent helper for your construction projects. It is now on hot sale at Tiedou Used Excavator Website!

Powerful Power, High - speed Operation

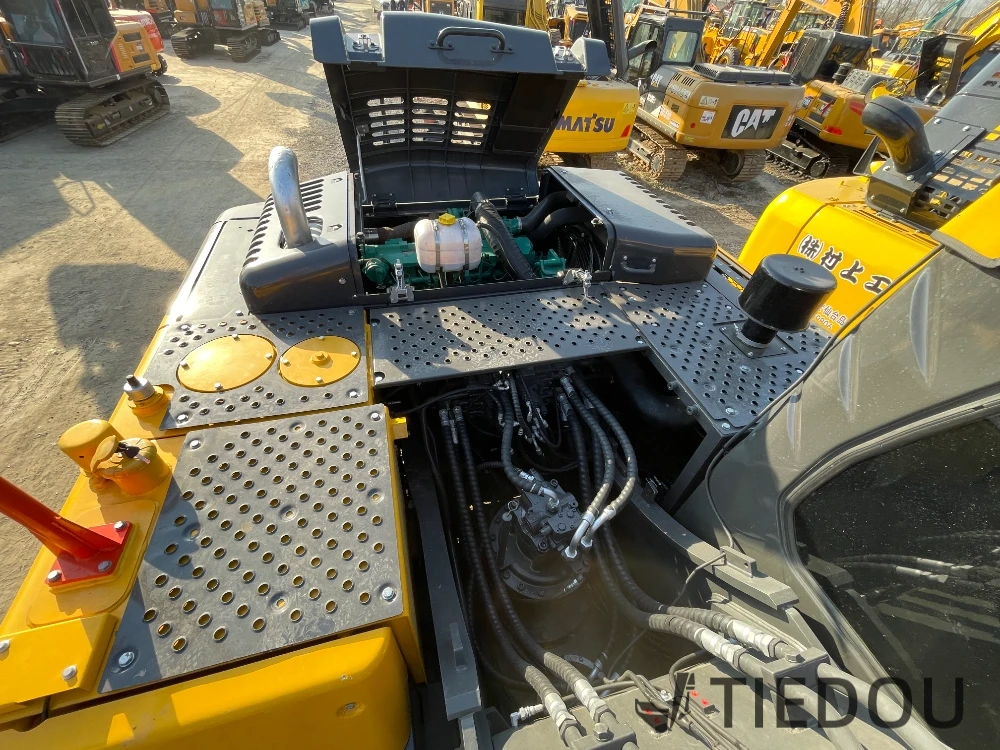

The Volvo 240 is equipped with the Volvo D7E EBE2 engine, with a rated power of 130 kilowatts, providing strong power. With a slewing speed of 11.3 rpm and a travel speed of 3.3/5.5 Km/h, it can switch flexibly between different work areas. Whether it's large - scale foundation excavation or municipal earthwork, it can be completed efficiently, saving a great deal of time.

Super Fuel - efficient, Low Costs

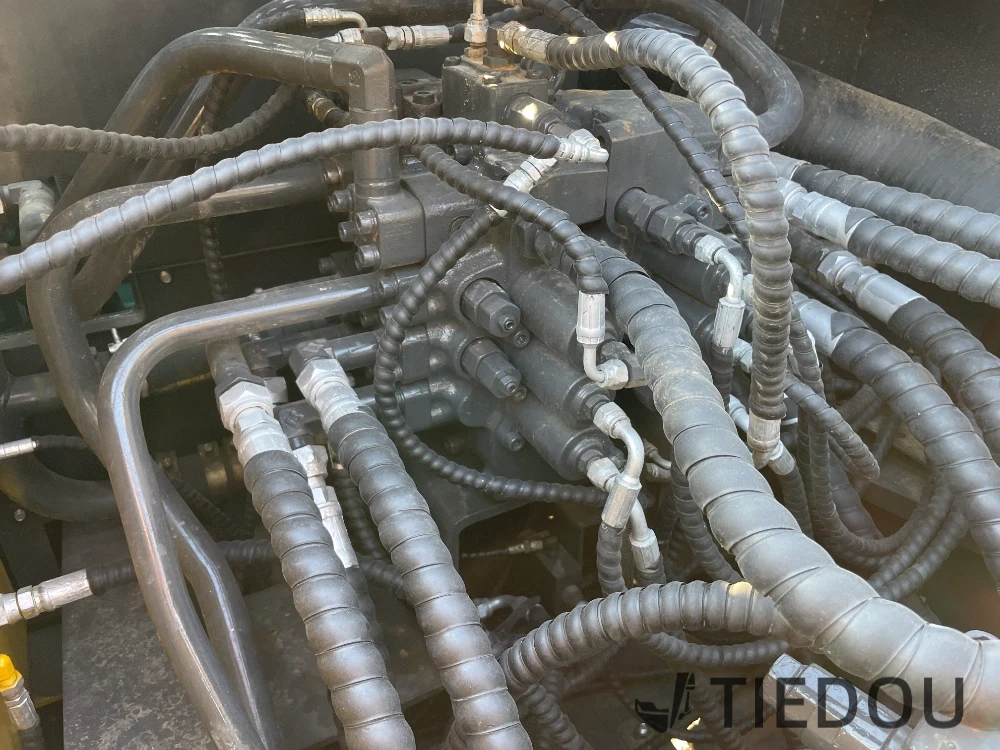

The advanced hydraulic system and intelligent engine matching technology precisely control the power output. In regular excavation operations, it can save 15% - 20% more fuel compared to similar equipment. Over the long term, it can save a significant amount of fuel costs, achieving a perfect combination of high efficiency and energy conservation.

Precise Control, Strong Digging Force


The advanced hydraulic system features quick response and high precision. The bucket digging force reaches 166 (normal)/176 (enhanced) kN, and the arm digging force is 115 (normal)/122 (enhanced) kN. It can accurately handle tasks such as trench excavation and rock breaking. The smooth digging actions further improve work efficiency.

ItemParameter
Operating weight of the whole machine (kg)24,500 - 25,002
Bucket capacity (m³)1.2
Boom length (mm)6000 HD
Arm length (mm)2970 HD
Place of originSouth Korea / Shanghai, China
Slewing speed (rpm)11.3
Travel speed (Km/h)3.3 / 5.5
Gradability35° (70%)
Ground contact pressure (Kpa)49.2 (when equipped with 600mm track shoes)
Bucket digging force (kN)166 (normal) / 176 (enhanced)
Arm digging force (kN)115 (normal) / 122 (enhanced)
Maximum drawbar pull (kN)208.9

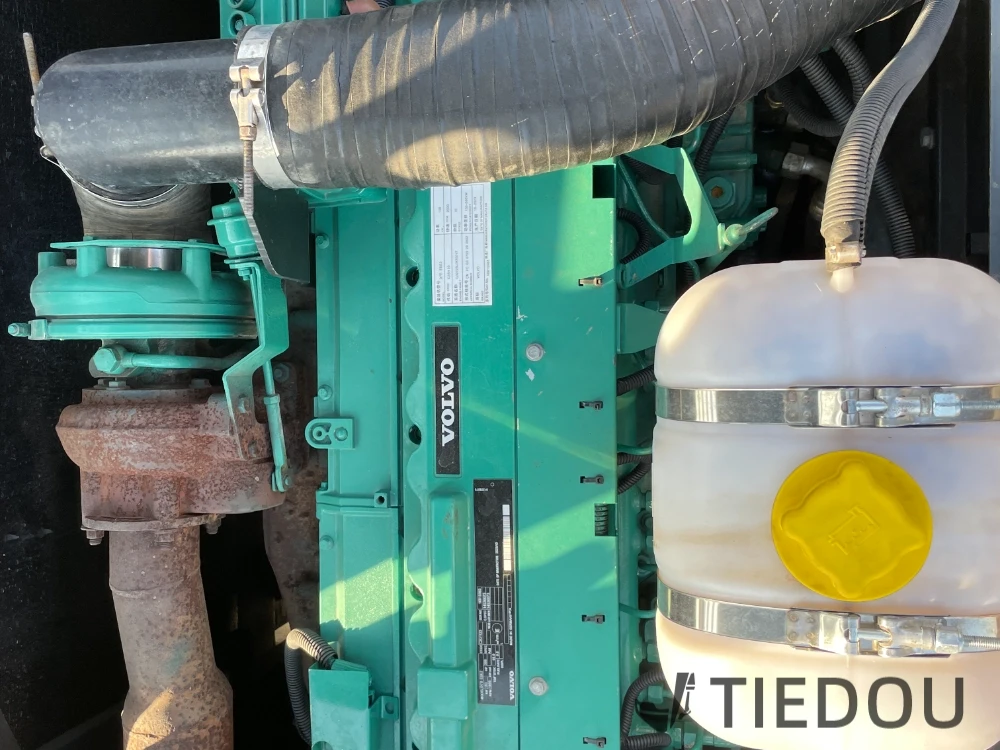

Engine modelVolvo D7E EBE2
Rated power (Kw/rpm)130 / 2000
Displacement (L)7.1
Number of cylinders6
Bore × Stroke (mm×mm)108 × 130
Cooling methodWater - cooled

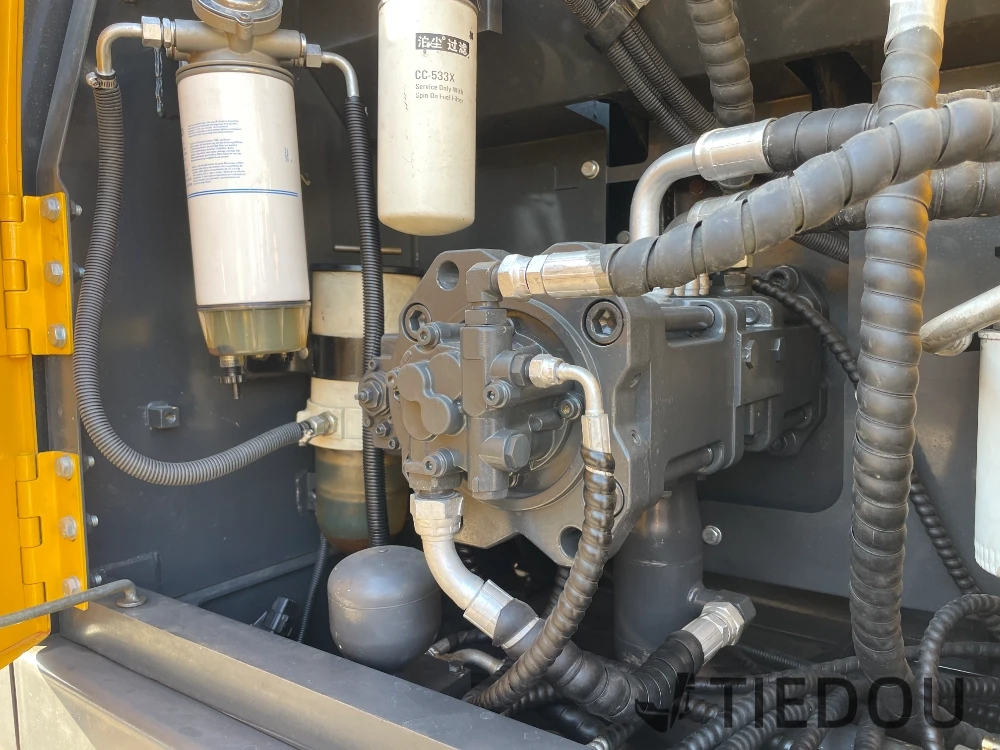

Main pump typeVariable displacement axial piston pump × 2 + Pilot gear pump
Maximum flow rate of main pump (L/min)2×230 + 20
Travel hydraulic motor typeVariable displacement axial piston motor (with mechanical brake)

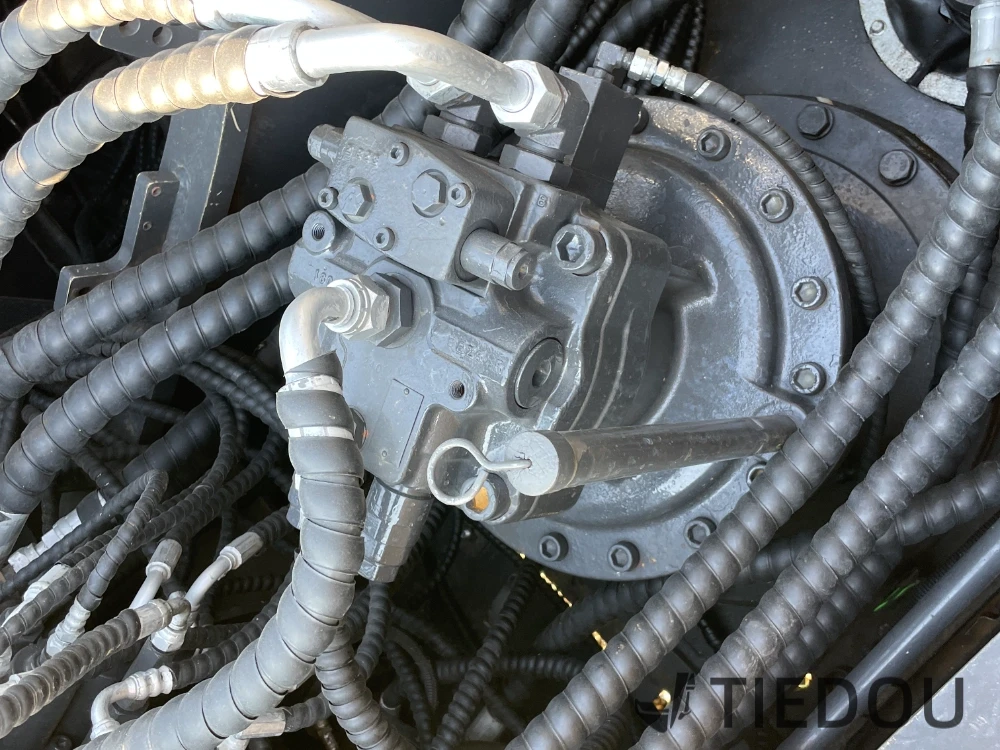

Slewing hydraulic motor typeFixed displacement axial piston motor (with mechanical brake)
Working hydraulic circuit (Mpa)32.4 / 34.3
Travel hydraulic circuit (Mpa)34.3
Slewing hydraulic circuit (Mpa)26.5
Pilot oil circuit (MPa)3.9
Boom cylinder - number × bore × stroke (mm)2 - 140 × 1480
Arm cylinder - number × bore × stroke (mm)1 - 150 × 1745
Bucket cylinder - number × bore × stroke (mm)1 - 140 × 1140
Fuel tank capacity (L)380
Hydraulic oil tank capacity (L)190
Hydraulic system capacity (L)320
Engine oil change volume (L)30
Coolant volume (L)36
Total transportation length (mm)10,130
Total transportation width (mm)3190
Total transportation height (mm)3040 (total height of the boom)
Full height of the cab (mm)2990
Counterweight clearance from the ground (mm)1080
Track contact length (mm)3850
Total track length (mm)4650
Track shoe width (mm)Three - tooth 600 / 700 / 800 / 900; Two - tooth 700
Total track width (mm)3190
Track gauge (mm)2590
Minimum ground clearance (mm)470
Minimum turning radius of the front working device (mm)3890
Rear turning radius (mm)2940
Maximum digging radius (mm)10,260
Maximum digging radius at ground level (mm)10,080
Maximum digging depth (mm)6980
Maximum digging height (mm)9690
Maximum dumping height (mm)6800
Maximum vertical digging depth (mm)5970
Maximum digging depth at 2.5m horizontal (mm)6740
