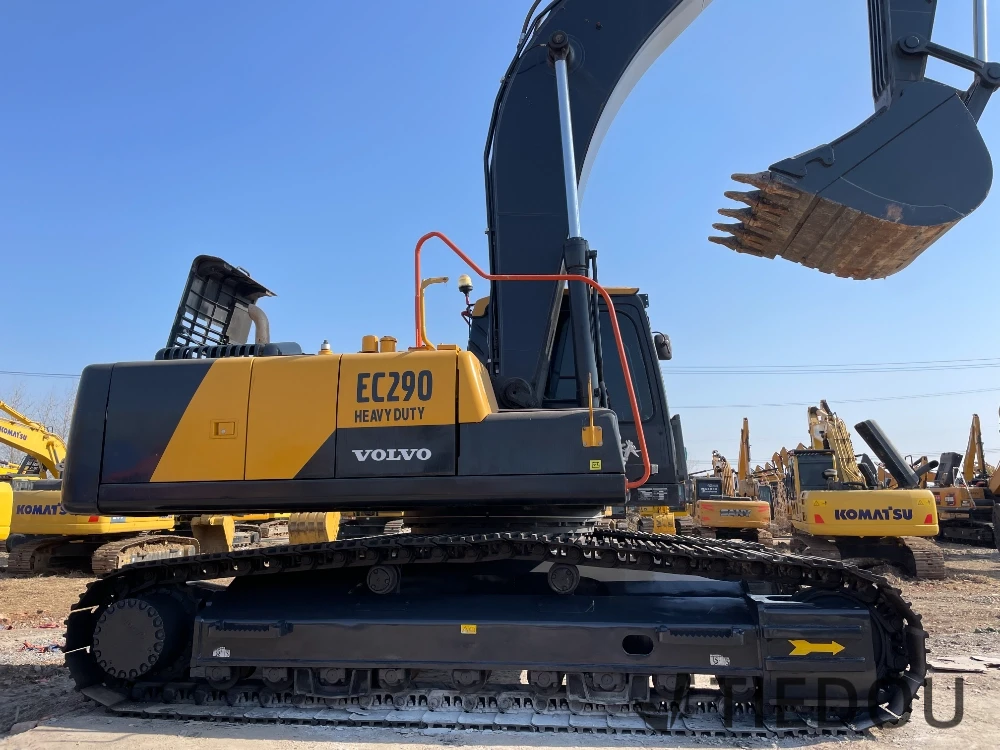

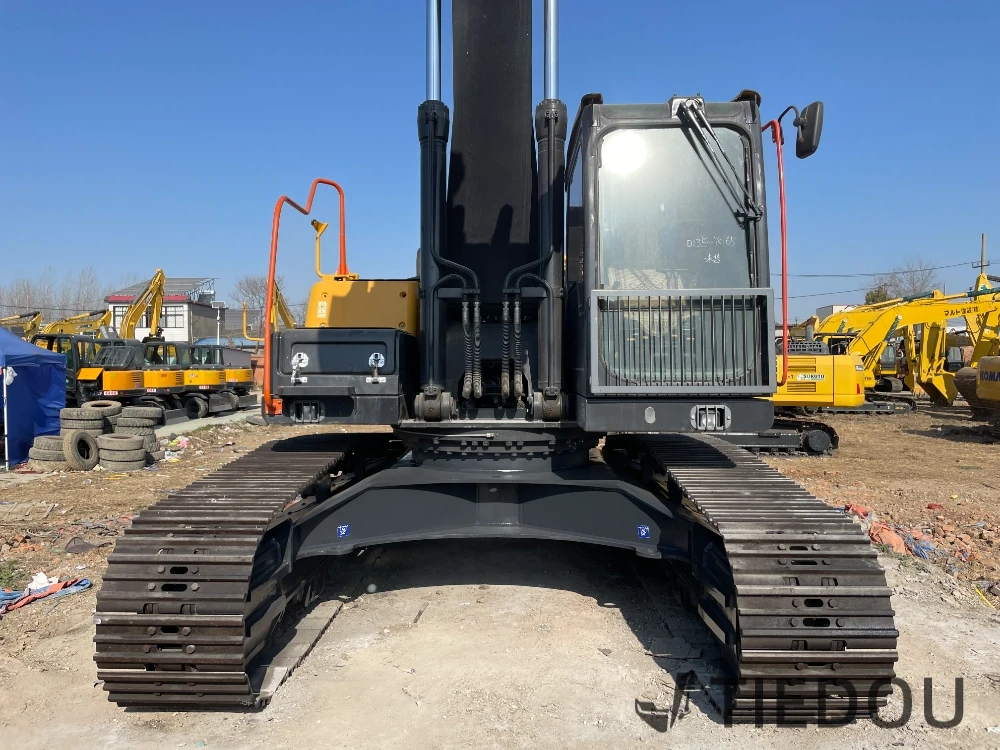

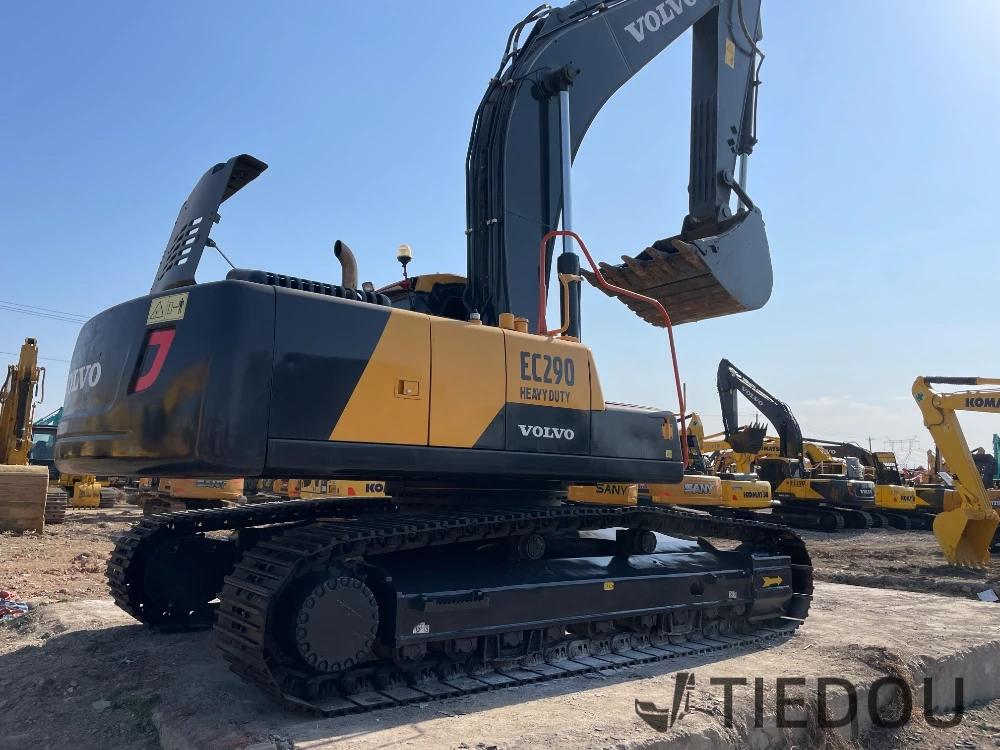

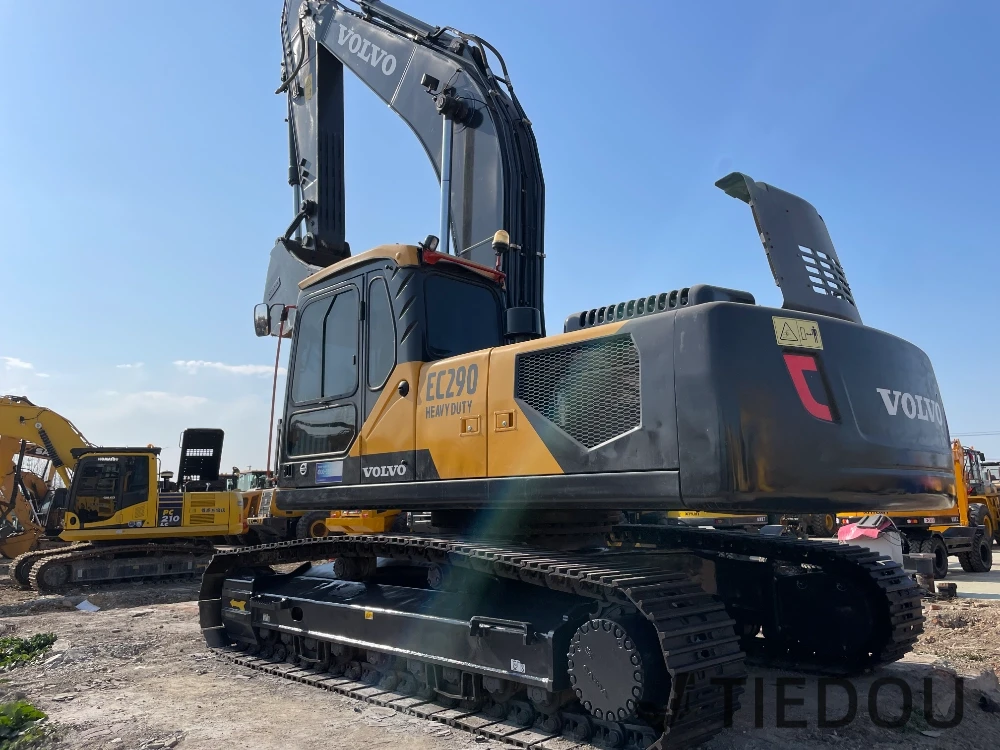

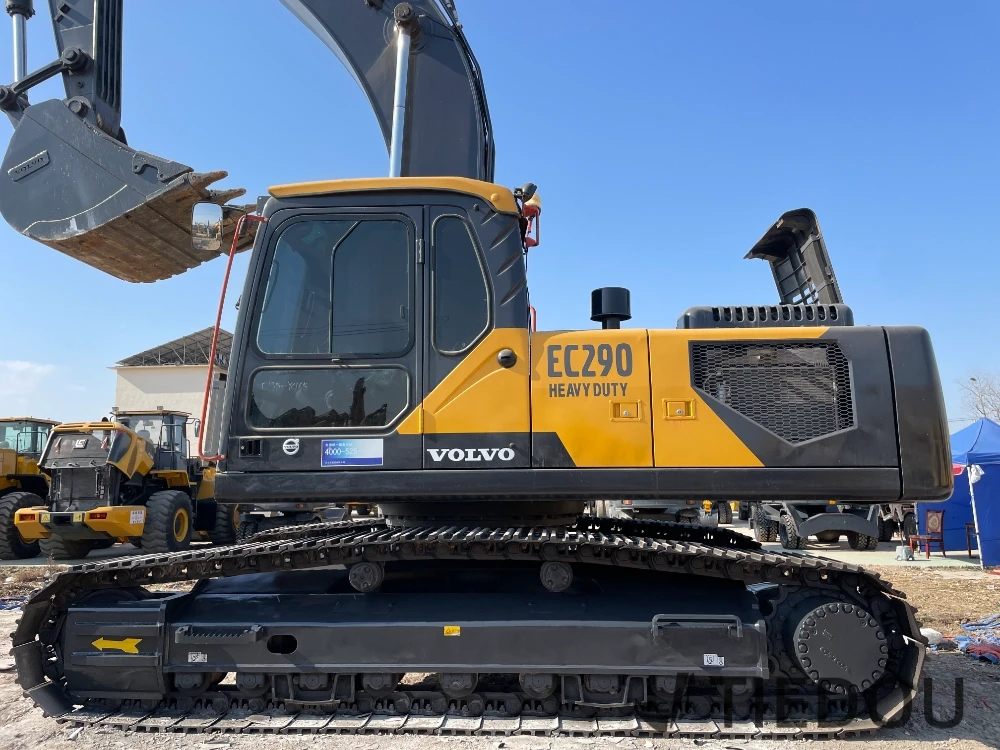

On the Tiedou Used Excavator Website, we present to you a used Volvo 290 excavator with excellent performance. It is the ideal partner for various construction projects, standing out with its remarkable advantages.
The Volvo 290 is equipped with the Volvo D7E EAE2 engine, with a rated power of 153 kilowatts and a speed of 1800 rpm. It delivers a strong and stable power output. It can easily handle heavy tasks such as earth excavation in large - scale construction projects and material handling in mining operations. Its slewing speed reaches 10.1 rpm, and the travel speed is 3.2/5.1 Km/h. The equipment can move quickly and position accurately within the construction site, greatly shortening the single - operation time and significantly improving the overall work efficiency. Whether it's switching between multiple work areas or continuous high - intensity construction, the Volvo 290 can seize the initiative in project progress with its speed advantage.

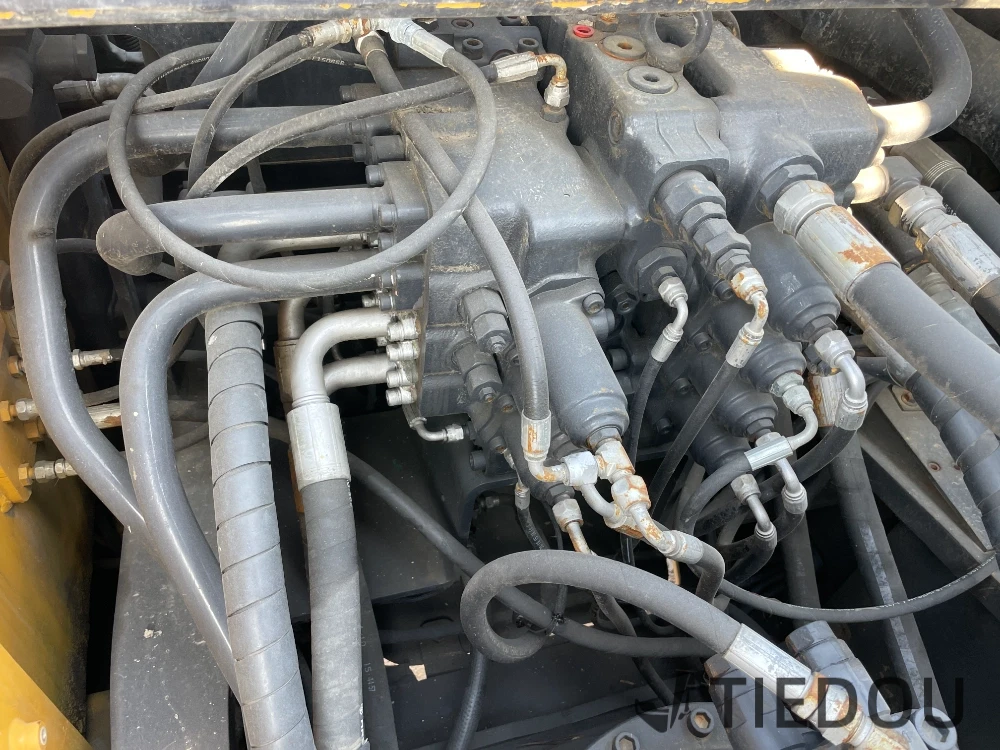

This excavator adopts an advanced intelligent hydraulic system that works in tandem with the engine technology. It can automatically and precisely adjust the power output according to the actual working conditions. While ensuring high - efficiency operation, it achieves excellent fuel economy. For example, in regular excavation and loading cycle operations, compared with equipment of the same class, the Volvo 290 can save 15% - 20% of fuel consumption. Over the long term, this will save you a considerable amount of operating costs, allowing you to carry out efficient construction without worrying about fuel consumption.
The bucket digging force of the Volvo 290 can reach 182.4 kN (standard mode) / 193.5 kN (boost mode), and the arm digging force is 130.8 kN (standard mode) / 138.7 kN (boost mode). Its powerful digging force enables it to handle hard soil or large rocks with ease. The advanced hydraulic system endows the equipment with precise control performance. Whether it's fine - tuned action adjustments or powerful digging operations, it can accurately respond to the operator's commands, achieving efficient and precise operations.
| Items | Parameters |
|---|
| Operating weight of the whole machine (kg) | 29,600 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6,200 |
| Arm length (mm) | 3,050 |
| Place of origin | South Korea / Shanghai, China |
| Slewing speed (rpm) | 10.1 |
| Travel speed (Km/h) | 3.2 / 5.1 |
| Gradability (%) | 70 |
| Ground contact pressure (Kpa) | 57.1 |
| Bucket digging force (kN) | 182.4 (standard mode) / 193.5 (boost mode) |
| Arm digging force (kN) | 130.8 (standard mode) / 138.7 (boost mode) |
| Maximum drawbar pull (kN) | 234 |

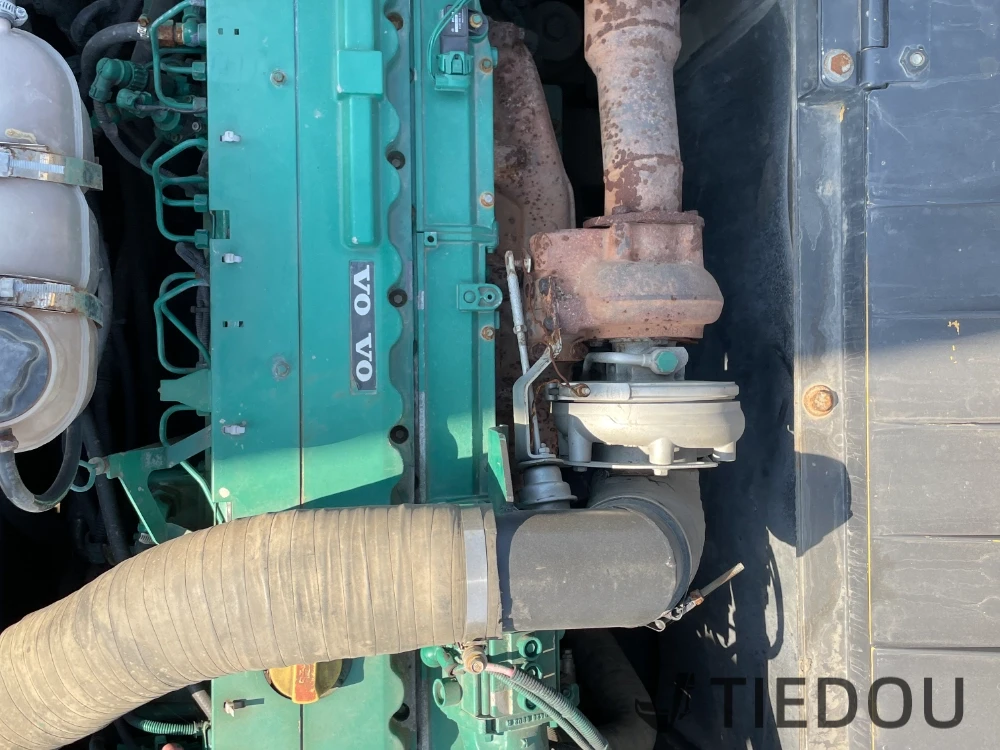

| Engine model | Volvo D7E EAE2 |
| Rated power (Kw/rpm) | 153 / 1800 |
| Displacement (L) | 7.1 |
| Number of cylinders | 6 |
| Bore × Stroke (mm×mm) | 108 × 130 |
| Cooling method | Water - cooled |

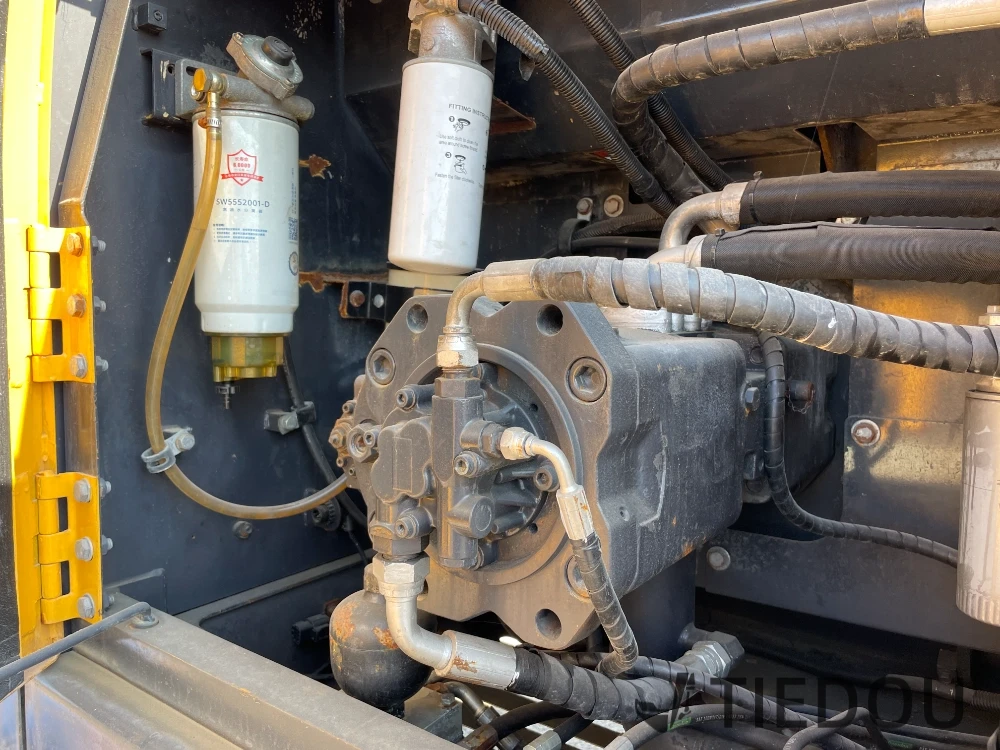

| Main pump type | Variable displacement axial piston pump × 2 + Pilot gear pump |
| Maximum flow rate of main pump (L/min) | 250×2 + 18 |
| Travel hydraulic motor type | Variable displacement axial piston motor (with mechanical brake) |

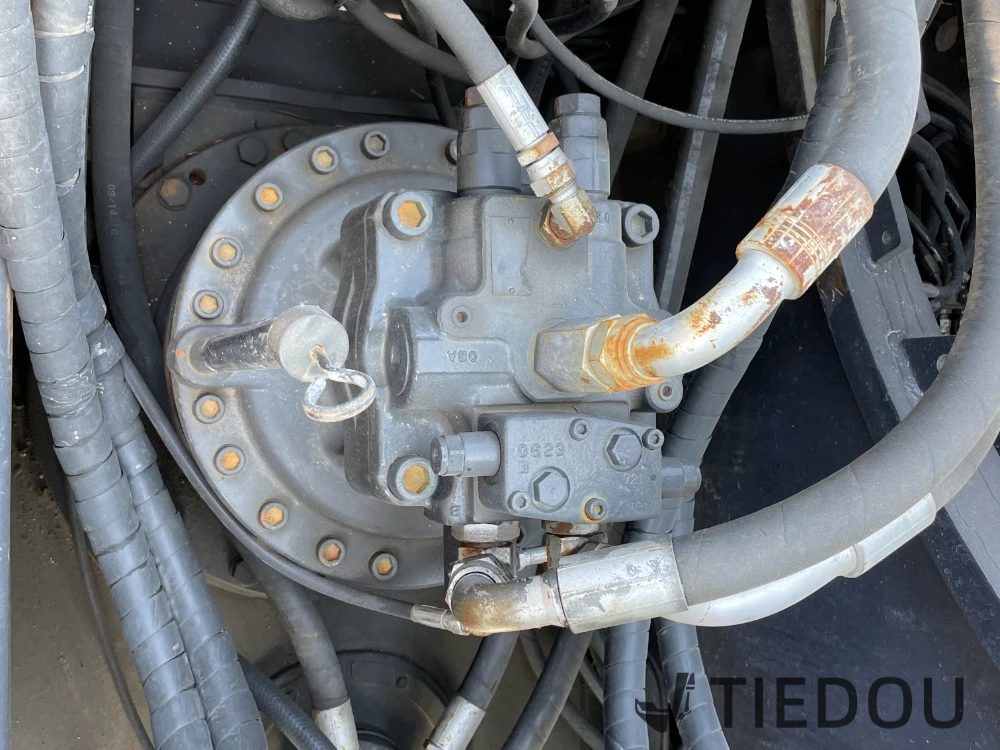

| Slewing hydraulic motor type | Fixed displacement axial piston hydraulic motor (with mechanical brake) |
| Working hydraulic circuit (Mpa) | 32.4 / 34.3 |
| Travel hydraulic circuit (Mpa) | 34.3 |
| Slewing hydraulic circuit (Mpa) | 26.5 |
| Pilot oil circuit (MPa) | 3.9 |
| Boom cylinder - number × bore × stroke (mm) | 2 - 140 × 1480 |
| Arm cylinder - number × bore × stroke (mm) | 1 - 150 × 1745 |
| Bucket cylinder - number × bore × stroke (mm) | 1 - 140 × 1140 |
| Fuel tank capacity (L) | 470 |
| Hydraulic oil tank capacity (L) | 195 |
| Hydraulic system capacity (L) | 400 |
| Engine oil change volume (L) | 30 |
| Coolant volume (L) | 36 |
| Total transportation length (mm) | 10,420 |
| Total transportation width (mm) | 3,190 |
| Total transportation height (mm) | 3,290 (total height of the boom) |
| Full height of the cab (mm) | 3,030 |
| Counterweight clearance from the ground (mm) | 1,145 |

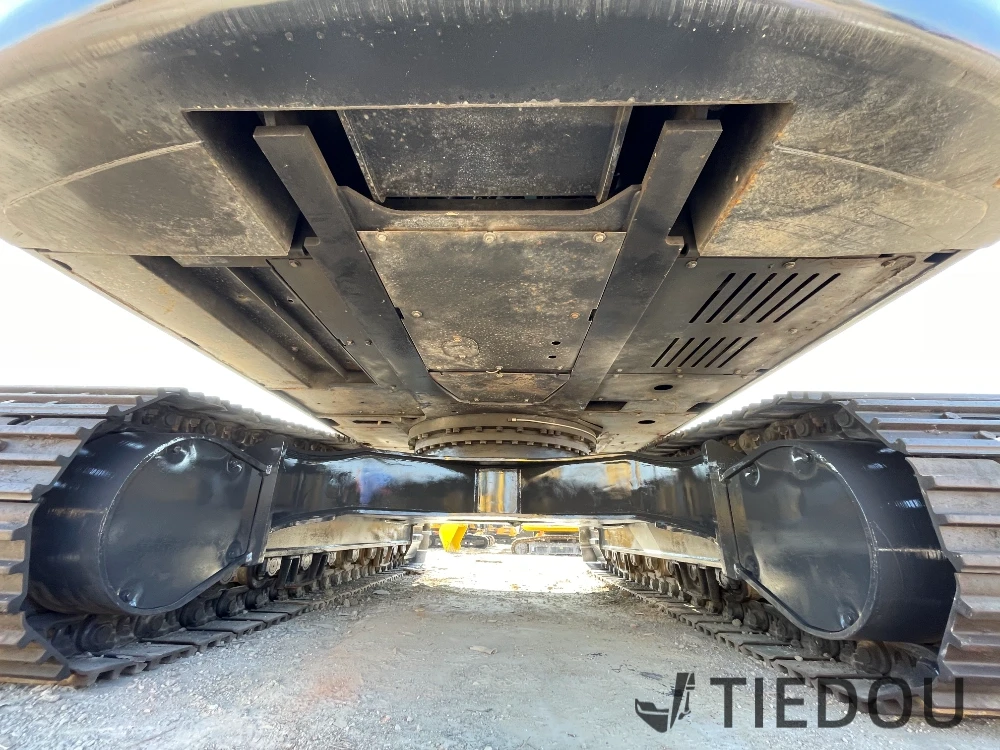

| Track contact length (mm) | 4,015 |
| Total track length (mm) | 4,870 |
| Track shoe width (mm) | Double - tooth 600 |
| Total track width (mm) | 3,190 |
| Track gauge (mm) | 2,590 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of the front working device (mm) | 4,180 |
| Rear turning radius (mm) | 3,050 |
| Maximum digging radius (mm) | 10,690 |
| Maximum digging radius at ground level (mm) | 10,490 |
| Maximum digging depth (mm) | 7,320 |
| Maximum digging height (mm) | 10,040 |
| Maximum dumping height (mm) | 7,050 |
| Maximum vertical digging depth (mm) | 6,200 |
| Maximum digging depth at 2.5m horizontal (mm) | 7,140 |
