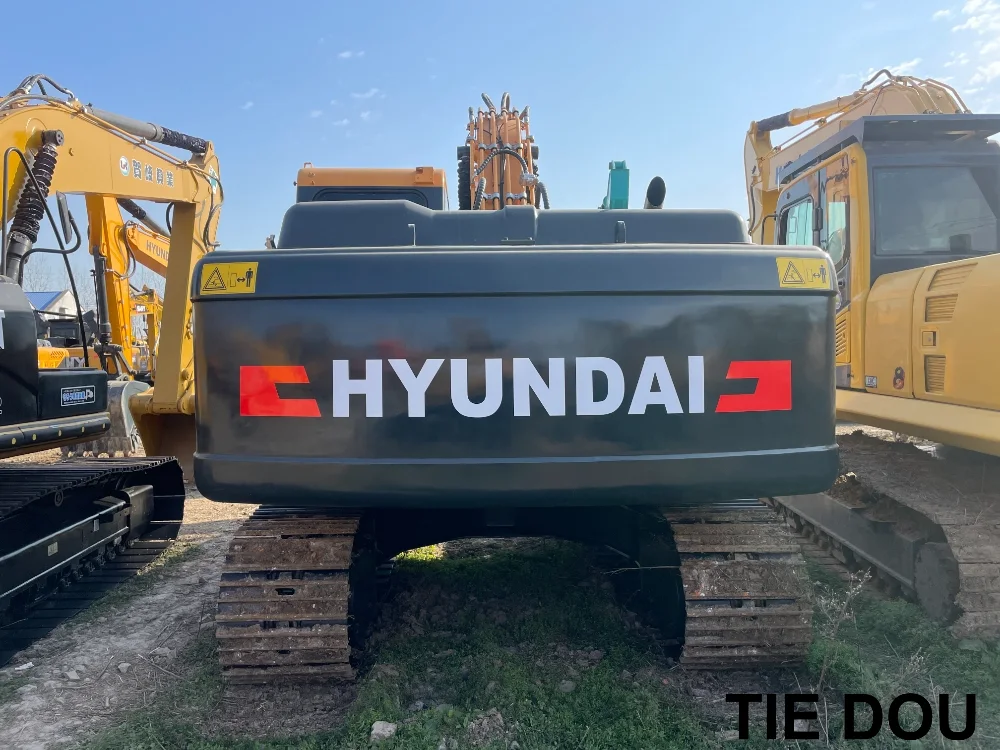

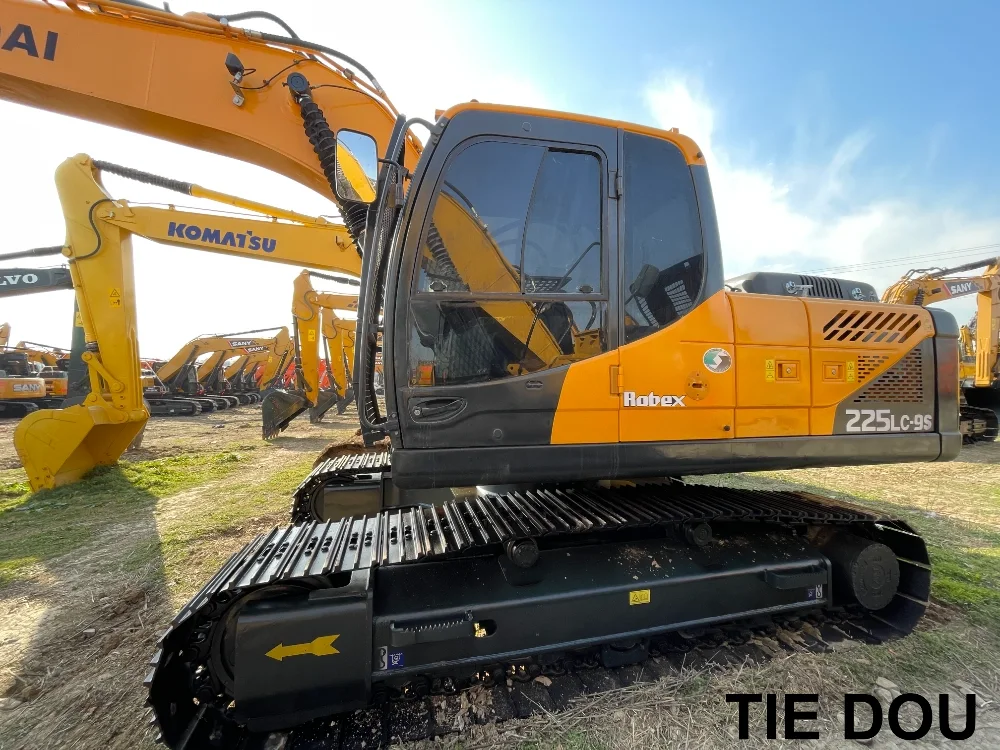

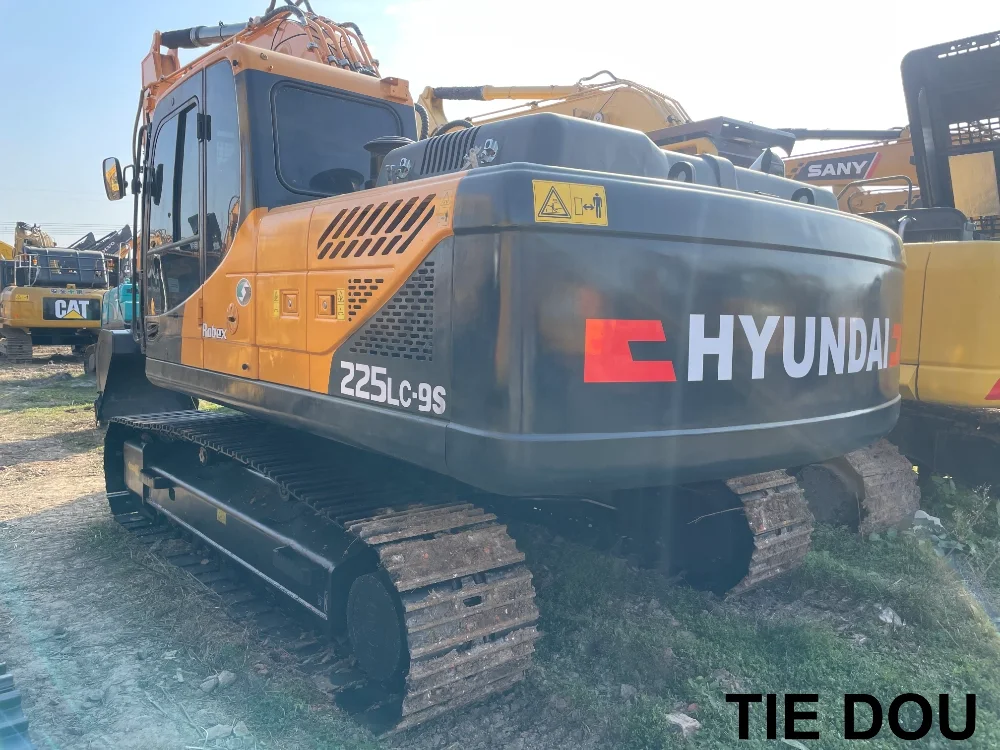

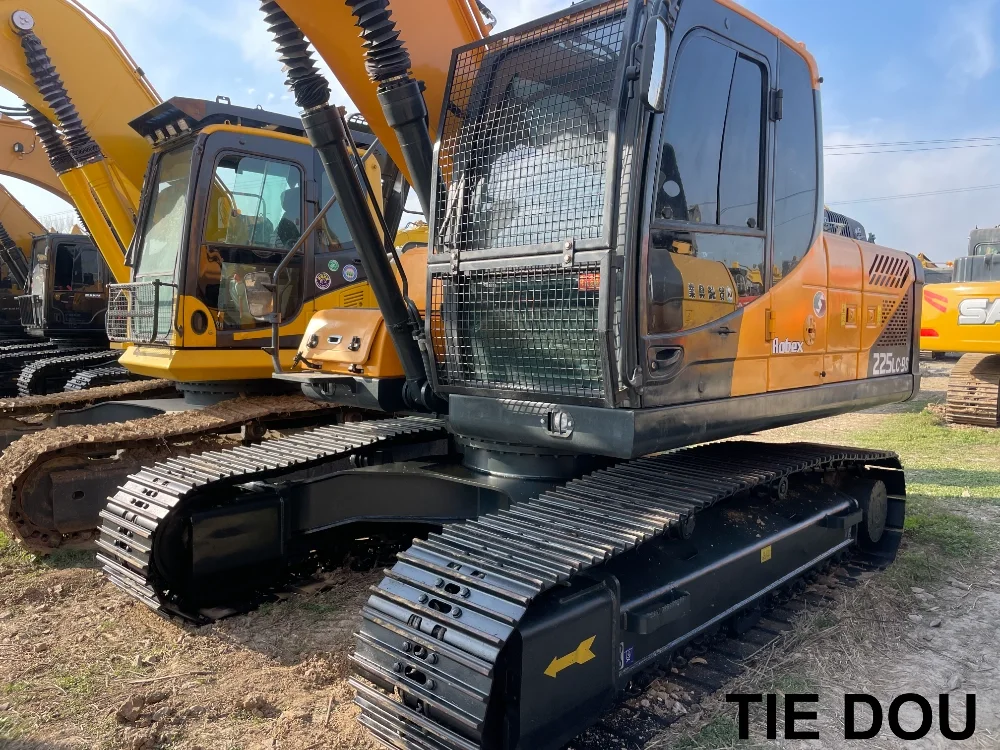

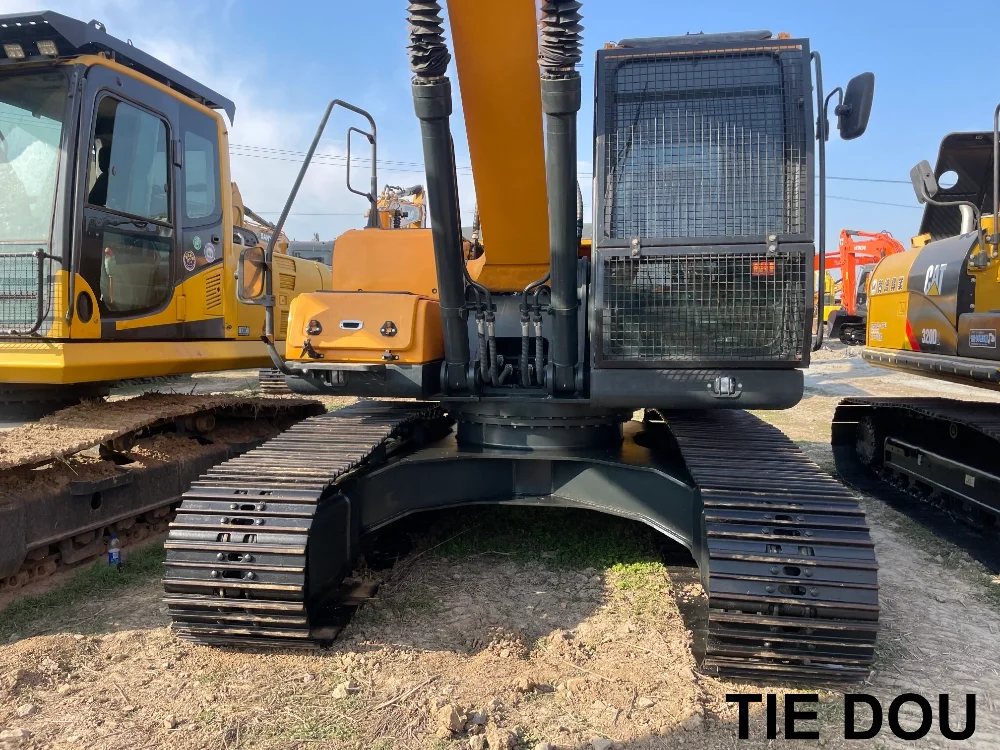

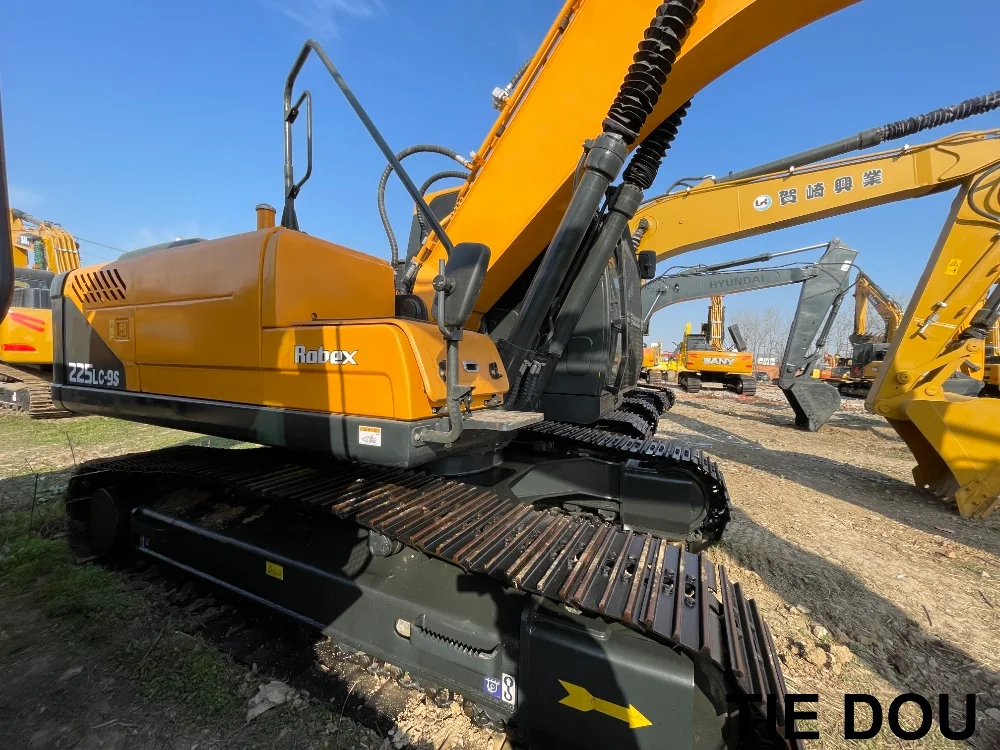

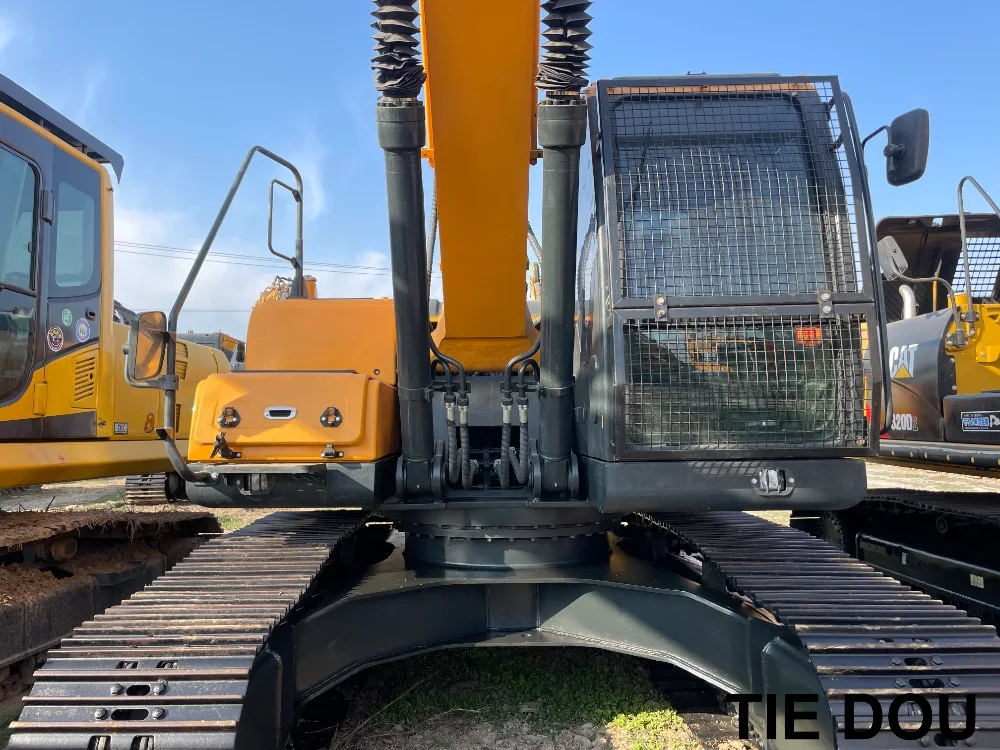

Hyundai 225LC - 9 Second - hand Excavator: A Cost - effective and Powerful Choice


In the field of second - hand excavators, the Hyundai 225LC - 9 stands out for its excellent performance and cost - effectiveness. It is suitable for various projects, including construction, road building, and earthwork.

Powerful Power, Ensuring Efficient Operations

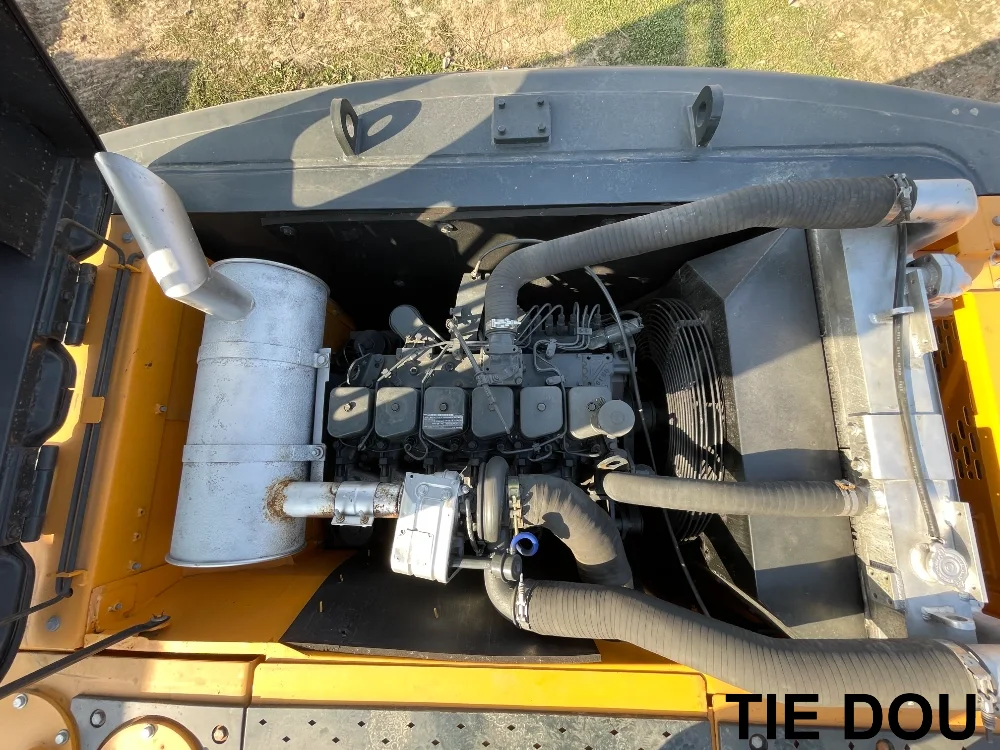

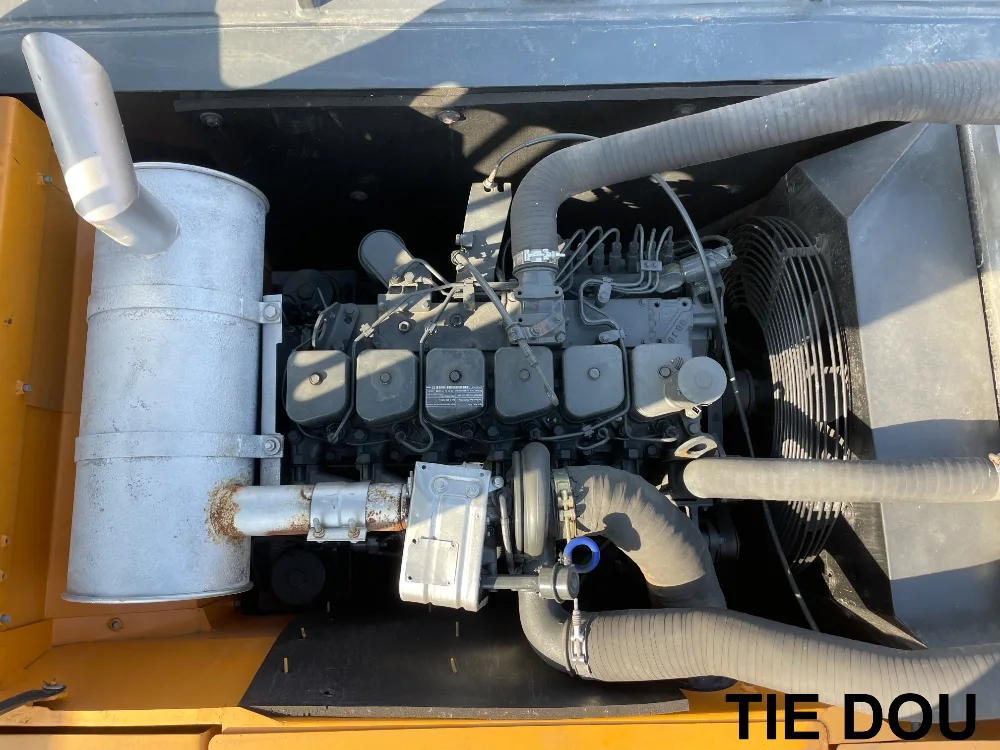

Equipped with the Cummins QSB6.7 engine, the Hyundai 225LC - 9 has a rated power of 113kW and a speed of 1900rpm. The engine provides stable and strong power output, with outstanding torque. It can easily handle excavating hard soil. The turbocharging and air - to - air inter - cooling technologies enable the engine to burn efficiently under different working conditions, ensuring continuous and surging power.

Precise Control, Facilitating Flexible Construction

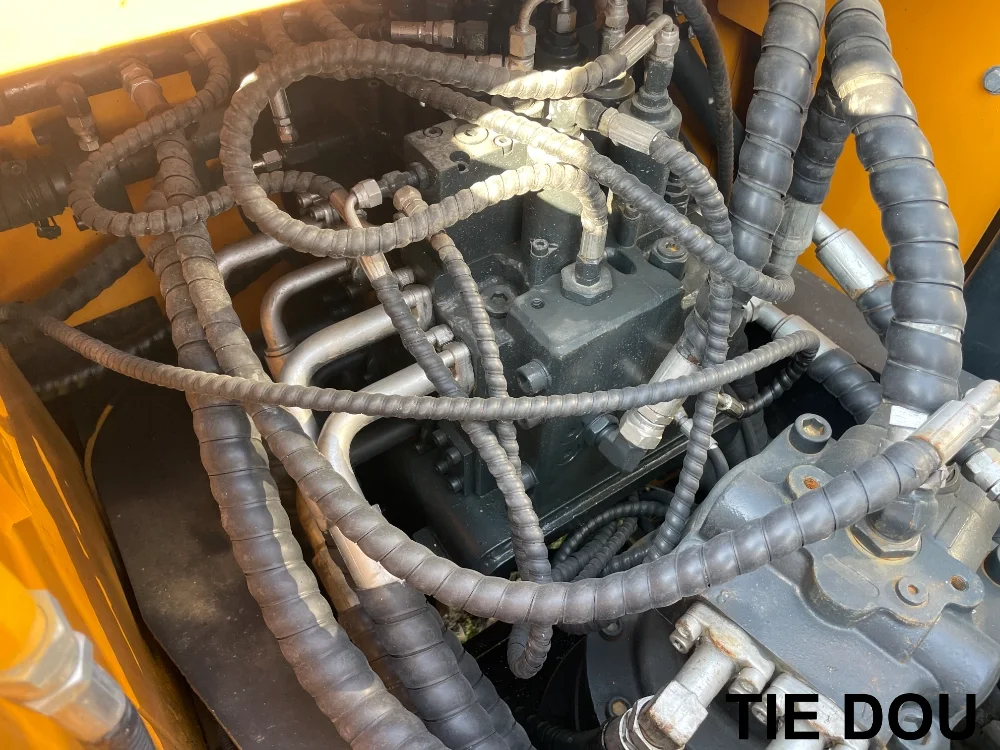

Featuring an advanced hydraulic system with variable - displacement in - line axial piston pumps, the main pump flow rate reaches 2×222L/min, precisely controlling all movements. The ergonomic operation handle offers a comfortable grip, allowing operators to accurately control excavation, loading, and unloading. With a slewing speed of 11.5rpm and a travel speed of 3.4/5.3Km/h, along with a flexible steering system, the equipment can move and adjust its working position quickly at the construction site, further improving work efficiency.

Robust and Durable, Ensuring Stable Operation


The fuselage of the Hyundai 225LC - 9 is made of high - strength steel, which is designed and optimized to have excellent anti - deformation and anti - impact capabilities. Key components such as the boom and stick are treated for wear resistance, extending their service life. The travel system is equipped with a two - speed swash - plate piston motor with an automatic brake valve and parking brake, as well as a sturdy track assembly, ensuring stable operation in various complex terrains and harsh working conditions, with a low failure rate.

Comfortable and Convenient, Reducing Operating Costs

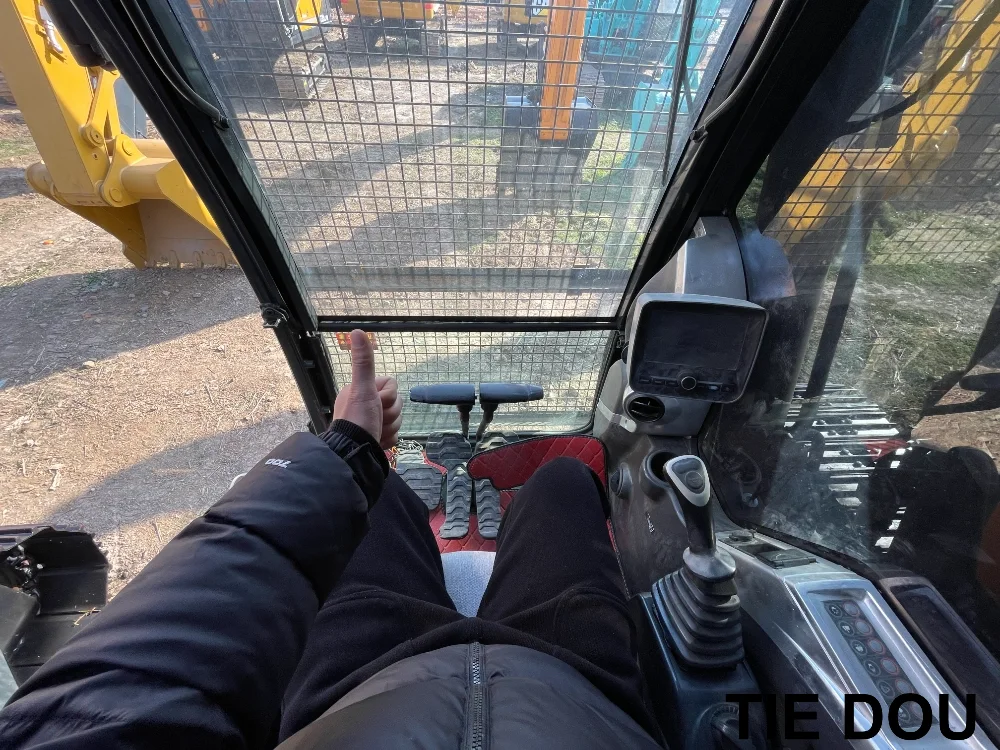

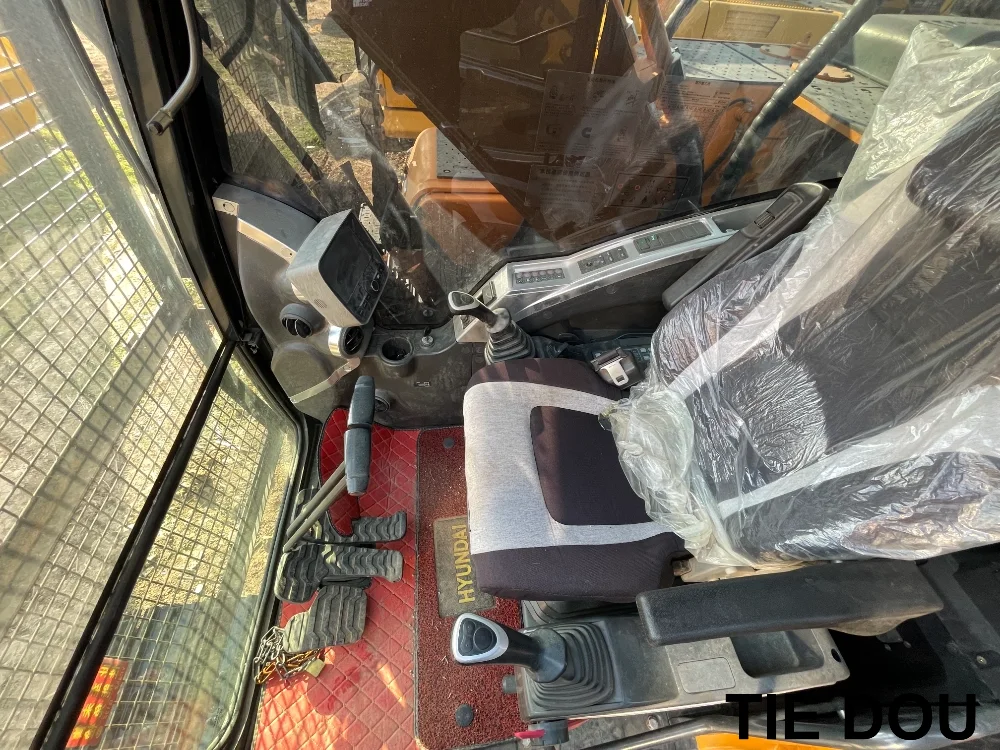

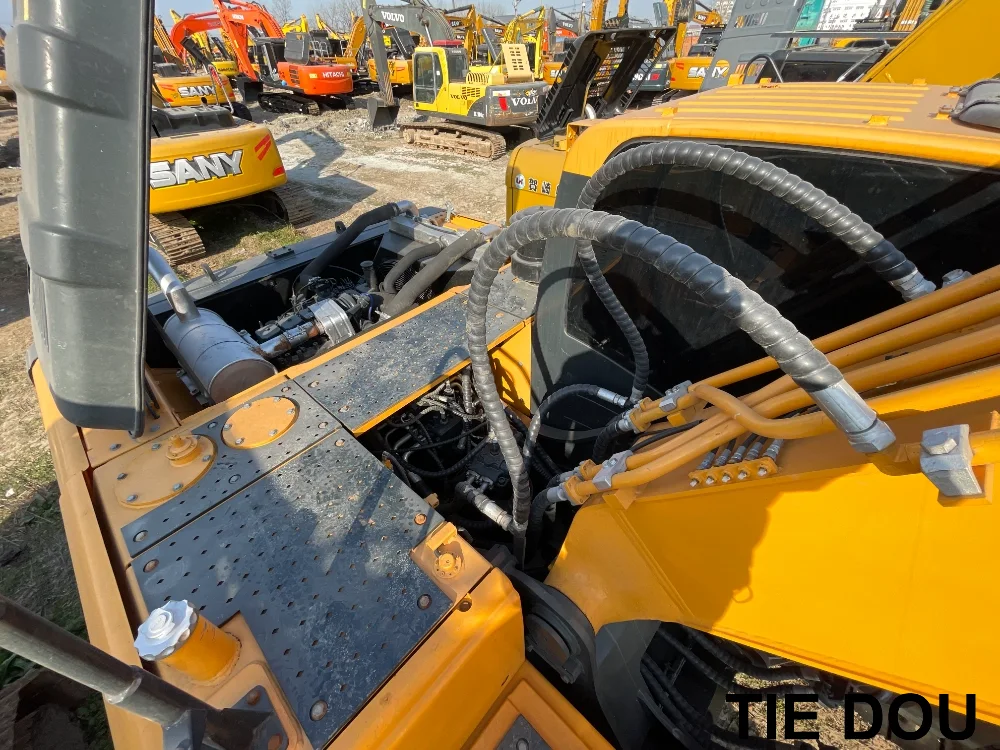

The spacious cab provides a good view, a simple and easy - to - understand operation interface, and convenient buttons. The ergonomic seat, with multi - way adjustment and shock - absorbing functions, reduces the operator's fatigue. Maintenance is also convenient. The engine compartment is reasonably laid out, and components are easily accessible. The high universality of parts reduces maintenance costs and time.

High Cost - effectiveness, Bringing Considerable Returns on Investment


As a second - hand excavator, the Hyundai 225LC - 9 has a significant price advantage while maintaining good performance. Its high - efficiency operation can save time costs in projects, and the low failure rate and convenient maintenance further reduce operating costs. Whether it's for small construction teams to upgrade their capabilities or large enterprises to expand their equipment scale, it can bring considerable returns on investment.


If you're looking for a cost - effective and high - performance second - hand excavator, the Hyundai 225LC - 9 is an excellent choice. Welcome to contact us to schedule a machine - viewing and test - drive to experience its charm and power.


ItemParameter
Operating weight of the complete machine (kg)22,100

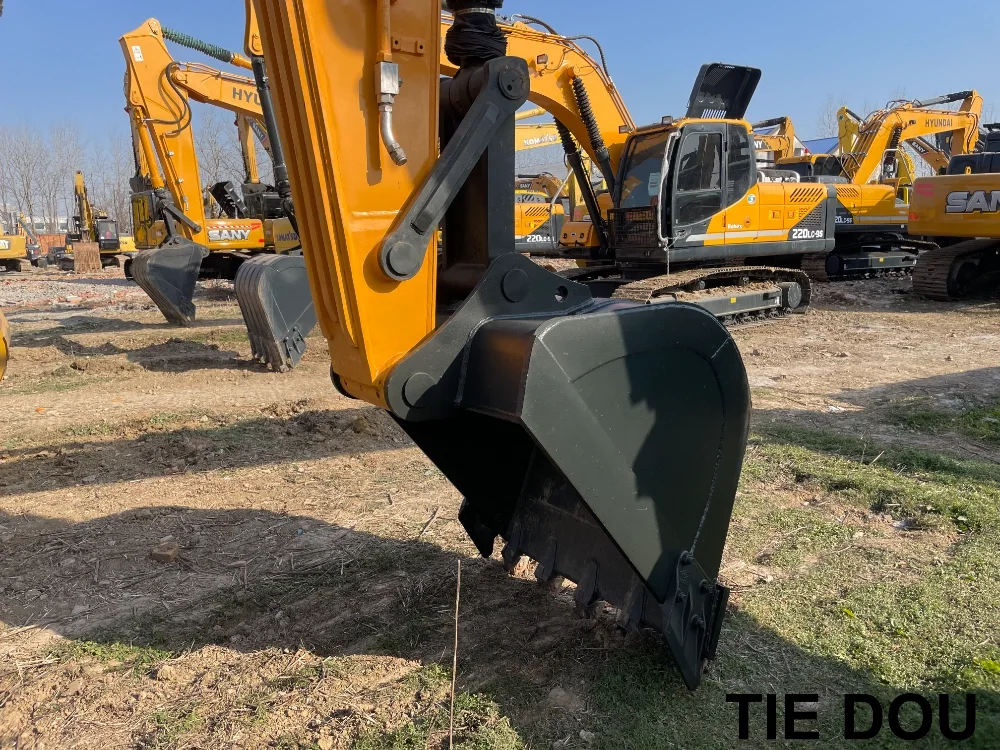

Bucket capacity (m³)1.05
Boom length (mm)5,680
Stick length (mm)2,920
Place of originJiangsu
Slewing speed (rpm)11.5
Travel speed (Km/h)3.4/5.3
Gradeability (%)70/35°
Ground contact pressure (Kpa)48
Bucket digging force (kN)149.1
Stick digging force (kN)106.9
Engine modelCummins QSB6.7
Rated power (Kw/rpm)113/1,900
Displacement (L)6.7
Number of cylinders6
Bore × Stroke (mm×mm)107×124
Cooling methodWater - cooled
Operating mode6 - cylinder, 4 - stroke, turbocharged, air - to - air inter - cooled engine
Main pump typeVariable displacement in - line axial piston pump for hydraulic system
Maximum flow rate of main pump (L/min)2×222
Setting pressure of main relief valve (Mpa)Not clearly mentioned

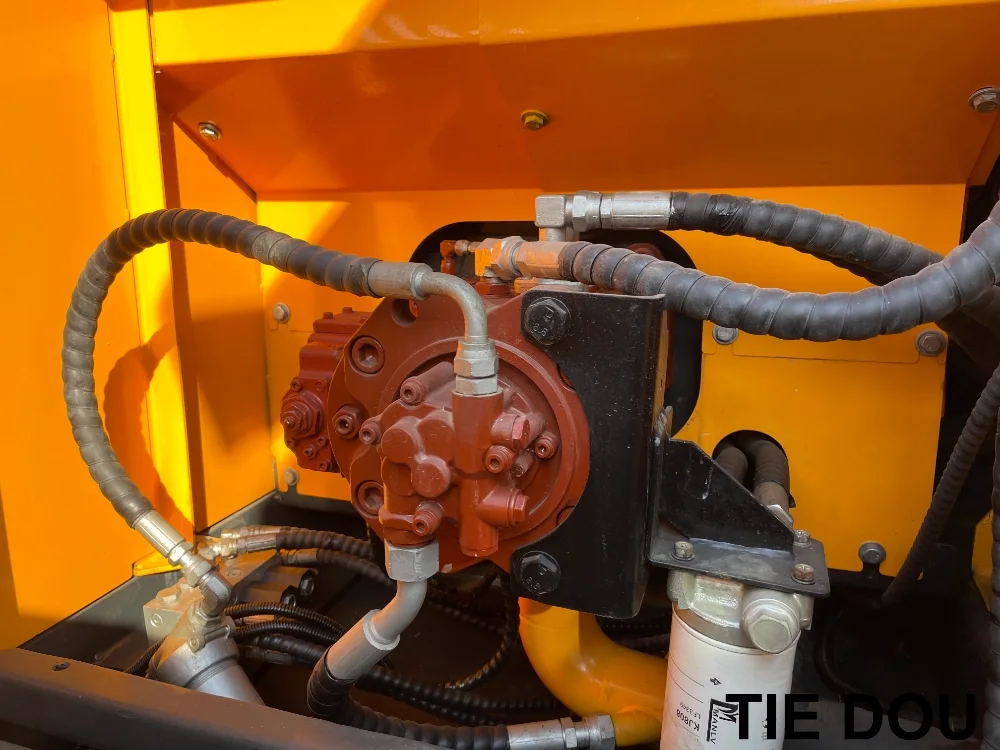

Travel hydraulic motor typeTwo - speed swash - plate piston motor with automatic brake valve and parking brake

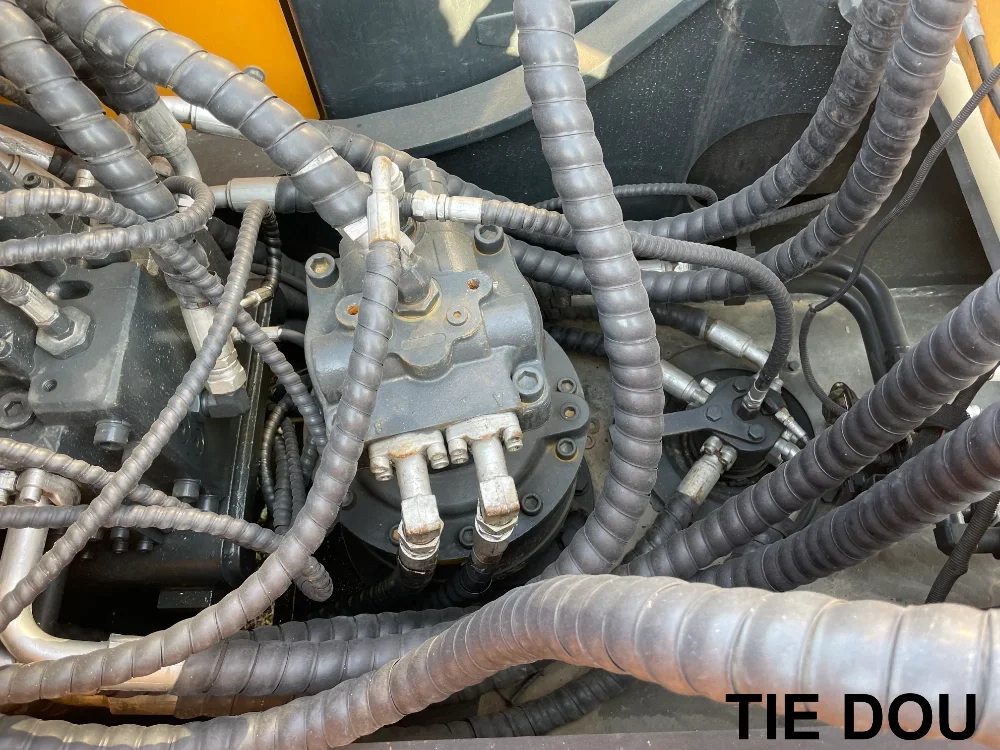

Slewing hydraulic motor typeSwash - plate piston motor with automatic brake
Working hydraulic oil circuit (Mpa)350
Travel hydraulic circuit (Mpa)350
Slewing hydraulic circuit (Mpa)265
Pilot oil circuit (MPa)40
Boom cylinder - number×bore×stroke (mm)120×85×1,290
Stick cylinder - number×bore×stroke (mm)140×100×1,510
Bucket cylinder - number×bore×stroke (mm)120×85×1,055
Is the hydraulic breaker pipeline standard equipment?No
Fuel tank (L)400
Hydraulic oil tank (L)160
Hydraulic system (L)275
Engine oil change volume (L)25
Coolant (L)35
Overall transport length (mm)9,530
Overall transport width (mm)3,190
Overall transport height (mm)3,030
Full height of cab (mm)2,920
Counterweight clearance from the ground (mm)1,060
Track ground contact length (mm)3,370
Total length of track (mm)4,160
