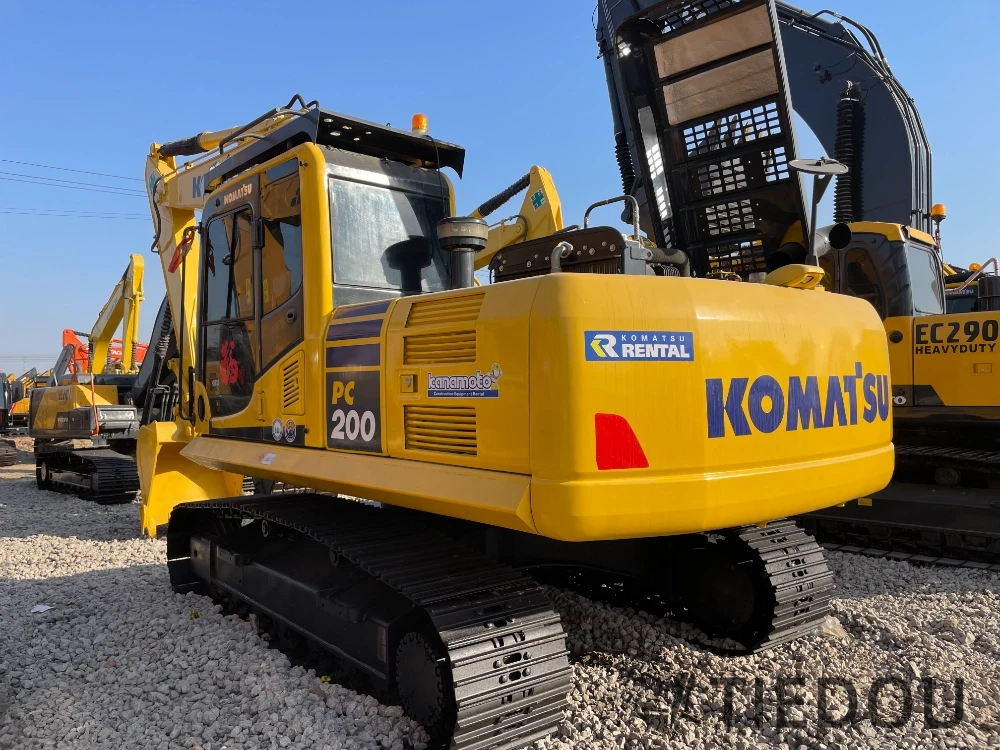

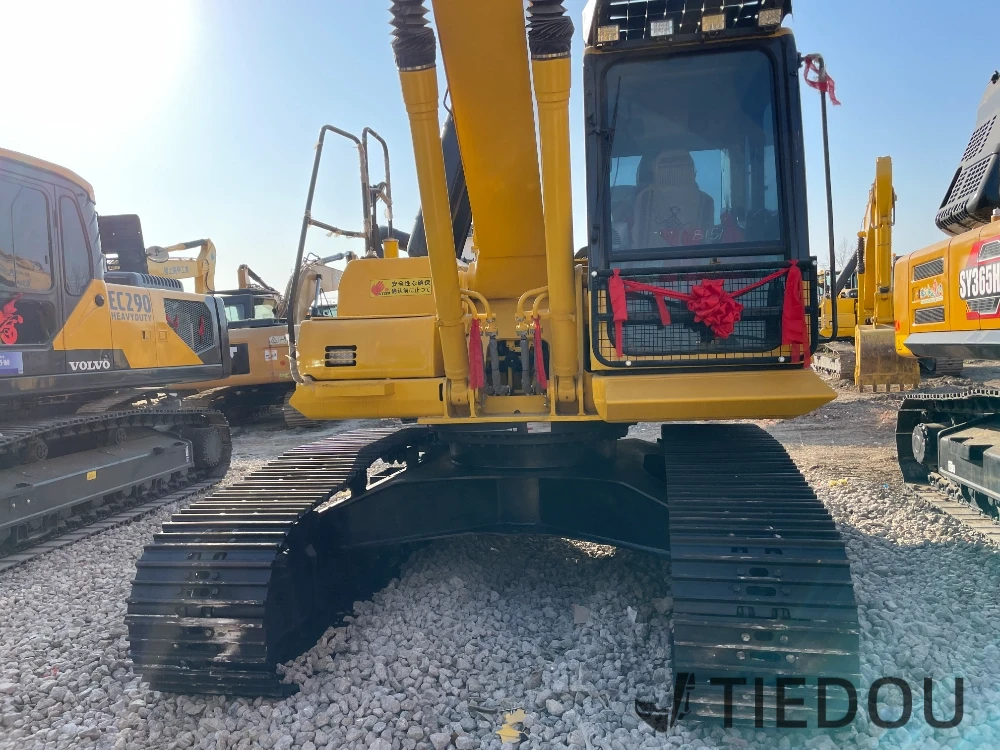

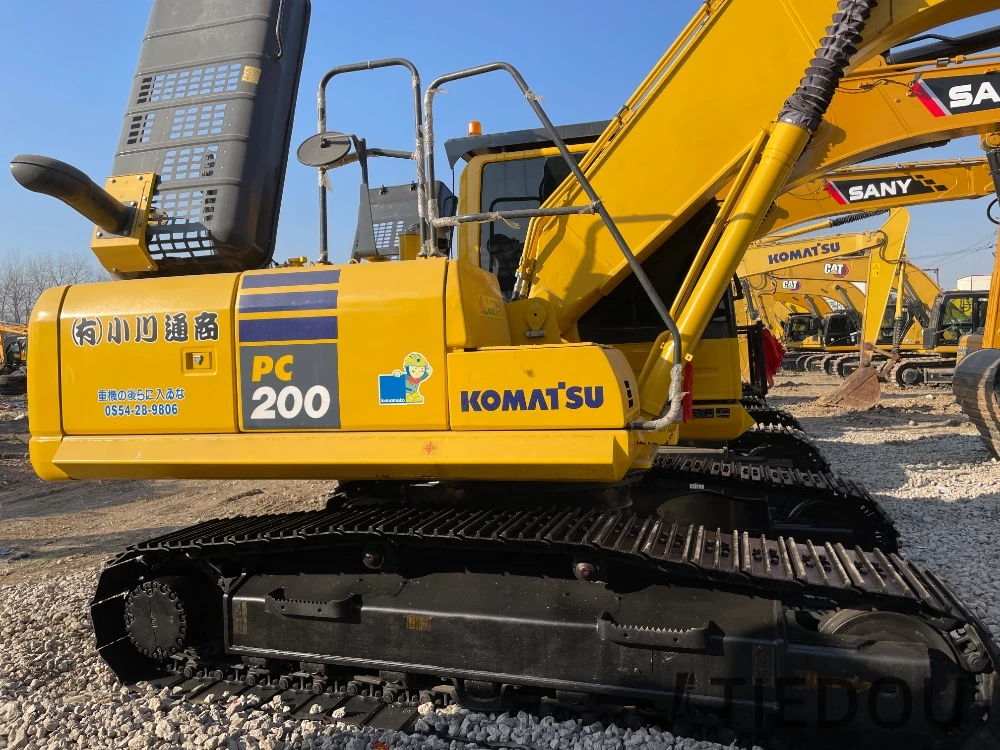

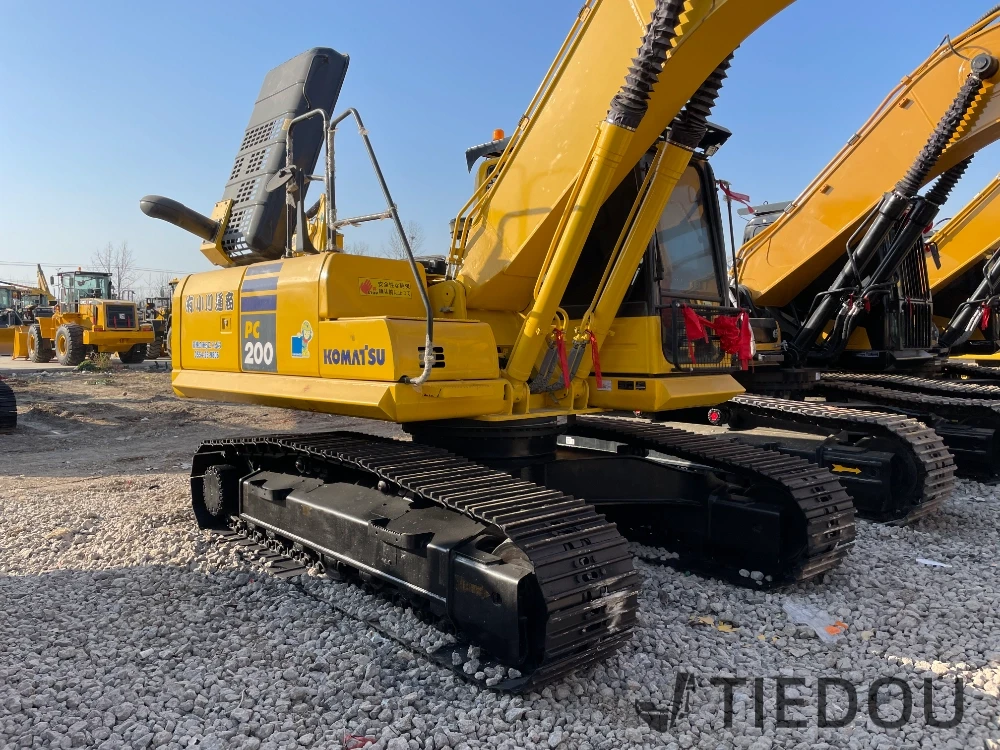

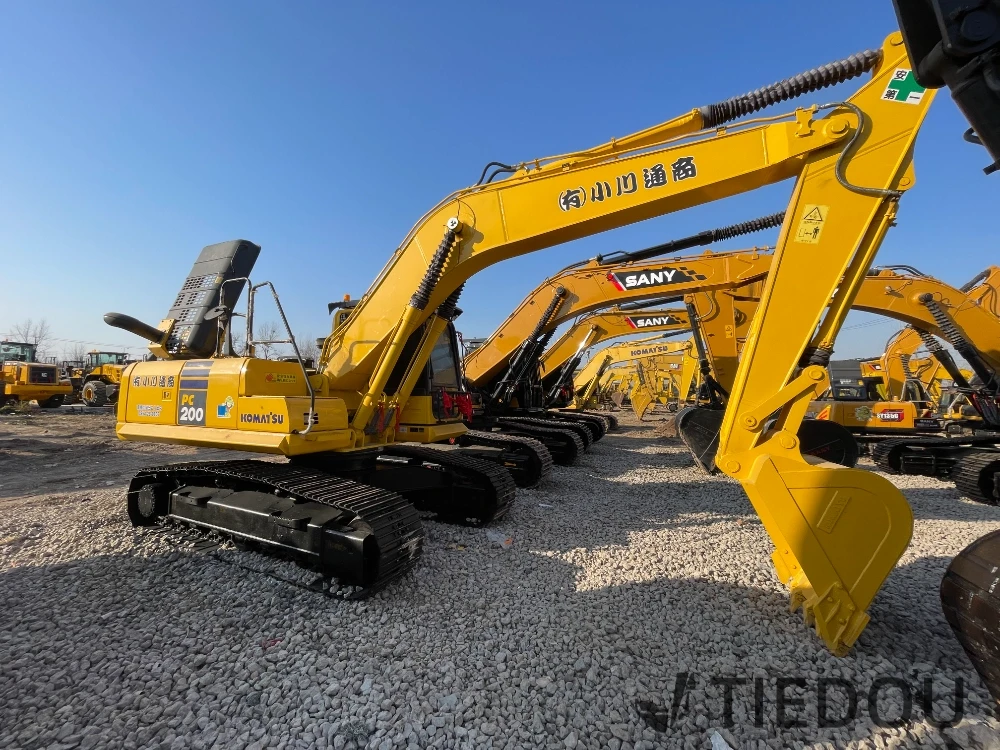

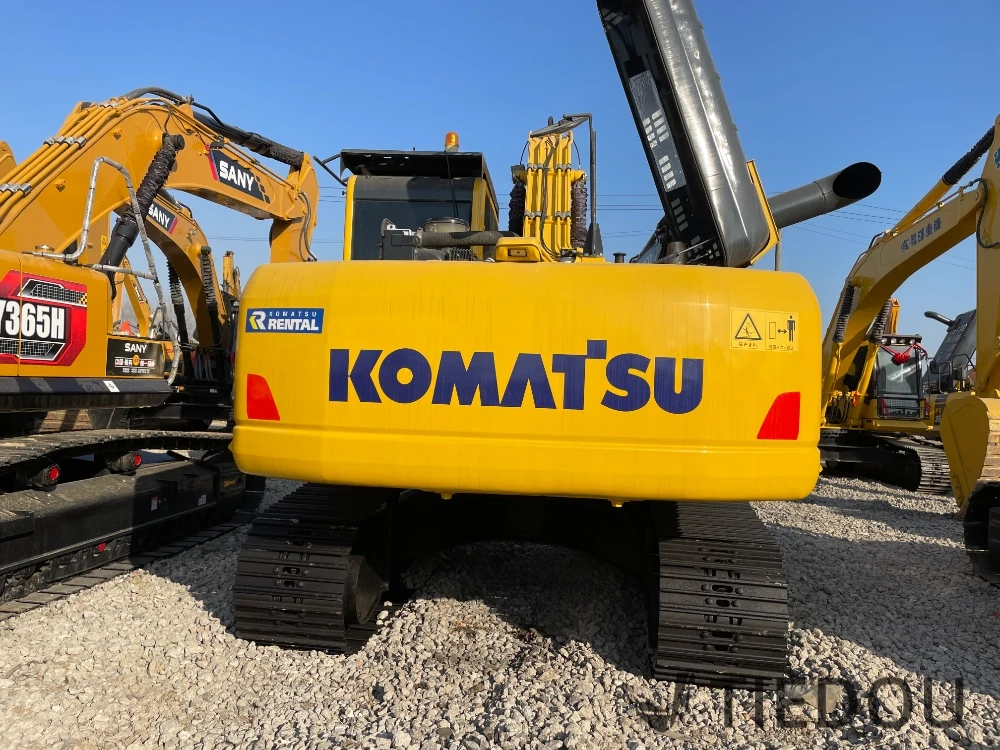

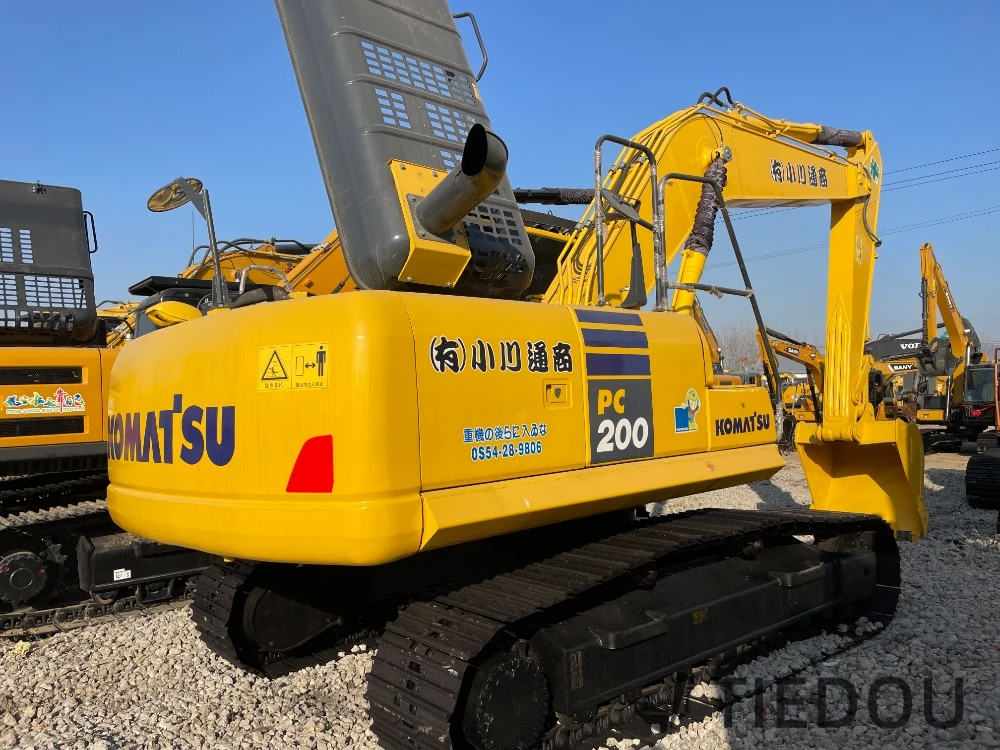

Komatsu PC200 - 8 Second - hand Excavator: Combining Power and Cost - effectiveness


In the second - hand excavator sector, the Komatsu PC200 - 8 has become a popular choice for various projects due to its outstanding performance. It is suitable for multiple work scenarios such as construction, road building, and earthwork.

Powerful Power for Efficient Operations

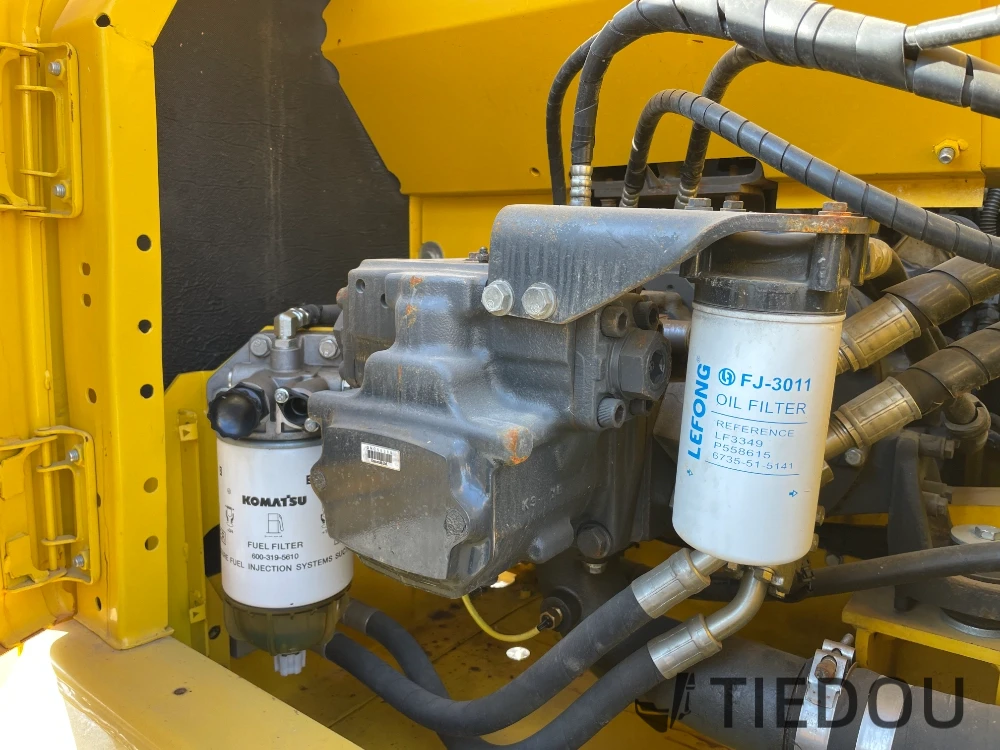

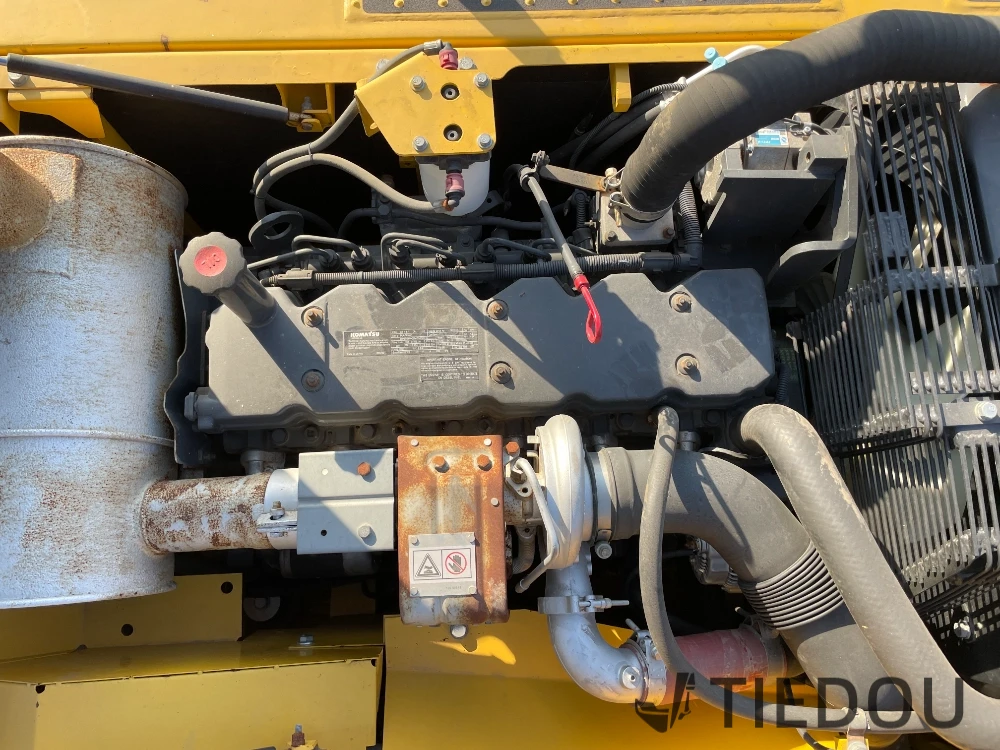

The Komatsu PC200 - 8 is equipped with the Komatsu SAA4D107E - 1 engine, boasting a rated power of 110kW and a speed of 2000rpm. This engine delivers stable and robust power output with excellent torque. The large - flow main pump with a capacity of 439L/min ensures rapid response of all working devices. Whether it's excavating hard rocks or handling large - scale earthwork, it can complete tasks efficiently, significantly enhancing work efficiency.

Precise Control, Flexible and Convenient

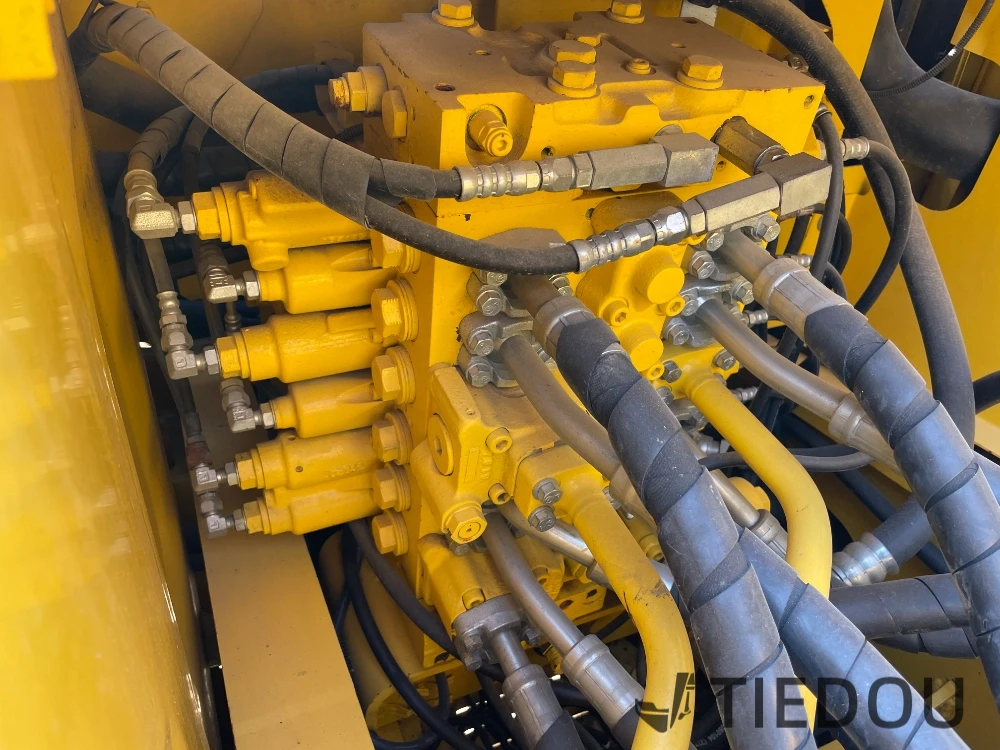

The advanced hydraulic system, combined with the ergonomic operation handle, enables precise and flexible control. The 37.3Mpa travel hydraulic circuit pressure and 28.9Mpa slewing hydraulic circuit pressure, along with the axial piston hydraulic motors, ensure smooth and accurate movements. With a slewing speed of 12.4rpm and travel speeds of 3.0/4.1/5.5Km/h, the equipment can move flexibly and adjust its position quickly on the construction site, meeting the high - precision construction requirements.

Robust and Durable, Stable and Reliable


The fuselage is made of high - strength steel, and key components are specially treated to be wear - resistant and fatigue - resistant. Even under long - term and high - intensity operations, it can operate stably with few malfunctions. The good sealing and protection features enable it to adapt to harsh natural environments, providing a solid guarantee for the smooth progress of projects.

Comfortable Driving, Convenient Maintenance

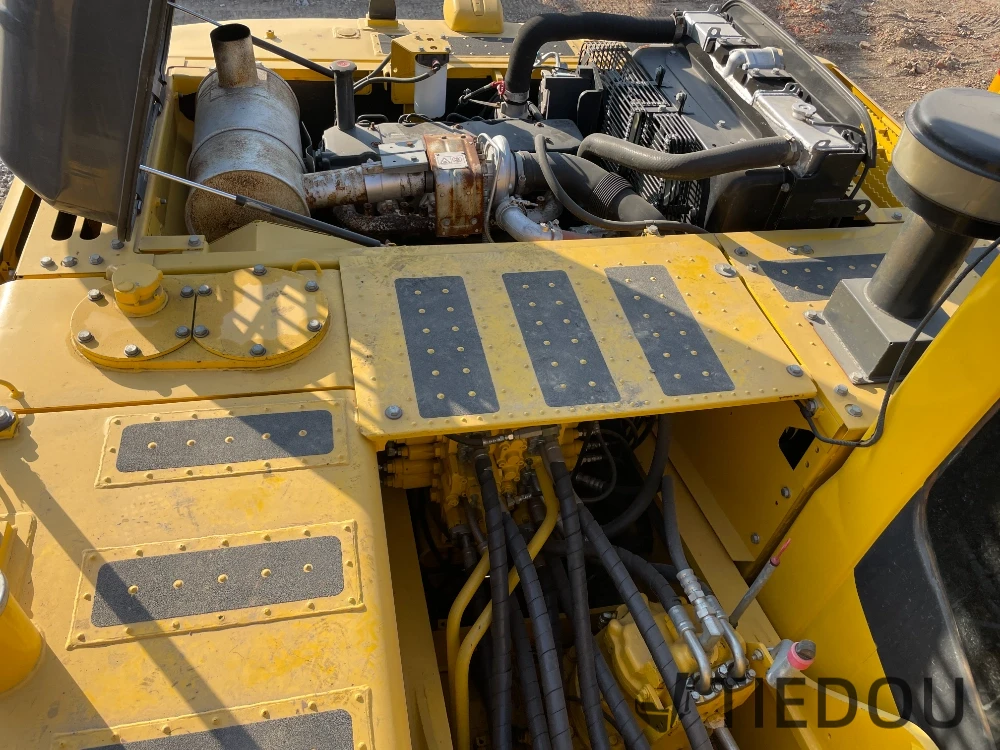

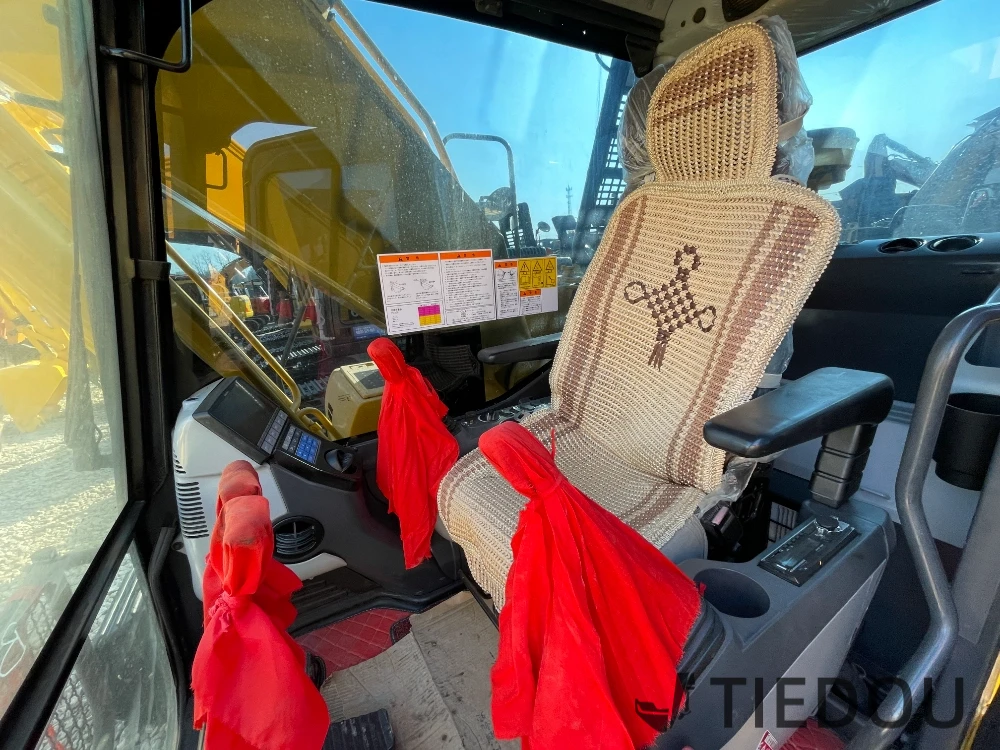

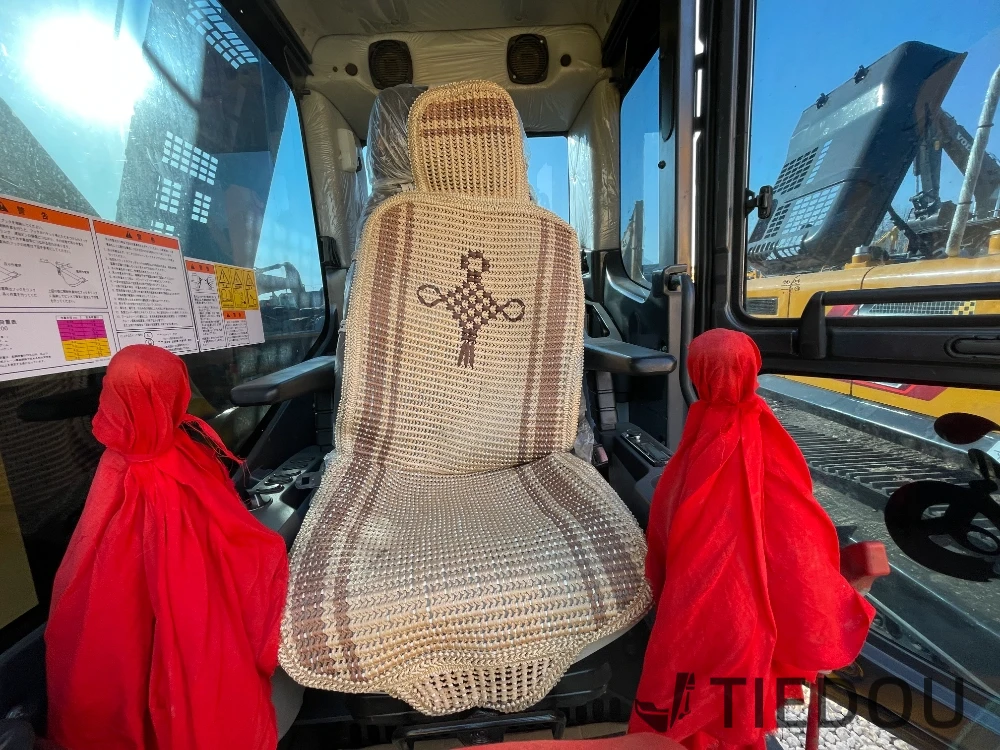

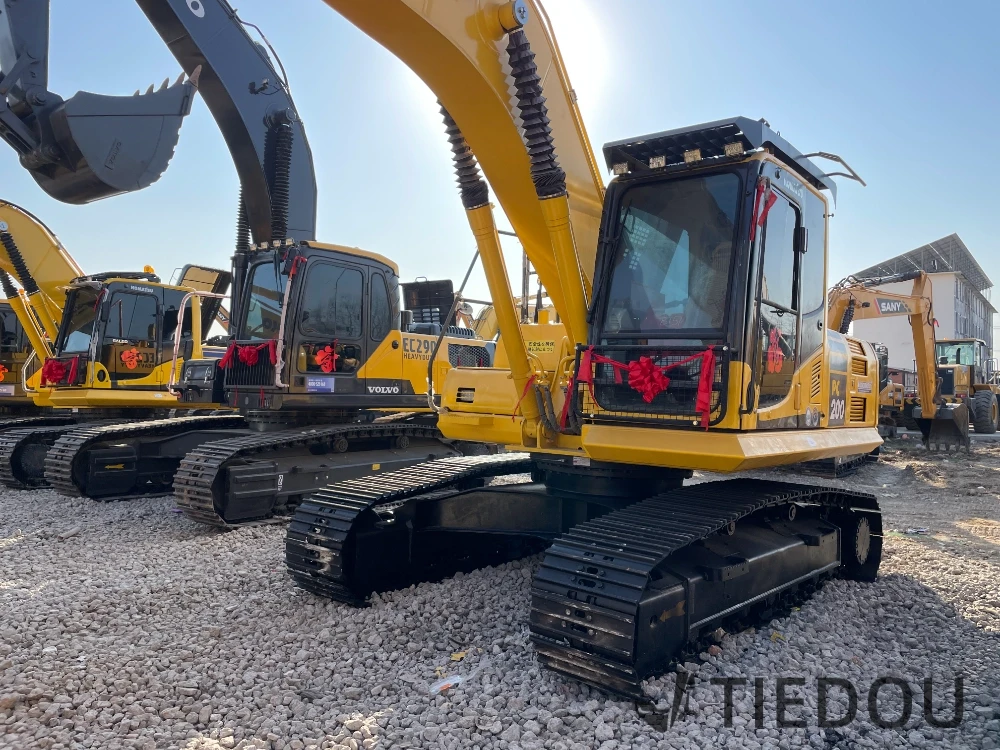

The spacious cab is reasonably laid out, offering a good view and convenient operation buttons. The ergonomic seat, with multi - way adjustment and shock - absorbing functions, reduces the operator's fatigue. The design of the engine compartment is conducive to maintenance, with components easily accessible. Coupled with Komatsu's comprehensive after - sales service, the trouble - free operation of the equipment is ensured.

High Cost - effectiveness, an Optimal Investment Choice


As a second - hand device, it has an affordable price while maintaining excellent performance. Its efficient operation saves time costs, and the low failure rate and convenient maintenance reduce long - term investment. The return on investment is high. Whether it's for small construction teams to expand their business or large enterprises to enrich their equipment lineup, it is a wise choice.


If you are looking for a second - hand excavator that combines performance and cost - effectiveness, the Komatsu PC200 - 8 is not to be missed. Welcome to contact us to schedule a machine - viewing and test - drive to experience its charm and power firsthand.


Operating weight of the whole machine (kg)19,900
Bucket capacity (m³)0.8
Boom length (mm)5,700
Stick length (mm)2,925
Slewing speed (rpm)12.4
Travel speed (Km/h)3.0/4.1/5.5
Gradeability (%)70/35°
Ground contact pressure (Kpa)44.1
Bucket digging force (kN)149
Stick digging force (kN)108
Engine modelKomatsu SAA4D107E - 1
Rated power (Kw/rpm)110/2,000
Displacement (L)6.69
Cooling methodWater - cooled
Maximum flow rate of main pump (L/min)439

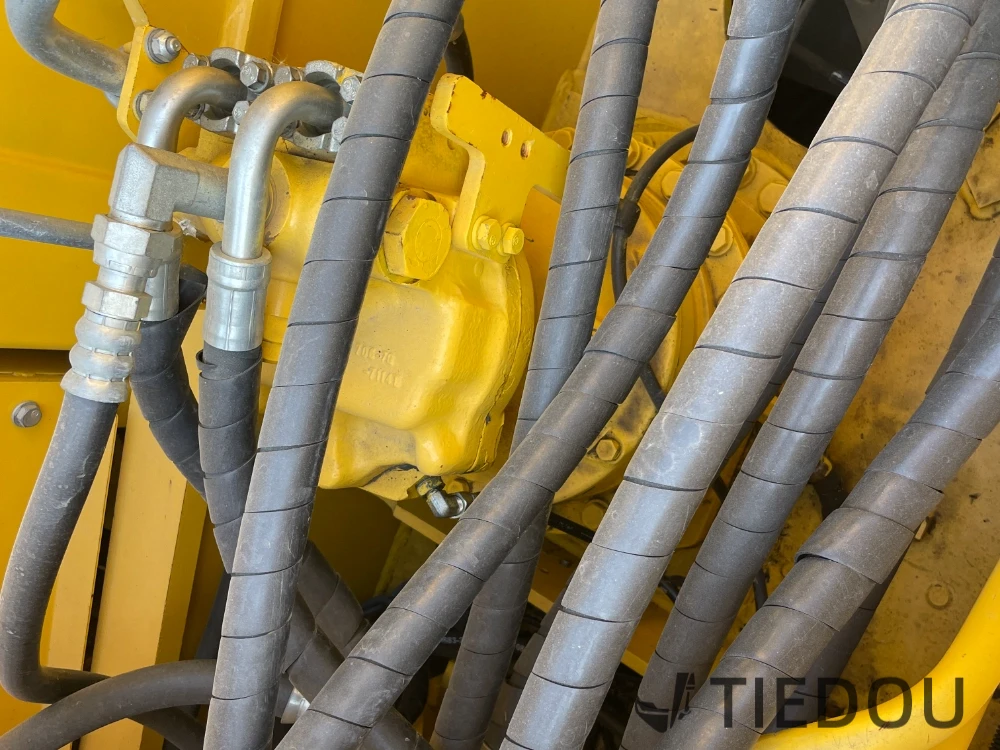

Type of travel hydraulic motorAxial piston motor × 2 (with parking brake)
Type of slewing hydraulic motorAxial piston motor × 1 (with slewing holding valve)
Travel hydraulic circuit (Mpa)37.3
Slewing hydraulic circuit (Mpa)28.9
Control hydraulic circuit (Mpa)3.2 pilot oil circuit
Number × Bore × Stroke of boom cylinder (mm)120×1334×85
Number × Bore × Stroke of stick cylinder (mm)135×1490×95
Number × Bore × Stroke of bucket cylinder (mm)115×1120×80
Is the hydraulic breaker pipeline standard equipment?No
Fuel tank (L)400
Hydraulic oil tank (L)135
Engine oil change volume (L)23.1
Coolant (L)20.4
Overall transport length (mm)9,480
Overall transport width (mm)2,800
Overall transport height (mm)3,040
Full height of cab (mm)3,040
Counterweight clearance from the ground (mm)1,085

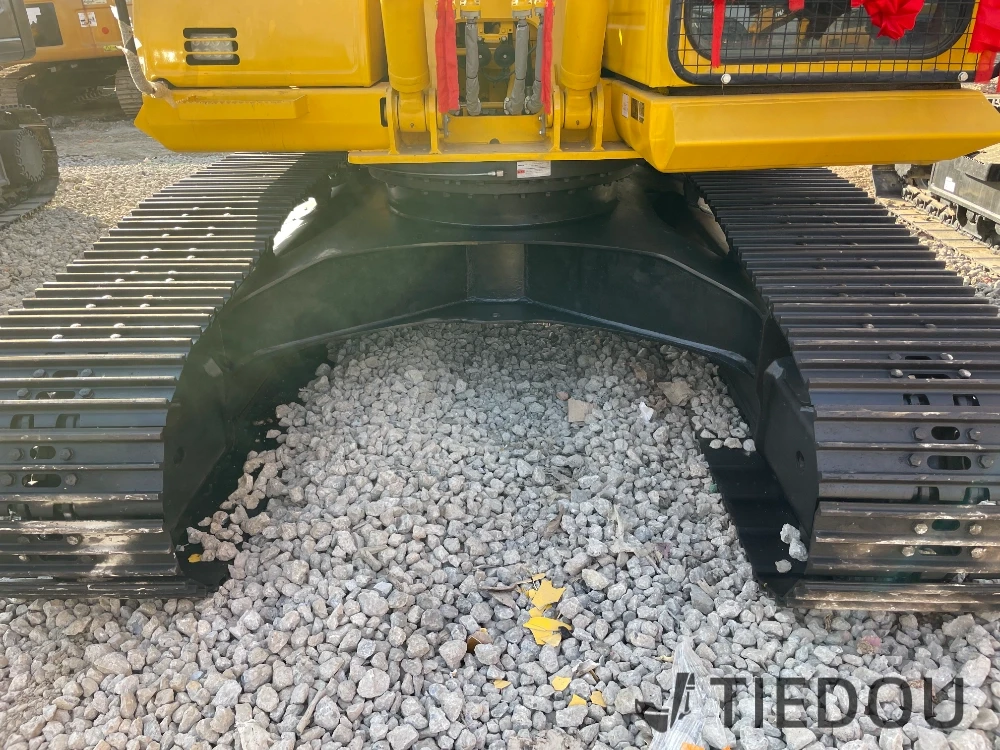

Track ground contact length (mm)3,275
Total length of track (mm)4,070
Track shoe width (mm)600
Overall width of track (mm)2,800
Track gauge (mm)2,200
Minimum ground clearance (mm)440
Rear swing radius (mm)2,710
Maximum digging radius (mm)9,875
Maximum digging radius at ground level (mm)9,700
Maximum digging depth (mm)6,620
Maximum digging height (mm)10,000
Maximum dumping height (mm)7,110
Maximum vertical digging depth (mm)5,980
Maximum digging depth at 2.5m horizontal (mm)6,370
Lifting or pushing depth of dozer blade (mm)No dozer blade
