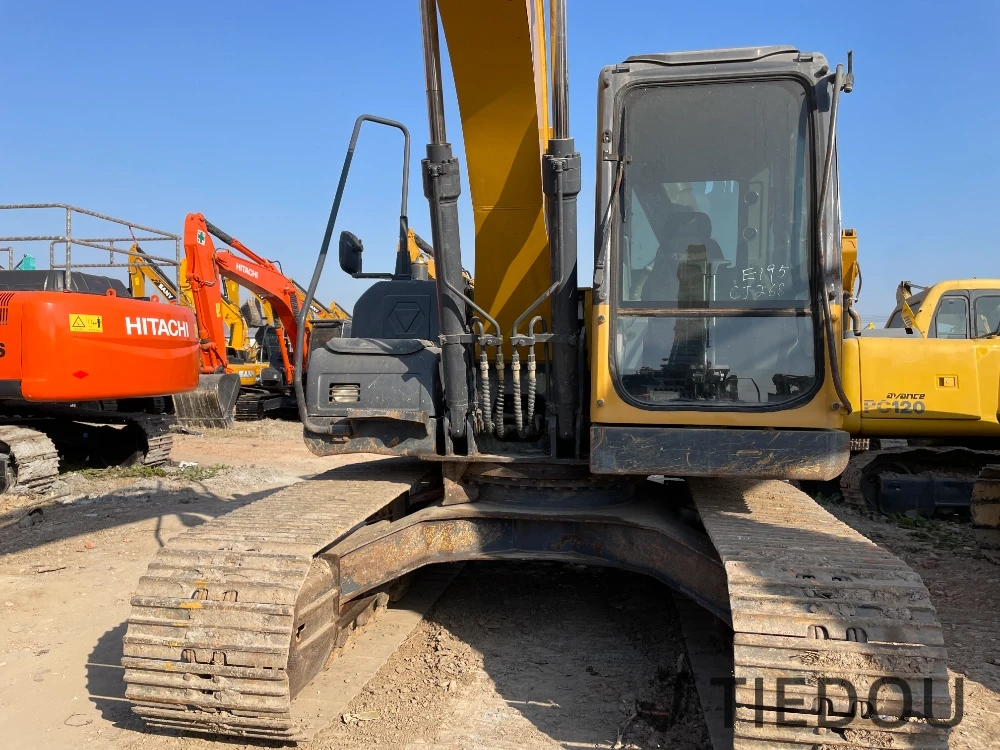

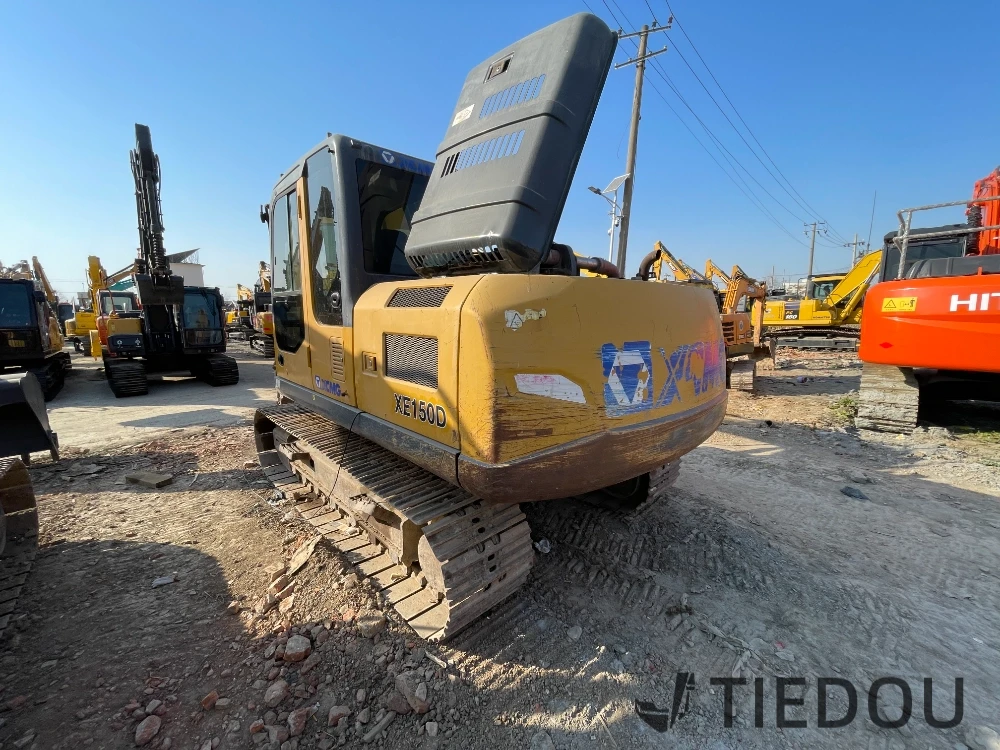

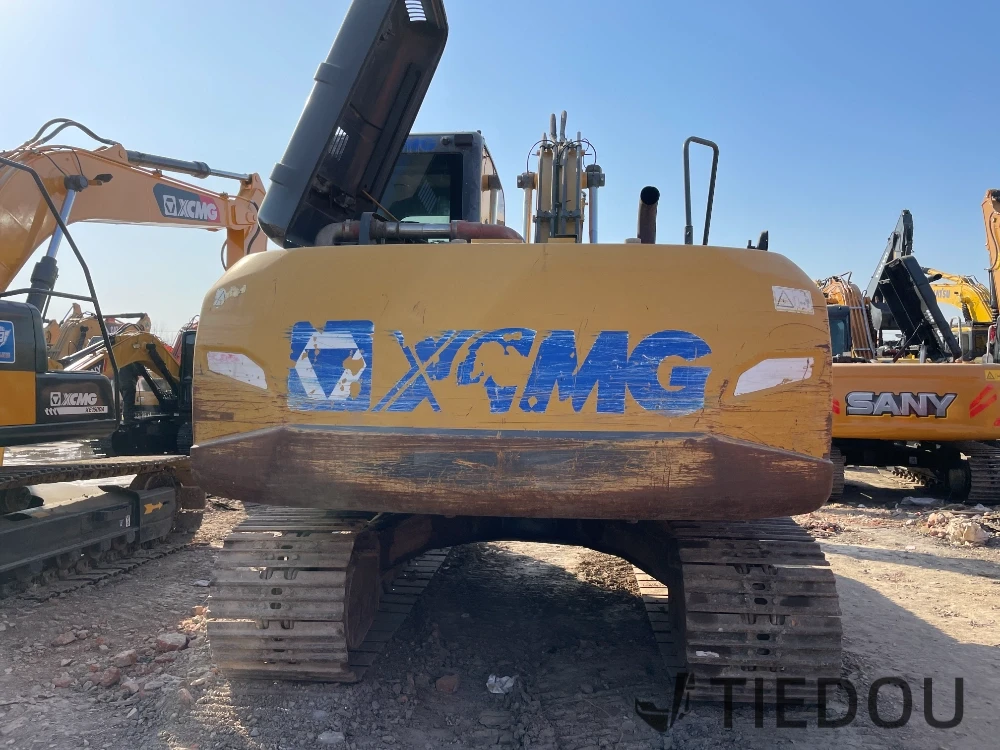

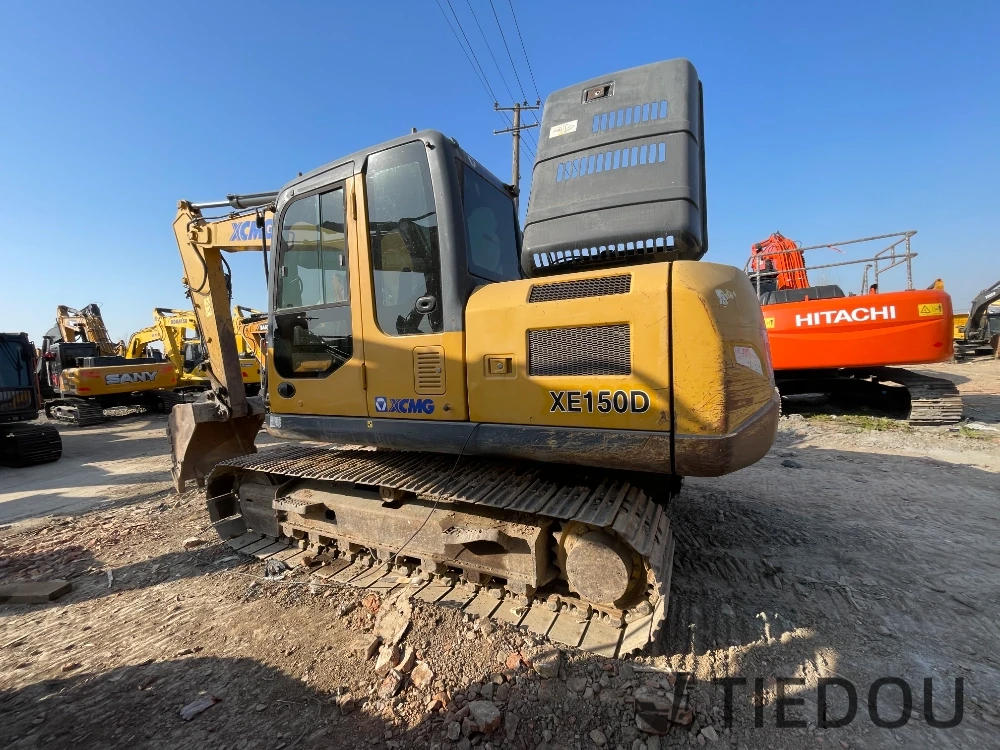

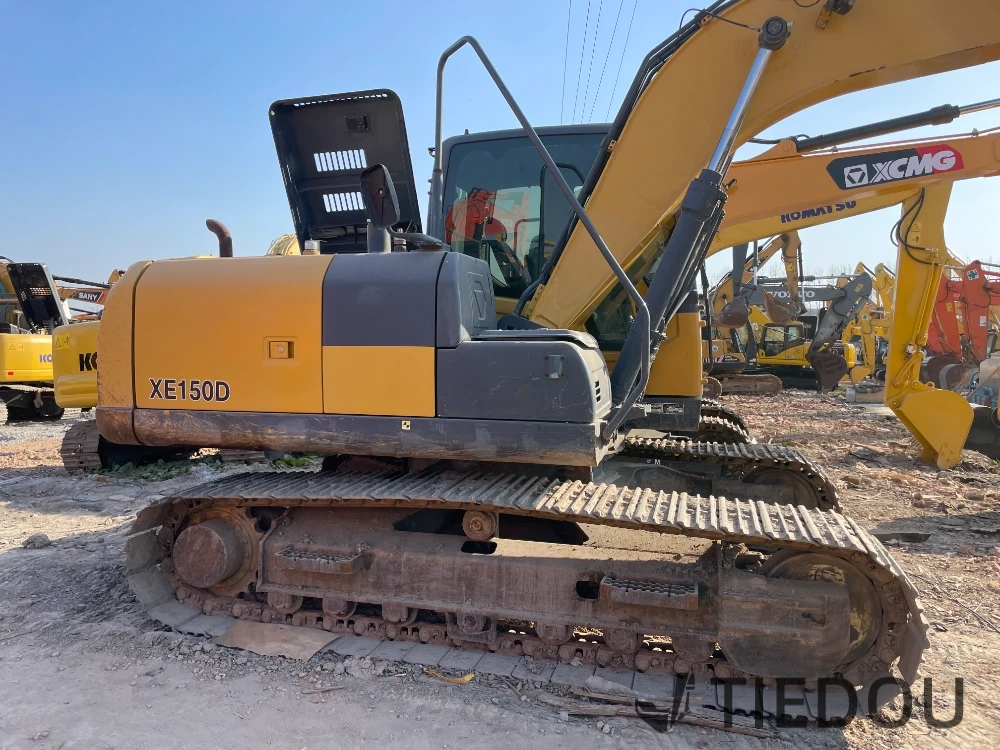

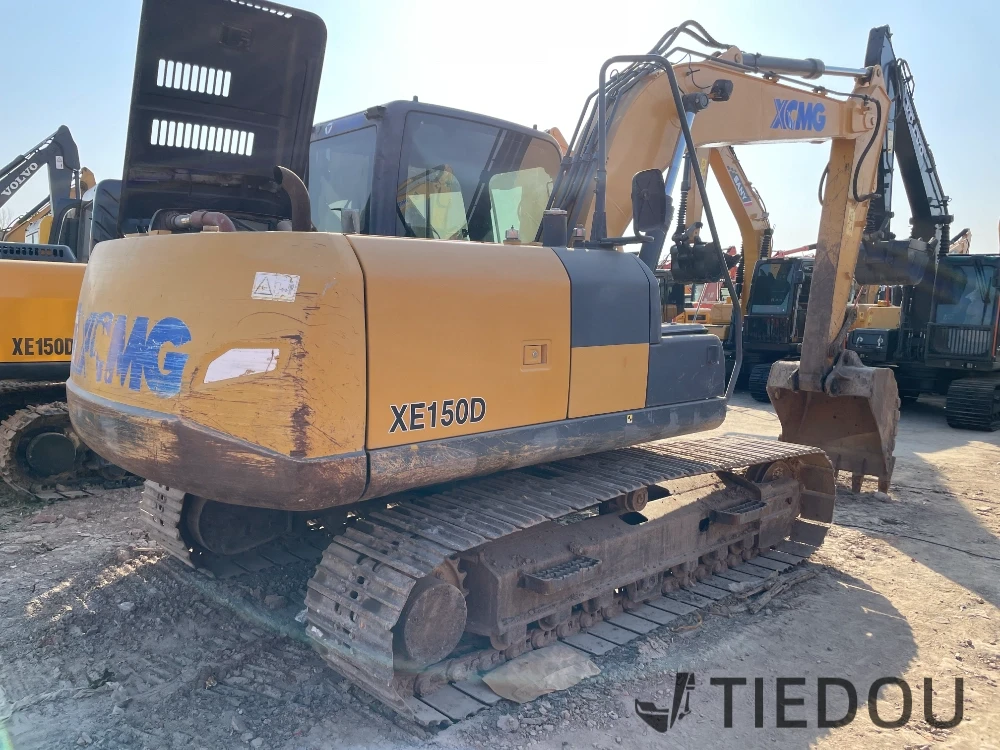

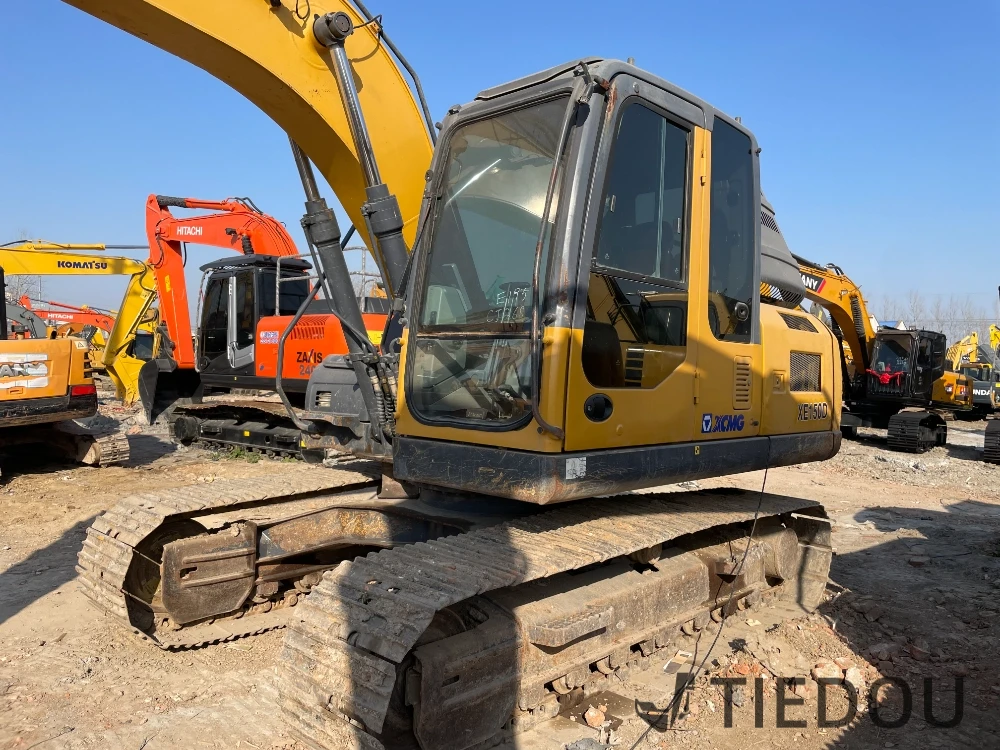

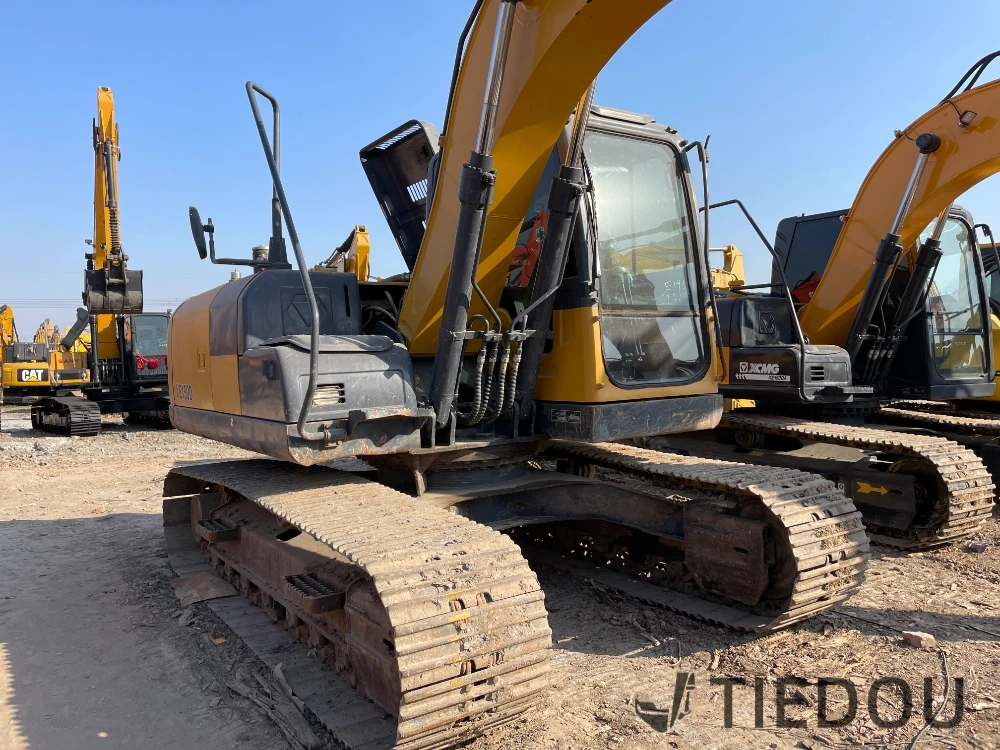

Second - hand XCMG XE150D Excavator: A High - cost - performance Construction Tool

Still worried about finding a reliable and affordable second - hand excavator? This XCMG XE150D is definitely your top choice!

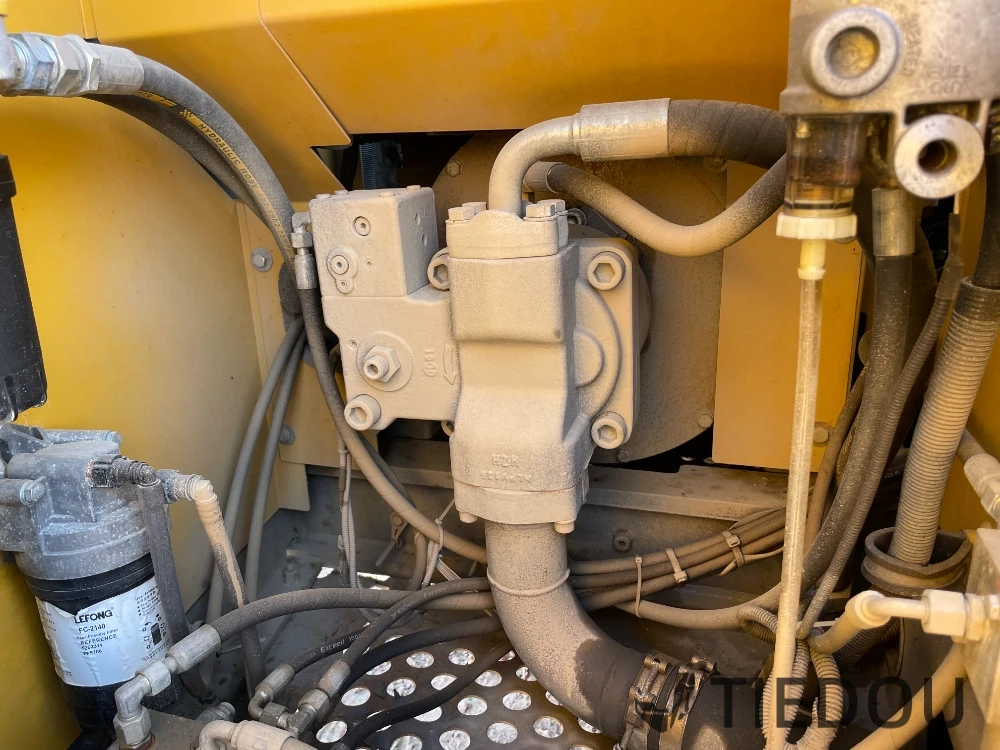

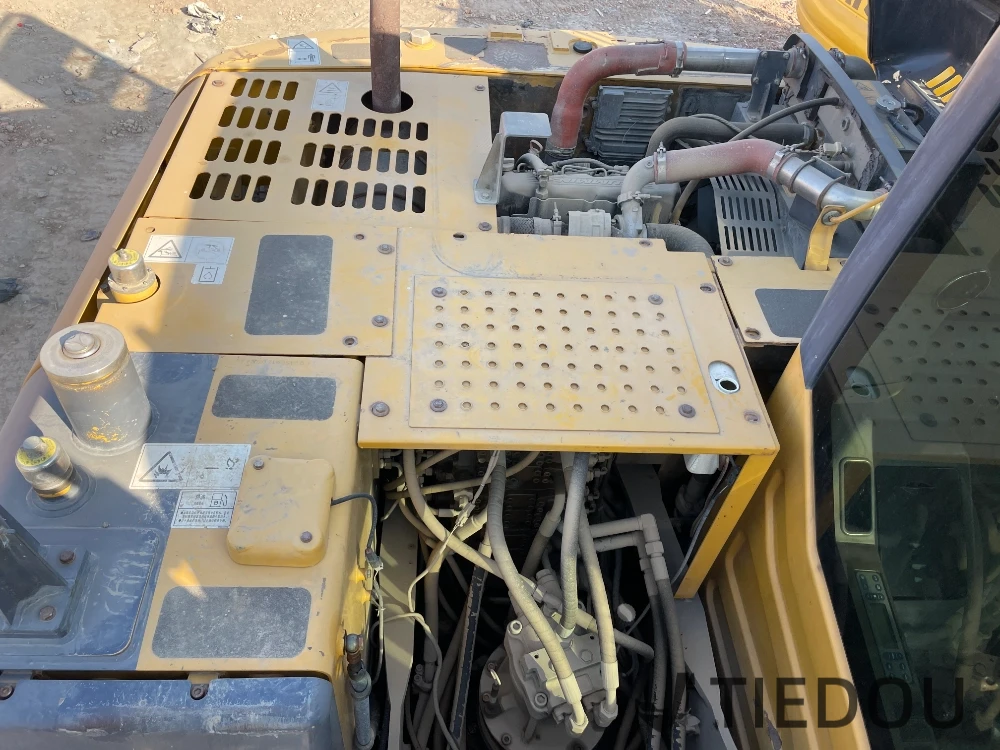

It is equipped with a Cummins B5.9 - C turbocharged diesel engine, delivering a powerful 93kW of power at a speed of 2000rpm. It can easily handle various complex working conditions. The load - sensing hydraulic system, combined with the variable - displacement axial piston pump, has a main pump flow of 2x130L/min and a maximum working pressure of 34.3MPa, ensuring rapid action response and high - efficiency operation.
In terms of digging capabilities, with a bucket capacity of 0.6 - 0.8m³, a maximum digging depth of 5980mm, and a maximum digging radius of 8620mm, it can handle both deep foundation digging and large - scale operations with ease. The travel speed is 5.5km/h, the gradeability is 35° (70%), and the slewing speed is 12.5rpm, enabling flexible operation on different terrains.
The total machine weight is approximately 14800kg, the transport length is 8620mm, the transport width is 2800mm, and the transport height is 2900mm, making it convenient for site transfer. With meticulous daily maintenance, the equipment is in good condition, and its core components are stable in performance with no major overhaul records. It can be put into use immediately after purchase.
If you are looking for a reliable assistant for your construction projects, this second - hand XCMG XE150D excavator offers extremely high cost - performance. Feel free to contact us for an on - site inspection at any time!


Item

Parameter

Model

XCMG XE150D

Machine Weight

Approx. 14,800 kg

Engine Model

Cummins B5.9 - C

Engine Type

Turbocharged, water - cooled, direct - injection diesel engine

Rated Power

93 kW (125 hp) @ 2,000 rpm

Displacement

5.9 L

Number of Cylinders

4

Fuel Tank Capacity

280 L

Hydraulic System

Load - sensing hydraulic system

Main Pump Type

Variable - displacement axial piston pump

Main Pump Flow

2 x 130 L/min

Maximum Working Pressure

34.3 MPa

Travel Speed

5.5 km/h

Gradeability

35° (70%)

Slewing Speed

12.5 rpm

Ground Contact Pressure

0.45 kg/cm²

Bucket Capacity

0.6 - 0.8 m³

Maximum Digging Depth

5,980 mm

Maximum Digging Radius

8,620 mm

Maximum Digging Height

8,740 mm

Maximum Dumping Height

6,240 mm

Tail Swing Radius

2,300 mm

Track Length

3,800 mm

Track Width

500 mm

Track Gauge

1,980 mm

Transport Length

8,620 mm

Transport Width

2,800 mm

Transport Height

2,900 mm

Noise Level

Complies with EU Stage IIIA / US Tier 3

Emission Standard

Complies with EU Stage IIIA / US Tier 3


Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
