| Parameter | Value |
|---|---|

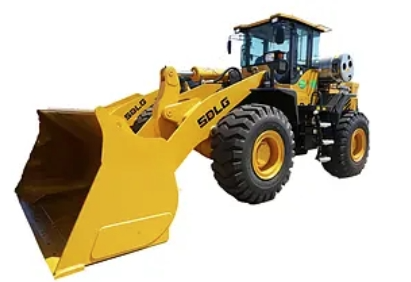

| SDLG L956-LNG loader parameter configuration | (kg) 5000 |
| Machine operating weight | (kg) 17800 |
| Bucket capacity | (m³)2.8 (2.7-4.5) |
| Maximum - unloading height | (mm) 3180 |
| Unloading distance | (mm) 1090 |
| Digging force | (breakout force) (kN) 180 |
| Engine model | WP10G220E33NG |
| Rated power | (kw/rpm)162 / 2200 |
| Maximum torque | (N.m)1060/1400 |
| Exhaust volume | (L)9.726 |
| Hydraulic oil tank | (L) 265 |
| Engine oil | (L) 20 |
| Maximum speed | (km/h)38 |
| Driving speed 1st gear | (km/h) 0-13 |
| Driving speed 2nd gear | (km/h) 0-38 |
| Turning radius-outside of bucket | (mm) 6710 |
| Maximum traction force | (kN) 160 |
| Overall machine length | (mm) 8450 |
| Overall machine width | (mm) 3024 |
| Overall machine height | (mm) 3382 |
| Minimum ground clearance | (mm) 457 |
| Wheelbase | (mm) 3200 |
| Wheelbase | (mm)2190 |
