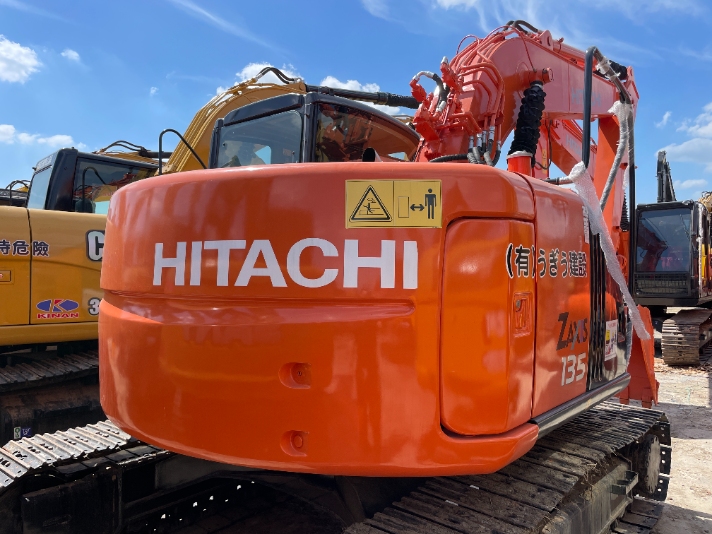

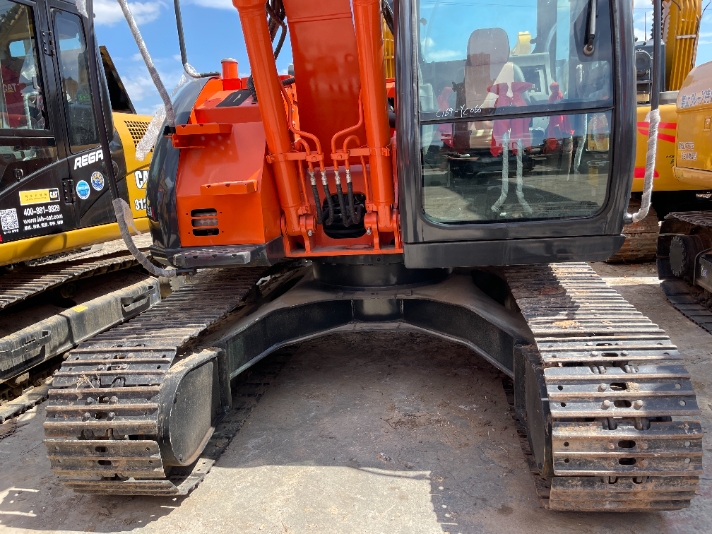

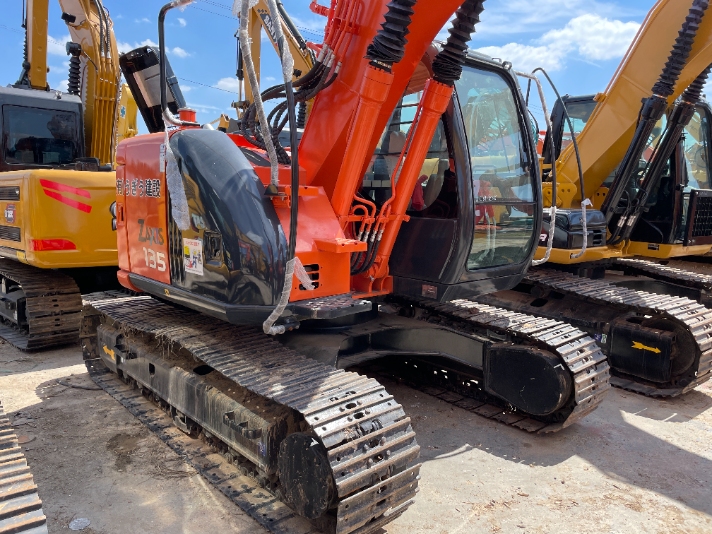

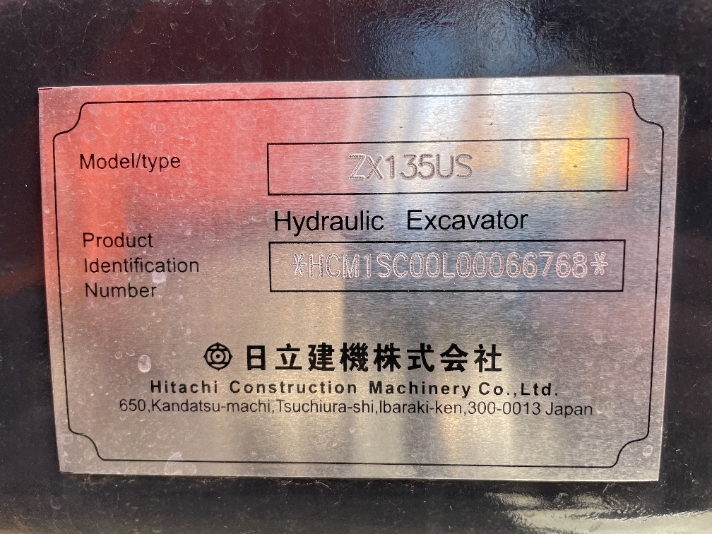

  This is an original Hitachi ZX135 short-tail series excavator from Japan

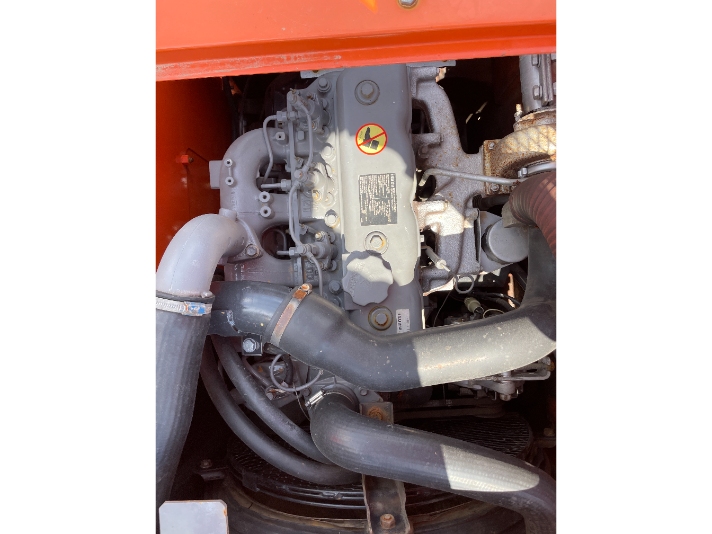

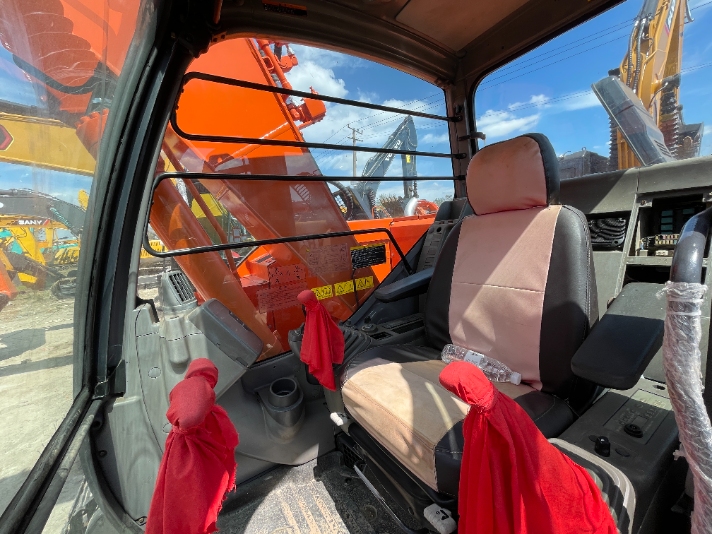

  Passed Tiedou test standard (21 items) Recommended for use in urban infrastructure and small areas. Equipped with Isuzu engine, excellent reliability and practicality. This model can currently be used with various conventional accessories. Provide core parts warranty. Light use, slight wear inside the cab, normal equipment noise, normal temperature, normal engine maximum power output, normal hydraulic pump pressure. Replace two hydraulic oil pipes and one seal.

Parameter

Details

Brand

Hitachi

Model

ZX135

Operating Weight

14,000 kg

Bucket Capacity

0.5 - 0.66 m³

Engine Displacement

4.3 L

Engine Model

Isuzu CC-4BG1T

Engine Power

69.2 kW (92.8 HP)

Rated Speed

2,100 rpm

Number of Cylinders

4 cylinders

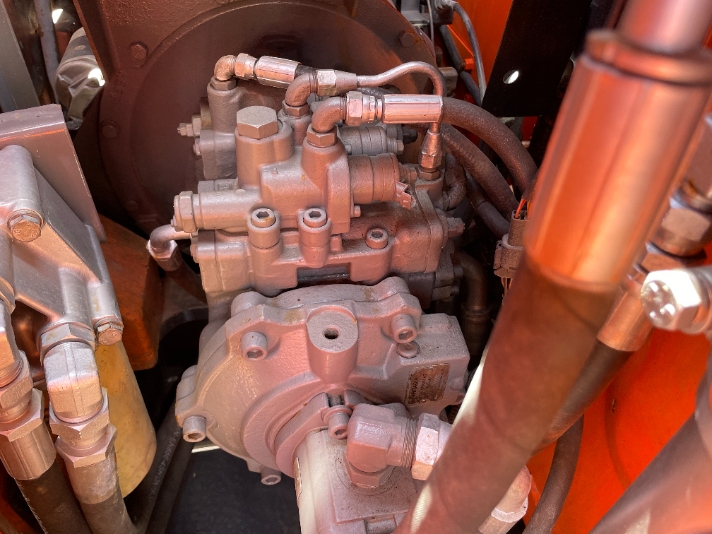

Hydraulic Pump Brand

Hitachi proprietary hydraulic system

Hydraulic Pump Model

Variable axial piston pump

Hydraulic Pump Flow

2 x 112 L/min

Dimensions (L × W × H)

7,470 mm × 2,490 mm × 2,820 mm

Boom Length

4,600 mm

Arm Length

2,500 mm

Maximum Digging Height

8,930 mm

Maximum Digging Depth

5,500 mm

Maximum Digging Radius

8,420 mm

Travel Speed (High/Low)

5.5 km/h / 3.3 km/h

Fuel Tank Capacity

270 L

Hydraulic Tank Capacity

130 L

Average Fuel Consumption

10 - 12 L/hour

Maintenance Cycle

Every 500 hours (main components)

Release Time

Around 2000

Air Conditioning

Equipped with heating and cooling air conditioning

Reference Price (USD)

90,000 - 120,000 USD

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
