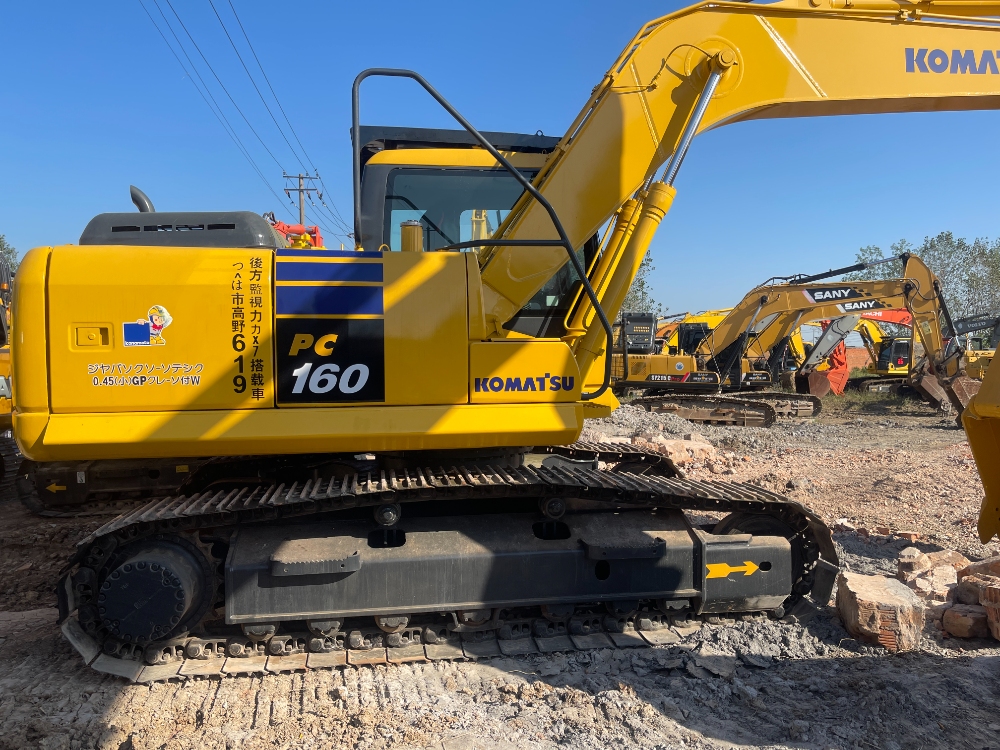

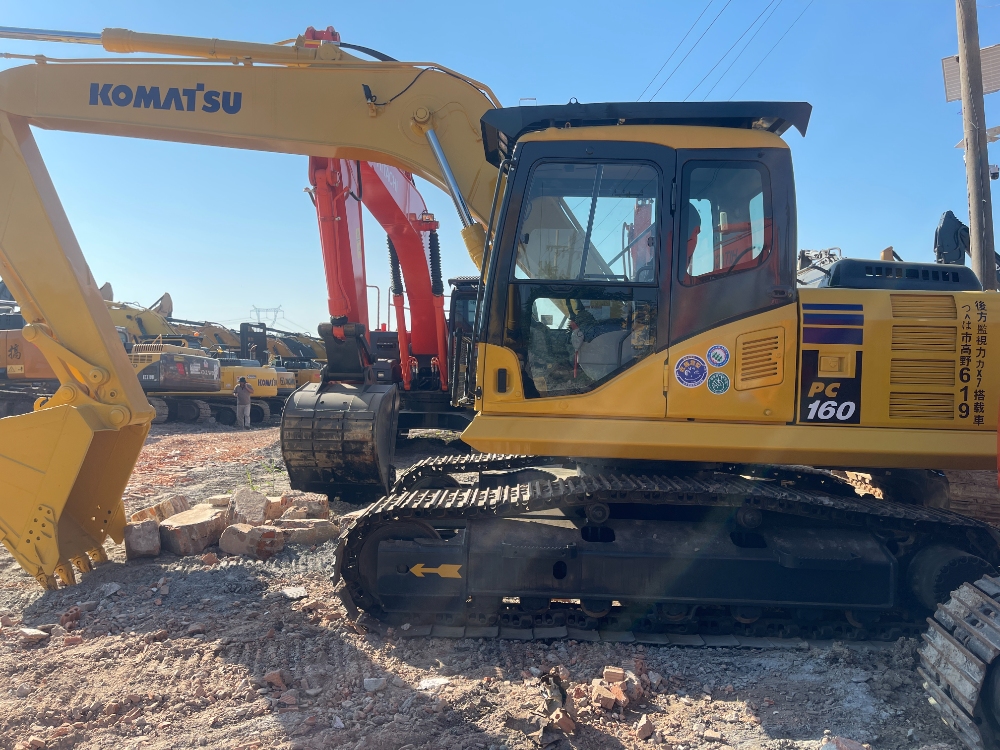

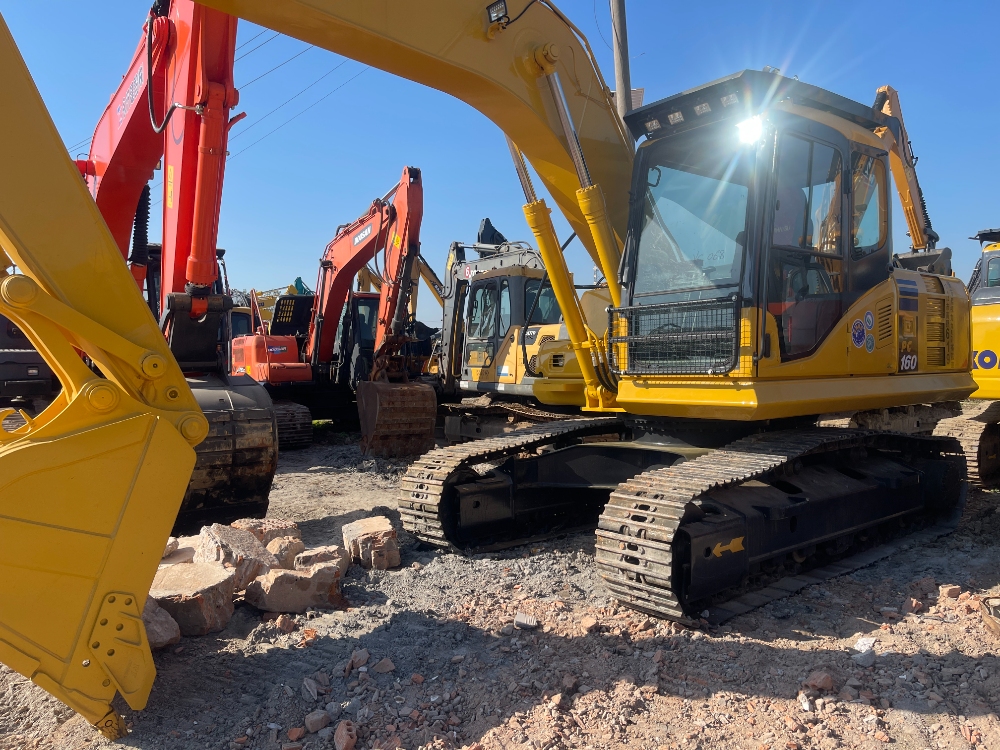

  Komatsu PC160-7 used excavator No. 24928-0

  Komatsu PC160-7 is a four-cylinder SAA4D102E-2 engine with a power of 90.4Kw. It is recommended to be equipped with a 0.5-0.8m³ bucket. This model has good market feedback, reliable working performance and cheap maintenance costs. It is very practical for early users to buy. The reference price in the Tiedou second-hand excavator market is 25.000-35.000 US dollars. It has excellent working performance for urban construction and small engineering projects.


  Passed Tiedou performance test (category 21)

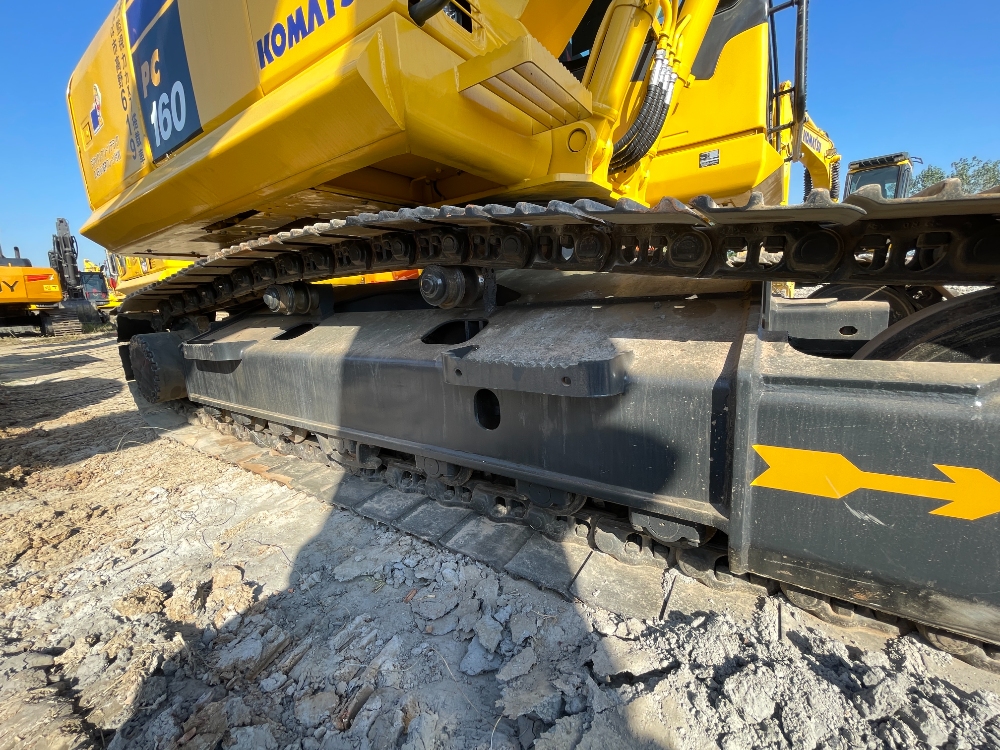

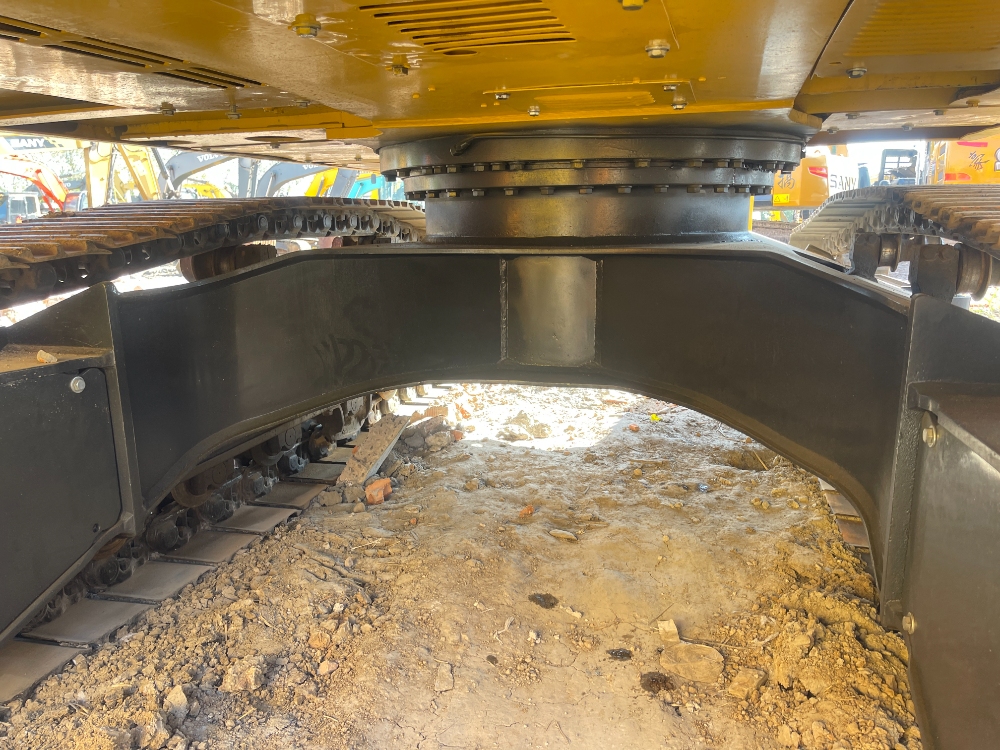

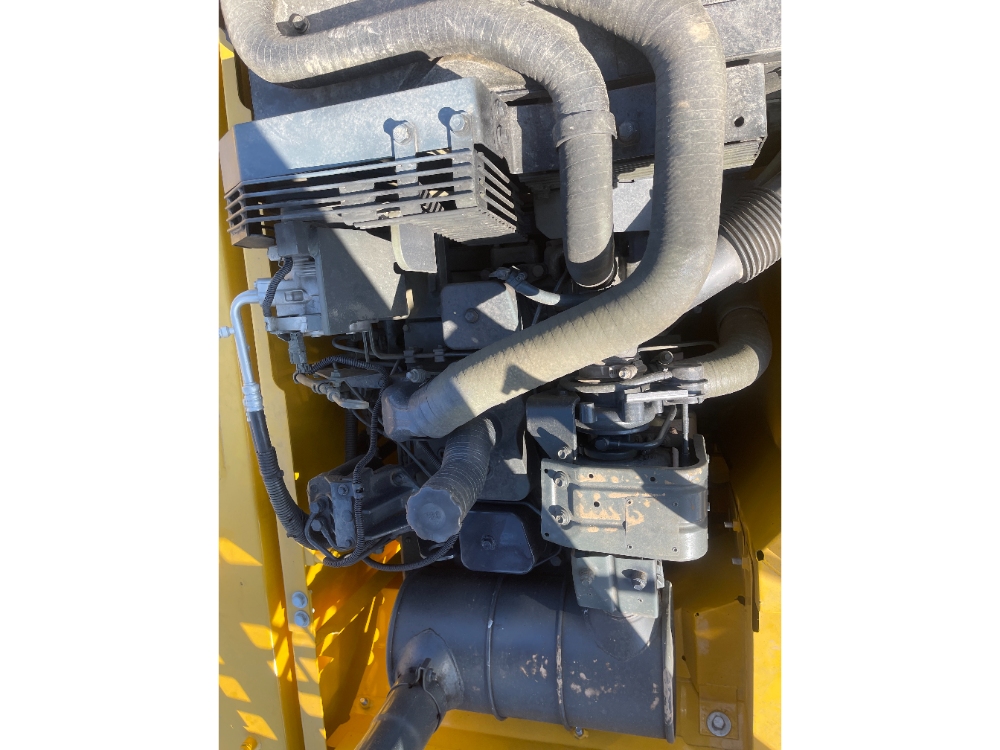

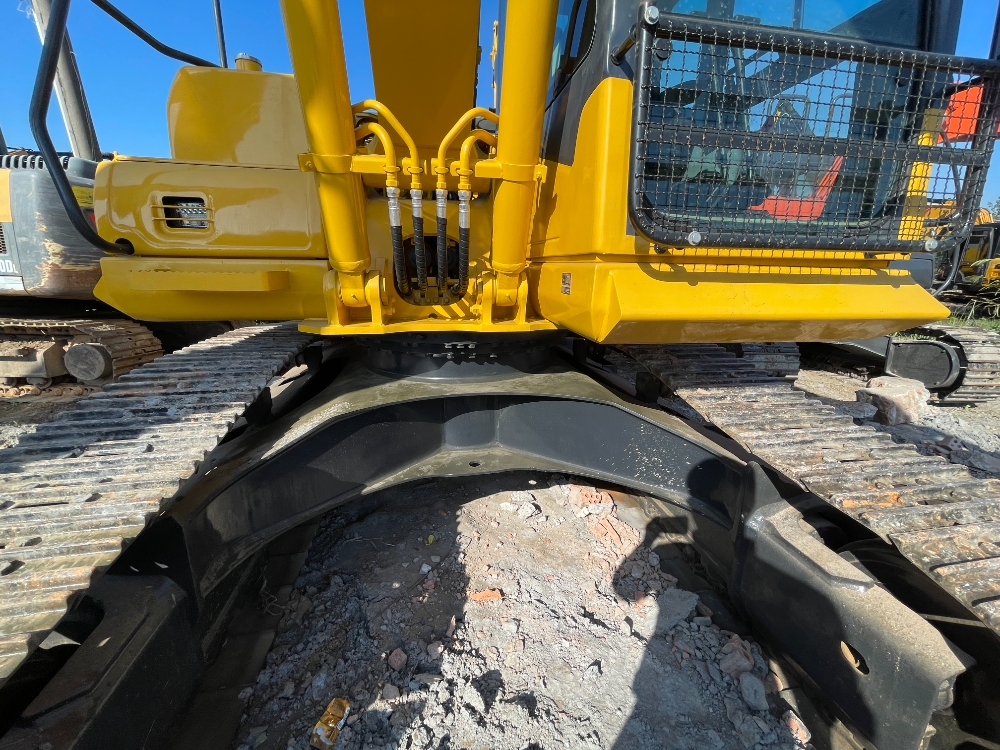

  This model has been launched on the market for many years, and it is still very popular in the second-hand market. The test mainly focuses on the stability of engine power output, working temperature and smoothness of movement. The hydraulic system still maintains a very stable output. The inspection of walking, chassis, wearing parts, etc. meets the requirements of use.


Parameter

Komatsu PC160-7

Operating Weight

16,320 kg

Bucket Capacity

0.5 - 0.8 m³

Boom Length

5.15 m

Arm Length

2.6 m

Manufacturer

Komatsu

Swing Speed

12.5 rpm

Travel Speed

High: 5.5 km/h; Low: 3.0 km/h

Gradeability

35°

Ground Pressure

39.1 kPa

Bucket Digging Force

115 kN

Arm Digging Force

85 kN

Engine Model

Komatsu SAA4D102E-2

Engine Power

90.4 kW (121 HP) @ 2,200 rpm

Displacement

3.92 L

Number of Cylinders

4

Bore x Stroke

102 mm × 120 mm

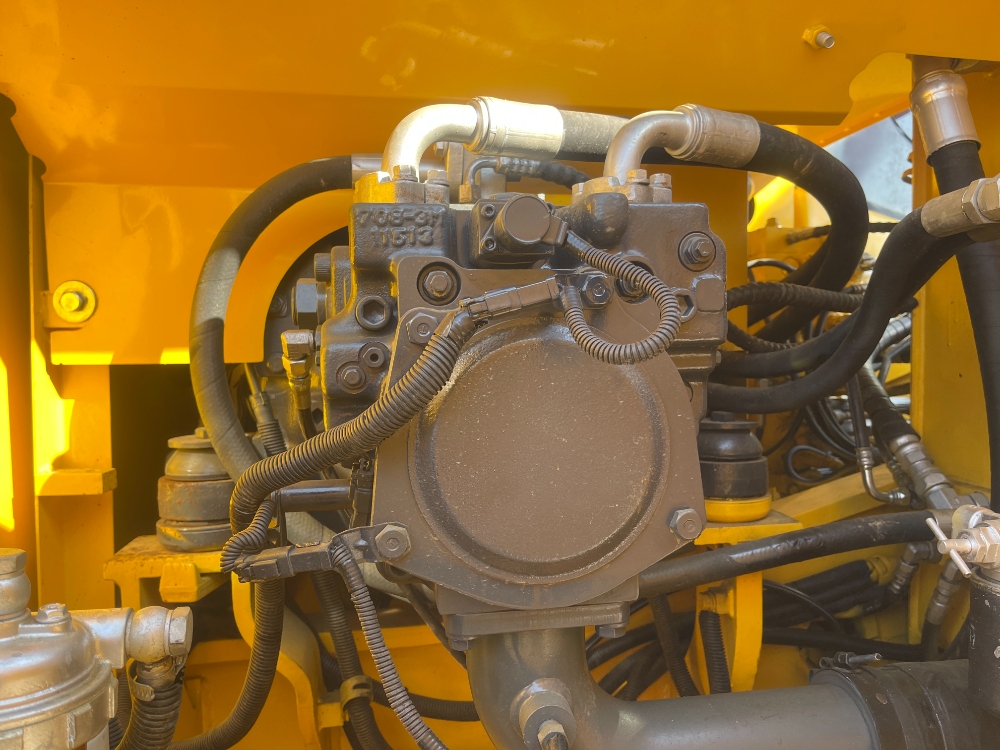

Hydraulic Pump Model

Variable Displacement Piston Pump

Max Hydraulic Flow

2 × 136 L/min

Travel Hydraulic Circuit

34.3 MPa

Control Hydraulic Circuit

4.2 MPa

Fuel Tank Capacity

247 L

Hydraulic Oil Tank Capacity

138 L

Engine Oil Capacity

16 L

Coolant Capacity

20 L

Transport Length

8,605 mm

Transport Width

2,490 mm

Transport Height

2,865 mm

Track Shoe Width

600 mm

Track Length

3,790 mm

Max Digging Radius

8,710 mm

Max Digging Depth

5,520 mm

Max Digging Height

8,970 mm

Max Dumping Height

6,360 mm

Max Vertical Digging Depth

5,020 mm

Fuel Consumption

Approx. 12-15 L/h

Air Conditioning

Standard

Fuel Injection System

Direct Injection Diesel Engine

Maintenance Interval

500 hours

Reference Price (USD)

$120,000 - $160,000

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
