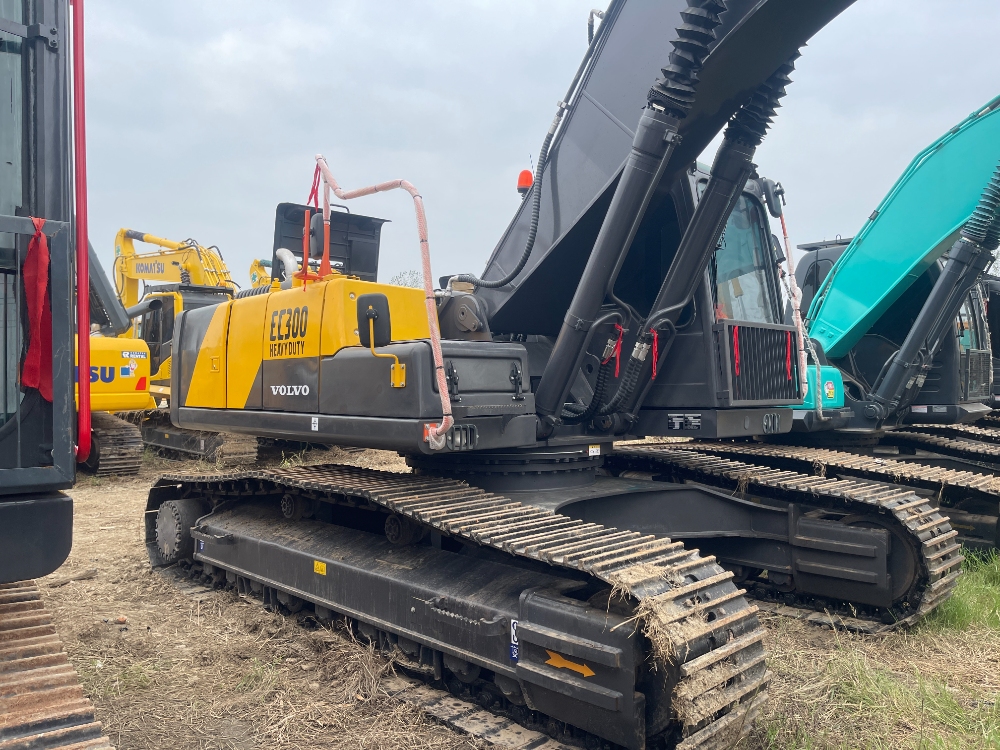

　　Volvo EC290 used excavator No. 24928-1

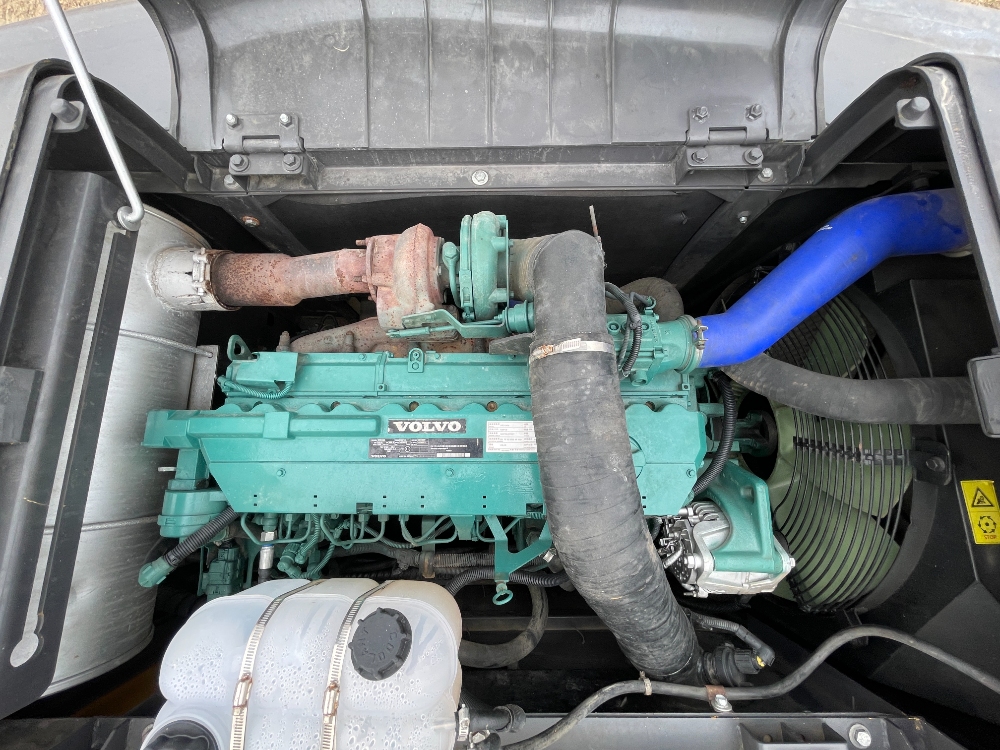

　　Volvo EC290 has strong comprehensive performance and high technical content. In daily use, Volvo EC290 has excellent fuel economy and exceeds most models in working speed. It is equipped with a 147Kw 6-cylinder D7E engine. This model is very suitable for medium and large projects. The current reference price of Tiedou second-hand excavator is: 30.000-50.000 US dollars. You only need to spend a little money to own a long-life, reliable large excavator equipment. This model is highly recommended for individuals and enterprises.


　　Passed Tiedou's 21 performance tests


　　For Volvo's test, we focus on the speed and working capacity of the model's greatest strengths. The manual test of this model in the simulated construction site combined action connection, as well as the connection efficiency between excavation and loading are satisfactory. The solid ground workmanship can provide a stable foundation for work. Tiedou provides 3-12 different types of warranty services to comprehensively reduce the risk of users purchasing used excavators.


Parameter

Volvo EC290

Operating Weight

29,300 kg

Bucket Capacity

1.0 - 1.75 m³

Boom Length

6.45 m

Arm Length

2.92 m

Manufacturer

Volvo

Swing Speed

10.8 rpm

Travel Speed

High: 5.3 km/h; Low: 3.0 km/h

Gradeability

35°

Ground Pressure

55.1 kPa

Bucket Digging Force

180 kN

Arm Digging Force

150 kN

Engine Model

Volvo D7E

Engine Power

147 kW (200 HP) @ 1,900 rpm

Displacement

7.15 L

Number of Cylinders

6

Bore and Stroke

108 mm × 130 mm

Hydraulic Pump Model

Variable Displacement Pump

Maximum Hydraulic Flow

2 × 240 L/min

Travel Hydraulic Circuit

32.4 MPa

Control Hydraulic Circuit

3.5 MPa

Fuel Tank Capacity

410 L

Hydraulic Oil Tank Capacity

185 L

Engine Oil Change Volume

25 L

Coolant Volume

32 L

Transport Length

10,500 mm

Transport Width

3,190 mm

Transport Height

3,200 mm

Track Shoe Width

600 mm

Track Length

4,460 mm

Maximum Digging Radius

10,350 mm

Maximum Digging Depth

6,900 mm

Maximum Digging Height

9,950 mm

Maximum Dumping Height

6,860 mm

Maximum Vertical Digging Depth

6,400 mm

Fuel Consumption

20 - 23 L/h

Air Conditioning

Standard

Fuel Injection Type

Electronic Direct Injection

Maintenance Interval

500 hours

Reference Price

$160,000 - $200,000

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
