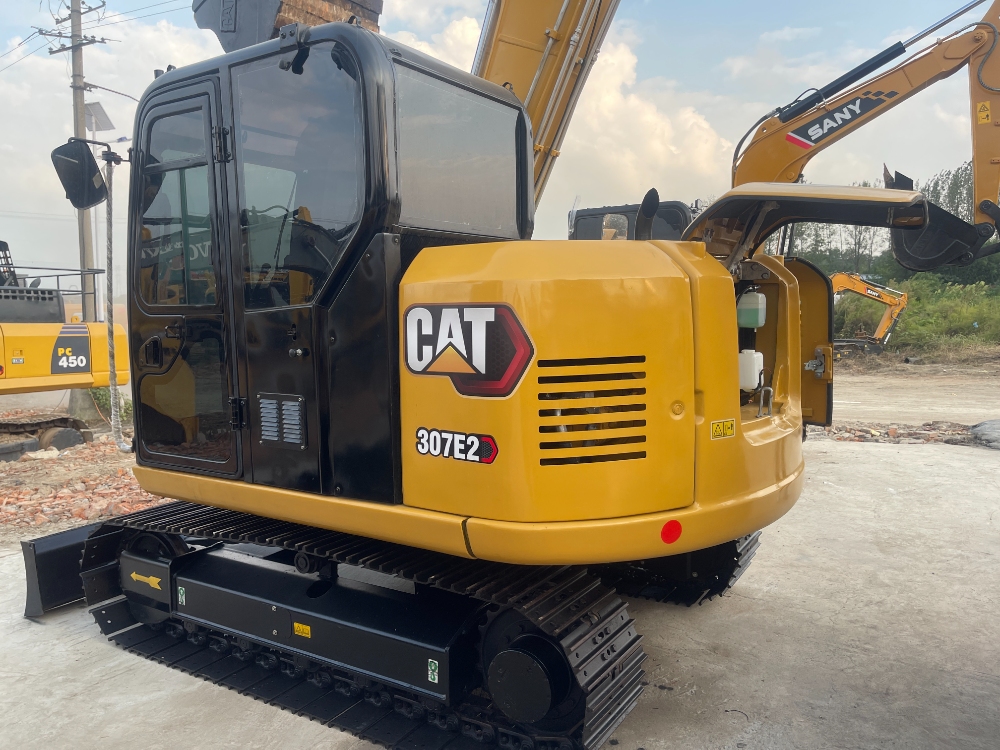

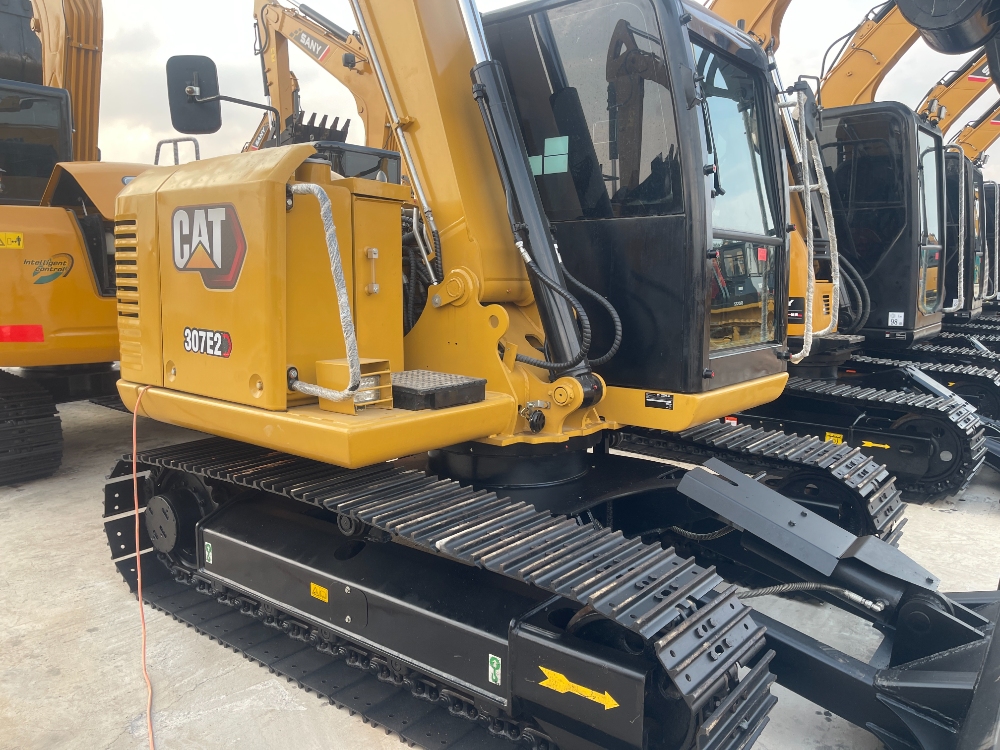

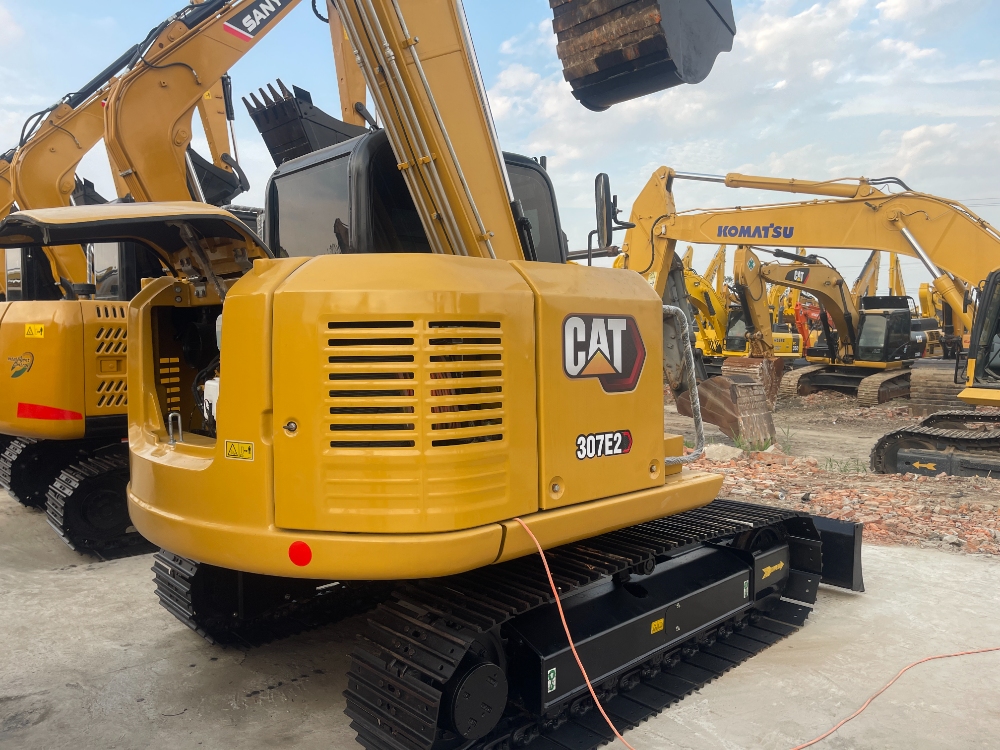

  Caterpillar CAT307E2 used excavator No. 24929-0

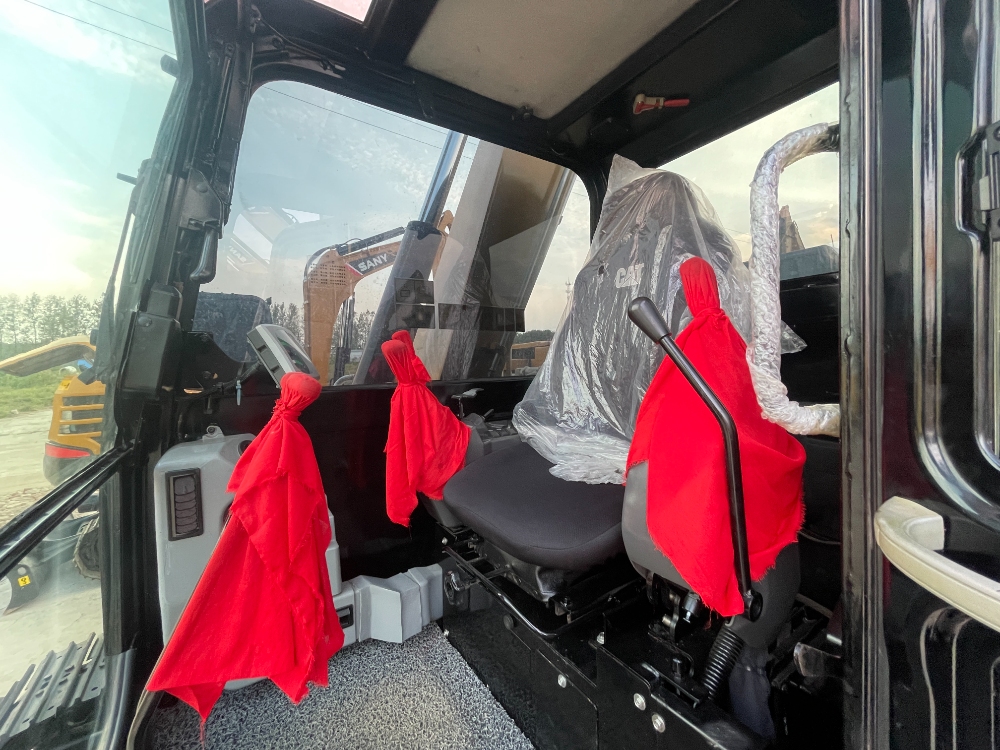

  One of the most competitive and popular products in the Caterpillar series of small excavators, equipped with a C2.4 engine power of 45.7Kw, it is recommended to be equipped with a bucket of 0.28m³. This model has been verified by the market and has high user evaluation. The CAT307E2 small excavator has extremely high speed and work efficiency, low failure rate, and long service life. Although the small excavator cockpit is generally comfortable, the ergonomic design and quietness of the cockpit for small projects can reduce the fatigue of operators working for a long time.


  Passed Tiedou performance test (21 categories)


  The test for CAT307 is relatively strict. In addition to ensuring the work of the small excavator, the wear and penetration of the internal structure of the small excavator are eliminated through manual detection. The maximum power of the engine and the maximum flow of the hydraulic pump are tested by professional equipment to meet the use requirements. The CAT307E2 excavator No. 24929-0 has been in use for a short time, and apart from slight wear and tear, the entire machine has no external damage or bumps.


Item

Specifications

Operating Weight

7,090 kg

Bucket Capacity

0.28 m³

Boom Length

3,730 mm

Stick Length

1,650 mm

Manufacturer

Caterpillar

Swing Speed

10.2 rpm

Travel Speed

5.1 km/h (high) / 2.8 km/h (low)

Gradeability

30°

Ground Pressure

32.4 kPa

Bucket Digging Force

48.3 kN

Stick Digging Force

34.2 kN

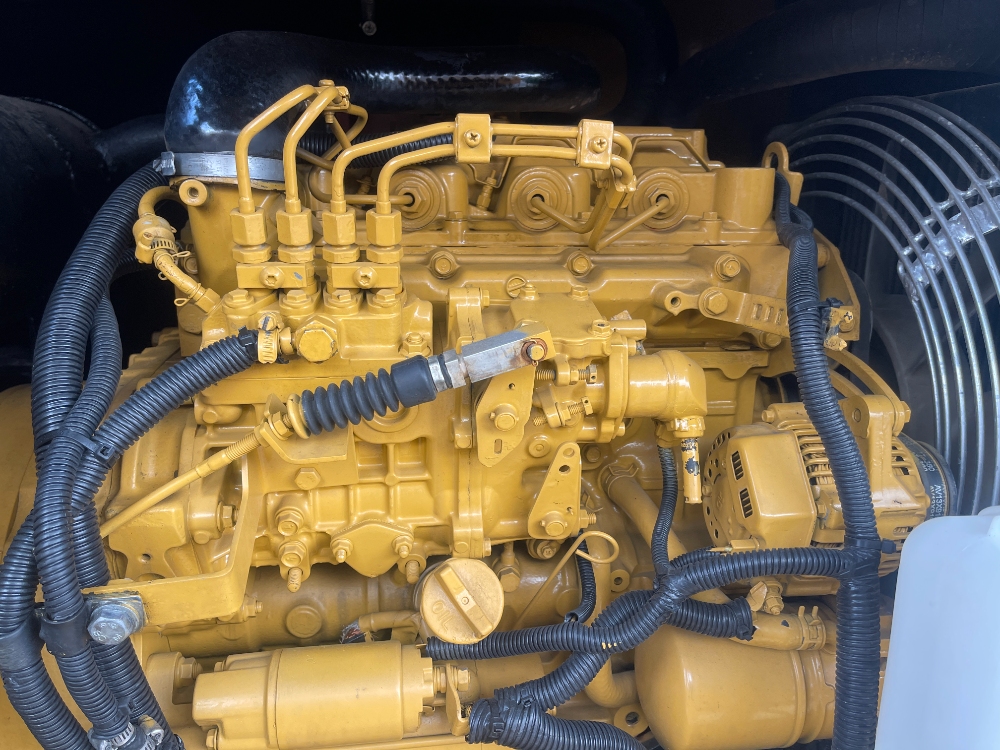

Engine Model

Cat C2.4 Turbo

Engine Power

45.7 kW (61.3 hp)

Displacement

2.4 L

Number of Cylinders

4 cylinders

Bore and Stroke

87 mm x 102 mm

Hydraulic Pump Brand/Model

Caterpillar, Load Sensing Hydraulic System

Maximum Hydraulic Flow

161 L/min

Travel Hydraulic Circuit

42 L/min

Control Hydraulic Circuit

18 L/min

Fuel Tank

120 L

Hydraulic Oil Tank

60 L

Engine Oil Replacement Volume

10.5 L

Coolant Capacity

10.5 L

Transport Length

6,130 mm

Transport Width

2,320 mm

Transport Height

2,550 mm

Track Shoe Width

450 mm

Track Length

2,900 mm

Maximum Digging Radius

6,730 mm

Maximum Digging Depth

4,195 mm

Maximum Digging Height

7,100 mm

Maximum Dumping Height

5,150 mm

Maximum Vertical Digging Depth

3,720 mm

Fuel Consumption

Approx. 8-9 L/h (varies by job condition)

Air Conditioning

Standard

Fuel Injection System

Electronic fuel injection

Maintenance Interval

500 hours

Reference Price

Approx. 600,000 - 700,000 CNY

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
