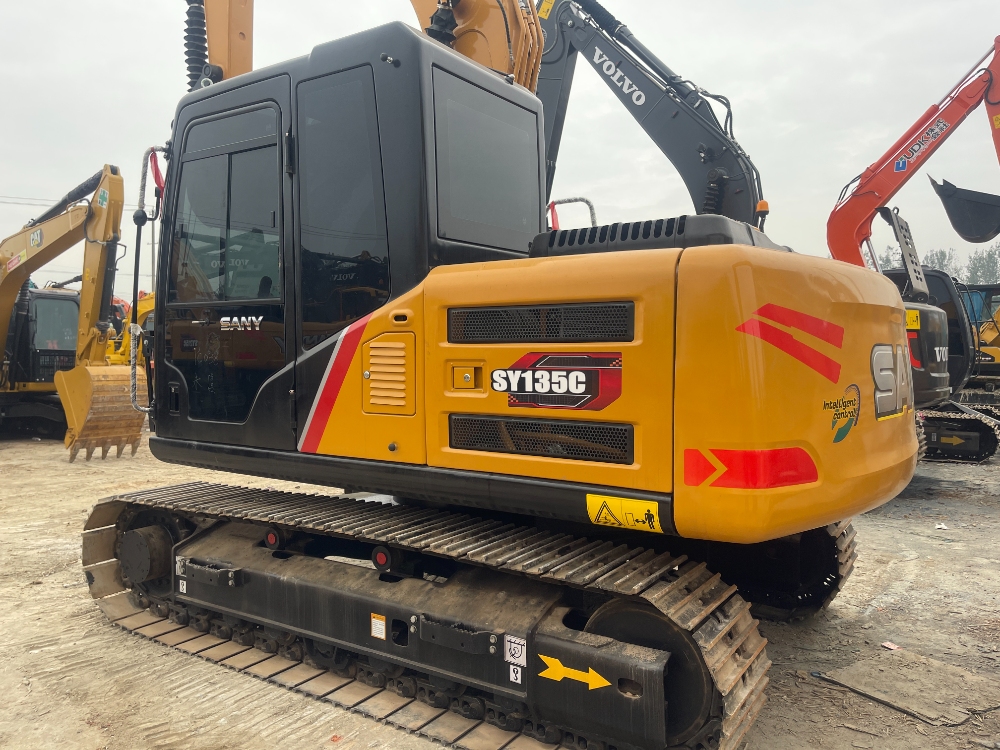

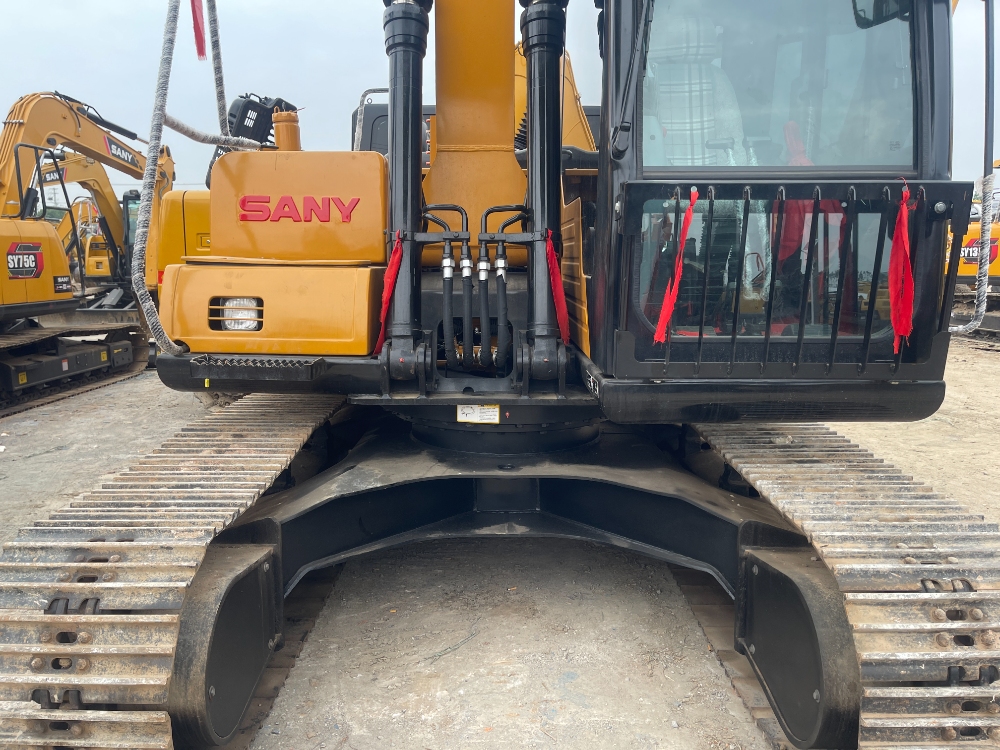

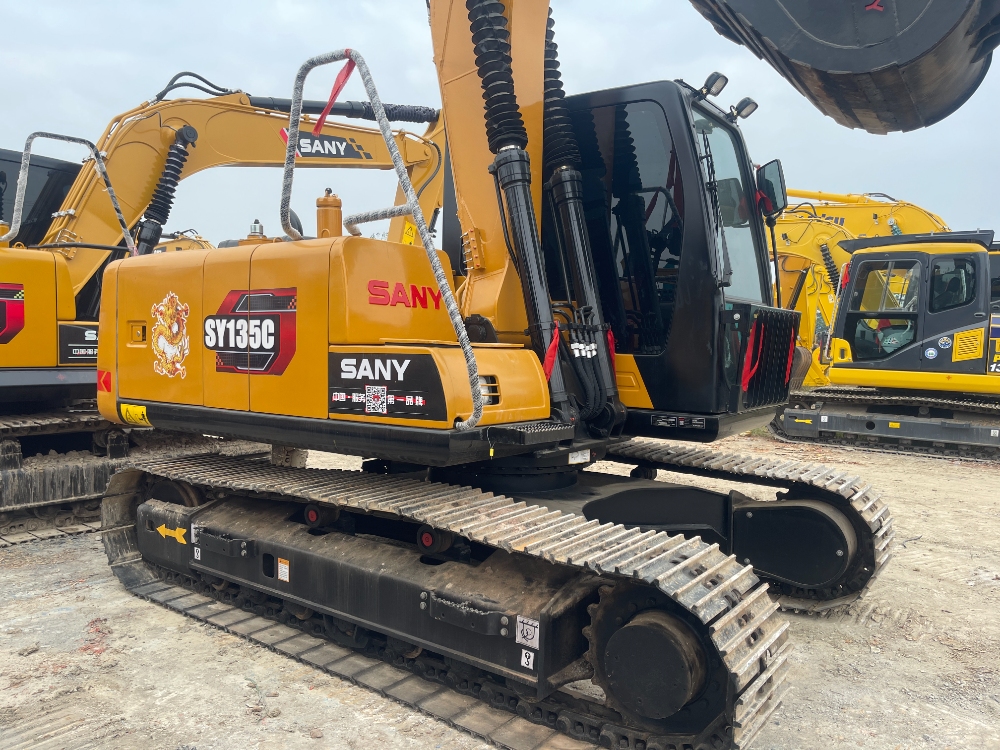

  Sany 135C second-hand excavator No. 24930-1


  Sany SY135C second-hand excavator is a medium-sized equipment with superior performance and high cost performance, suitable for various engineering projects such as earthwork, municipal construction and foundation construction. This model is equipped with an imported Isuzu engine with a power of 72.7kW, strong digging force (bucket digging force 92kN), low fuel consumption and outstanding economy. Its maximum digging depth is 5.5 meters and its digging height is 8.38 meters, which can cope with various complex working conditions. In addition, SY135C second-hand equipment is affordable. The current reference price in the Tiedou second-hand excavator market is $: 20000-40000. which greatly saves the cost of purchasing the machine. With its extensive supply of spare parts and high-quality after-sales service, the Sany brand has made the maintenance cost of this model low and the value retention rate high. For customers who pursue high performance and have a limited budget, SY135C second-hand excavator is a wise choice.


  Passed Tiedou performance test (21 items)

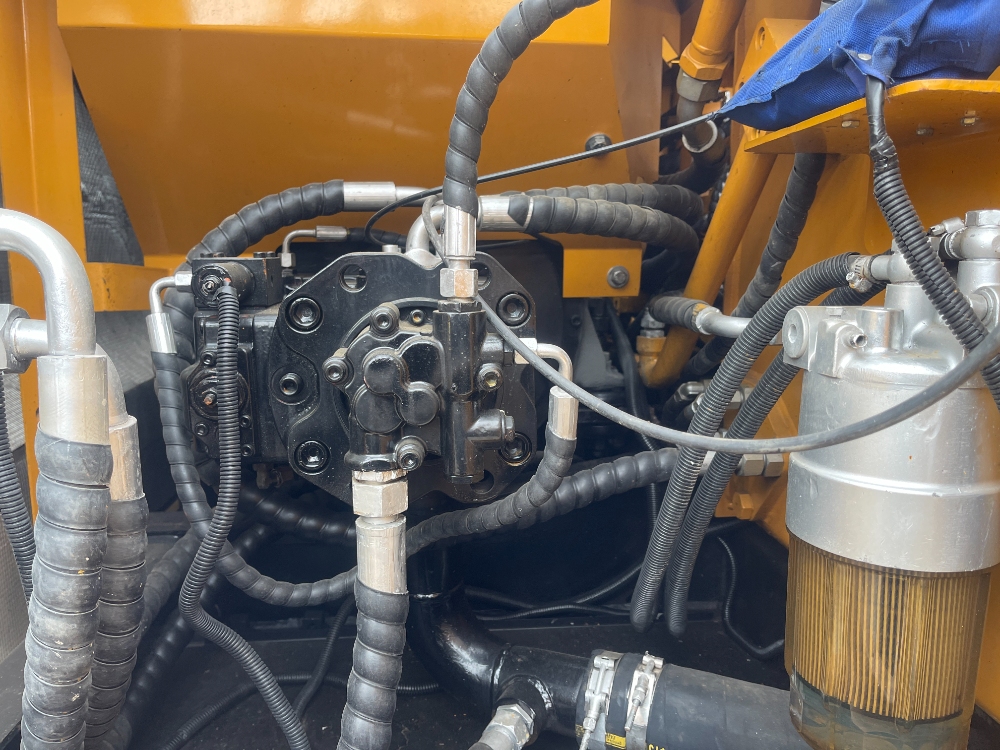

  Test No. 24930-1 Sany 135 first detected the working status of the engine and hydraulic pump and the load pressure test. The excavator structure, vulnerable parts, walking and rotating systems were fully tested manually. The excavator's temperature performance, movement smoothness, noise and emissions met the use requirements through the simulated work of the excavator equipment.


Category

Details

Brand

SANY

Model

SY135C

Operating Weight

13.5 tons

Bucket Capacity

0.6 m³

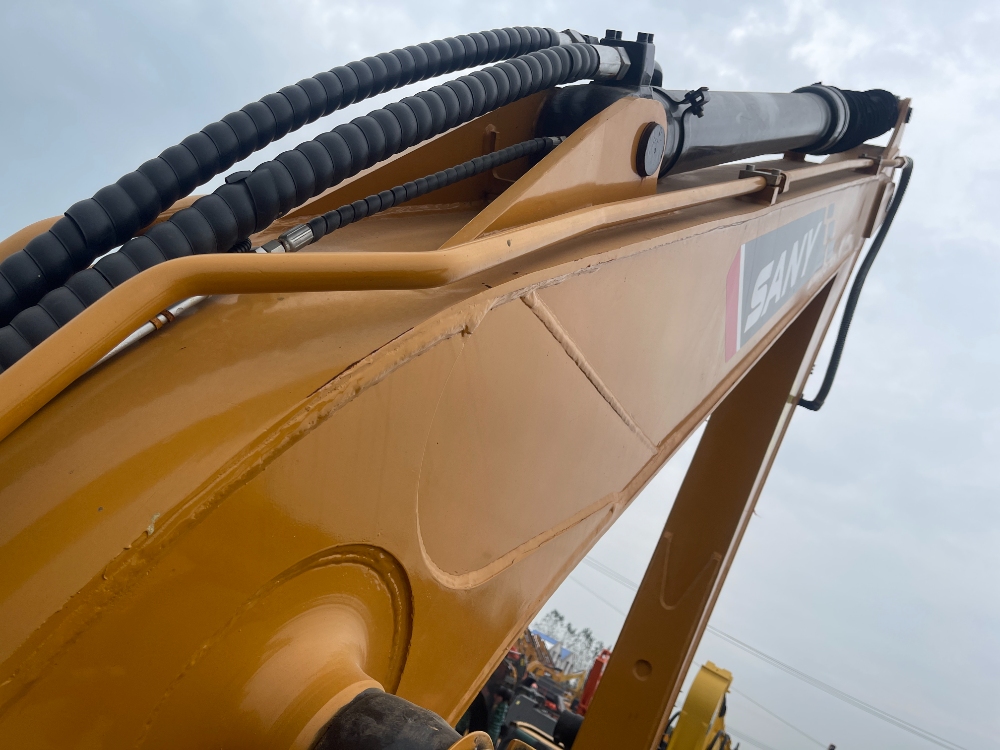

Boom Length

4.6 m

Arm Length

2.5 m

Manufacturer

SANY Heavy Industry

Swing Speed

11 rpm

Travel Speed

5.2-3.5 km/h

Gradeability

35°

Ground Pressure

45 kPa

Bucket Digging Force

92 kN

Arm Digging Force

75 kN

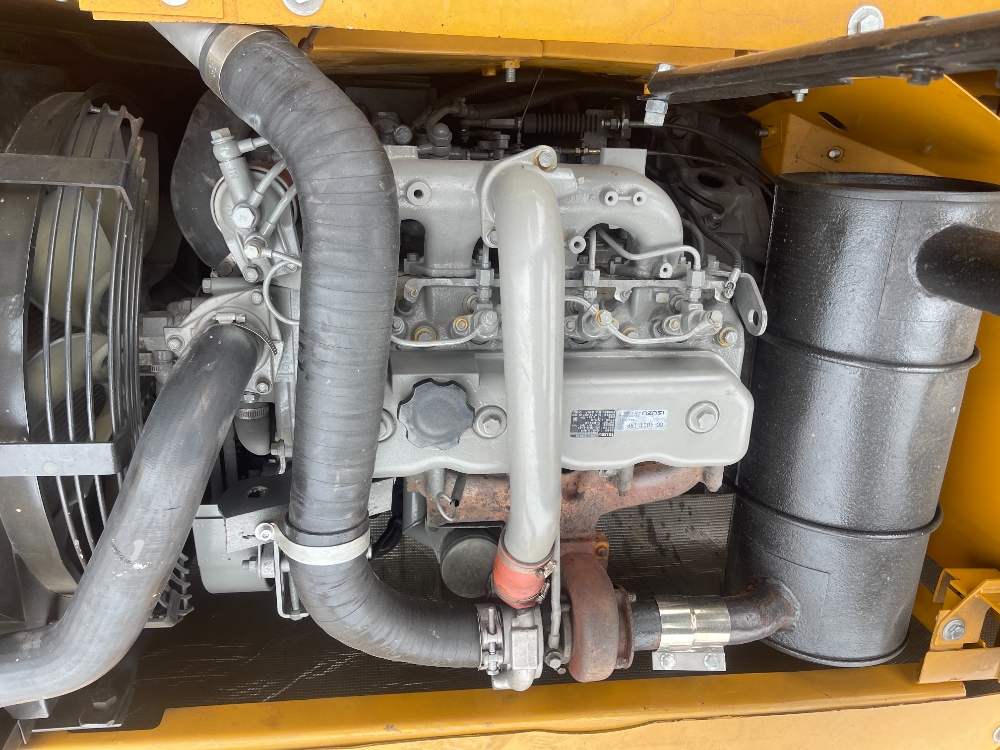

Engine Model

Imported Isuzu 4JJ1X

Engine Power

72.7 kW (99 HP)

Displacement

3.0 liters

Number of Cylinders

4 cylinders

Bore & Stroke

95.4 mm × 104.9 mm

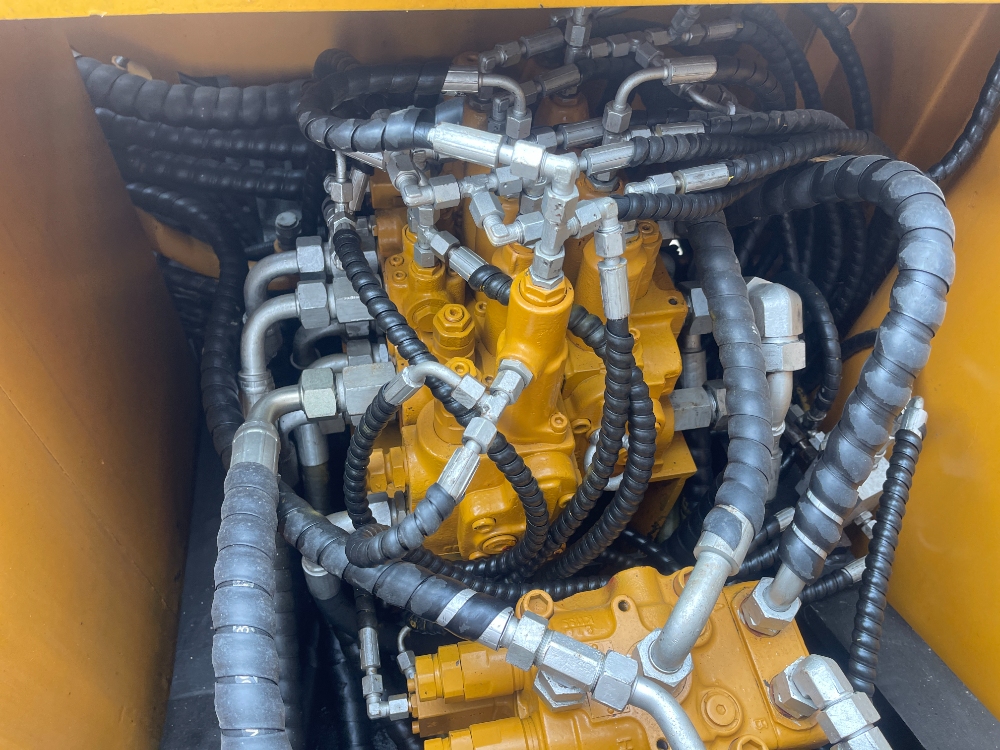

Hydraulic Pump Brand/Model

KYB

Max Hydraulic Flow

248 L/min

Travel Hydraulic Circuit

Dual hydraulic circuit

Control Hydraulic Circuit

Load-sensing hydraulic system

Fuel Tank

240 liters

Hydraulic Tank

130 liters

Engine Oil Capacity

11.2 liters

Coolant Capacity

10 liters

Transport Length

7,700 mm

Transport Width

2,500 mm

Transport Height

2,820 mm

Track Shoe Width

500 mm

Track Length

3,070 mm

Max Digging Radius

8,270 mm

Max Digging Depth

5,500 mm

Max Digging Height

8,380 mm

Max Dumping Height

6,080 mm

Max Vertical Digging Depth

4,620 mm

Fuel Consumption

10-15 liters/hour

Air Conditioning

Standard

Fuel Injection Type

Direct injection

Maintenance Interval

Every 500 hours

New Machine Price

RMB 600,000-650,000

Used Machine Price

RMB 200,000-400,000 (depending on condition)

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
