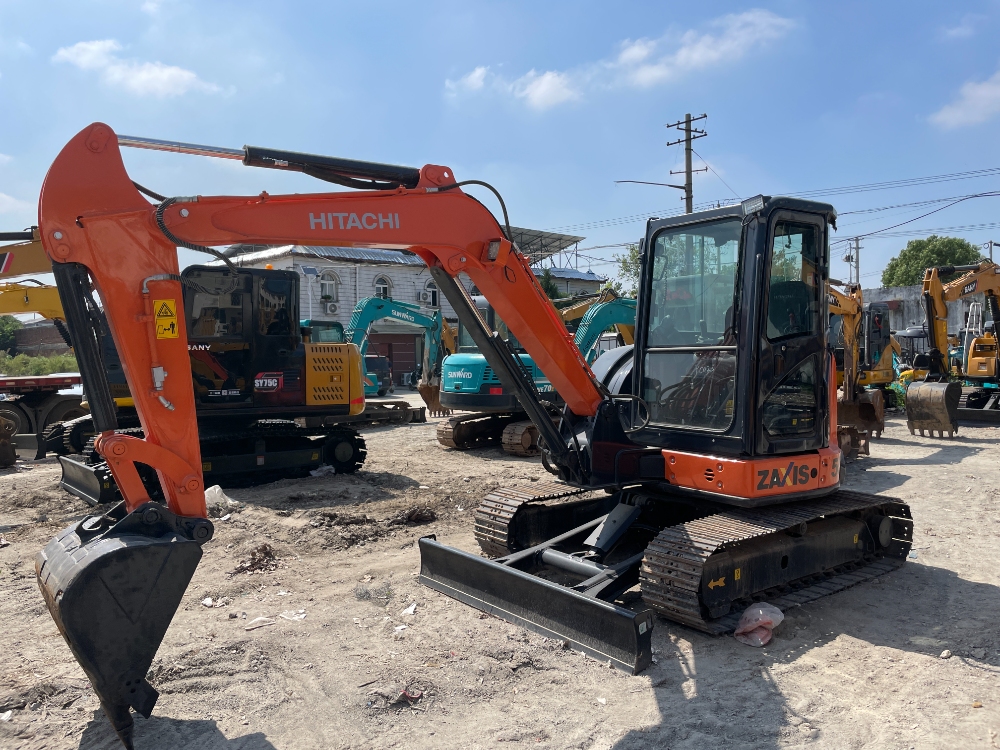

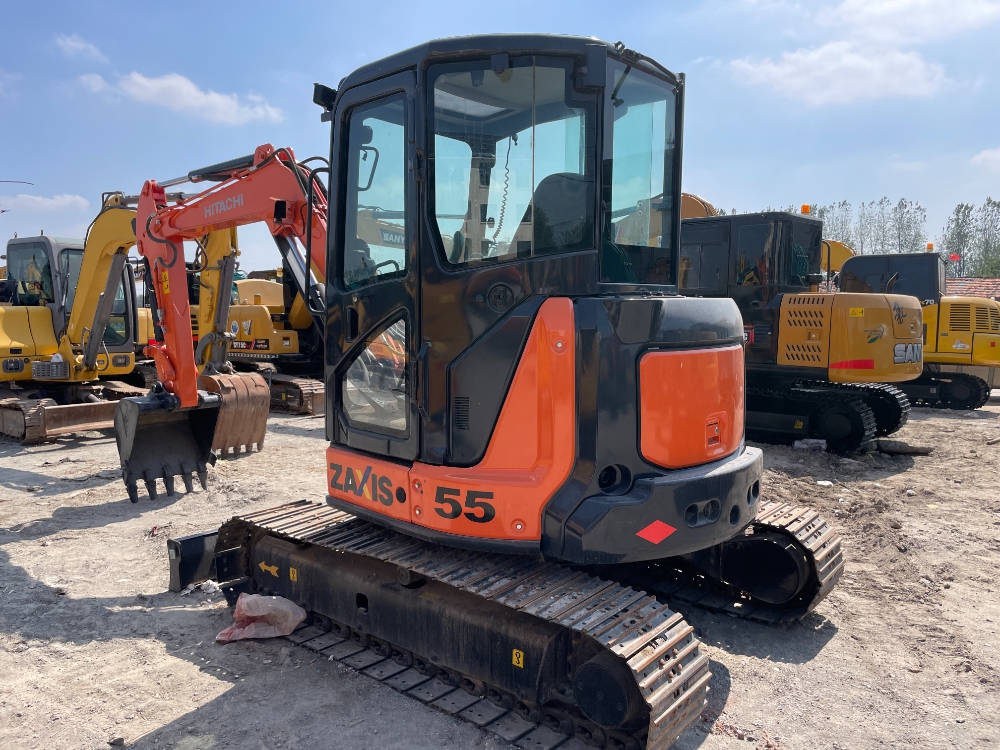

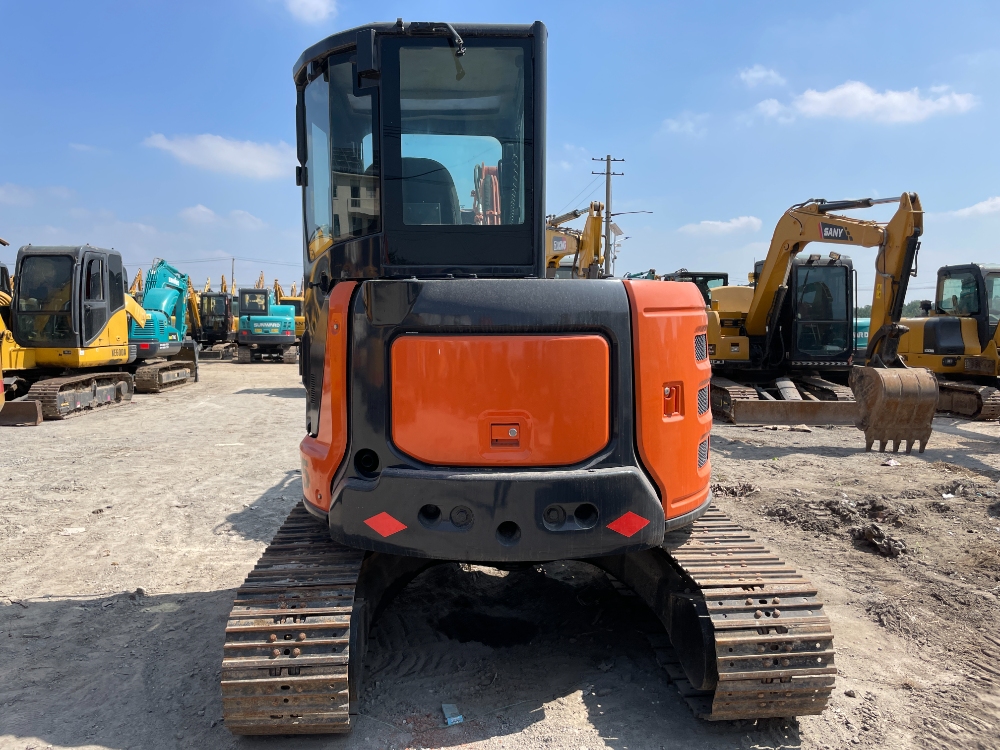

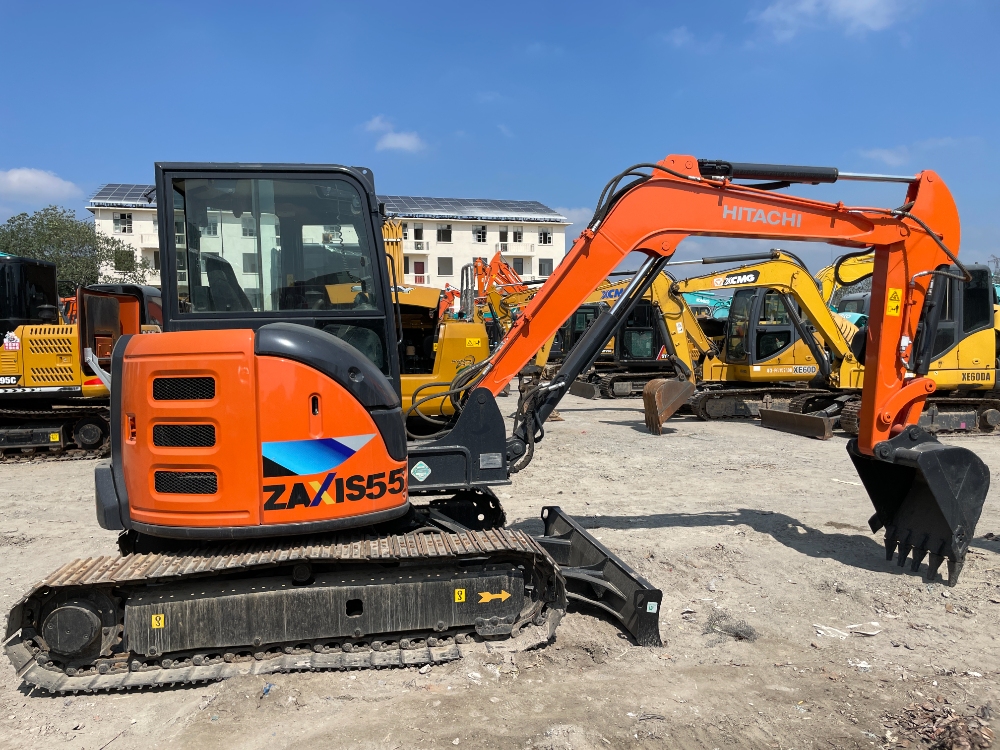

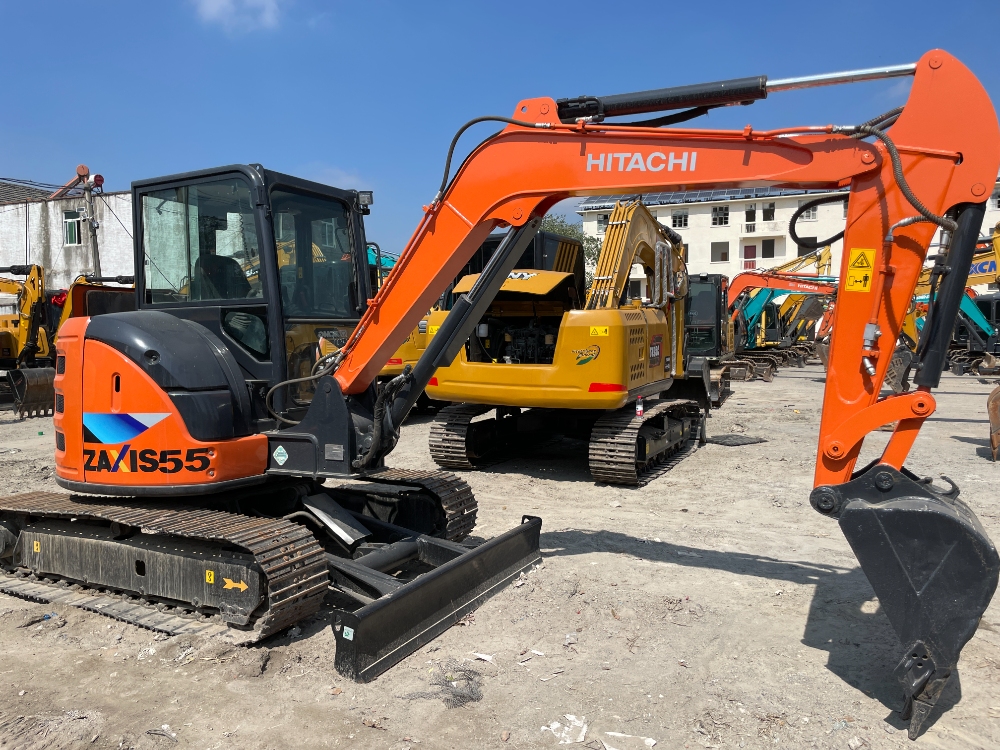

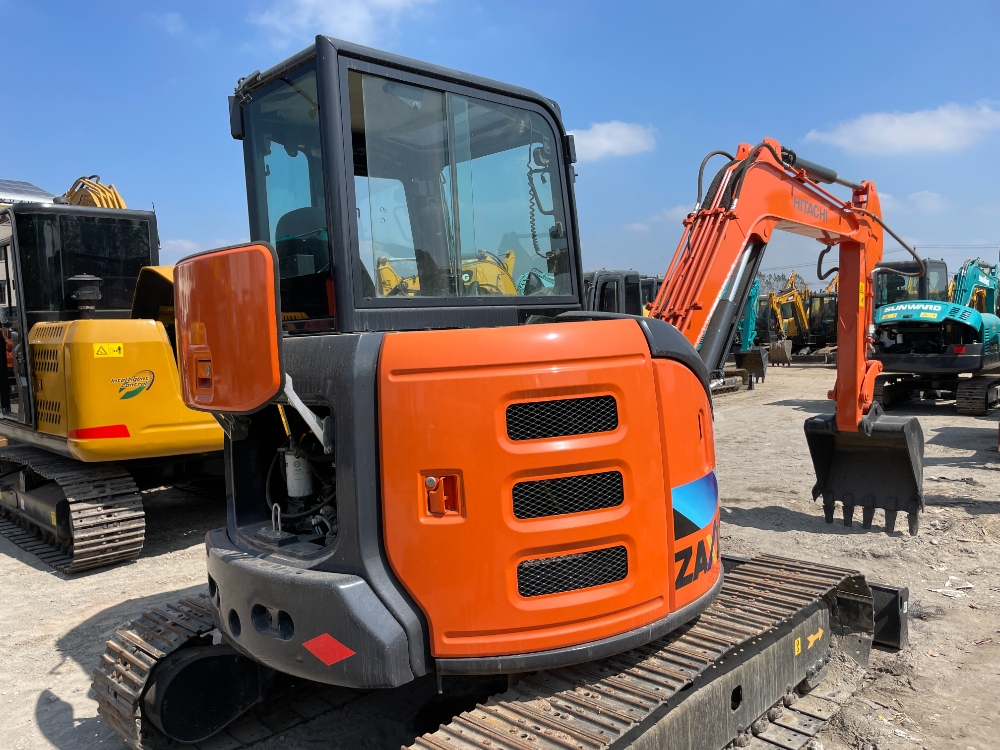

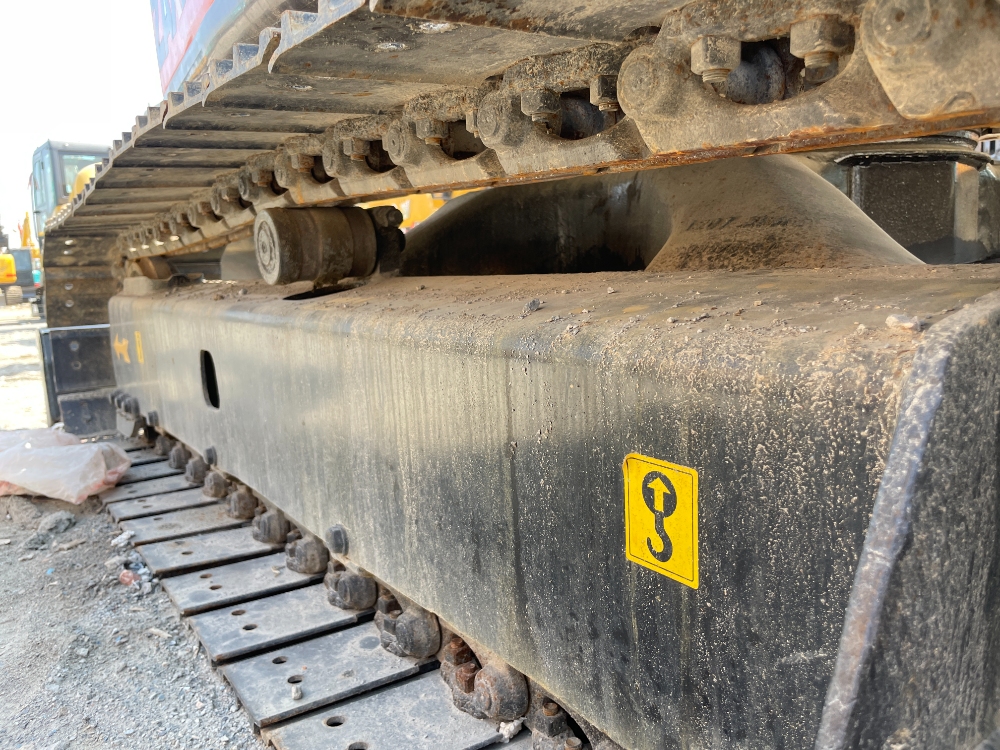

Hitachi 55USR-5A second-hand excavator No. 24104-0

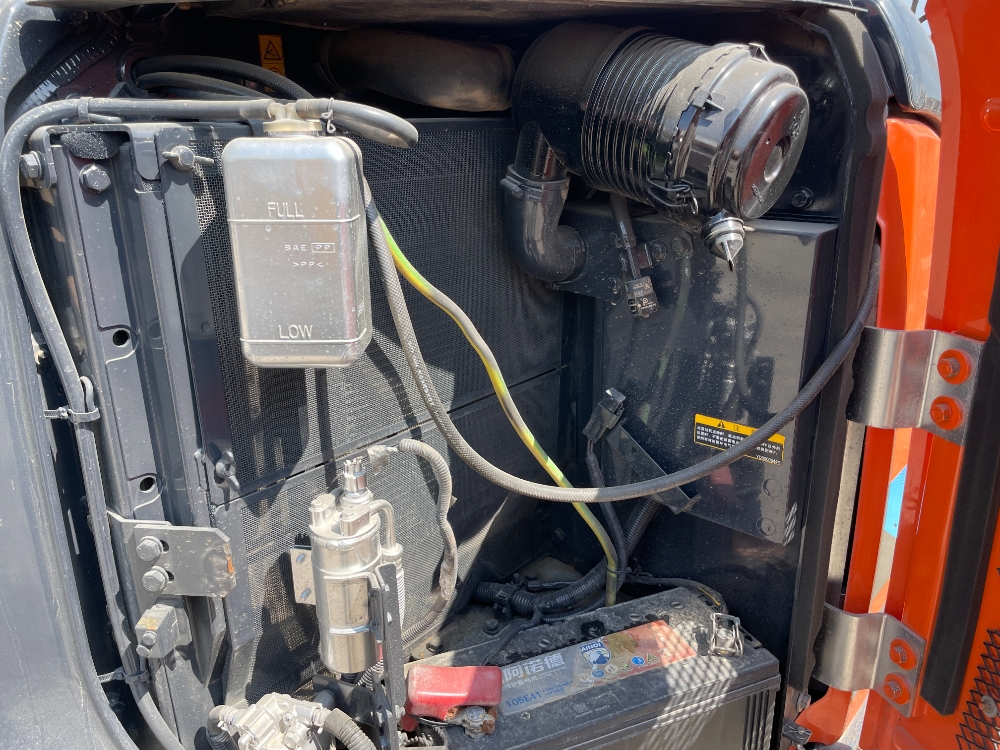

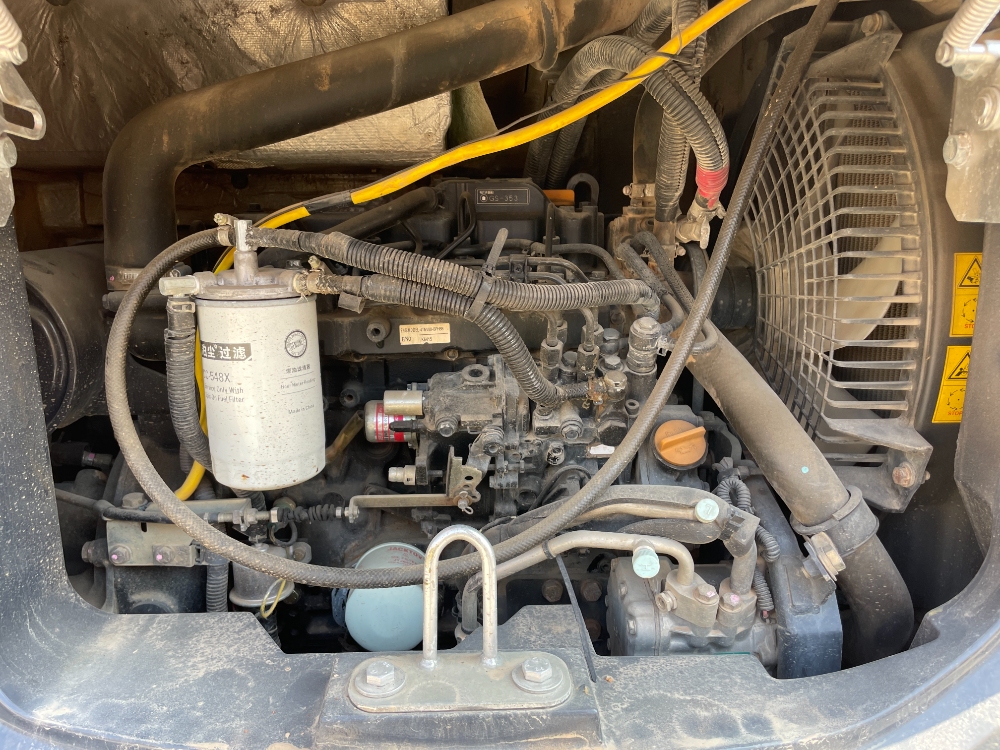

First of all, we tell you that this excavator has been repainted, but it is only the appearance. The core parts such as the engine and hydraulic pump are all original paint. It is equipped with a Yanmar 4-cylinder 4TNV88 engine with a power of 28.2Kw and a bucket capacity of 0.17m³. It is suitable for small working spaces or use in urban streets. It has high fuel economy and high stability. The current reference price is US$18.000-25.000. For users who like compact excavators, it is not only cheap, but also reliable in quality and has a stable value retention rate in the later period.
Through the iron bucket performance test, for this Hitachi compact excavator, we focus on testing the engine temperature and hydraulic pump temperature during work, especially the engine power output and the maximum flow of the hydraulic pump during long-term work, to ensure that users can use it stably after purchase. This model is easy to transport, does not need to be disassembled, and can be safely transported to any country in the world.
Item | Specification |
Brand | Hitachi |
Model | ZX55USR-5A |
Operating Weight | 5,320 kg |
Bucket Capacity | 0.17 m³ |

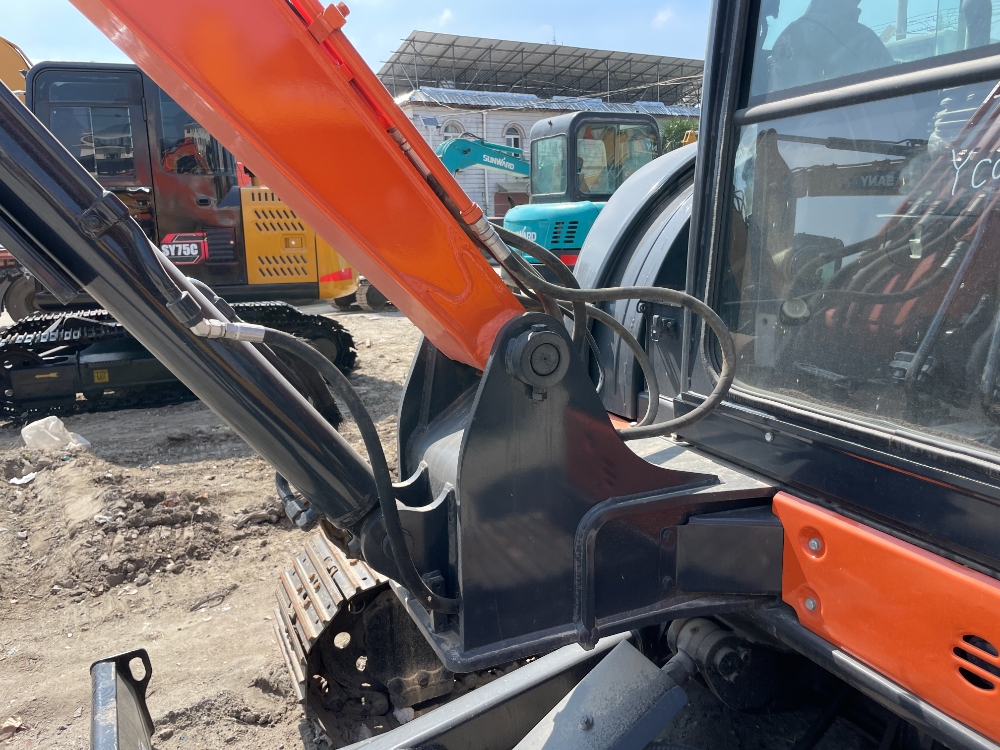

Boom Length | 2.44 m |
Arm Length | 1.25 m |
Manufacturer | Hitachi Construction Machinery |
Swing Speed | 9.1 rpm |
Travel Speed | 2.7 - 4.7 km/h |
Gradeability | 30 degrees |
Ground Pressure | 0.34 kg/cm² |
Bucket Digging Force | 41.1 kN |
Arm Digging Force | 27.5 kN |
Engine Model | Yanmar 4TNV88 |
Engine Power | 28.2 kW (38 HP) |
Displacement | 2.19 L |
Number of Cylinders | 4 |
Bore and Stroke | 88 mm x 90 mm |
Hydraulic Pump Brand/Model | Hitachi / Unspecified |
Max Hydraulic Flow | 135 L/min |
Travel Hydraulic Circuit | 2 x 31.8 L/min |
Control Hydraulic Circuit | 2 x 100 L/min |
Fuel Tank Capacity | 80 L |
Hydraulic Tank Capacity | 40 L |
Engine Oil Capacity | 8.6 L |
Coolant Capacity | 4.5 L |
Transport Length | 5,580 mm |
Transport Width | 1,960 mm |
Transport Height | 2,530 mm |

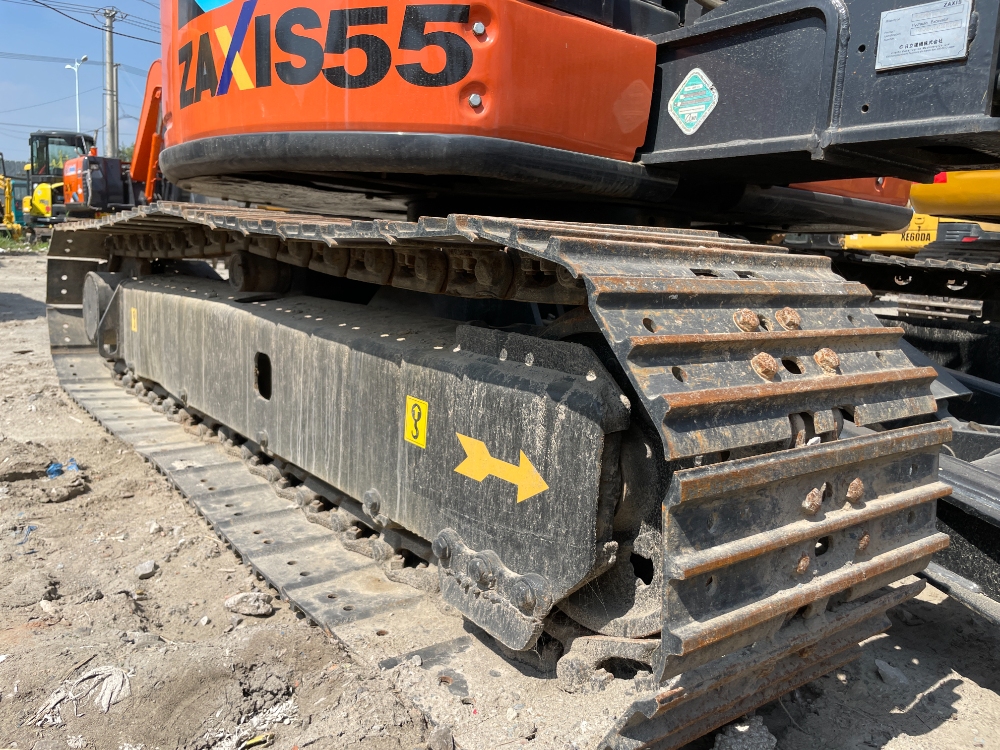

Track Shoe Width | 400 mm |
Track Shoe Length | 2,530 mm |
Max Digging Radius | 6,170 mm |
Max Digging Depth | 3,890 mm |
Max Digging Height | 5,880 mm |
Max Dumping Height | 4,130 mm |
Max Vertical Digging Depth | 3,060 mm |
Fuel Consumption | Approx. 7-8 L/h |

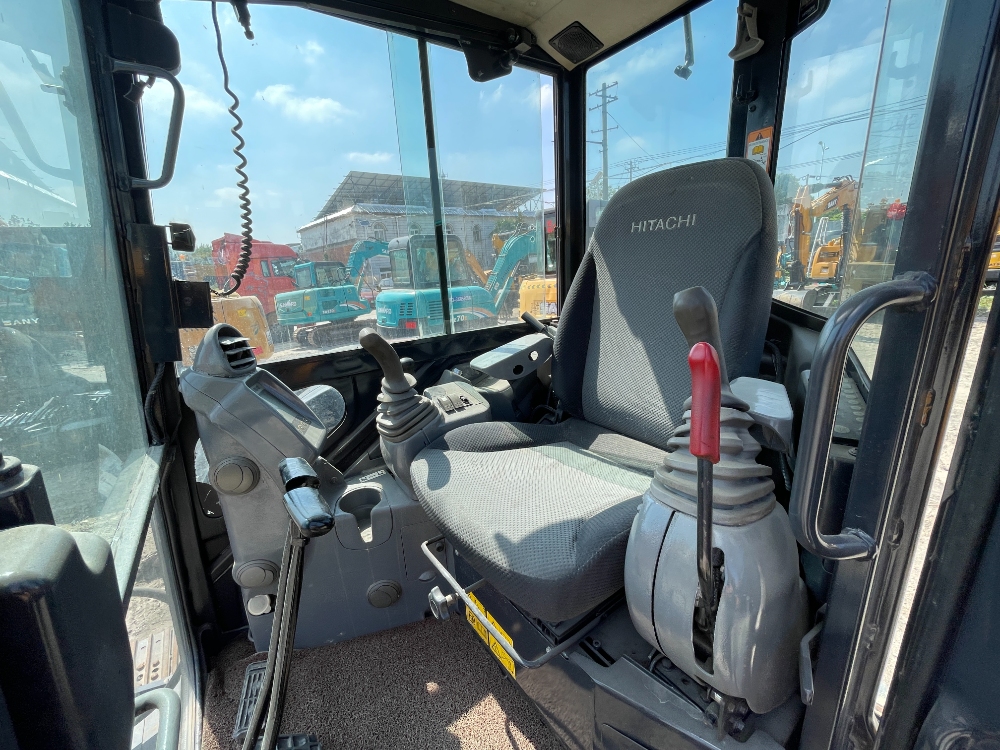

Air Conditioning | Equipped |
Fuel Injection | Direct |
Maintenance Interval | Every 500 hours |
New Machine Price | Approx. 40,000 - 45000 USD |
Used Machine Price | Approx. 18,000 - 25,000 USD |
Product Features
-
Rich models
Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.
-
Complete accessories
Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.
-
Customized production
Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.
-
Brand warranty
Famous brand, reliable quality, long service life, worry-free after-sales.
