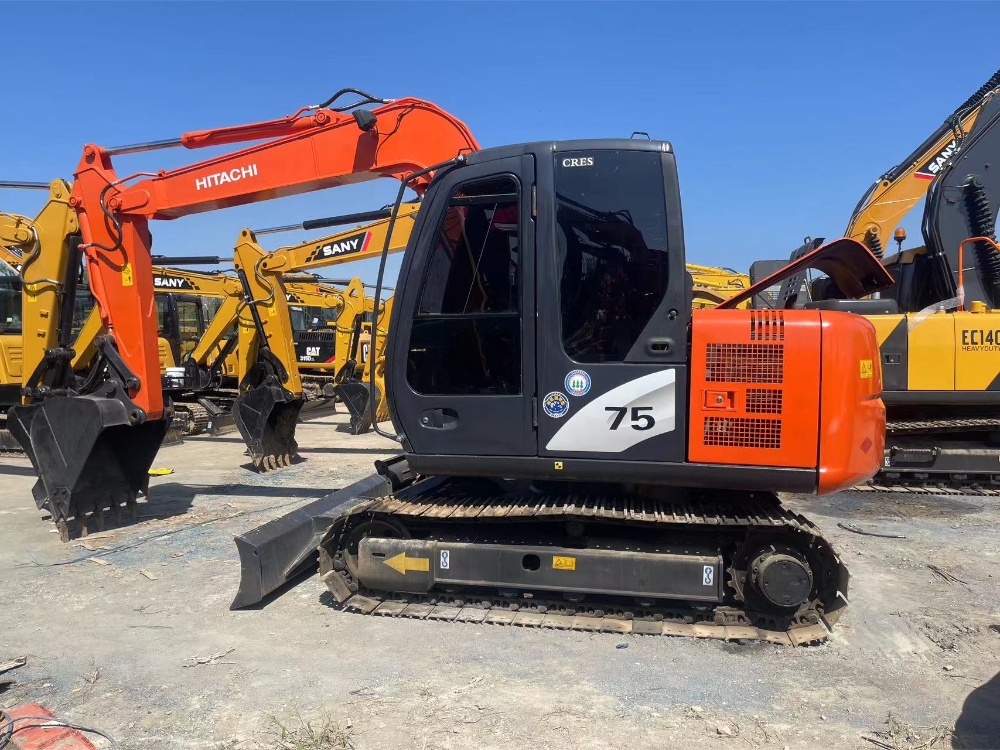

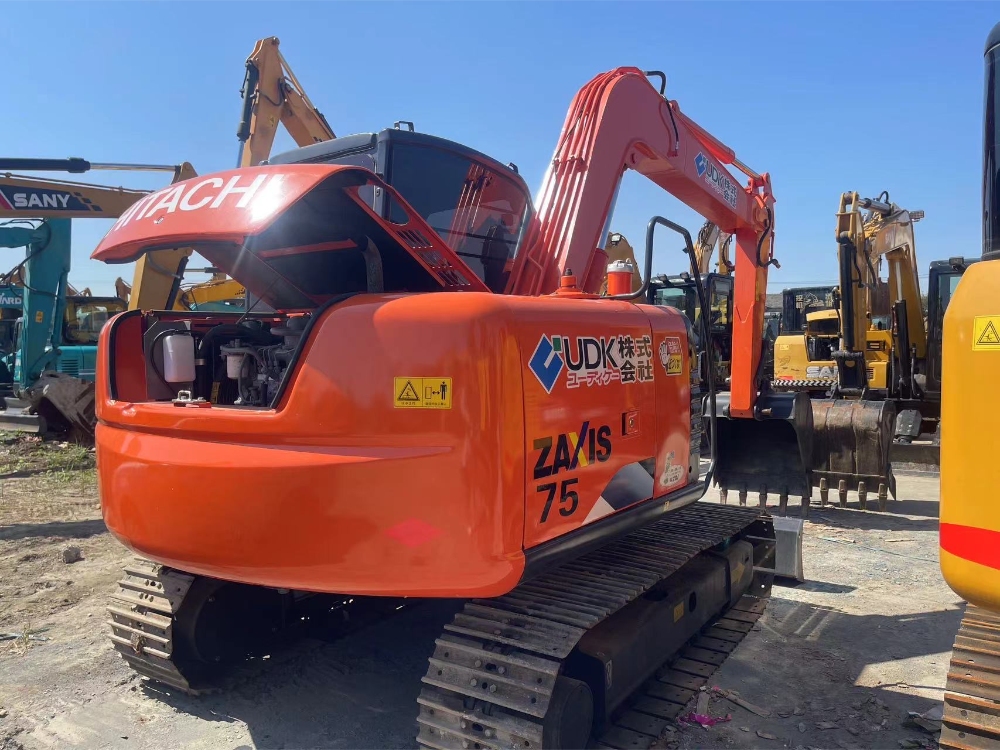

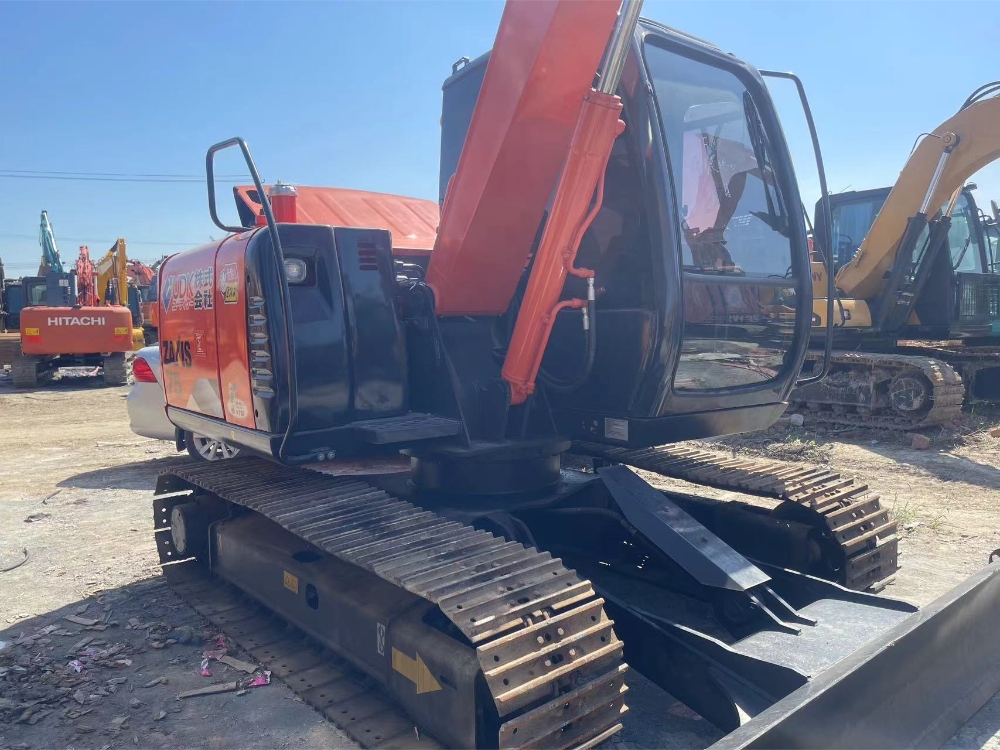

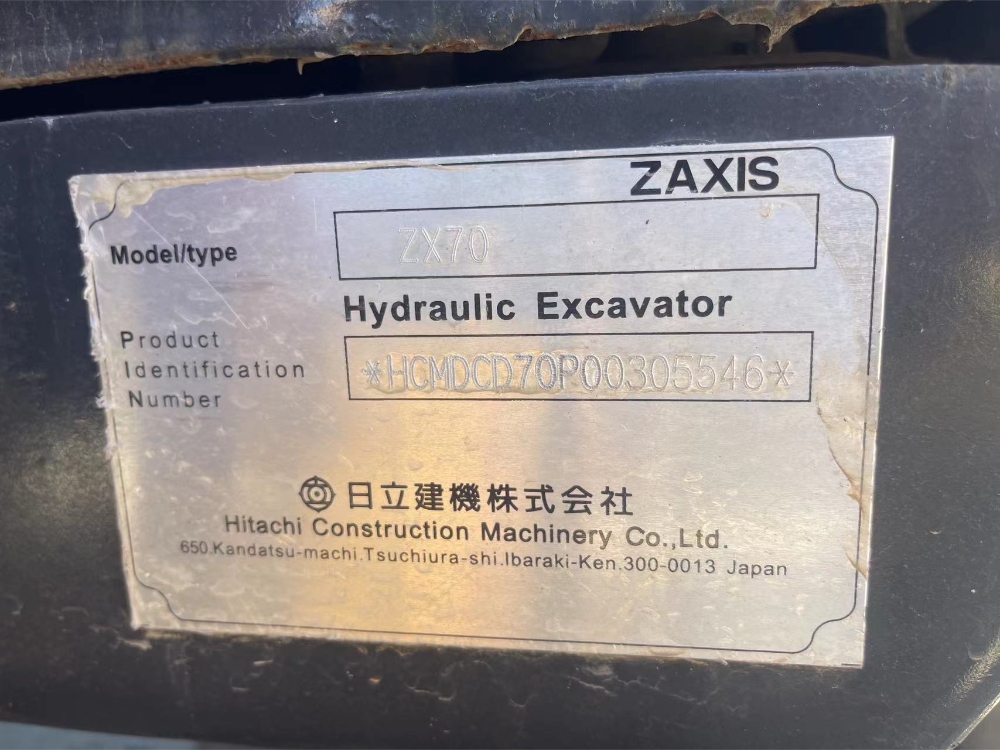

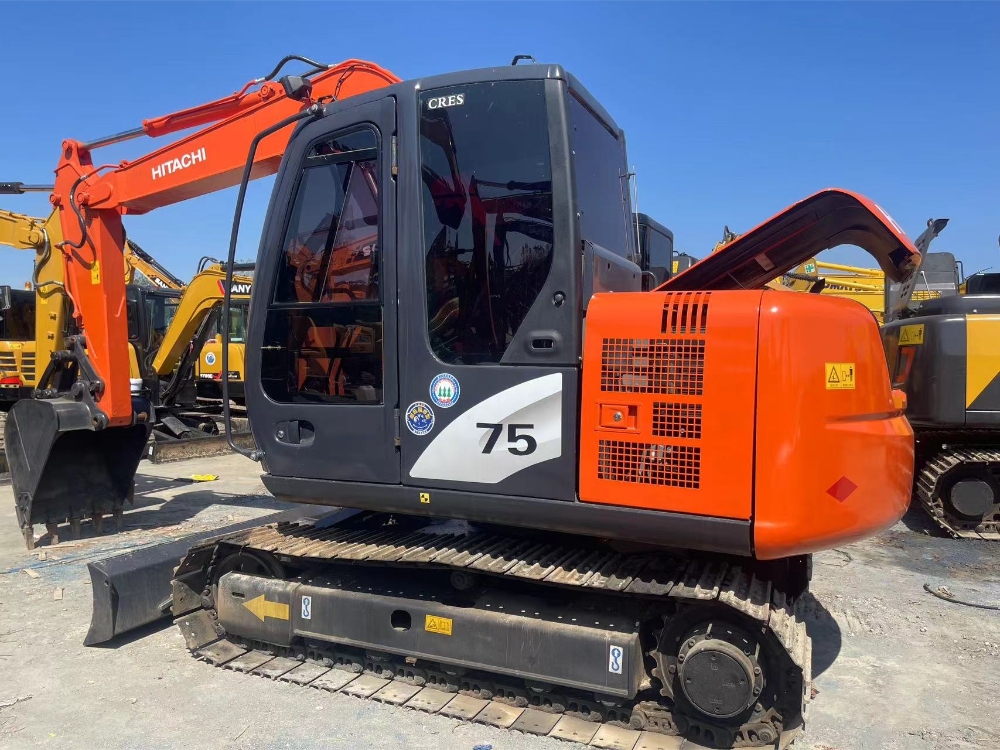

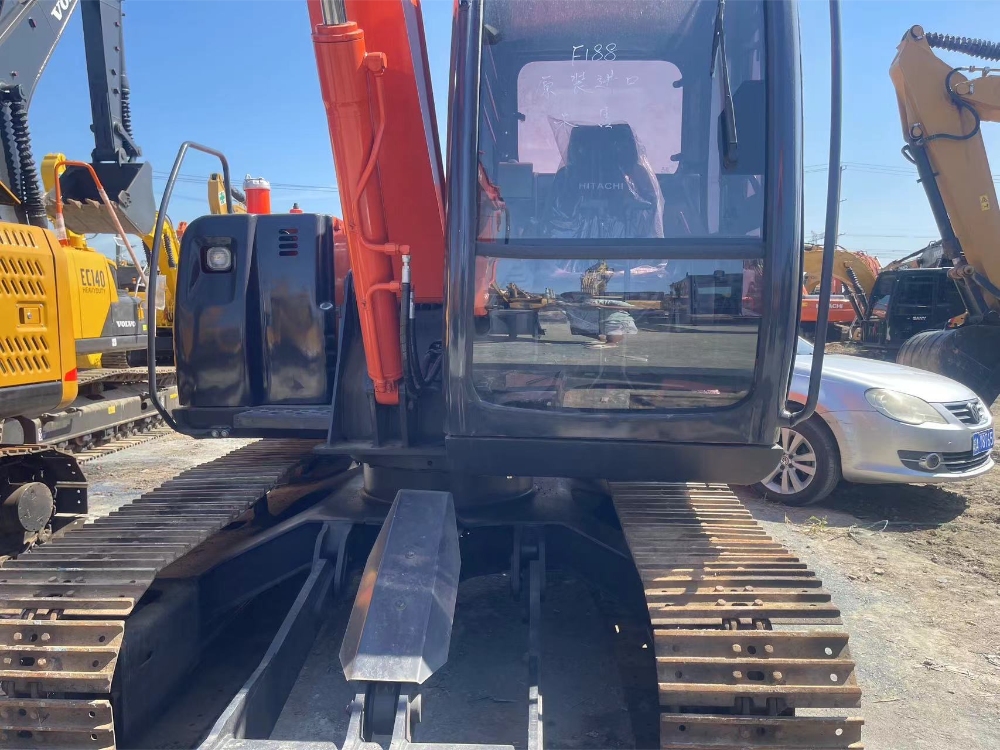

Hitachi ZX70 used excavator - No. 24105

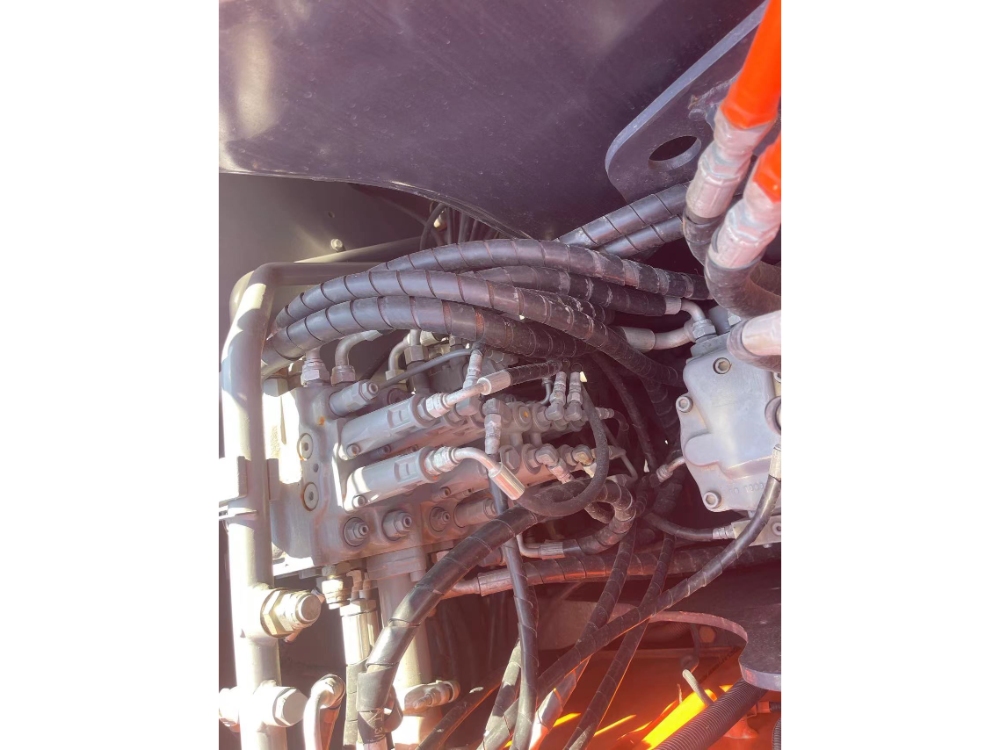

First of all, we tell you that this is not a new model, why does it look so new? This is a remanufacture, not just a repaint. We have carried out comprehensive maintenance and care for the engine, hydraulic pump, multi-way valve and every detail. All the worn parts are replaced with original parts. The current market reference price of Hitachi ZX70 second-hand excavator is 16.000-25.000 US dollars. This model is cheap to maintain in the later stage, with a simple structure and easy parts purchase.
In the later test, the focus is on the comprehensive stability of the Hitachi ZX70 model. The model has been carefully tested. The peak power of the engine, the maximum flow of the hydraulic pump, the clearance of the excavator, the working temperature of the excavator for more than 3 hours, the temperature of the hydraulic oil, the noise and the stability of the engine have all been tested very carefully. The final performance is very satisfactory. We provide 5 different types of warranty services for 3-12 months to reduce the purchase risk of users.
Item | Specification Details |
Brand | Hitachi |
Model | ZX70 |
Operating Weight | 6,800 kg |
Bucket Capacity | 0.3 cubic meters |
Boom Length | 3.56 meters |
Arm Length | 1.75 meters |
Manufacturer | Hitachi Construction Machinery Co., Ltd. |
Swing Speed | 12 rpm |
Travel Speed | 2.5 - 4.8 km/h |
Gradeability | 70% (35°) |
Ground Pressure | 30 kPa |
Bucket Digging Force | 52.1 kN |
Arm Digging Force | 38.4 kN |

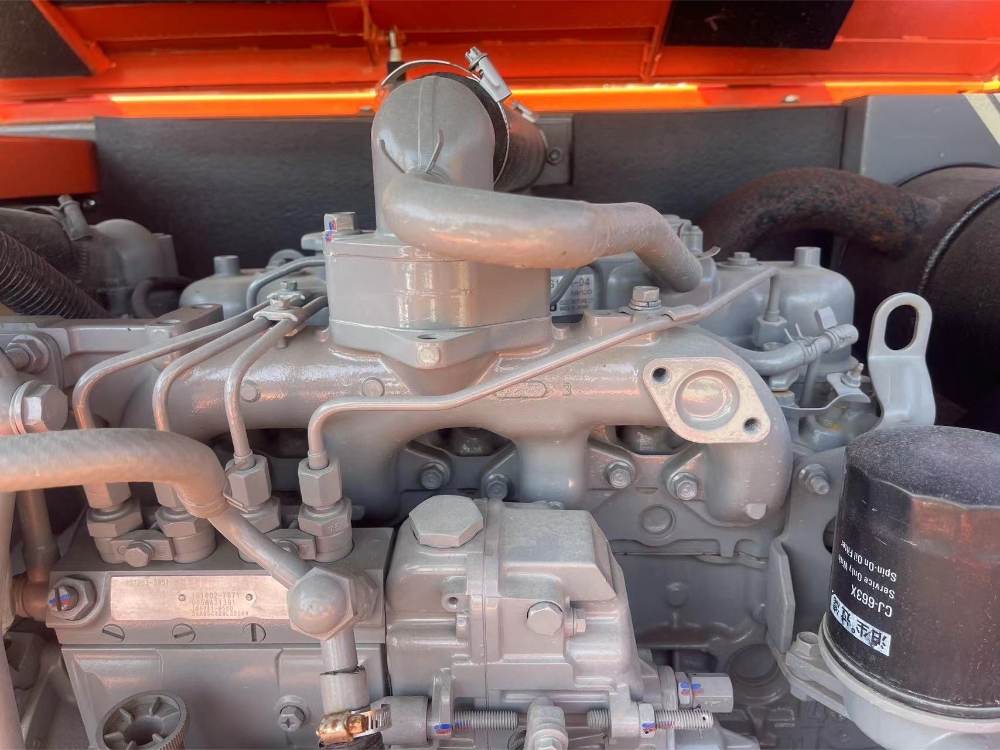

Engine Model | Isuzu 4JJ1X |
Engine Power | 41.2 kW (55.3 HP) @ 2,200 rpm |
Displacement | 3.3 liters |
Number of Cylinders | 4 |
Bore × Stroke | 98 mm × 110 mm |

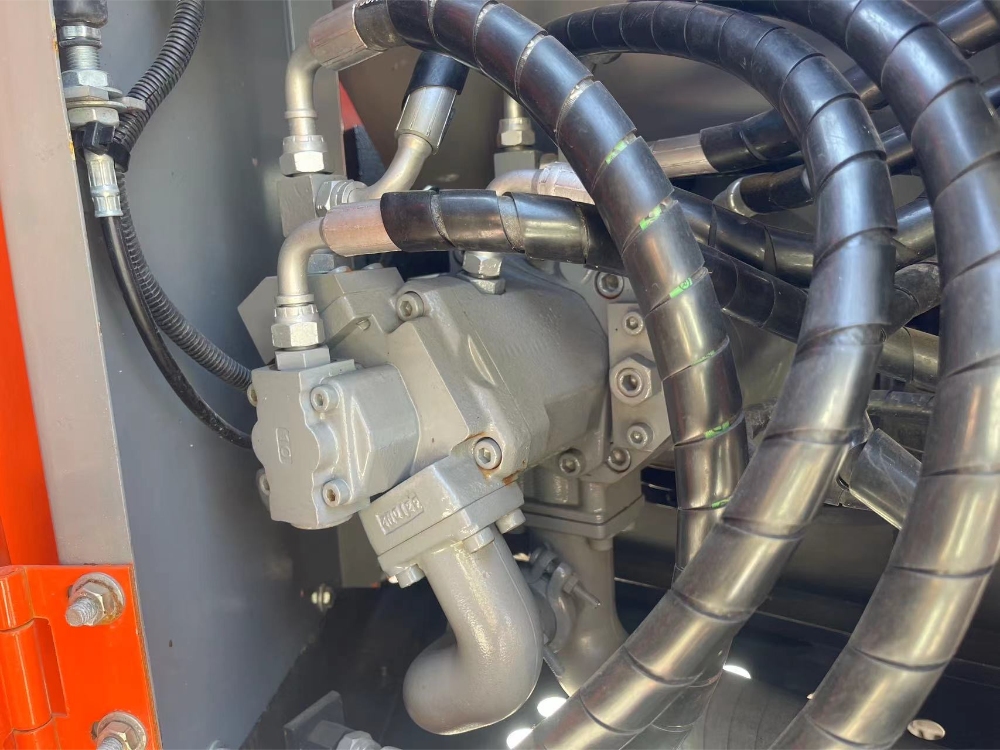

Hydraulic Pump Brand/Model | Hitachi hydraulic system, dual piston pump |
Max Hydraulic Flow | 152 liters/min |
Travel Hydraulic Circuit | 19.8 MPa |
Control Hydraulic Circuit | 21.5 MPa |
Fuel Tank Capacity | 130 liters |
Hydraulic Oil Tank Capacity | 70 liters |
Engine Oil Capacity | 11 liters |
Coolant Capacity | 11 liters |
Transport Length | 6,060 mm |
Transport Width | 2,200 mm |
Transport Height | 2,660 mm |
Track Shoe Width | 450 mm |
Track Length | 2,580 mm |
Max Digging Radius | 6,840 mm |
Max Digging Depth | 4,440 mm |
Max Digging Height | 7,180 mm |
Max Dumping Height | 5,220 mm |
Max Vertical Digging Depth | 4,160 mm |
Fuel Consumption | Approximately 6 - 8 liters/hour |

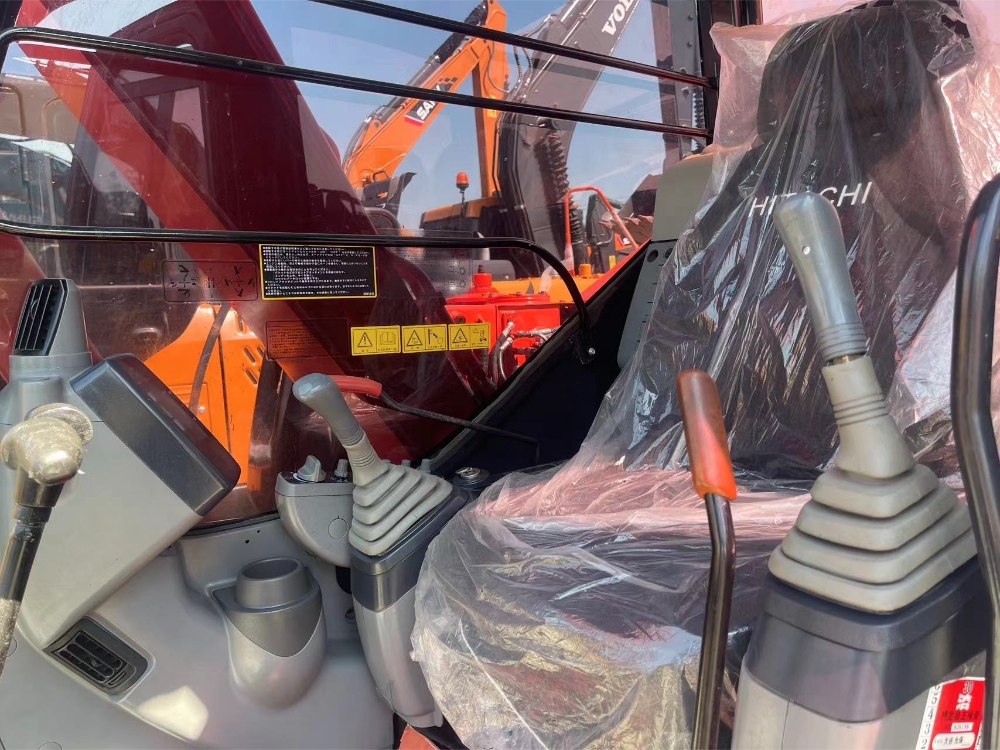

Air Conditioning | Standard equipped |
Fuel Injection Type | Direct injection |
Maintenance Interval | 500 hours (engine) |
New Machine Price Range | $60,000 - $70,000 USD |
Used Machine Price Range | $16,000 - $25,000 USD |
Product Features
-
Rich models
Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.
-
Complete accessories
Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.
-
Customized production
Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.
-
Brand warranty
Famous brand, reliable quality, long service life, worry-free after-sales.
