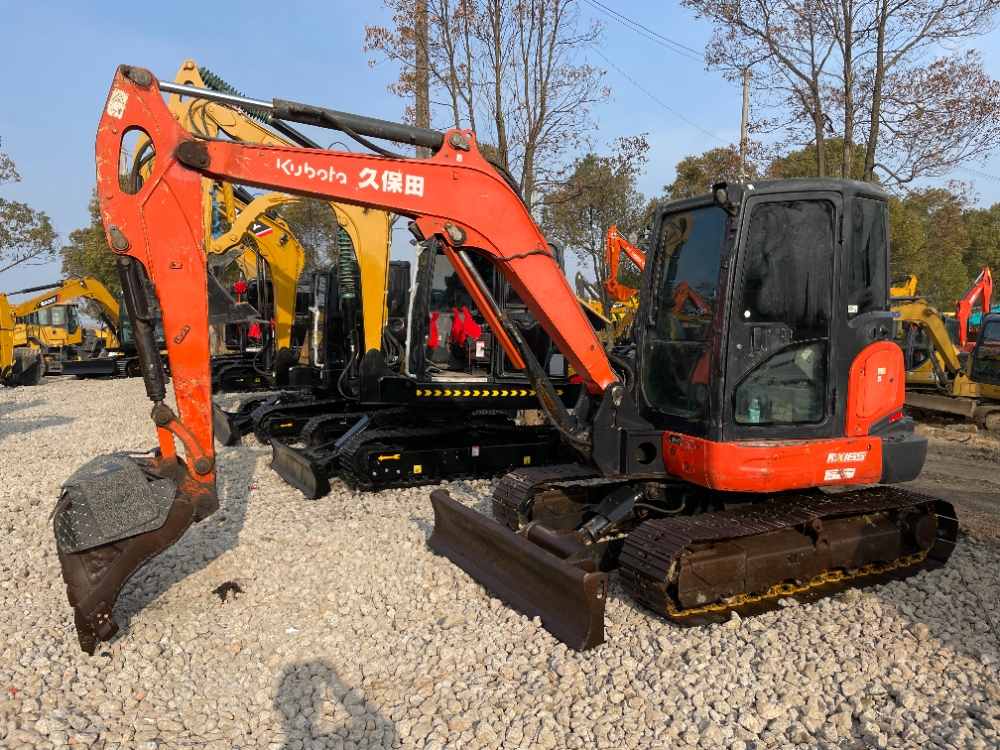

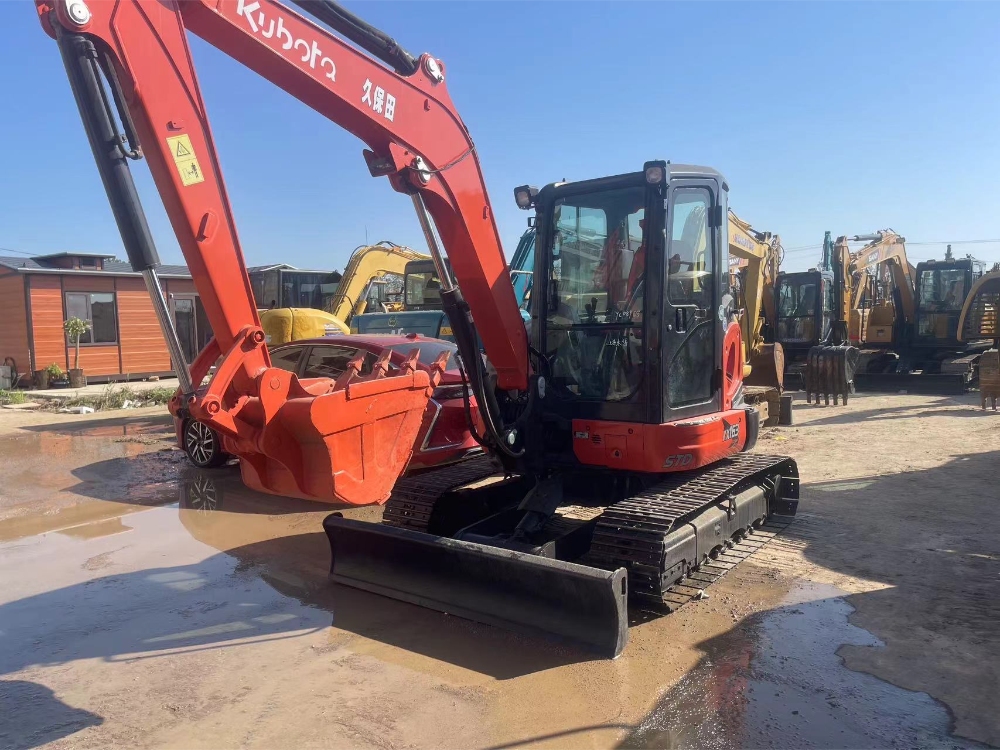

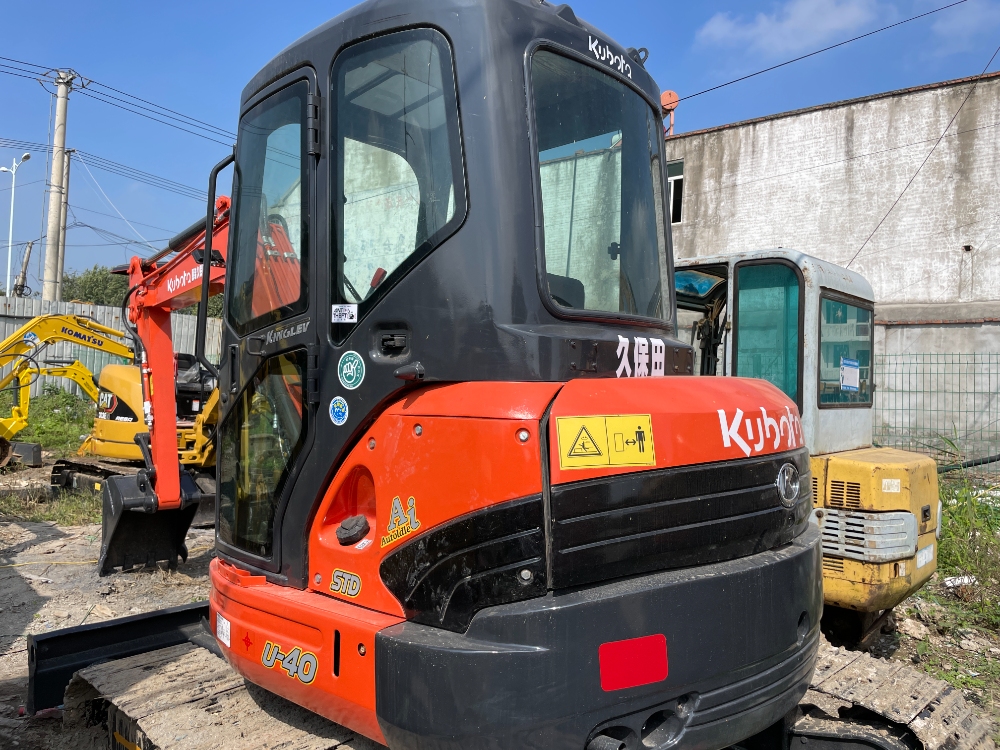

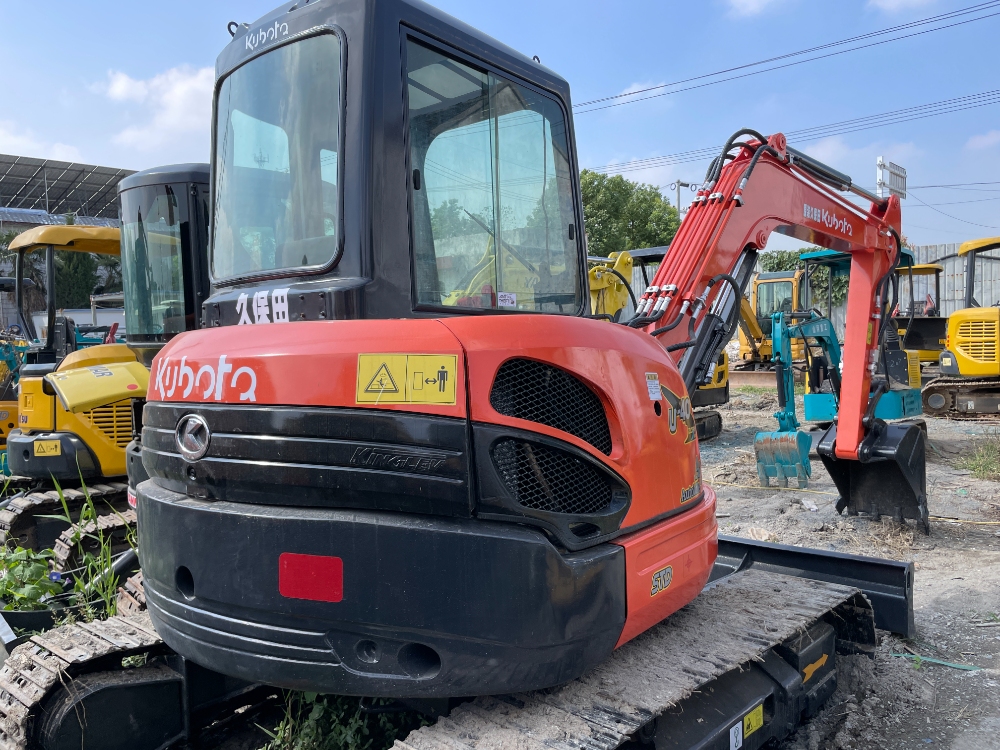

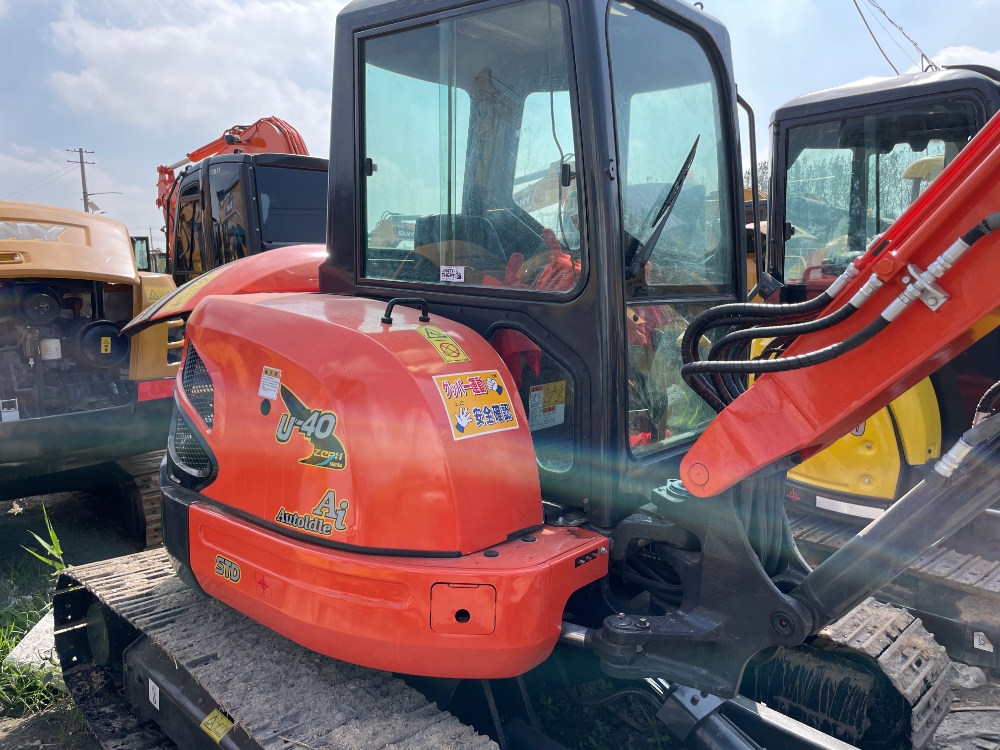

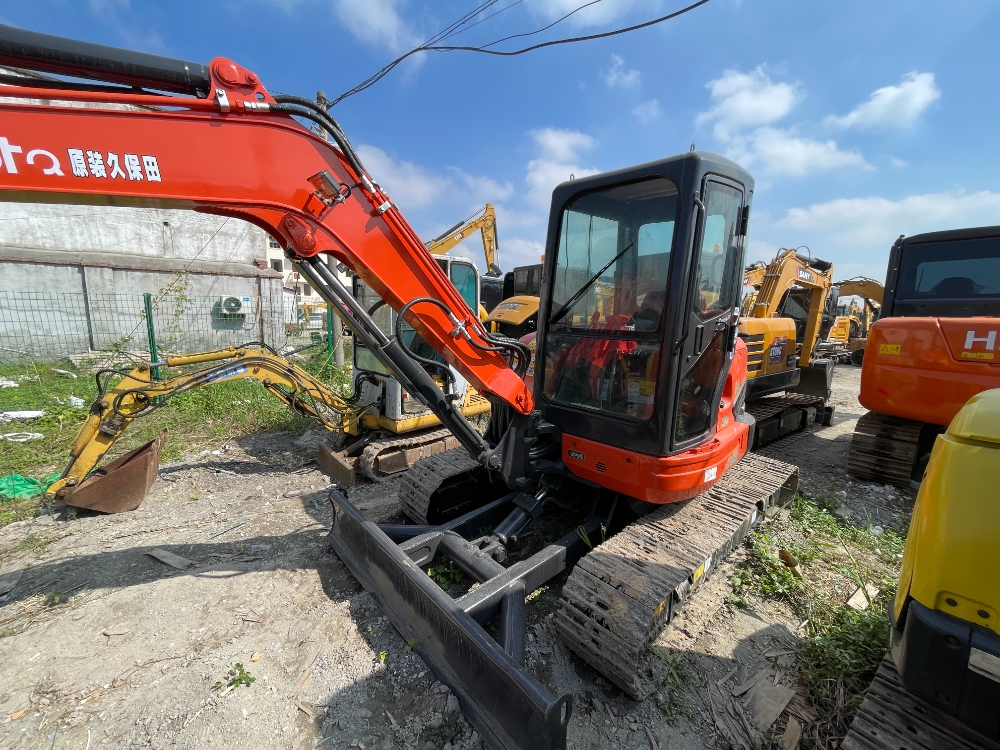

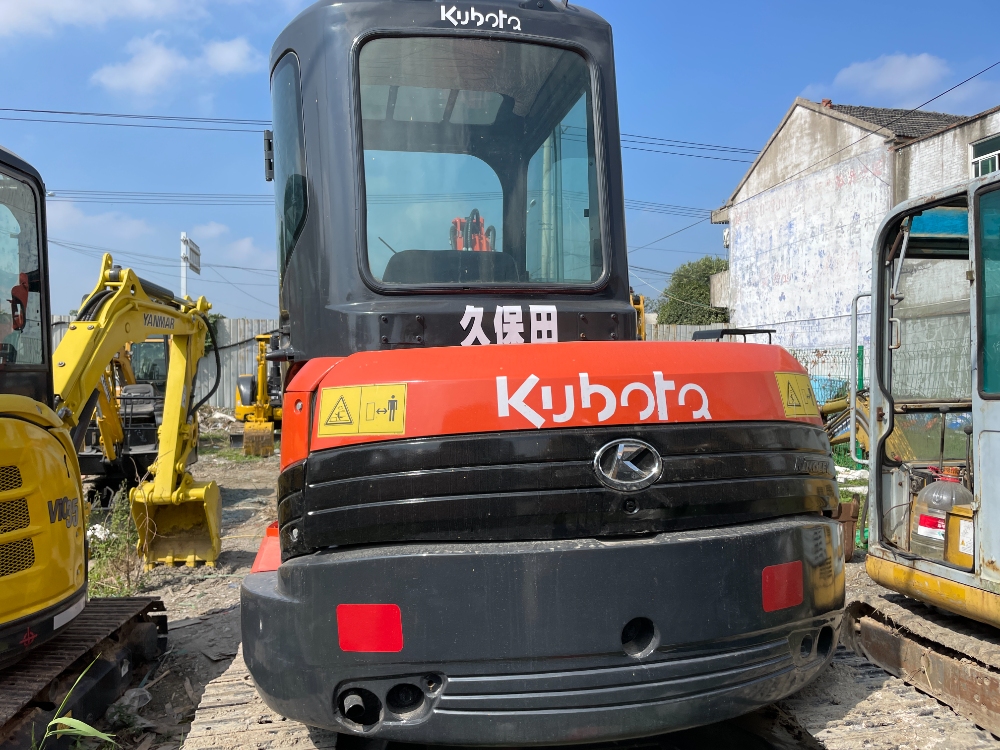

  Kubota U40 used excavator - No. 24106-0

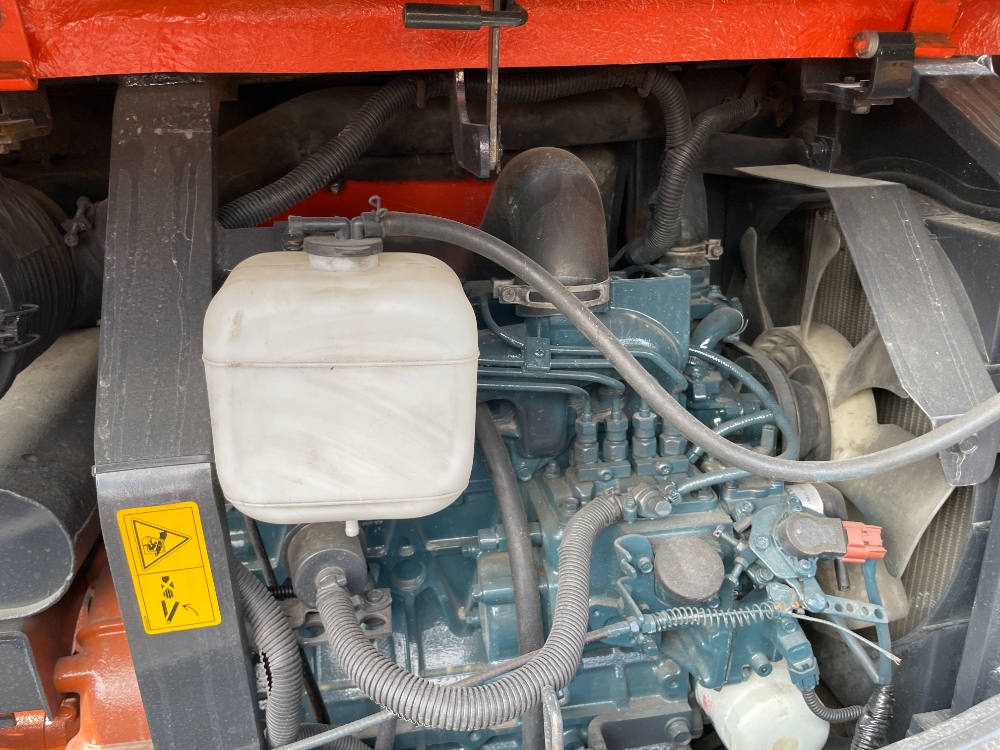

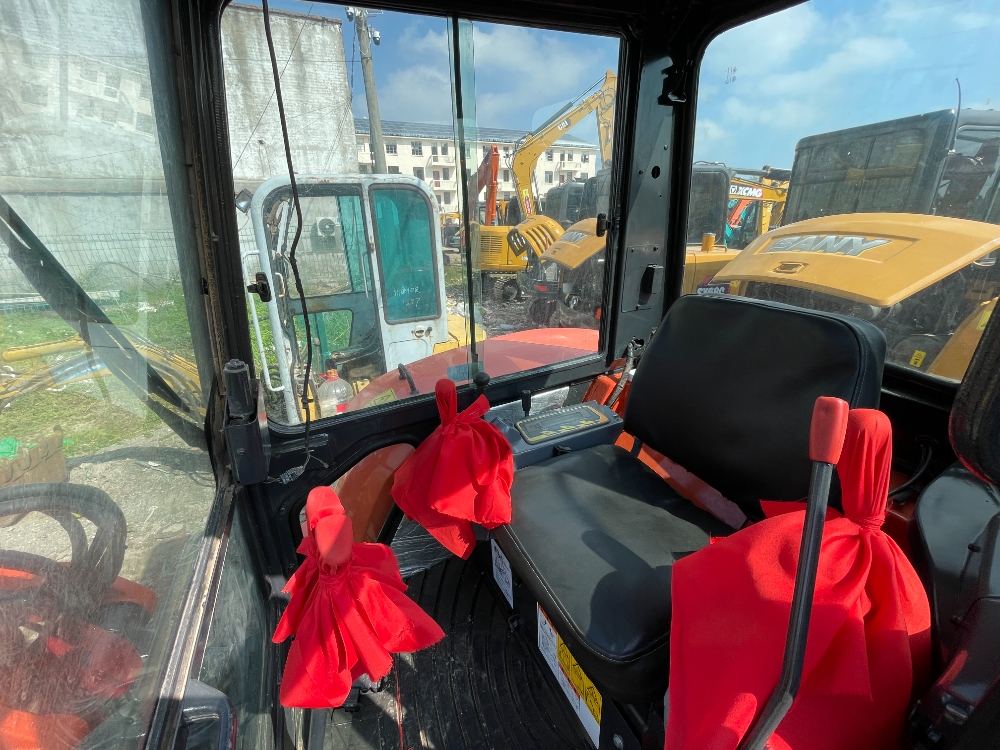

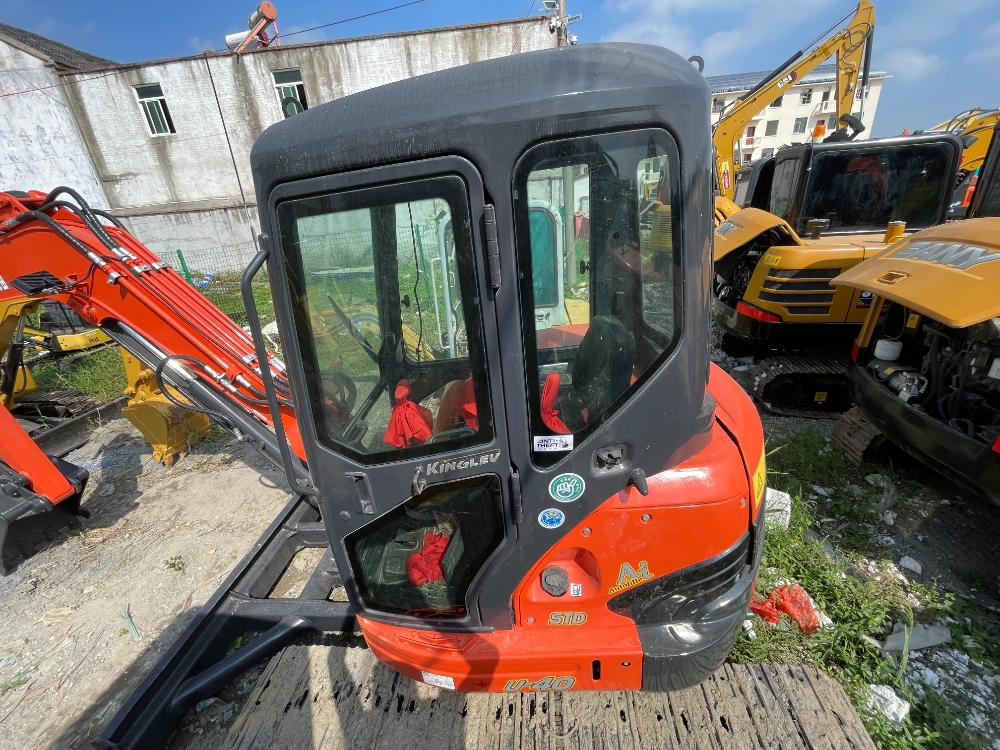

  In order to meet the export customs declaration standards, we repainted it. It is equipped with a Kubota D1703-M-E3 engine with a power of 29.4Kw and a bucket capacity of 0.12m³. As a short-tailed Mini excavator, it has sufficient performance. It has its own cockpit and air conditioning system. The internal structure layout is perfect and has a good heat dissipation channel. For a compact excavator, Kubota does have very excellent technology. The current market reference price of Tiedou second-hand excavators is: 13.000-20.000 US dollars, which is very suitable for various municipal and infrastructure construction.


  We tested the No. 24106-0 Kubota U40 and have detailed test records. For compact excavators, we focused on the temperature and performance of the excavator during use. The performance of each test met the use requirements. The operator gave a high evaluation of the Kubota experience, smooth operation, coordinated movements, excellent rotation, movement and excavation performance. This excavator equipped with a Kubota engine has excellent fuel economy. Tiedou highly recommends it as your first choice.


Item

Specifications

Brand

Kubota

Model

U40

Operating Weight

4,000 kg

Bucket Capacity

0.12 m³

Boom Length

2,300 mm

Arm Length

1,200 mm

Manufacturer

Kubota Corporation

Swing Speed

9 rpm

Travel Speed

2.5-4.5 km/h

Gradeability

30°

Ground Pressure

28 kPa

Bucket Digging Force

30 kN

Arm Digging Force

20 kN

Engine Model

Kubota D1703-M-E3

Engine Power

29.4 kW / 2,400 rpm

Displacement

1.647 L

Number of Cylinders

3

Bore x Stroke

87 x 92.4 mm

Hydraulic Pump Brand/Model

Kubota Hydraulic Pump

Maximum Hydraulic Flow

88 L/min

Travel Hydraulic Circuit Pressure

20.6 MPa

Control Hydraulic Circuit Pressure

16.2 MPa

Fuel Tank Capacity

60 L

Hydraulic Oil Tank Capacity

50 L

Engine Oil Change Capacity

7.2 L

Coolant Capacity

5 L

Transport Length

5,400 mm

Transport Width

1,960 mm

Transport Height

2,550 mm

Track Shoe Width

400 mm

Track Length

2,500 mm

Maximum Digging Radius

5,900 mm

Maximum Digging Depth

3,500 mm

Maximum Digging Height

5,800 mm

Maximum Dumping Height

4,100 mm

Maximum Vertical Digging Depth

3,200 mm

Fuel Consumption

5.2 L/h

Air Conditioning

Standard

Fuel Injection

Direct Injection

Maintenance Interval

250 hours

New Machine Price (USD)

45,000 - 50,000 USD

Used Machine Price (USD)

13,000 - 20,000 USD

Product Features

Rich models

Rich models

Excavators weighing from 600KG to large crawler excavators weighing up to 70 tons to meet the needs of different customers.

Complete accessories

Complete accessories

Unit is equipped with a variety of working accessories, such as hydraulic hammer, hydraulic wood clamp, dril, etc., to meet the needs of different scenarios.

Customized production

Customized production

Can be customized for customer production, supporting custom paint spraying, custom protective net, air conditioning cab, torque arm, etc.

Brand warranty

Brand warranty

Famous brand, reliable quality, long service life, worry-free after-sales.
